Pulse channel

A Pulse channel has one zone. When a vehicle enters the zone,
the channel output will pulse once and then turn off. This channel
is primarily used for arrival data collection for signal coordination.

Setting up a Pulse channel

Click a channel tab and then click the Enabled checkbox.
1
Enter a channel name.
2
Select Pulse from the Type drop-down menu.
3
Change the desired settings and click OK.
4
Setting
Channel settings
Name
Type
Enabled

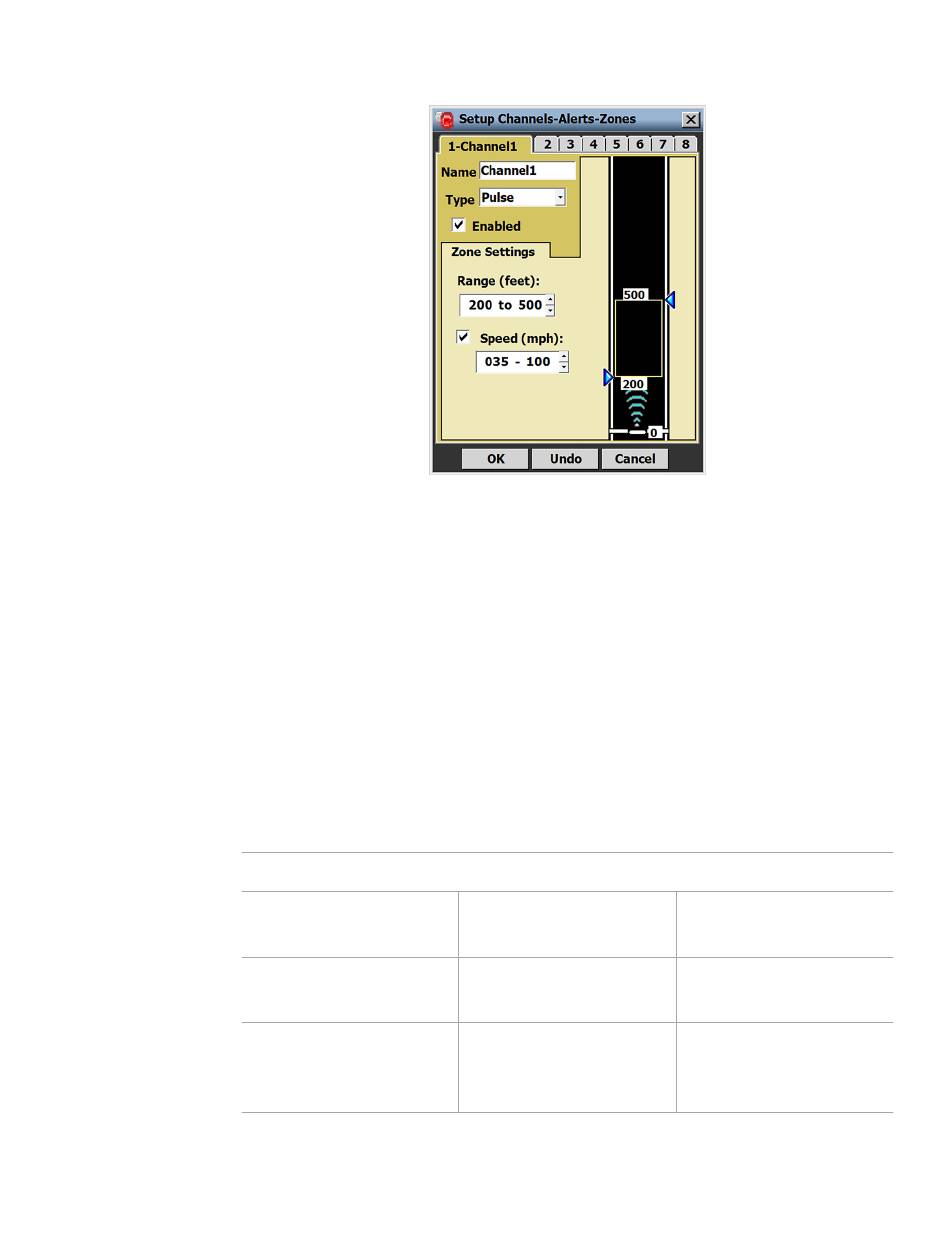

Figure 63. Pulse channel
Description
Lets you set a name
for the channel.
Lets you select the
channel type.
Turns the channel on.
Details
This setting is
optional.
Select Pulse here.
This checkbox must
be checked for
normal operation.
