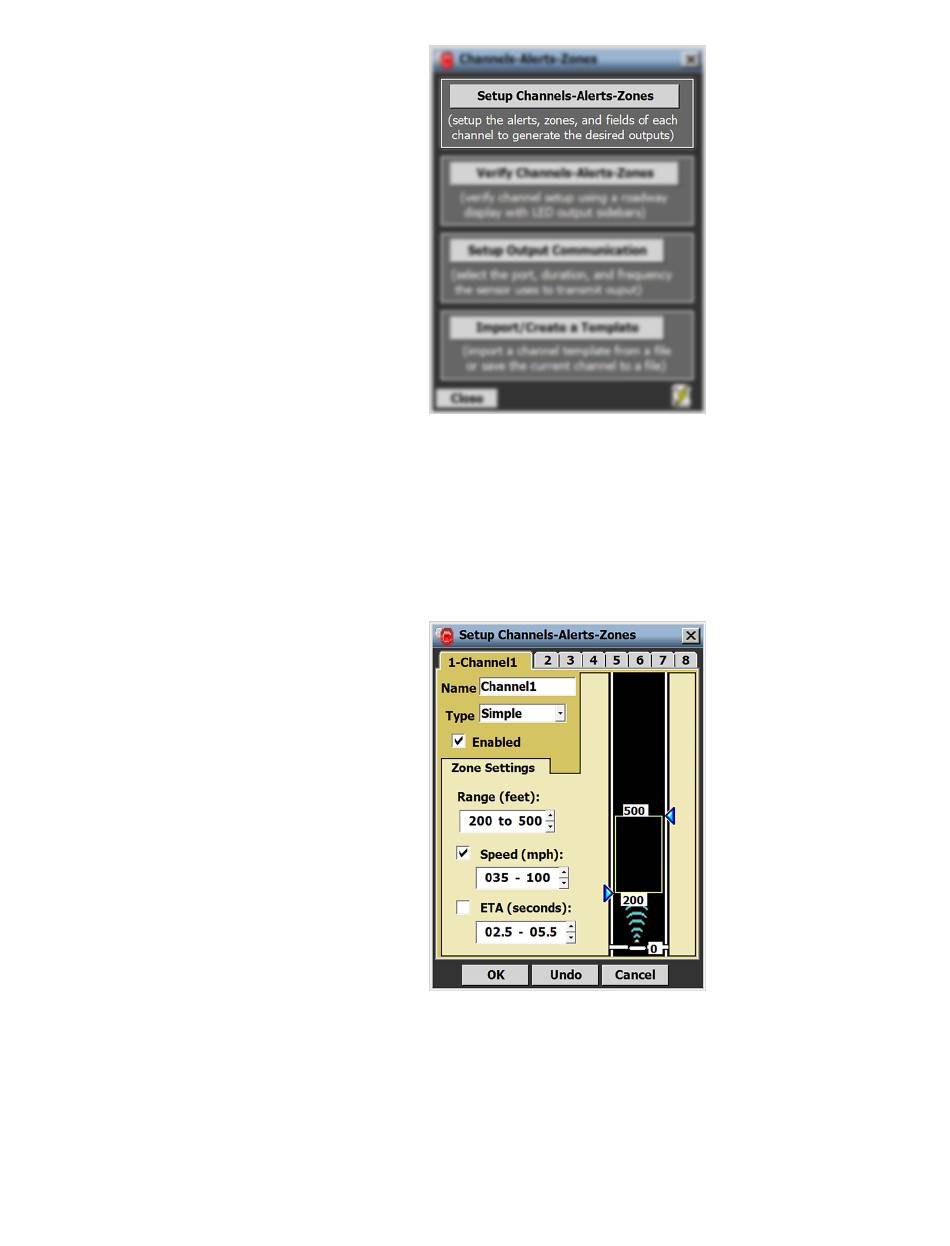

Figure 57. Setup Channels-Alerts-Zones button
Click Setup Channels-Alerts-Zones on the Channels-Alerts-Zones
screen.
Simple Channel
Figure 58. Simple channel
A Simple channel consists of only one zone. A Simple channel's
output will be triggered when its zone settings are met. This chan-
nel is commonly used for basic dynamic dilemma zone applications.
SmartSensor Advance User Guide
54
•
