Mounting on a vertical pole

Lets you place the sensor near the stop bar.
˿
Allows the sensor to be mounted high enough to reduce
˿
occlusion.
Mount close to the lanes of interest to prevent departing traffic
˿
from occluding approaching vehicles.

Mounting on a luminaire

Allows you to place the sensor within the maximum offset and
˿
increase the mounting height.
Mount close to the lanes of interest to prevent departing traffic
˿
from occluding approaching vehicles.

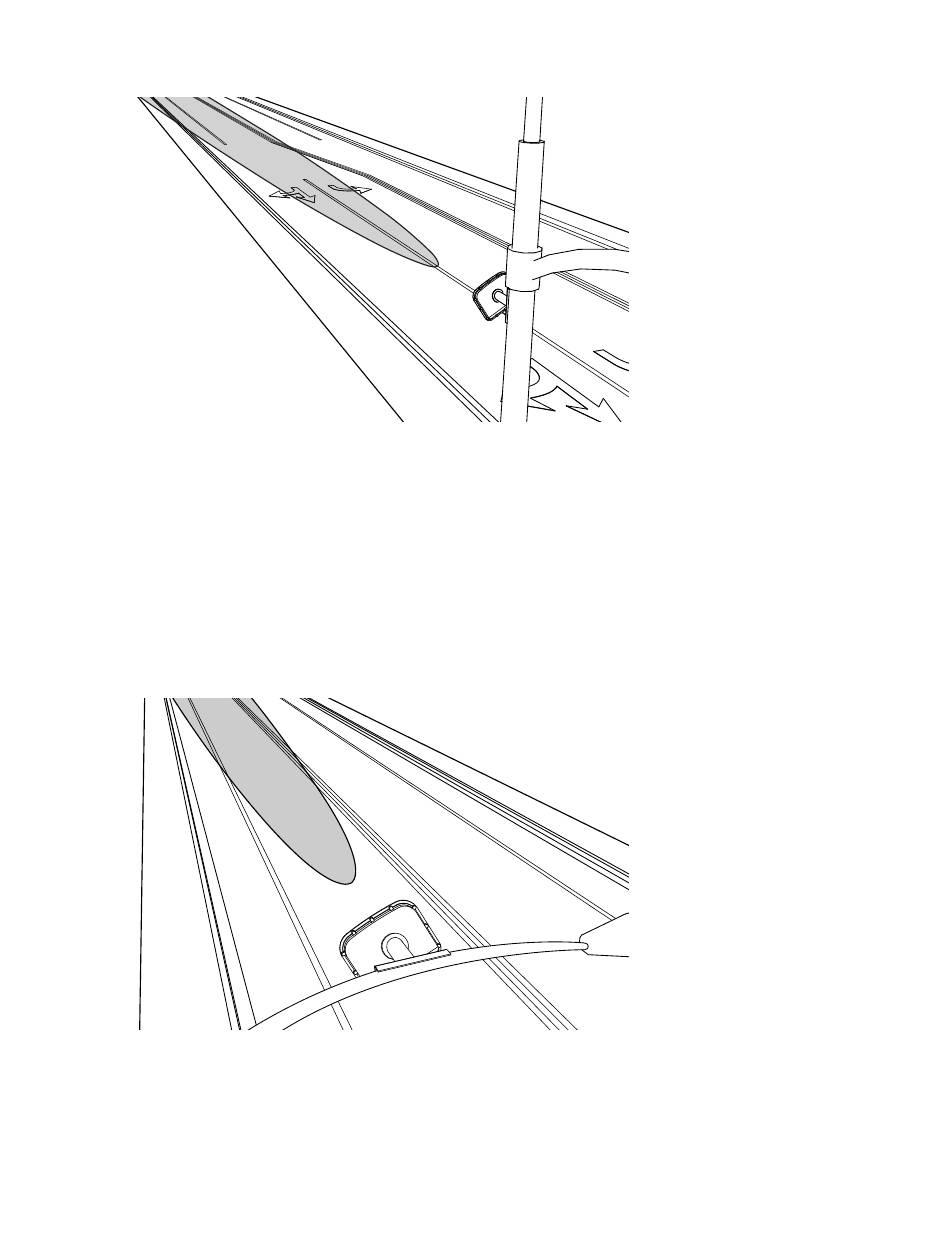

Figure 5. Vertical pole
Figure 6. On a luminaire
