Equipment Leakage Current
5.3.2
Equipment Leakage Current
General Information
Connect the measurement tip of your measuring device with the conductive parts shown in the
table below and measure the equipment leakage current.
Some test points may not be applicable for your Buzz Navigation (Ceiling-Mounted) variant.

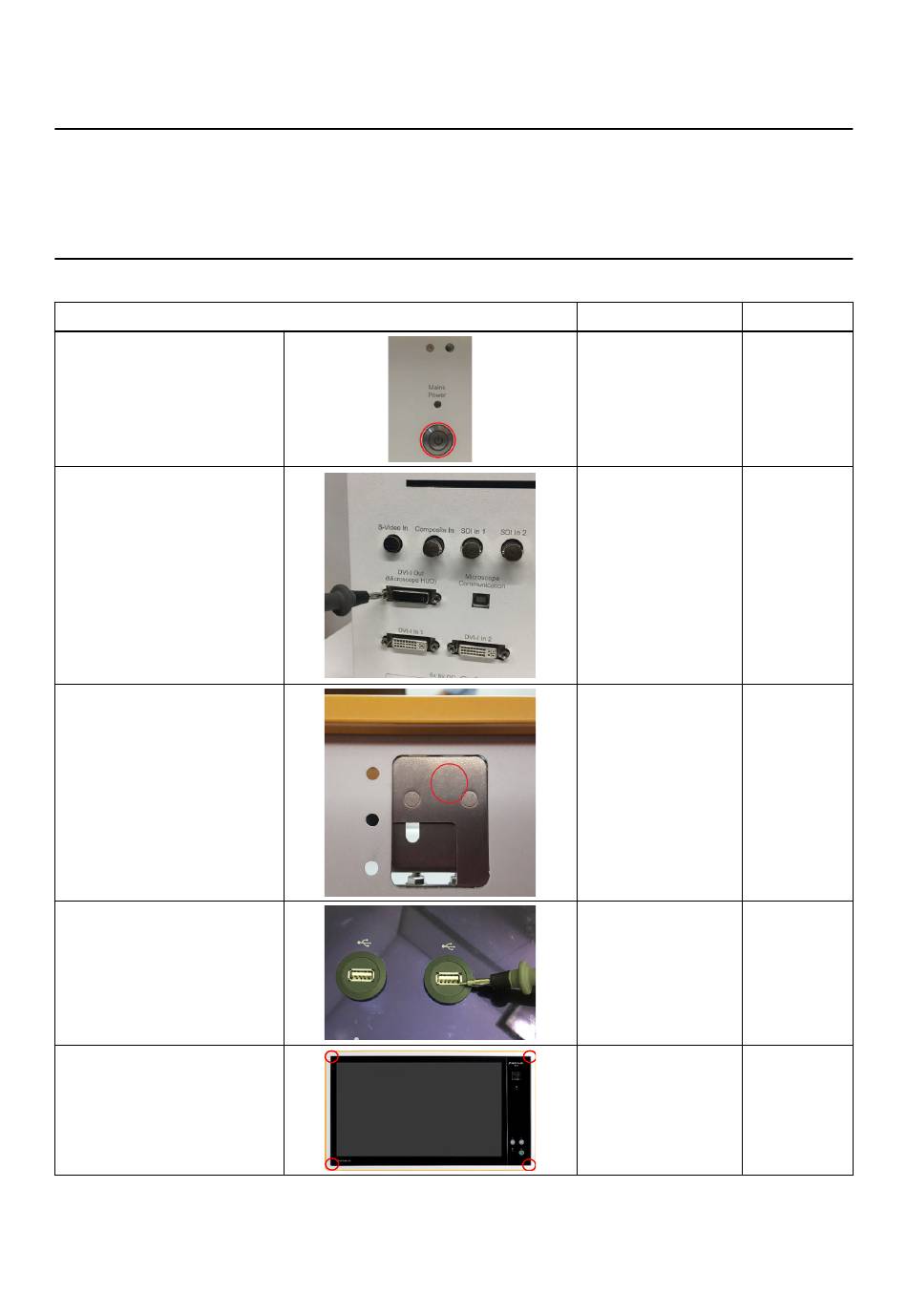

Equipment Leakage
Point Tested
MCU (Measurement point on
power button)
Screw of DVI-I Out on MCU user
panel
(On-wall Frame only) Right bot-
tom hole of 42" Display to con-
nect to the metallic Feature Pan-
el
USB Port on the Feature Panel
42" Display In-Wall Frame (over-
view of potential measurement
points)
88
System and Technical User Guide Rev. 1.2 Buzz Navigation (Ceiling-Mounted) Ver. 1.0
Measured Value
Test Passed?
