MRI Setup

2.10.1 MRI Setup
Setup
For detailed information on MRI setup, see the Site Planning Manual.

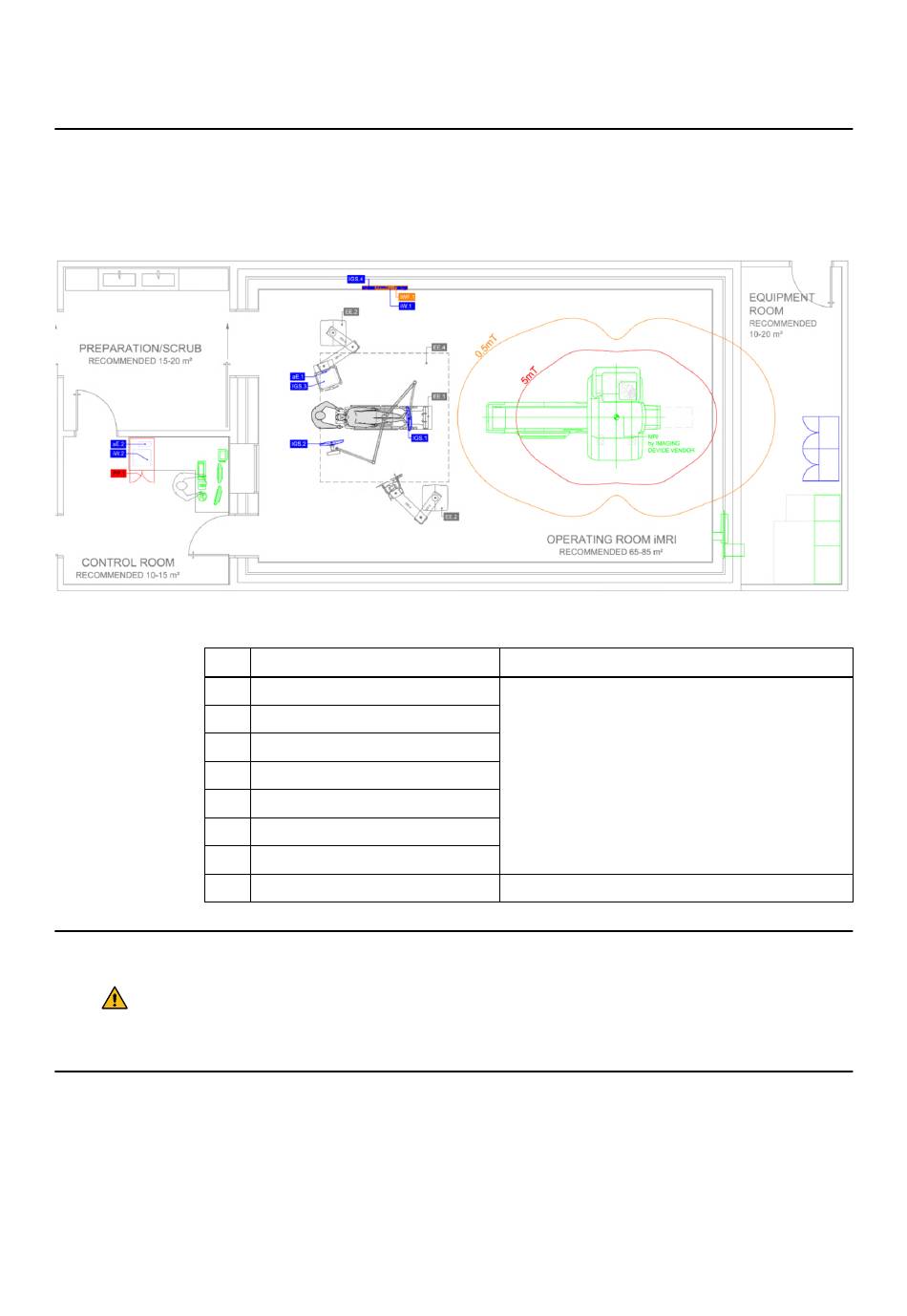

The below illustration shows a typical setup of the ceiling-mounted components in an MR
environment:
⑧
A
No.
①
②
③
④
⑤
⑥
⑦
⑧
Required Distances
Warning
Keep camera, displays and Connection Unit outside of the 50 Gauss/5 mT fringe field at all
times.
Stationary MR System
If Buzz Navigation (Ceiling-Mounted) is used in combination with a stationary MR System, the
optimum position with respect to the MR scanner and OR table has been planned and
implemented as follows: If the arms are fully extended and leveled horizontally towards the
magnet, no terminal device penetrates the 50 Gauss fringe field zone.
60
⑦
⑤
⑥
④
B
Component
MRI scanner
50 Gauss / 5 mT field line
5 Gauss / 0.5 mT field line
CM Camera
Connection Unit
CM Display
42" Display
MCU
System and Technical User Guide Rev. 1.2 Buzz Navigation (Ceiling-Mounted) Ver. 1.0
③
②
①
Figure 28
Rooms
B: Operating room
A: Control room
