Brainlab Buzz Navigation System And Technical User Manual page 20

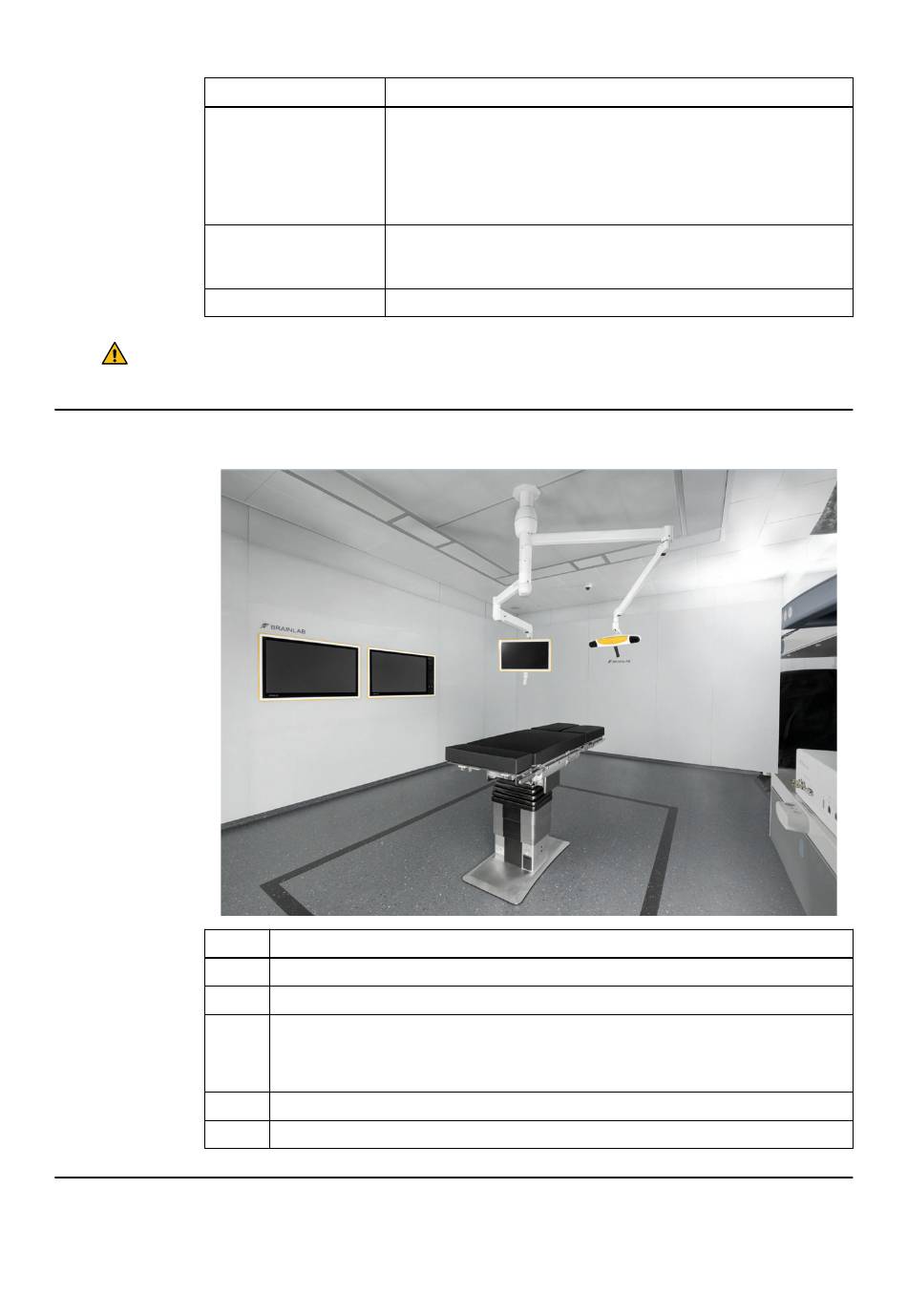

System Components
Component
Connection Unit
Supply Unit
Feature Panel
Warning
Do not place objects on Buzz Navigation (Ceiling-Mounted) components.
Illustration
No.
①
②
③
④
⑤
Related Links
Medical Computer Unit (MCU) on page 29
20
Description
An optional device used for extending the interfaces available on the
MCU. As the MCU is located outside the OR, the Connection Unit is
necessary, (e.g., for connection of third-party devices such as the mi-
croscope, ultrasound, or c-arm that are available inside the OR). The
Connection Unit provides interfaces for data, video input and video
output.
Provides electric power (DC) to the CM Display and CM Camera. It
also converts optical fiber Ethernet connection from the MCU to cop-
per-based Ethernet connection to the CM Camera.
Enables monitoring, control and interaction with the MCU.
①
Description
Additional (optional) 42" Display
42" Display
CM Display
NOTE: An additional (optional) CM Display is possible instead of Additional 42" Dis-
play.
CM Camera
Connection Unit
System and Technical User Guide Rev. 1.2 Buzz Navigation (Ceiling-Mounted) Ver. 1.0
③
②
④
⑤
