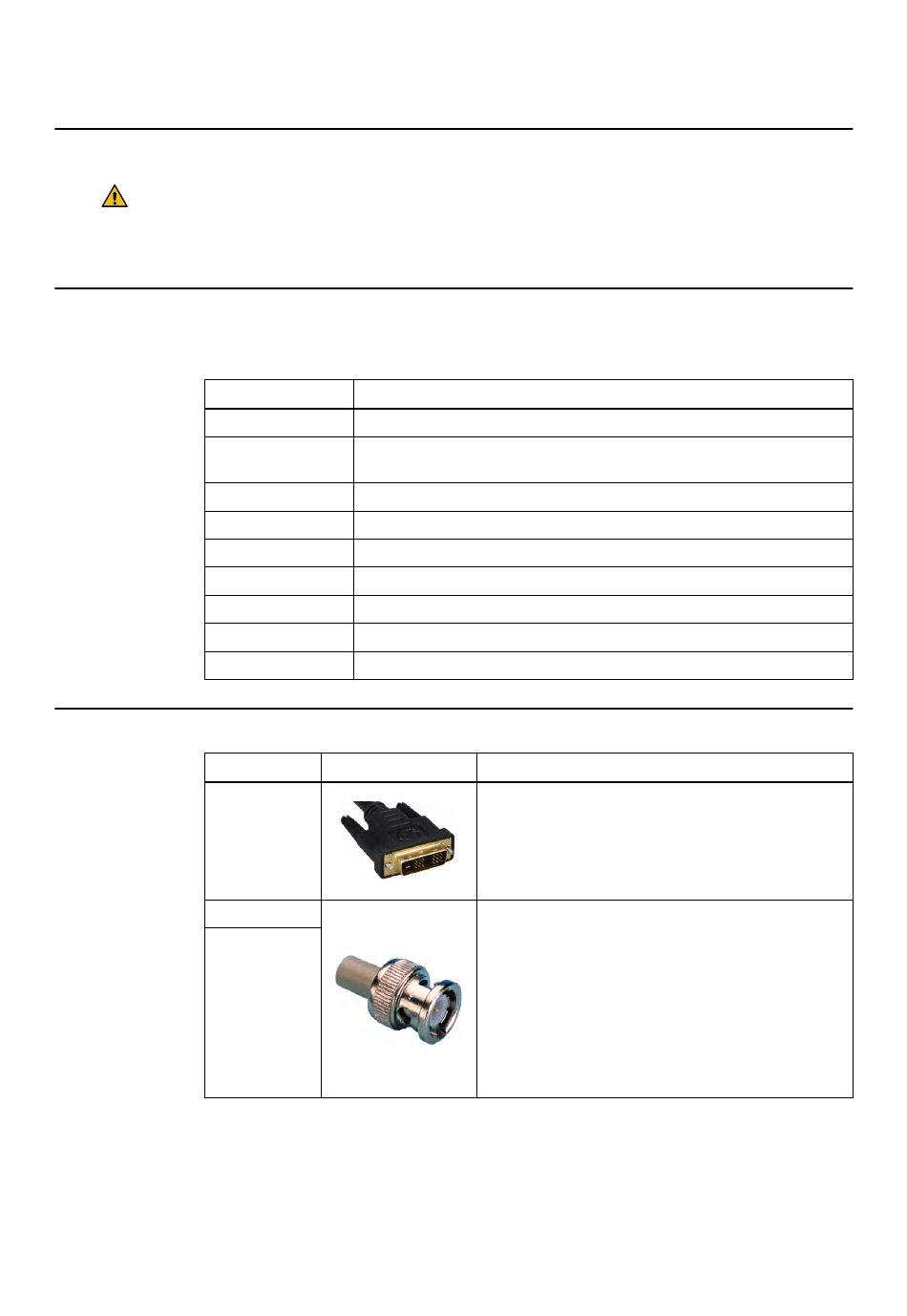

4.3.4 Tested Cables
Use of Specified Cables
Warning
Use of accessories, transducers and cables other than those specified or provided by the
manufacturer of this equipment could result in increased electromagnetic emissions or
decreased electromagnetic immunity of this equipment and result in improper operation.
Cable and Accessory Specifications
Buzz Navigation (Ceiling-Mounted) cables that have been tested for emission and immunity
conformity:
Cables
Power cable
Potential Equaliza-
tion Cable
S-Video
CVBS / SDI
DVI
DP
Hospital Network
Microscope
Fiber-optic cables
Compatible Cables and Connectors
Port
Composite In
70
Specification
Provided by Brainlab
Provided by Brainlab (optional)
2 x BNC coax cable, shielded, terminated, 75 Ohm
1 x BNC coax cable, shielded, terminated, 75 Ohm
1 x DVI-D, shielded, terminated, 100 Ohm
1 x DisplayPort 1.2 cable 30 AWG, shielded, terminated, 100 Ohm
Provided by Brainlab
Provided by Brainlab
Provided by Brainlab
Example
DVI In/Out
SDI In
System and Technical User Guide Rev. 1.2 Buzz Navigation (Ceiling-Mounted) Ver. 1.0
Handling
Direct input and output via DVI. Copper cables and DVI
EO converter may be used for signal in and out.
Always fix the screws to lock the cable connector.
NOTE: Use high quality DVI copper cable (max. 5 m)
to connect DVI Sources or a DVI Display.
Connect digital video inputs from an SDI, HD-SDI or
3G-SDI source (max. 10 m) or analog video inputs
from a composite (CVBS) source (max. 5 m) with BNC
connector to connect to video sources.
Push the male connector over the female connector, so
that the two small knobs on the female connector lock
into spiral slots in the male connector. Twist the bayo-
net shell clockwise to lock the connector.
To remove the cable, twist the bayonet shell on the
male connector counter-clockwise, then pull plug out.
