MCU Ports

2.4.5 MCU Ports

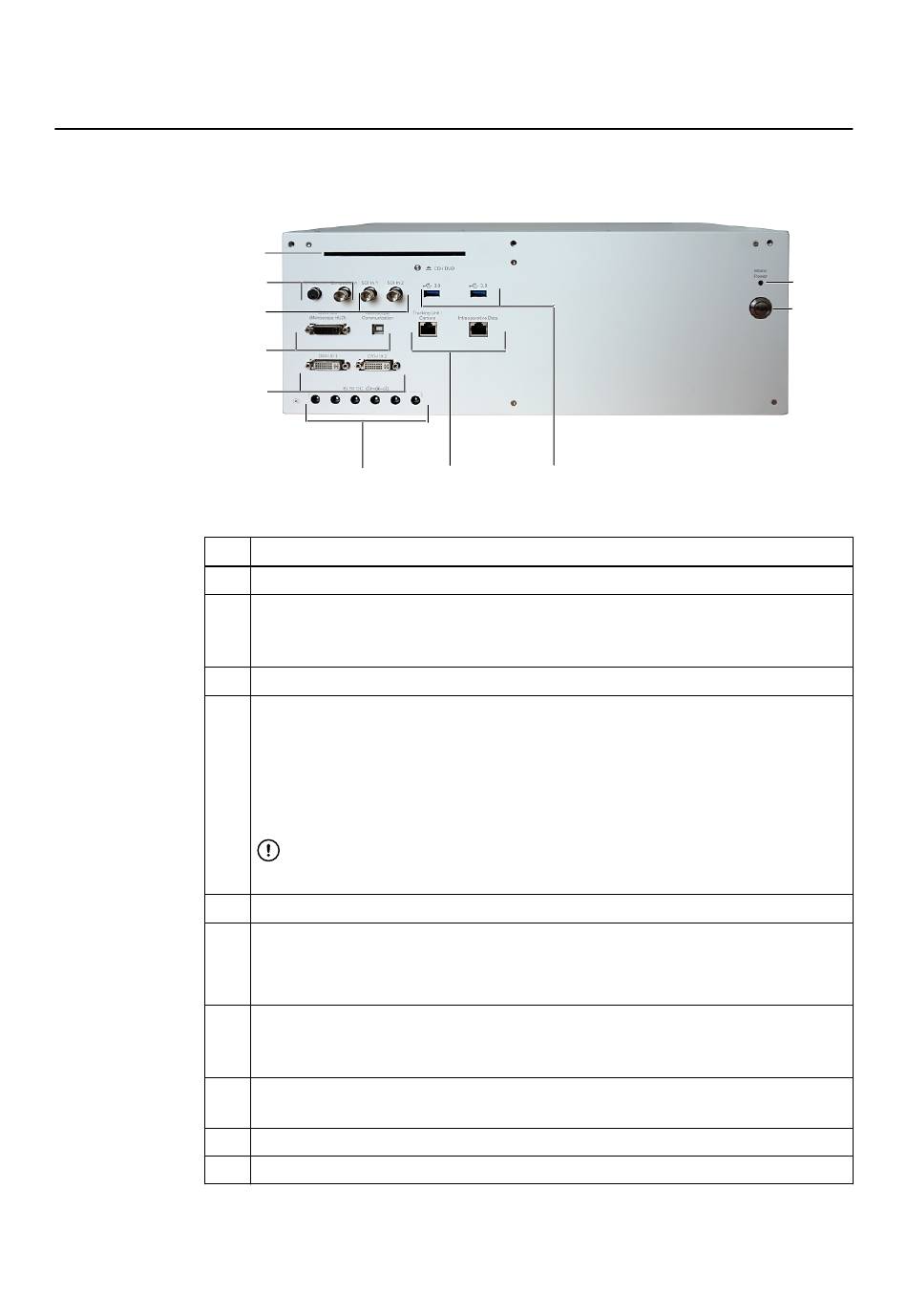

User Panel
Multiple third-party video connections are possible at the same time.
No.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
36
①
②
③
④
⑤
⑥
Component
CD/DVD drive
Analog Video Input
• 1 x S-video IN
• 1 x Composite IN
2 x SDI Video Inputs
Imaging Output for Microscope
• 1 x DVI-I Out
• 1 x USB B
NOTE: This video output may also be used for a display that can be connected by the
user (e.g., a projector).
The USB Type B connector at the MCU User Panel is explicitly for connect-
ing the Brainlab Microscope Cable. Connecting other devices to this inter-
face might damage the devices or the MCU.
2 x DVI Video Inputs
Power connections for transfer line components
• 6 x 5V DC / 2A
NOTE: Only connect equipment specified by Brainlab.
Network Connection
• Tracking Unit/Camera
• Intraoperative Data/Navigation
Data ports
2 x USB 3.0
Computer power button with status LED
Mains power LED
System and Technical User Guide Rev. 1.2 Buzz Navigation (Ceiling-Mounted) Ver. 1.0
⑦ ⑧
Figure 9
⑩
⑨
