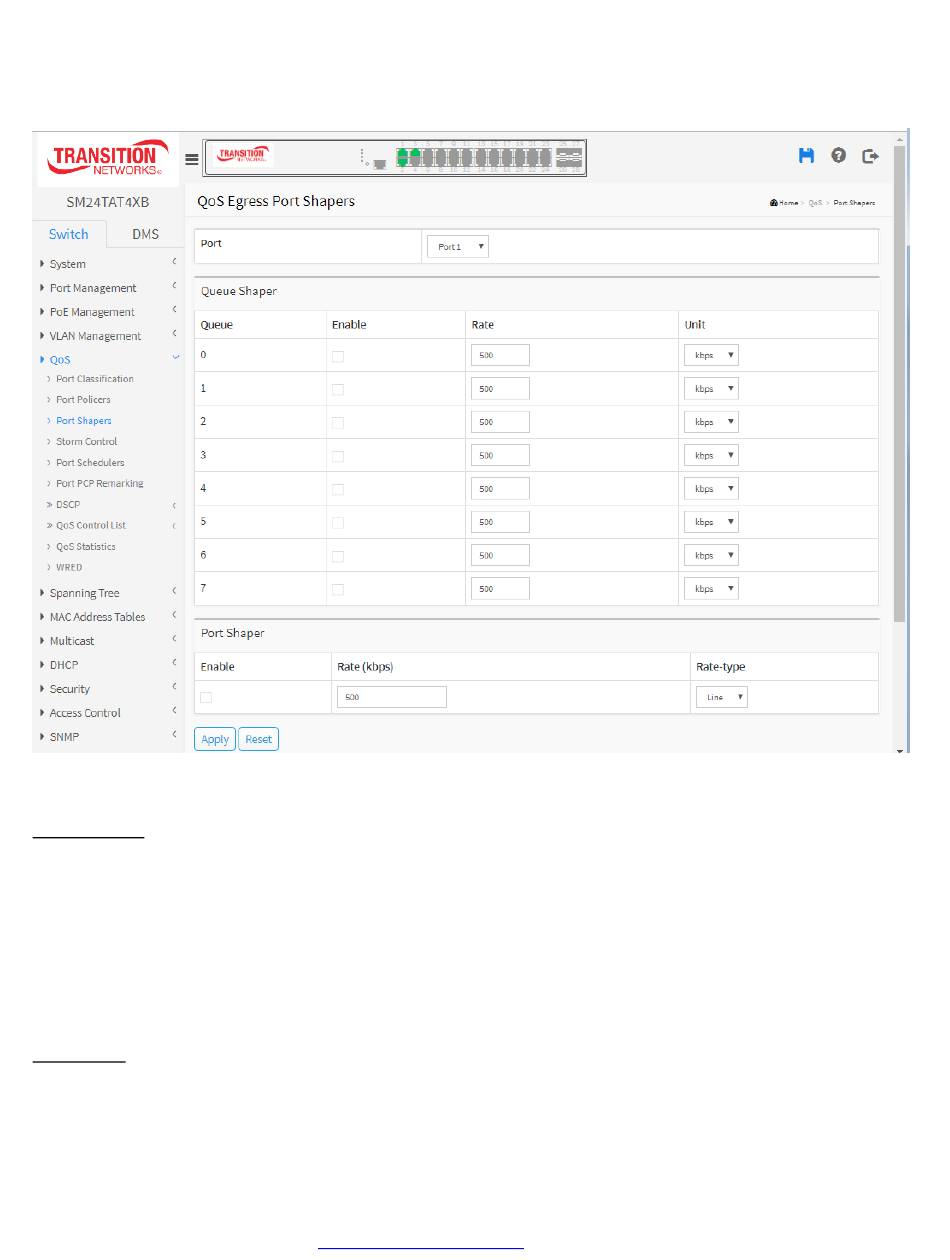

Switch > QoS > Port Shapers
This page provides an overview of QoS Egress Port Shapers for all switch ports.
Port: Select the port number at the dropdown.
Queue Shaper
Queue: The queue number for the queue shaper.
Enable: Controls whether the queue shaper is enabled for this queue on this switch port.
Rate: Controls the rate for the queue shaper. This value is restricted to 100‐13107100 when "Unit" is kbps, and
1‐13107 when "Unit" is Mbps. The rate is internally rounded up to the nearest value supported by the queue
shaper.
Unit: Controls the unit of measure for the queue shaper rate as kbps or Mbps.
Port Shaper
Enable: Controls whether the port shaper is enabled for this switch port.
Rate (kbps): Controls the rate for the port shaper. This value is restricted to 100‐13107100 kbps. The rate is
internally rounded up to the nearest value supported by the port shaper.
