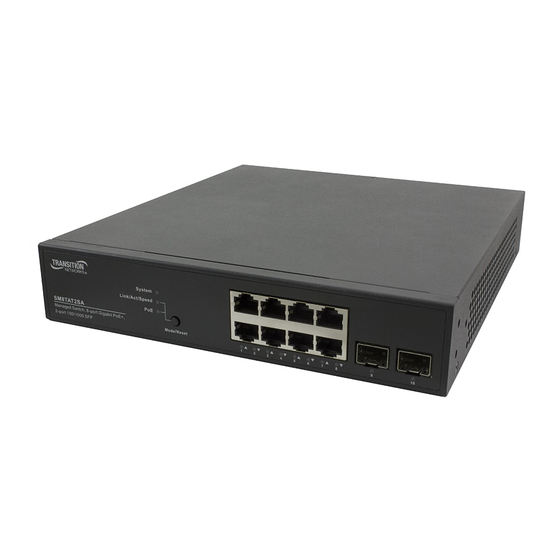

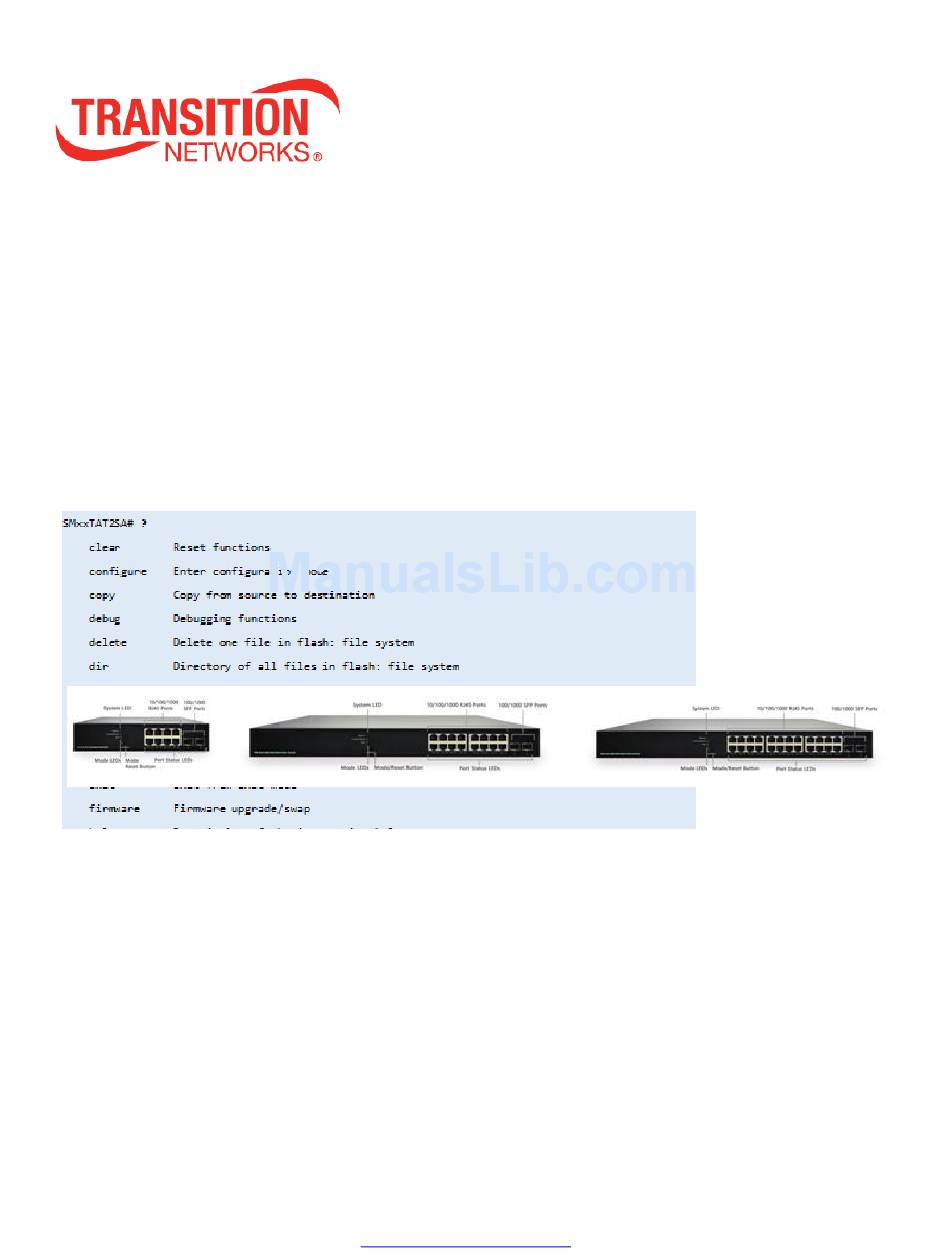

Page 1 SM8TAT2SA, SM16TAT2SA, SM24TAT2SA Smart Managed Switches, 8-/16-/24-Port Gigabit PoE+, 2-Port 100/1000 SFP CLI Reference 33718 Rev. B 33718 Rev. A https://www.transition.com Page 1 of 255...
Page 2: Contact Information
All trademarks and registered trademarks are the property of their respective owners. Copyright Notice/Restrictions Copyright © 2017 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means (graphic, electronic or mechanical) without written permission from Transition Networks.
Page 3: Table Of Contents
Transition Networks SMxTAT2SA CLI Reference ONTENTS CONTENTS ................................3 CLI Management ............................4 1-1 L ................................ 5 OGIN 1-2 O CLI C ........................5 VERVIEW OF OMMANDS CLEAR Commands........................... 10 CONFIGURE Commands ......................... 13 ................................80 ............................... 117 ............................120 SNMP SERVER ............................
Page 4: Cli Management
SMxTAT2SA CLI Reference CLI Management This manual documents CLI (Command Line Interface) commands for three similar models: SM8TAT2SA, SM16TAT2SA, and SM24TAT2SA. The models differ mainly in port count. Model differences are noted where applicable throughout this manual. A brief description of a typical connection is provided below: □...
Page 5: Login
Transition Networks SMxTAT2SA CLI Reference 1-1 Login The command-line interface (CLI) is a text-based interface that you can access the CLI through either a direct serial connection to the device or a Telnet session. The default username and password to login into the...
Page 6 Transition Networks SMxTAT2SA CLI Reference Commands reside in the corresponding modes could run only in that mode. If you want to run a particular command, you just change to the appropriate mode. The command modes are organized as a tree, starting in exec mode.
Page 7 Transition Networks SMxTAT2SA CLI Reference 1-3 Global CLI Commands To see the commands of the current mode, type a question mark ( ) after the prompt to list all available commands for that mode. SM16TAT2SA# ? Comments clear Reset functions...
Page 8 Transition Networks SMxTAT2SA CLI Reference Exit Exit from Config mode to EXEC mode. Syntax: exit Parameter: None. Example: SM16TAT2SA(config)# exit SM16TAT2SA# ? (Help) Help may be requested at any point in a command by entering a question mark ' '. If nothing matches, the help list will be empty and you must back up until entering a '?' shows the available options.
Page 9 Transition Networks SMxTAT2SA CLI Reference logout Exit from EXEC mode. You must log back in. Syntax: logout Parameter: none Example: SM16TAT2SA# logout Go back to EXEC mode. Syntax: Example: SM16TAT2SA# configure terminal SM16TAT2SA(config)# end SM16TAT2SA# 33718 Rev. B https://www.transition.com Page 9 of 255...
Page 10: Clear Commands
Transition Networks SMxTAT2SA CLI Reference CLEAR Commands Table : Clear Commands Command Function access-list Access list Clear DHCP Relay statistics lldp Clear LLDP statistics for one or more given interface logging Syslog MAC Address Table spanning-tree Execute protocol migration check on interfaces...
Page 11 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA# logging Clears Syslog (System Log). Syntax clear logging [ info ] [ warning ] [ error ] [ switch <switch_list> ] Parameter error Error info Information warning Warning EXAMPLE SM16TAT2SA# clear logging ? error...
Page 12 Transition Networks SMxTAT2SA CLI Reference statistics Clear statistics for a given interface. Syntax clear statistics interface <port_type> <port_type_list> clear statistics <port_type> <port_type_list> Parameter <port_type> GigabitEthernet <port_type_list> Port list in 1/1-26 for Gigabit Ethernet EXAMPLE SM16TAT2SA# clear statistics? statistics Clear statistics for one or more given interface...
Page 13: Configure Commands
Transition Networks SMxTAT2SA CLI Reference CONFIGURE Commands Table : Configure Mode Commands SM16TAT2SA(config)# ? Comments Authentication, Authorization and Accounting access Access management access-list Access list aggregation Aggregation mode clock Configure time-of-day clock DMS Mode To run exec commands in config mode...
Page 14 Transition Networks SMxTAT2SA CLI Reference ! (Comments) Arguments - ignored comment text. Syntax configure terminal EXAMPLE SM16TAT2SA(config)# ! ? Arguments ignored comment text <cr> SM16TAT2SA(config)# ! SM16TAT2SA(config)# terminal Enter Configure mode from the terminal. Syntax configure terminal EXAMPLE SM16TAT2SA(config)# SM16TAT2SA(config)# end...
Page 15 Transition Networks SMxTAT2SA CLI Reference Configure Authentication, Authorization, and Accounting parameters. SYNTAX aaa authentication login { telnet | ssh | http } { { local | radius | tacacs } [ { local | radius | tacacs } [ { local | radius...
Page 16 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# aaa authentication redirect ? <cr> SM16TAT2SA(config)# aaa authorization ? telnet telnet SM16TAT2SA(config)# aaa accounting ? telnet telnet SM16TAT2SA(config)# 33718 Rev. B https://www.transition.com Page 16 of 255...
Page 17: Access Management
Transition Networks SMxTAT2SA CLI Reference access management Configure Access management parameters. SYNTAX access management access management <access_id> <access_vid> <start_addr> [ to <end_addr> ] { [ web ] [ snmp ] [ telnet ] | all } Parameter management Access management configuration <...
Page 18: Access List
Transition Networks SMxTAT2SA CLI Reference access list Configure Access list parameters. SYNTAX access list ace < 1-384 > Parameter action Access list action < deny > < permit > < shutdown > ingress Ingress Port <any > < interface >...
Page 19 Transition Networks SMxTAT2SA CLI Reference aggregation Configure Aggregation mode parameters (Traffic distribution mode parameters). SYNTAX aggregation mode < dst-ip > <dst-mac > <src-dst-ip > < src-dst-mac src-ip > < src-mac > Parameter mode Traffic distribution mode dmac Destination MAC affects the distribution...
Page 20 Transition Networks SMxTAT2SA CLI Reference clock Configure time-of-day clock. SYNTAX clock set <icliDate> <icliTime> clock summer-time <word16> date [ <start_month_var> <start_date_var> <start_year_var> <start_hour_var> <end_month_var> <end_date_var> <end_year_var> <end_hour_var> [ <offset_var> ] ] clock summer-time <word16> recurring [ <start_week_var> <start_day_var> <start_month_var> <start_hour_var> <end_week_var> <end_day_var> <end_month_var> <end_hour_var> [ <offset_var> ] ] clock timezone <word_var>...
Page 21 Transition Networks SMxTAT2SA CLI Reference acronym name of time zone. clock-offset Offset from UTC. SM16TAT2SA(config)# clock summer-time ? mode_type Enable or Disable time zone in summer. (disable/enable) SM16TAT2SA(config)# Set Device Management System parameters. DMS features include: DMS automatically discovers and displays all devices connected to the switch using standard networking ...
Page 22 Transition Networks SMxTAT2SA CLI Reference Off-line Devices Controller IP : 0.0.0.0 DHCP Server IP : 0.0.0.0 SM16TAT2SA(config)# SM16TAT2SA(config)# do show dms ? upnp upnp information onvif onvif information <cr> SM16TAT2SA(config)# do show dms upnp ? upnp information upnp information 100 upnp information 101 upnp information <cr>...
Page 23 Transition Networks SMxTAT2SA CLI Reference Run exec commands in config mode. SYNTAX do < LINE >{[< LINE >]} Parameter <LINE> Exec Command EXAMPLE SM16TAT2SA(config)# do ? clear Reset functions configure Enter configuration mode copy Copy from source to destination delete...
Page 24 Transition Networks SMxTAT2SA CLI Reference dot1x Configure IEEE 802.1x standard for port-based Network Access Control. SYNTAX dot1x authentication timer inactivity <v_10_to_100000> dot1x authentication timer re-authenticate <v_1_to_3600> dot1x feature { [ guest-vlan ] [ radius-qos ] [ radius-vlan ] }*1 dot1x guest-vlan <value>...
Page 25 Transition Networks SMxTAT2SA CLI Reference (unchecked; default), the switch will only enter the Guest VLAN if an EAPOL frame has not been received on the port for the life-time of the port. If enabled (checked), the switch will consider entering the Guest VLAN even if an EAPOL frame has been received on the port for the life-time of the port.
Page 26 Transition Networks SMxTAT2SA CLI Reference this option is enabled or disabled. If disabled (unchecked; default), the switch will only enter the Guest. SM16TAT2SA(config)# dot1x max-reauth-req ? <1-255> number of times. (1..255) SM16TAT2SA(config)# dot1x re-authentication ? <cr> SM16TAT2SA(config)# dot1x system-auth-control ? <cr>...
Page 27 Transition Networks SMxTAT2SA CLI Reference event Configure Trap Event group name parameters. SYNTAX event group Group ID ACL access-mgmt Group ID ACCESS-MGMT arp-inspection Group ID ARP-INSPECTION auth-failed Group ID AUTH-FAILED bsc-protection Group ID BCS-PROTECTION cold-start Group ID COLD-START dhcp Group ID DHCP...
Page 28 Transition Networks SMxTAT2SA CLI Reference rmon spanning-tree system user warm-start SM16TAT2SA(config)# SM16TAT2SA(config)# event group rmon ? level event group level syslog syslog mode trap trap mode <cr> SM16TAT2SA(config)# event group rmon level ? <0-7> <0> Emergency ,<1> Alert ,<2> Critical ,<3> Error ,<4> Warning ,<5> Notice ,<6>...
Page 29 Transition Networks SMxTAT2SA CLI Reference exit Exit from the CLI. SYNTAX exit EXAMPLE SM16TAT2SA(config)# exit ? SM16TAT2SA# exit ? exit Exit from the CLI <cr> SM16TAT2SA# exit <cr> SM16TAT2SA# exit 33718 Rev. B https://www.transition.com Page 29 of 255...
Page 30 Transition Networks SMxTAT2SA CLI Reference interface Select and configure a specific VLAN or GbE interface. SYNTAX interface ( <port_type> [ <plist> ] ) interface vlan <vlist> Parameter <port_type> Gigabit Ethernet vlan VLAN interface configurations <vlan_list> List of VLAN interface numbers (1-4095) <port_type_list>...
Page 31 Transition Networks SMxTAT2SA CLI Reference duplex Interface duplex exit Exit from current mode flowcontrol Traffic flow control green-ethernet Green ethernet (Power reduction) Internet Protocol lacp Lacp port configuration lldp LLDP configurations on port loop-protect Loop protection configuration on port MAC keyword...
Page 32 Transition Networks SMxTAT2SA CLI Reference Interface Internet Protocol config commands ipv6 Interface IPv6 config commands Negate a command or set its defaults SM16TAT2SA(config-if-vlan)# 33718 Rev. B https://www.transition.com Page 32 of 255...
Page 33 Transition Networks SMxTAT2SA CLI Reference Configure Internet Protocol settings. SYNTAX ip arp inspection ip arp inspection entry interface <port_type> <in_port_type_id> <vlan_var> <mac_var> <ipv4_var> ip arp inspection translate [ interface <port_type> <in_port_type_id> <vlan_var> <mac_var> <ipv4_var> ] ip arp inspection vlan <in_vlan_list>...
Page 34 Transition Networks SMxTAT2SA CLI Reference interface arp inspection entry interface config <port_type> Port type in Fast, Giga ethernet <port_type_id> Port ID in the format of switch-no/port-no <vlan_id> Select a VLAN id to configure <mac_ucast> Select a MAC address to configure <ipv4_ucast>...
Page 35 Transition Networks SMxTAT2SA CLI Reference <ipv4_addr> Gateway binding ip source binding interface ip source binding entry interface config <port_type> * or GigabitEthernet All switches or All ports Gigabit Ethernet 1 Gigabit Ethernet Port <port_type_id> Port ID in the format of switch-no/port-no, ex 1/1-26 for Gigabit Ethernet <vlan_id>...
Page 36 Transition Networks SMxTAT2SA CLI Reference EXAMPLE SM16TAT2SA(config)# ip arp inspection entry interface ? GigabitEthernet GigabitEthernet All switches or All ports SM16TAT2SA(config)# ip dhcp? dhcp Dynamic Host Configuration Protocol SM16TAT2SA(config)# ip dhcp ? pool DHCP server pool relay DHCP Relay snooping DHCP snooping SM16TAT2SA(config)# ip dhcp pool ? <vlan_id>...
Page 37 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# ip igmp ssm-range ? <ipv4_mcast> Valid IPv4 multicast address (X.X.X.X) SM16TAT2SA(config)# ip igmp ssm-range 222.22.22.20 ? <ipv4_mcast> Valid IPv4 multicast address (X.X.X.X) SM16TAT2SA(config)# SM16TAT2SA(config)# ip name-server ? <ipv4_ucast> A valid IPv4 unicast address (X.X.X.X)
Page 38 Transition Networks SMxTAT2SA CLI Reference ipmc IPv4/IPv6 multicast configuration. SYNTAX ipmc profile ipmc profile <profile_name> ipmc range <entry_name> { <v_ipv4_mcast> [ <v_ipv4_mcast_1> ] | <v_ipv6_mcast> [ <v_ipv6_mcast_1> ] } Parameter profile IPMC profile configuration range A range of IPv4/IPv6 multicast addresses for the profile <...
Page 39 Transition Networks SMxTAT2SA CLI Reference ipv6 IPv6 configuration commands. SYNTAX ipv6 mld host-proxy [ leave-proxy ] ipv6 mld snooping ipv6 mld snooping vlan <v_vlan_list> ipv6 mld ssm-range <v_ipv6_mcast> <ipv6_prefix_length> ipv6 mld unknown-flooding Parameter Multicast Listener Discovery host-proxy MLD proxy configuration...
Page 40 Transition Networks SMxTAT2SA CLI Reference lacp Configure LACP (Link Aggregation Control Protocol) settings. SYNTAX lacp system-priority <1-65535> Parameter system-priority System priority <1-65535> Priority value, lower means higher priority EXAMPLE SM16TAT2SA(config)# lacp? lacp Lacp system configuration SM16TAT2SA(config)# lacp ? system-priority System priority SM16TAT2SA(config)# lacp system-priority ? <1-65535>...
Page 41 Transition Networks SMxTAT2SA CLI Reference lldp Configure LLDP (Link Level Discovery Protocol) settings. SYNTAX lldp holdtime <2-10> lldp med datum { wgs84 | nad83_navd88 | nad83_mllw } lldp med fast <1-10> lldp med location-tlv altitude { meters | floors } <word11>...
Page 42 Transition Networks SMxTAT2SA CLI Reference location-tlv LLDP-MED Location Type Length Value parameter. media-vlan-policy Use the media-vlan-policy to create a policy, which can be assigned to an interface. nad83_mllw Mean lower low water datum 1983 nad83_navd88 North American vertical datum 1983...
Page 43 Transition Networks SMxTAT2SA CLI Reference south Setting latitude direction to south. <word8> Latitude degrees (0.0000-90.0000). policy-list Assignment of policies. <range_list> Policies to assign to the interface. <0-31> Policy id for the policy which is created. voice Create a voice policy.
Page 44 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# lldp transmission-delay ? <1-8192> LLDP transmission delay (1..8192) SM16TAT2SA(config)# lldp med ? datum Datum type fast Number of times to repeat LLDP frame transmission at fast start location-tlv LLDP-MED Location Type Length Value parameter...
Page 45 Transition Networks SMxTAT2SA CLI Reference logging Configure Syslog. SYNTAX logging host { <ipv4_ucast> | <hostname> } logging on Parameter host host <ipv4_ucast> IP address of the log server <hostname> Domain name of the log server Enable syslog server EXAMPLE SM16TAT2SA(config)# logging on...
Page 46 Transition Networks SMxTAT2SA CLI Reference loop-protect Configure Loop protection settings. SYNTAX loop-protect loop-protect shutdown-time <0-604800> loop-protect transmit-time <1-10> Parameter shutdown-time Loop protection shutdown time interval <0-604800> Shutdown time in second transmit-time Loop protection transmit time interval <1-10> Transmit time in second...
Page 47 Transition Networks SMxTAT2SA CLI Reference Configure MAC table entries /configuration. SYNTAX mac address-table aging-time <0,10-1000000> mac address-table static <mac_addr> vlan <vlan_id> interface <port_type> <port_type_list> Parameter address-table Mac Address Table aging-time Mac address aging time <0,10-1000000> Aging time in seconds, 0 disables aging...
Page 48 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# mac address-table static 11:22:33:44:55:66 vlan 20 block Drop the packet which MAC Address and VLAN ID is match interface Select an interface to configure SM16TAT2SA(config)# mac address-table static 11:22:33:44:55:66 vlan 20 block <cr> SM16TAT2SA(config)# mac address-table static 11:22:33:44:55:66 vlan 20 interface...
Page 49 Transition Networks SMxTAT2SA CLI Reference monitor Set monitor configuration. SYNTAX monitor destination interface <port_type> <port_type_id> monitor source { interface <port_type> <port_type_list> | cpu } { both | rx | tx } Parameter destination The destination port. That is the port that trafficked should be mirrored to.
Page 50 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# monitor session 1 destination interface GigabitEthernet 1/2- <port_id> Port ID in (1/1-18) SM16TAT2SA(config)# monitor session 1 source ? interface MIRROR source interface SM16TAT2SA(config)# monitor session 1 source interface ? GigabitEthernet GigabitEthernet All switches or All ports SM16TAT2SA(config)# monitor session 1 source interface * ? <port_list>...
Page 51 Transition Networks SMxTAT2SA CLI Reference Configure Multicast VLAN Registration parameters. SYNTAX mvr name <mvr_name> channel <profile_name> mvr name <mvr_name> frame priority <cos_priority> mvr name <mvr_name> frame tagged mvr name <mvr_name> igmp-address <v_ipv4_ucast> mvr name <mvr_name> last-member-query-interval <ipmc_lmqi> mvr name <mvr_name> mode { dynamic | compatible } mvr vlan <v_vlan_list>...
Page 52 Transition Networks SMxTAT2SA CLI Reference frame MVR control frame in TX priority Interface CoS priority <0-7> CoS priority ranges from 0 to 7 igmp-address MVR address configuration used in IGMP <ipv4_ucast> A valid IPv4 unicast address <vlan_list> MVR multicast VLAN list...
Page 53 Transition Networks SMxTAT2SA CLI Reference <ipv4_addr> A valid IPv4 unicast address (X.X.X.X) SM16TAT2SA(config)# 33718 Rev. B https://www.transition.com Page 53 of 255...
Page 54 Transition Networks SMxTAT2SA CLI Reference Configure NTP (Network Timing Protocol). SYNTAX ntp server <1-6> ip-address <hostname> ntp server <1-6> ip-address <ipv4_ucast> ntp interval <10-2880 minutes> Parameter server Configure NTP server <1-5> index number ip-address ip address <ipv4_ucast> ipv4 address <ipv6_ucast>...
Page 55 Transition Networks SMxTAT2SA CLI Reference Configure PoE (Power over Ethernet). SYNTAX poe auto-check < cr>} poe select-all <cr> poe profile id <1-16> poe capacitor-detect <cr> Parameters capacitor-detect Enable capacitor detection auto-check Enable Ping Check allocation-consumption Max. port power determined by allocated, and power is managed according to power consumption.
Page 56 Transition Networks SMxTAT2SA CLI Reference GigabitEthernet 1/6 Enabled GigabitEthernet 1/7 Enabled GigabitEthernet 1/8 Enabled GigabitEthernet 1/9 Enabled GigabitEthernet 1/10 Enabled GigabitEthernet 1/11 Enabled GigabitEthernet 1/12 Enabled GigabitEthernet 1/13 Enabled GigabitEthernet 1/14 Enabled GigabitEthernet 1/15 Enabled GigabitEthernet 1/16 Enabled SM16TAT2SA(config)# poe capacitor-detect...
Page 57 Transition Networks SMxTAT2SA CLI Reference Port Startup Interval Retry Failure Reboot Time Time Time Action Time ------- ---------------- ------- -------- ----- --------- ------ Gi 1/1 0.0.0.0 3 Nothing Gi 1/2 0.0.0.0 3 Nothing Gi 1/3 0.0.0.0 3 Nothing Gi 1/4 0.0.0.0 3 Nothing Gi 1/5 0.0.0.0...
Page 58 Transition Networks SMxTAT2SA CLI Reference port-security Enable/Disable port security globally. SYNTAX port-security <cr> Parameter EXAMPLE SM16TAT2SA(config)# port-security ? <cr> SM16TAT2SA(config)# port-security? port-security Enable/disable port security globally <cr> SM16TAT2SA(config)# port-security SM16TAT2SA(config)# do show port-security switch Show Port Security status SM16TAT2SA(config)# do show port-security switch interface *...
Page 59 Transition Networks SMxTAT2SA CLI Reference privilege Configure Command privilege parameters. SYNTAX privilege <group> Privilege group name (access-mgmt/arp-inspection/auth-method/dhcp-relay/dhcp-server/dhcp-snooping/diagnostic/dot1x/eee/event/ip /ipmc/ip-source-guard/lacp/lldp/loop-protection/mac-table/mirror/mvr/poe/port/port-security/qos/radius/snmp/stp/ system/upnp/vlan) Parameters access-mgmt arp-inspection auth-method dhcp-relay dhcp-server dhcp-snooping diagnostic dot1x event ipmc ip-source-guard lacp lldp loop-protection mac-table maintenance mirror port port-security radius...
Page 60 Transition Networks SMxTAT2SA CLI Reference <0-15> Privilege level (0..15) SM16TAT2SA(config)# 33718 Rev. B https://www.transition.com Page 60 of 255...
Page 61 Transition Networks SMxTAT2SA CLI Reference Configure Quality of Service. SYNTAX qos map QoS Global Map/Table qos trust Global trust mode configuration Parameter Attribute qos map cos-queue Map for CoS to queue qos map dscp-queue Map for DSCP to queue qos map precedence-queue...
Page 62 Transition Networks SMxTAT2SA CLI Reference <0-7> Specify IP Precedence (0..7) SM16TAT2SA(config)# qos map queue-cos ? <0-7> The queue number for mapping to a specific CoS value (0..7) SM16TAT2SA(config)# qos map queue-dscp ? <0-7> The queue number for maaping to a specific DSCP value (0..7) SM16TAT2SA(config)# qos map queue-precedence ? <0-7>...
Page 63 Transition Networks SMxTAT2SA CLI Reference radius-server Configure RADIUS. SYNTAX radius-server attribute 32 <line1-255> radius-server attribute 4 <ipv4_ucast> radius-server attribute 95 <ipv6_ucast> radius-server deadtime <1-1440> radius-server host { <word1-255> | <ipv4_ucast> | <ipv6_ucast> } [ auth-port <0-65535> ] [ acct-port <0-65535> ] [ timeout <1-1000> ] [ retransmit <1-1000> ] [ key <line1-63> ] radius-server key <line1-63>...
Page 64 Transition Networks SMxTAT2SA CLI Reference Set RADIUS encryption key host Specify a RADIUS server attribute SM16TAT2SA(config)# radius-server retransmit ? <Retries : 1-1000> Number of retries for a transaction (1..1000) SM16TAT2SA(config)# radius-server timeout ? <Seconds : 1-1000> Wait time in seconds (1..1000) SM16TAT2SA(config)# radius-server deadtime ? <Minutes : 1-1440>...
Page 65 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# IETF RADIUS Attributes Type Name Value NAS-IP-Address ipv4addr Tunnel-Assignment-Id string NAS-IPv6-Address string Local credentials are only allowed if the switch cannot communicate with the RADIUS server. 33718 Rev. B https://www.transition.com Page 65 of 255...
Page 66 Transition Networks SMxTAT2SA CLI Reference rmon Configure rmon (remote monitoring). SYNTAX rmon alarm Configure an RMON alarm <1-65535> rmon event Configure an RMON event <1-65535> Configure an RMON alarm: EXAMPLE 1: SM16TAT2SA(config)# rmon? rmon Remote Monitoring SM16TAT2SA(config)# rmon ? alarm Configure an RMON alarm...
Page 67 Transition Networks SMxTAT2SA CLI Reference Configure an RMON event: EXAMPLE 1: SM16TAT2SA(config)# rmon event ? <1-65535> Event entry ID (1..65535) SM16TAT2SA(config)# rmon event 1 ? description Specify a description of the event Generate RMON log when the event fires trap Generate SNMP trap when the event fires <cr>...
Page 68 Transition Networks SMxTAT2SA CLI Reference statistics Display the RMON statistics table history Display the RMON history table alarm Display the RMON alarm table event Display the RMON event table SM16TAT2SA(config)# do show rmon alarm <1-65535> Alarm entry list (1..65535) <cr>...
Page 69 Transition Networks SMxTAT2SA CLI Reference snmp-server Set the SNMP server's configurations SYNTAX snmp-server access <GroupName : word32> group name (word32) snmp-server community <write-mode> < v2c> < v3> snmp-server security-to-group model < v1> < v2c> < v3> snmp-server user name (word32) snmp-server view name <word32>...
Page 70: Spanning Tree
Transition Networks SMxTAT2SA CLI Reference spanning tree Set the Spanning Tree protocol parameters. The factory default is Spanning Tree enabled. SYNTAX spanning-tree mode mstp <cr> spanning-tree mode rstp <cr> spanning-tree mode stp <cr> spanning-tree mst x vlan <vlan_list> (1-4095) spanning-tree mst x priority <0-61440>...
Page 71 Transition Networks SMxTAT2SA CLI Reference system Set the SNMP server's configurations SYNTAX system contact <v_line255> system location <v_line255> system name <v_line255> Parameter contact Set the SNMP server's contact string location Set the SNMP server's location string name Set the SNMP server's system model name string <line255>...
Page 72 Transition Networks SMxTAT2SA CLI Reference tacacs+ Set the TACACS+ configuration. SYNTAX timeout Time to wait for a TACACS+ server to reply. deadtime Time to stop using a TACACS+ server that doesn't respond. Set TACACS+ encryption key. host Specify a TACACS+ server.
Page 73 Transition Networks SMxTAT2SA CLI Reference trap Configure SNMP Traps. SYNTAX trap id <1..6> level <v2c> ipv4 address <ipv4_ucast> severity <0..7> community (word32) Parameter id <1..6> level <v2c> ipv4 address <ipv4_ucast> severity <0..7> community (word32) EXAMPLE SM16TAT2SA(config)# trap ? <1..6> ID of Trap entry (1..6)
Page 74 Transition Networks SMxTAT2SA CLI Reference upnp Set UPnP (Universal Plug and Play) configuration. SYNTAX upnp upnp advertising-duration <66-86400> upnp ttl <1-255> interface-vlan <vlan_id> 1..4095 (1-4095) <cr> Parameter advertising-duration Set advertising duration <100-86400> Set TTL value interface-vlan Set ip-interface vlan <1-255>...
Page 75 Transition Networks SMxTAT2SA CLI Reference username Establish User Name Authentication. SYNTAX username <username> privilege <priv> password encrypted <encry_password> username <username> privilege <priv> password none username <username> privilege <priv> password unencrypted <password> Parameter <Username : word31> User name allows letters, numbers and underscores...
Page 76 Transition Networks SMxTAT2SA CLI Reference vlan Configure VLAN commands. SYNTAX vlan <vlan_list> vlan ethertype s-custom-port <0x0600-0xffff> vlan ip-subnet <ipv4_addr> Source IP address (X.X.X.X) vlan mac <mac_ucast> 48 bit unicast MAC address: xx:xx:xx:xx:xx:xx vlan protocol { { eth2 { <0x600-0xffff> | arp | ip | ipx | at } } | { snap { <0x0-0xffffff> | rfc_1042 | snap_8021h } <0x0-0xffff>...
Page 77 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# vlan ? ethertype Ether type for Custom S-ports ip-subnet IP subnet based VLAN commands MAC-based VLAN commands protocol Protocol-based VLAN commands <vlan_list> List of VLAN interface numbers (1-4095) SM16TAT2SA(config)# vlan ethertype ? s-custom-port Custom S-ports configuration SM16TAT2SA(config)# vlan ip-subnet ? <ipv4_addr>...
Page 78: Voice Vlan
Transition Networks SMxTAT2SA CLI Reference voice vlan Configure Voice VLAN commands. SYNTAX voice vlan Parameter <vlan_id> VLAN IDs 1-4095 (1-4095) <AgingTime : 10-10000000> Aging time, 10-10000000 seconds (10..10000000) class <0-7> Traffic class value (0..7) voice vlan oui <00-01-E3 Siemens AG > <00-03-6B Cisco phones> <00-0F-E2 H3C> <00-60-B9 Philips and NEC AG>...
Page 79 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# voice vlan vid 100 aging-time 50000 class 4 SM16TAT2SA(config)# do show voice vlan Switch voice vlan entry 1: Switch voice vlan is enabled Switch voice vlan ID is 100 Switch voice vlan aging-time is 50000 seconds...
Page 80 Transition Networks SMxTAT2SA CLI Reference 3-2 no Negate a command or set its defaults. Table : configure – no Commands Command Function Authentication, Authorization and Accounting access Access management access-list Access list aggregation Aggregation mode clock Configure time-of-day clock dot1x...
Page 81 Transition Networks SMxTAT2SA CLI Reference Authentication, Authorization and Accounting. SYNTAX no aaa authentication login { telnet | ssh | http } Parameter authentication Authentication login Login http Disable HTTP Disable SSH telnet Disable Telnet EXAMPLE SM16TAT2SA(config)# no aaa authentication login ssh...
Page 82 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# no aaa authentication login ssh SM16TAT2SA(config)# SM16TAT2SA(config)# no aaa authorization ? telnet telnet SM16TAT2SA(config)# no aaa accounting ? telnet telnet SM16TAT2SA(config)# do show aaa Automatic Redirect : Disabled Client Method1 Method2 Method3 Service Port...
Page 83 Transition Networks SMxTAT2SA CLI Reference access Access management. SYNTAX no access management [<1~16>] no access management Parameter management Access management configuration <1~16> ID of access management entry EXAMPLE SM16TAT2SA(config)# no access management ? <1..16> ID of access management entry (1..16) <cr>...
Page 84 Transition Networks SMxTAT2SA CLI Reference clock Time-of-day clock. SYNTAX no clock summer-time no clock timezone Parameter summer-time Configure summer (daylight savings) time timezone Configure time zone EXAMPLE SM16TAT2SA(config)# no clock summer-time SM16TAT2SA(config)# no clock timezone SM16TAT2SA(config)# 33718 Rev. B https://www.transition.com...
Page 85 Transition Networks SMxTAT2SA CLI Reference dot1x IEEE Standard for port-based Network Access Control. SYNTAX Parameter authentication Authentication feature Globally enables/disables a dot1x feature functionality guest-vlan Guest VLAN max-reauth-req The number of times a Request Identity EAPOL frame is sent without response before considering entering the Guest VLAN.
Page 86 Transition Networks SMxTAT2SA CLI Reference interface SYNTAX no interface vlan < vlan_list > Parameter vlan Vlan interface configurations <vlan_list> Vlan list EXAMPLE SM16TAT2SA(config)# no interface ? vlan VLAN interface configurations SM16TAT2SA(config)# no interface vlan ? <vlan_list> List of VLAN interface numbers (1-4095) SM16TAT2SA(config)# no interface vlan 4095 ? <cr>...
Page 87 Transition Networks SMxTAT2SA CLI Reference Set system's network name. SYNTAX no ip arp inspection no ip arp inspection entry interface Gigabit Ethernet <port_type_id> <vlan_id> <mac_ucast> <ipv4_ucast> no ip arp inspection vlan <vlan_list> [logging] no dhcp pool <WORD> no ip dhcp relay [information {option| policy }]...
Page 88 Transition Networks SMxTAT2SA CLI Reference snooping DHCP snooping information DHCP information option(Option 82) option DHCP option policy Policy for handling the receiving DHCP packet already include the information option snooping DHCP snooping proxy DNS proxy service helper-address None. igmp Internet Group Management Protocol...
Page 89 Transition Networks SMxTAT2SA CLI Reference ipmc IPv4/IPv6 multicast configuration. SYNTAX no ipmc profile <Profilename : word16> no ipmc range <Entryname : word16> Parameter profile IPMC profile configuration <Profilename : word16> Profile name in 16 char's range A range of IPv4/IPv6 multicast addresses for the profile <Entryname : word16>...
Page 90 Transition Networks SMxTAT2SA CLI Reference ipv6 IPv6 configuration commands. SYNTAX no ipv6 mld host-proxy [ leave-proxy ] no ipv6 mld snooping no ipv6 mld snooping [vlan <vlan_list> ] no ipv6 mld unknown-flooding Parameter Multicast Listener Discovery host-proxy MLD proxy configuration...
Page 91 Transition Networks SMxTAT2SA CLI Reference lacp LACP settings. SYNTAX no lacp system-priority <1-65535> Parameter system-priority System priority <1-65535> Priority value, lower means higher priority EXAMPLE SM16TAT2SA(config)# no lacp? system-priority System priority SM16TAT2SA(config)# no lacp system-priority ? <cr> SM16TAT2SA(config)# no lacp system-priority SM16TAT2SA(config)# 33718 Rev.
Page 92 Transition Networks SMxTAT2SA CLI Reference lldp LLDP configurations. SYNTAX no lldp holdtime no lldp med datum no lldp med fast no lldp med location-tlv altitude no lldp med location-tlv civic-addr { country | state | county | city | district | block | street | leading-street-direction |...
Page 93 Transition Networks SMxTAT2SA CLI Reference latitude Setting Latitude parameter to default. longitude Setting longitude to default. additional-code Additional code - Example: 1320300003. additional-info Additional location info - Example: South Wing. apartment Unit (Apartment, suite) - Example: Apt 42. block Neighborhood, block.
Page 94 Transition Networks SMxTAT2SA CLI Reference LLDP Configuration ====================================== TX Interval : 30 sec TX Hold : 4 sec TX Delay : 2 sec TX Reinit : 2 sec GigabitEthernet 1/1 ------------------------------ TX/RX Mode : Disabled CDP Aware : Disable Port Descr : Enable...
Page 95 Transition Networks SMxTAT2SA CLI Reference latitude Latitude parameter longitude Longitude parameter elin-addr Emergency Location Identification Number civic-addr Civic address information and postal information SM16TAT2SA(config)# do show lldp med media-vlan-policy Policy Id Application Type Vlan ID L2 Priority DSCP --------- ------------------------ -------- ------- ----------- ----...
Page 96 Transition Networks SMxTAT2SA CLI Reference logging Syslog. SYNTAX no logging host no logging on Parameter host host Enable syslog server EXAMPLE SM16TAT2SA(config)# no logging host ? <1-6> host number (1..6) SM16TAT2SA(config)# no logging host 6 SM16TAT2SA(config)# no logging on ? <cr>...
Page 97 Transition Networks SMxTAT2SA CLI Reference MAC table entries/configuration. SYNTAX no mac address-table aging-time [<0,10-1000000> ] no mac address-table static <mac_addr> vlan <vlan_id> interface {*|Gigabit Ethernet [<port_type_list>]} Parameter address-table Mac table entries configuration/table aging-time Mac address aging time static Static MAC address <mac_addr>...
Page 98 Transition Networks SMxTAT2SA CLI Reference monitor Set monitor configuration. SYNTAX no monitor destination no monitor source { interface Gigabit Ethernet <port_type_list> | cpu} Parameter Destination source The source port(s). That is the ports to be mirrored to the destination port.
Page 99 Transition Networks SMxTAT2SA CLI Reference Multicast VLAN Registration configuration. SYNTAX no mvr Parameter EXAMPLE SM16TAT2SA(config)# do show mvr ? detail Detail running information/statistics of MVR group-database Multicast group database from MVR <cr> SM16TAT2SA(config)# no mvr SM16TAT2SA(config)# do show mvr MVR is now enabled to start group registration.
Page 100 Transition Networks SMxTAT2SA CLI Reference Configure NTP. SYNTAX no ntp no ntp server <1-5> no ntp interval Parameter server Configure NTP server <1-5> index number interval Configure NTP interval EXAMPLE SM16TAT2SA(config)# no ntp SM16TAT2SA(config)# no ntp ? server Configure NTP server...
Page 101 Transition Networks SMxTAT2SA CLI Reference Disable Power Over Ethernet. SYNTAX no poe auto-check no poe capacitor-detect Parameter auto-check Enable/disable poe automatic Ping checking. capacitor-detect Disable capacitor detection. EXAMPLE SM16TAT2SA(config)# no poe? poe Power Over Ethernet SM16TAT2SA(config)# no poe ? capacitor-detect Disable capacitor detection...
Page 102 Transition Networks SMxTAT2SA CLI Reference port-security Disable port security globally. SYNTAX no port-security Parameter <cr> Enable/disable port security globally EXAMPLE SM16TAT2SA(config)# no port-security? port-security Enable/disable port security globally <cr> SM16TAT2SA(config)# no port-security ? <cr> SM16TAT2SA(config)# no port-security SM16TAT2SA(config)# do show port-security switch interface GigabitEthernet 1/2-5...
Page 103 Transition Networks SMxTAT2SA CLI Reference privilege Disable Privilege level. SYNTAX no privilege group vlan level Parameter group name (access-mgmt/arp-inspection/auth-method/dhcp-relay/dhcp-server/dhcp-snooping/diagnostic/dot1x/eee/event/ip /ipmc/ip-source-guard/lacp/lldp/loop-protection/mac-table/mirror/mvr/poe/port/port-security/qos/radius/snmp/stp/ system/upnp/vlan) EXAMPLE SM16TAT2SA(config)# no privilege? privilege Privilege level SM16TAT2SA(config)# no privilege ? group Privilege group name SM16TAT2SA(config)# no privilege group ? <group>...
Page 104 Transition Networks SMxTAT2SA CLI Reference Disable Quality of Service. SYNTAX no qos cos-queue Map for CoS to queue no qos dscp-queue Map for DSCP to queue no qos precedence-queue Map for IP Precedence to queue no qos queue-cos Map for queue to CoS...
Page 105 Transition Networks SMxTAT2SA CLI Reference radius-server Disable RADIUS. SYNTAX no radius-server attribute {32 | 4 | 95} no radius-server deadtime no radius-server host { <word1-255> | <ipv4_ucast> | <ipv6_ucast> } [ auth-port <0-65535> ] [ acct-port <0-65535> ] no radius-server key...
Page 106 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# no radius-server key ? <cr> SM16TAT2SA(config)# no radius-server host ? word255 Hostname or IP address (word255) SM16TAT2SA(config)# no radius-server host 192.168.1.30 ? acct-port UDP port for RADIUS accounting server auth-port UDP port for RADIUS authentication server <cr>...
Page 107 Transition Networks SMxTAT2SA CLI Reference snmp-server Disable SNMP server. SYNTAX no snmp-server no snmp-server access <Groupname : word32> model { v1 | v2c | v3 | any } level { auth | noauth | priv } no snmp-server community v2c no snmp-server community v3 <Community : word127>...
Page 108 Transition Networks SMxTAT2SA CLI Reference view MIB view configuration <Community : word127> local Set SNMP local engine ID <ConfName : word32> Name of the host configuration model security model v1 security model v2c security model v3 security model name security user <SecurityName : word32>...
Page 109 Transition Networks SMxTAT2SA CLI Reference spanning-tree Disable STP Bridge. SYNTAX no spanning-tree edge bpdu-filter no spanning-tree edge bpdu-guard no spanning-tree mode no spanning-tree mst <instance> priority no spanning-tree mst <instance> vlan no spanning-tree mst forward-time no spanning-tree mst max-age no spanning-tree mst max-hops...
Page 110 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# no spanning-tree mode ? <cr> SM16TAT2SA(config)# no spanning-tree mst ? <0-4094> MST instance ID , 0 is for CIST (0..4094) forward-time Delay between port states max-hops MSTP bridge max hop count max-age Max bridge age before timeout...
Page 111 Transition Networks SMxTAT2SA CLI Reference system Disable SNMP. SYNTAX no system name Clear the SNMP server's system model name string no system contact Clear the SNMP server's contact string no system location Clear the SNMP server's location string Parameter <name> <contact> <location>...
Page 112 Transition Networks SMxTAT2SA CLI Reference System Description : Managed Switch, 16-port Gigabit PoE+, 2-port 100/1000 SFP Hardware Version : v1.00 Mechanical Version : v1.00 Firmware Version : v1.01.1201 MAC Address : 00-40-C7-1C-CB-6E Serial Number : C021316AR3300004 System Name Location Contact...
Page 113 Transition Networks SMxTAT2SA CLI Reference trap Negate SNMP Trap. SYNTAX no trap Parameter <cr> Negate the trap setting. EXAMPLE SM16TAT2SA(config)# no trap? trap Trap SM16TAT2SA(config)# no trap SM16TAT2SA(config)# no trap trap1 SM16TAT2SA(config)# no trap trap1 Syntax error: Illegal parameter SM16TAT2SA(config)# no trap...
Page 114 Transition Networks SMxTAT2SA CLI Reference upnp Negate UPnP (Universal Plug n Play) configurations. SYNTAX no upnp no upnp advertising-duration no upnp ttl Parameter advertising-duration Set advertising duration Set TTL value EXAMPLE SM16TAT2SA(config)# no upnp ? advertising-duration Set advertising duration Set TTL value <cr>...
Page 115 Transition Networks SMxTAT2SA CLI Reference username Negate User Name Authentication. SYNTAX no username <Username : word31> Parameter <Username : word31> User name allows letters, numbers and underscores EXAMPLE SM16TAT2SA(config)# no username ? word31 User name allows letters, numbers and underscores (word31)
Page 116 Transition Networks SMxTAT2SA CLI Reference vlan Negate VLAN. SYNTAX no vlan protocol { { eth2 { <0x600-0xffff> | arp | ip | ipx | at } } | { snap { <0x0-0xffffff> | rfc_1042 | snap_8021h } <0x0-0xffff> } | { llc <0x0-0xff> <0x0-0xff> } } group <word16>...
Page 117: Qos
Transition Networks SMxTAT2SA CLI Reference 3-3 qos Table : configure – qos Commands Command Function Global QoS Map/Table QoS Control Entry storm Storm policer trust Configure Global QoS Map/Table. SYNTAX qos map cos-dscp <0~7> dpl <dpl : 0~1> dscp { <DscpNum : 0-63> | { be | af11 | af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } } qos map dscp-classify { <dscpNum : 0~63>...
Page 118 Transition Networks SMxTAT2SA CLI Reference <DscpNum : 0-63> Specific DSCP Specify class of QoS <Cos : 0-7> Specific class of QoS af11 Assured Forwarding PHB AF11(DSCP 10) af12 Assured Forwarding PHB AF12(DSCP 12) af13 Assured Forwarding PHB AF13(DSCP 14) af21...
Page 119 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# qos map cos-queue ? <0-7> Specify class of service (0..7) SM16TAT2SA(config)# qos map cos-queue 6 ? to Specify the queue to which the CoS will be mapped SM16TAT2SA(config)# qos map cos-queue 6 to ? <0-7>...
Page 120: Snmp-Server
Transition Networks SMxTAT2SA CLI Reference 3-4 snmp-server Set SNMP server's configurations. SYNTAX snmp-server Table : configure snmp-server Commands Command Function access access configuration community Set the SNMP community contact Set the SNMP server's contact string engine-id Set SNMP engine ID...
Page 121 Transition Networks SMxTAT2SA CLI Reference read specify a read view for the group write specify a write view for the group <ViewName : word255> read view name <WriteName : word255> write view name EXAMPLE SM16TAT2SA(config)# snmp-server access text model v2c level noauth write text...
Page 122 Transition Networks SMxTAT2SA CLI Reference security-to-group Configure Security-to-group configuration. SYNTAX snmp-server security-to-group model { v1 | v2c | v3 } name <SecurityName : word32> group <GroupName : word32> Parameter model security model v1 security model v2c security model v3 security model...
Page 123 Transition Networks SMxTAT2SA CLI Reference user Set the SNMPv3 user's configurations. SYNTAX snmp-server user <Username : word32> engine-id <Engineid : word10-32> [ { md5 <Md5Passwd : word8-32> | sha <ShaPasswd : word8-40> } [ priv { des | aes } <word8-32> ] ] Parameter <Username : word32>...
Page 124 Transition Networks SMxTAT2SA CLI Reference <cr> SM16TAT2SA(config)# snmp-server user jeffs sha Duffrey1 priv des xxxxxxxxx12 SM16TAT2SA(config)# do show snmp user SNMPv3 Users Table: User Name : jeffs Security Level : Auth, Priv Authentication Protocol : SHA Privacy Protocol : DES SM16TAT2SA(config)# 33718 Rev.
Page 125 Transition Networks SMxTAT2SA CLI Reference view SNMP MIB view configuration. SYNTAX snmp-server view <ViewName : word32> <OidSubtree : word255> { include | exclude } Parameter <ViewName : word32> MIB view name <OidSubtree : word255> MIB view OID include Included type from the view...
Page 126: Spanning-Tree
Transition Networks SMxTAT2SA CLI Reference 3-5 spanning-tree Configure Spanning Tree protocol. Table : configure spanning-tree Commands Command Function mode STP protocol mode STP bridge instance mode Configure STP protocol mode. SYNTAX spanning-tree mode { stp | rstp | mstp }...
Page 127 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# do show spanning-tree mst configuration ? <cr> SM16TAT2SA(config)# do show spanning-tree mst configuration Multiple Spanning Tree Protocol : Enable Force Version : MSTP Region Name : 00-40-C7-1C-CB-6E Revision Level : 50 MSTI 0 (CIST) : vlan 1-3,10-19,21-4094...
Page 128 Transition Networks SMxTAT2SA CLI Reference Configure STP bridge instance. SYNTAX spanning-tree mst <Instance : 0-7> priority <Prio : 0-61440> spanning-tree mst < Instance : 0-7> vlan <vlan_list> spanning-tree mst forward-time <Fwdtime : 4-30> spanning-tree mst max-age <Maxage : 6-40> [ forward-time <Fwdtime : 4-30> ] spanning-tree mst max-hops <Maxhops : 6-40>...
Page 129 Transition Networks SMxTAT2SA CLI Reference priority Priority of the instance SM16TAT2SA(config)# spanning-tree mst 1 vlan ? <vlan_list> Range of VLANs (1-4095) SM16TAT2SA(config)# spanning-tree mst 1 vlan 20 ? <cr> SM16TAT2SA(config)# spanning-tree mst 1 vlan 20 SM16TAT2SA(config)# spanning-tree mst 1 priority ? <0-61440>...
Page 130 Transition Networks SMxTAT2SA CLI Reference MSTI INTERNAL ROOT PATH COST : 0 MSTI ROOT PORT ID : 0 TIME SINCE LAST TOPOLOGY CHANGE (SECs) : 616 TOPOLOGY CHANGE COUNT (SECs) : 0 SM16TAT2SA(config)# 33718 Rev. B https://www.transition.com Page 130 of 255...
Page 131: Copy Commands
Transition Networks SMxTAT2SA CLI Reference COPY Commands Copy from source to destination for backup, restore, and activate purposes. SYNTAX copy { startup-config | running-config | < flash:filename | tftp://server/path-and-filename > } { startup-config | running-config | < flash:filename | tftp://server/path-and-filename > } [ syntax-check ][ | { begin | exclude | include }{ <LINE >}]...
Page 132 Transition Networks SMxTAT2SA CLI Reference flash:filename File in FLASH tftp://server/path-to-file File on TFTP server SM16TAT2SA# copy startup-config ? running-config Current running configuration flash:filename File in FLASH tftp://server/path-to-file File on TFTP server SM16TAT2SA# copy startup-config running-config ? merge Merge source file with running-config...
Page 133: Delete Commands
Transition Networks SMxTAT2SA CLI Reference DELETE Commands Delete one file in flash: file system. SYNTAX Delete <Path : word> Parameter <Path : word> Name of file to delete EXAMPLE SM16TAT2SA# delete? delete Delete one file in flash file system SM16TAT2SA# delete ?
Page 134: Dir Commands
Transition Networks SMxTAT2SA CLI Reference DIR Commands Display a directory of all files in flash: file system. SYNTAX Dir <cr> Parameter EXAMPLE SM16TAT2SA# dir? dir Directory of all files in flash file system <cr> SM16TAT2SA# dir ? <cr> SM16TAT2SA# dir...
Page 135: Do Commands
Transition Networks SMxTAT2SA CLI Reference DO Commands To run Exec commands in Config mode. SYNTAX Do <LINE>{[LINE]} Parameter LINE Exec Command EXAMPLE SM16TAT2SA(config)# do ? clear Reset functions configure Enter configuration mode copy Copy from source to destination delete Delete one file in flash file system...
Page 136: Dot1X Commands
Transition Networks SMxTAT2SA CLI Reference DOT1x Commands IEEE Standard for port-based Network Access Control. SYNTAX dot1x initialize [ interface ( <port_type> [ <plist> ] ) ] Parameter authentication Authentication feature Globally enables/disables a dot1x feature functionality guest-vlan Guest VLAN max-reauth-req...
Page 137 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# dot1x feature? guest-vlan Globally enables/disables state of guest-vlan. SM16TAT2SA(config)# dot1x feature guest-vlan ? <cr> SM16TAT2SA(config)# dot1x feature guest-vlan SM16TAT2SA(config)# SM16TAT2SA(config)# dot1x guest-vlan? <1-4095> Guest VLAN ID used when entering the Guest VLAN. (1..4095) supplicant The switch remembers if an EAPOL frame has been received on the port for the life-time of the port.
Page 138 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA(config)# dot1x timeout? tx-period The time between EAPOL retransmissions. SM16TAT2SA(config)# dot1x timeout tx-period ? <1-65535> seconds (1..65535) SM16TAT2SA(config)# dot1x timeout tx-period 7000 ? <cr> SM16TAT2SA(config)# dot1x timeout tx-period 7000 SM16TAT2SA(config)# 33718 Rev. B https://www.transition.com Page 138 of 255...
Page 139: Firmware Commands
Transition Networks SMxTAT2SA CLI Reference FIRMWARE Commands Upgrade or swap Firmware. Syntax firmware swap firmware update < TFTPServer_path_file : word> Parameter swap Swap between Active and Alternate firmware image. update Upgrade the Firmware version. <TFTPServer_path_file : word> TFTP Server IP address, path and file name for the server containing the new image.
Page 140: No Commands
Transition Networks SMxTAT2SA CLI Reference NO Commands Negate a command or set its defaults. Syntax no <word> Parameter <word> Negate the function <word>. EXAMPLE SM16TAT2SA(config)# no ? Authentication, Authorization and Accounting access Access management access-list Access list aggregation Aggregation mode...
Page 141 Transition Networks SMxTAT2SA CLI Reference spanning-tree Spanning Tree protocol system Set the SNMP server's configurations tacacs-server Configure TACACS+ trap Trap upnp Set UPnP's configurations username Establish User Name Authentication vlan VLAN commands voice Vlan for voice traffic SM16TAT2SA(config)# Example: Negate the existing system contact and verify it was deleted:...
Page 142 Transition Networks SMxTAT2SA CLI Reference Firmware Version : v1.01.1201 MAC Address : 00-40-C7-1C-CB-6E Serial Number : C021316AR3300004 System Name : SM16TAT2SA Location Contact System Date : 2016-01-01 00:40:33 +0000 System Uptime : 0 days, 0:40:46 SM16TAT2SA(config)# 33718 Rev. B https://www.transition.com...
Page 143: Ping Commands
Transition Networks SMxTAT2SA CLI Reference PING Commands Send ICMP echo messages. Syntax ping ip <word1-255> [ repeat <Count : 1-60> ] [ size <Size : 2-1452> ] [ interval <Seconds : 0-30> ] ping ipv6 <ipv6_addr> [ repeat <Count : 1-60> ] [ size <Size : 2-1452> ] [ interval <Seconds : 0-30> ] [ interface vlan <vlan_id>...
Page 144 Transition Networks SMxTAT2SA CLI Reference EXAMPLE SM16TAT2SA# ping? ping Send ICMP echo messages SM16TAT2SA# ping ? IP (ICMP) echo ipv6 IPv6 (ICMPv6) echo SM16TAT2SA# ping ip 192.168.1.77 repeat 5 size 3 PING 192.168.1.77 (192.168.1.77): 3 data bytes 11 bytes from 192.168.1.77: seq=0 ttl=64 11 bytes from 192.168.1.77: seq=1 ttl=64...
Page 145: Reload Commands
Transition Networks SMxTAT2SA CLI Reference RELOAD Commands Reload system. Syntax reload { { { cold | warm } [ sid <usid> ] } | { defaults [ keep-ip ] } } Parameter cold Reload cold (i.e., reboot). defaults Reload defaults without rebooting.
Page 146: Show Commands
Transition Networks SMxTAT2SA CLI Reference SHOW Commands Show current system information. Table : SHOW Commands Command Function Login methods access Access management configuration access-list Access list aggregation Aggregation configuration and Status clock Configure time-of-day clock show dms information (removed in v 1.01.1209)
Page 147 Transition Networks SMxTAT2SA CLI Reference version System software status vlan VLAN status voice show voice Display Login methods. SYNTAX show aaa [ | {begin | exclude | include } <LINE>] Parameter EXAMPLE SM16TAT2SA# show aaa? Login methods <cr> SM16TAT2SA# show aaa ? <cr>...
Page 148 Transition Networks SMxTAT2SA CLI Reference access Display Access management. SYNTAX show access management [<access_id_list> ] Parameter management Access management configuration <AccessidList : 1~16> ID of access management entry EXAMPLE SM16TAT2SA# show access ? management Access management configuration SM16TAT2SA# show access management ? <1~16>...
Page 149 Transition Networks SMxTAT2SA CLI Reference access-list Display Access list. SYNTAX show access-list [ interface [ * | GigabitEthernet <PORT_LIST> ] ] [ rate-limiter [ <RateLimiterList : 1~16> ] ] [ ace statistics [ <AceId : 1~256> ] ] show access-list ace-status [ static ] [ loop-protect ] [ dhcp ] [ upnp ] [ arp-inspection ] [ mep ] [ ipmc ]...
Page 150 Transition Networks SMxTAT2SA CLI Reference <cr> SM16TAT2SA(config)# access-list ace 9 action permit metering 500000 counter frame-type any? ingress Ingress Port mirror Mirror frame to destination mirror port <cr> SM16TAT2SA(config)# access-list ace 9 action permit metering 500000 counter frame-type any SM16TAT2SA(config)# do show access-list ace 9...
Page 151 Transition Networks SMxTAT2SA CLI Reference aggregation Display Aggregation port configuration. SYNTAX show aggregation [aggregators] [ lacp ] [ mode ] [ status ] Parameter aggregators aggregator status lacp lacp local and neighbor info mode Traffic distribution mode status aggregation port status...
Page 152 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA# show aggregation mode ? <cr> SM16TAT2SA# show aggregation mode Cannot write to the running-config. The error while request to the config daemon. SM16TAT2SA# SM16TAT2SA# show aggregation status ? status aggregation port status <cr> SM16TAT2SA# show aggregation status? <cr>...
Page 153 Transition Networks SMxTAT2SA CLI Reference clock Display time-of-day clock settings. SYNTAX show clock [detail] Parameter <cr> Display system time. EXAMPLE SM16TAT2SA# show clock ? <cr> SM16TAT2SA# show clock System Time : 2017-01-01 07:15:24 SM16TAT2SA# 33718 Rev. B https://www.transition.com Page 153 of 255...
Page 154 Transition Networks SMxTAT2SA CLI Reference Display DMS (Device Management System) settings. The "show dms” command was removed at Firmware Version: v1.01.1201. SYNTAX show dms upnp show dms onvif Parameter detail Display detailed information EXAMPLE SM16TAT2SA# show dms ? upnp upnp information onvif onvif information <cr>...
Page 155 Transition Networks SMxTAT2SA CLI Reference dot1x Display IEEE Standard for port-based Network Access Control. SYNTAX show dot1x statistics { eapol | radius | all } [ interface <port_type> <port_type_list> ] [ | {begin | exclude | include } <LINE>] show dot1x status [ interface ( <port_type> [ <port_type_list> ] ) ] [ brief ] [ | {begin | exclude | include } <LINE>]...
Page 156 Transition Networks SMxTAT2SA CLI Reference green-ethernet Display Green Ethernet (Power reduction). SYNTAX show interface GigabitEthernet 1/2-4 green-ethernet Parameter interface EXAMPLE SM16TAT2SA# show interface ? vlan VLAN status All switches or All ports GigabitEthernet GigabitEthernet SM16TAT2SA# show interface GigabitEthernet ? <port_list>...
Page 157 Transition Networks SMxTAT2SA CLI Reference interface Display Interface status and configuration. SYNTAX show interface <port_type> <port_type_list> [ switchport [ access | trunk | hybrid ] ] show interface <port_type> <port_type_list> capabilities show interface <port_type> <port_type_list> statistics [ { packets | bytes | errors | discards | filtered | { priority [ <0~7>...
Page 158 Transition Networks SMxTAT2SA CLI Reference vlan VLAN status <cr> SM16TAT2SA# show interface vlan? <vlan_list> List of VLAN interface numbers (1-4095) <cr> SM16TAT2SA# show interface vlan Cannot write to the running-config. The error while request to the config daemon. SM16TAT2SA# show interface vlan 1 Cannot write to the running-config.
Page 159 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA# show interface * 1/2-4 status Speed Flow Interface Link Configured Pause Pause Control ------------------------- -------- ----------- ----- ----- -------- GigabitEthernet 1/2 down Auto Disabled GigabitEthernet 1/3 down Auto Disabled GigabitEthernet 1/4 down Auto Disabled...
Page 160 Transition Networks SMxTAT2SA CLI Reference EXAMPLE 3 SM16TAT2SA# show interface GigabitEthernet 1/1 capabilities GigabitEthernet 1/1 Capabilities: Connector Type : none Fiber Type : none Tx Central Wavelength: none Bit Rate : none Vendor OUI : none Vendor Name : none...
Page 161 Transition Networks SMxTAT2SA CLI Reference Display Internet Protocol settings. SYNTAX show ip arp show ip arp inspection [ interface {<port_type> <port_type_list>} | vlan <vlan_list> ] show ip arp inspection entry [ dhcp-snooping | static ] [ interface <port_type> <port_type_list> ] show ip dhcp relay [ statistics ] show ip dhcp snooping [ statistics ] [ interface <port_type>...
Page 162 Transition Networks SMxTAT2SA CLI Reference vlan Search by VLAN <vlan_list> VLAN identifier(s): VID group-database Multicast group database from IGMP sfm-information Including source filter multicast information from IGMP detail Detail running information/statistics of IGMP snooping mrouter Multicast router port status in IGMP...
Page 163 Transition Networks SMxTAT2SA CLI Reference vlan VLAN configuration <cr> SM16TAT2SA# show ip arp inspection Cannot write to the running-config. SM16TAT2SA# show ip dhcp? dhcp Dynamic Host Configuration Protocol SM16TAT2SA# show ip dhcp ? pool DHCP server pool relay DHCP Relay...
Page 164 Transition Networks SMxTAT2SA CLI Reference snooping Snooping IGMP SM16TAT2SA# show ip igmp snooping ? detail Detail running information/statistics of IGMP snooping group-database Multicast group database from IGMP mrouter Multicast router port status in IGMP vlan Search by VLAN <cr> SM16TAT2SA# show ip igmp snooping...
Page 165 Transition Networks SMxTAT2SA CLI Reference Interface Address Method Status ---------------- -------------------- ------------- ------ VLAN1 192.168.1.77/24 Manual SM16TAT2SA# SM16TAT2SA# show ip name-server? name-server Domain Name System <cr> SM16TAT2SA# show ip name-server ? <cr> SM16TAT2SA# show ip name-server Current DNS server is not set.
Page 166 Transition Networks SMxTAT2SA CLI Reference ---- ---- ---------- ----------- SM16TAT2SA# SM16TAT2SA# show ip verify source IP Source Guard Mode : Enabled Port Port Mode Max Dynamic Clients ---- --------- ------------------- GigabitEthernet 1/1 disabled unlimited GigabitEthernet 1/2 disabled unlimited GigabitEthernet 1/3...
Page 167 Transition Networks SMxTAT2SA CLI Reference ipv6 Display IPv6 configurations. SYNTAX show ipv6 interface [ vlan <vlan_list> { brief | statistics } ] [ | {begin | exclude | include } <LINE>] show ipv6 mld snooping [ vlan <vlan_list> ] [ group-database [ interface <port_type> <port_type_list> ]...
Page 168 Transition Networks SMxTAT2SA CLI Reference EXAMPLE SM16TAT2SA# show ipv6 ? IPv6 configuration commands interface IPv6 configuration commands neighbor IPv6 neighbors route IPv6 routes SM16TAT2SA# show ipv6 mld ? snooping Snooping MLD SM16TAT2SA# show ipv6 mld snooping ? detail Detail running information/statistics of MLD snooping...
Page 169 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA# show ipv6 mld snooping detail MLD Snooping is enabled to start snooping IGMP control plane. (MLD proxy for JOIN/LEAVE mechanism is active) Multicast streams destined to unregistered MLD groups will be flooding. SM16TAT2SA# 33718 Rev. B https://www.transition.com...
Page 170 Transition Networks SMxTAT2SA CLI Reference lldp Display LLDP neighbors information. SYNTAX show lldp med media-vlan-policy [ <0~31> ] show lldp med remote-device [ interface <port_type> <port_type_list> ] show lldp neighbors [ interface <port_type> <port_type_list> ] show lldp statistics [ interface <port_type> <port_type_list> ]...
Page 171 Transition Networks SMxTAT2SA CLI Reference EXAMPLE SM16TAT2SA# show lldp med media-vlan-policy Policy Id Application Type Vlan ID L2 Priority DSCP --------- ------------------------ -------- ------- ----------- ---- Voice Tagged SM16TAT2SA# SM16TAT2SA# show lldp statistics interface GigabitEthernet 1/1 LLDP global counters ====================================== Neighbor entries was last changed at : 5844 days, 0:36:01 (504923761 sec.
Page 172 Transition Networks SMxTAT2SA CLI Reference logging Display Syslog information. SYNTAX show logging <loggin_id : 1-4294967295> show logging [alert] [crit] [debug] [emerg] [error] [ info] [notice] [warning] Parameter <logging_id: 1-4294967295> Logging ID (1..4294967295) alert Alert crit Critical debug Debug emerg Emergency...
Page 173 Transition Networks SMxTAT2SA CLI Reference Info 2016-01-01 00:28:26 LOGIN: Login passed for user 'admin' Info 2016-01-01 00:43:42 LOGIN: Login passed for user 'admin' Info 2016-01-01 00:49:11 LINK-UPDOWN: Interface GigabitEthernet 1/1, changed state to up. Info 2016-01-01 01:05:11 LOGIN: Login passed for user 'admin'...
Page 174 Transition Networks SMxTAT2SA CLI Reference loop-protect Display Loop protection configuration settings. SYNTAX show loop-protect [ interface <port_type> <port_type_list> ] Parameter interface Interface status and configuration <port_type > GigabitEthernet All Switches or All ports Gigabit Ethernet 1 Gigabit Ethernet Port <port_type_list>...
Page 175 Transition Networks SMxTAT2SA CLI Reference Display Mac Address Table information. SYNTAX address MAC address lookup aging-time Aging time conf User added static mac addresses count Total number of mac addresses interface Select an interface to configure learning Learn/disable/secure state static...
Page 176 Transition Networks SMxTAT2SA CLI Reference EXAMPLE SM16TAT2SA# show mac address-table ? address MAC address lookup aging-time Aging time conf User added static mac addresses count Total number of mac addresses interface Select an interface to configure learning Learn/disable/secure state static...
Page 177 Transition Networks SMxTAT2SA CLI Reference SM16TAT2SA# show mac address-table vlan ? <vlan_id> VLAN IDs 1-4095 (1-4095) SM16TAT2SA# show mac address-table vlan 1 Type VID MAC Address Block Ports ------- ---- ------------------ ----- -------------------------- Dynamic 1 00-1B-11-B2-6D-4B No GigabitEthernet 1/1 Static 1 00-40-C7-1C-CB-6E No SM16TAT2SA# show mac address-table <cr>...
Page 178 Transition Networks SMxTAT2SA CLI Reference Display Multicast VLAN Registration configuration settings. SYNTAX show mvr [ vlan <vlan_list> | name <word16> ] [ group-database [ interface <port_type> <port_type_list> ] [ sfm-information ] ] [ detail ] [ | {begin | exclude | include } <LINE>]...
Page 179 Transition Networks SMxTAT2SA CLI Reference Show NTP status. SYNTAX show ntp status Parameter status status EXAMPLE SM16TAT2SA# show ntp status NTP Mode : Disable Interval : 1440 min Server IP host address (a.b.c.d) or a host name string ------------------------------------------------------ SM16TAT2SA# 33718 Rev.
Page 180 Transition Networks SMxTAT2SA CLI Reference Show PoE configurations. SYNTAX show poe auto-check [ interface ( <port_type> [ <v_port_type_list> ] ) ] show poe config [ interface ( <port_type> [ <v_port_type_list> ] ) ] show poe power-delay [ interface ( <port_type> [ <v_port_type_list> ] ) ]...
Page 181 Transition Networks SMxTAT2SA CLI Reference EXAMPLE 2 SM16TAT2SA# show poe ? status Display PoE (Power Over Ethernet) status for the switch. config Display PoE (Power Over Ethernet) config for the switch. auto-check Display PoE Auto Checking config for the switch.
Page 182 Transition Networks SMxTAT2SA CLI Reference GigabitEthernet 1/5 Enabled GigabitEthernet 1/6 Enabled GigabitEthernet 1/7 Enabled GigabitEthernet 1/8 Enabled SM16TAT2SA# show poe profile id 1 PoE profile: profile1 Start Time End Time Week Day HH : MM HH : MM ---------- -------...
Page 183 Transition Networks SMxTAT2SA CLI Reference port-security Show Port Security Interface status and configuration. SYNTAX show port-security switch <port_list> Port List S/X-Y,Z (1/1-18) Parameter switch Show Port Security status. Interface <port_type > GigabitEthernet All Switches or All ports Gigabit Ethernet 1 Gigabit Ethernet Port <port_type_list>...
Page 184 Transition Networks SMxTAT2SA CLI Reference privilege Show Privilege group status. SYNTAX show privilege group Parameter EXAMPLE SM16TAT2SA# show privilege ? group Privilege group name SM16TAT2SA# show privilege group <tab> access-mgmt arp-inspection auth-method dhcp-relay dhcp-server dhcp-snooping diagnostic dot1x event ipmc ip-source-guard...
Page 185 Transition Networks SMxTAT2SA CLI Reference lldp loop-protection mac-table maintenance mirror port port-security privilege-level radius tacacs snmp system upnp vlan SM16TAT2SA# 33718 Rev. B https://www.transition.com Page 185 of 255...
Page 186 Transition Networks SMxTAT2SA CLI Reference pvlan Display PVLAN (Private VLAN) status. SYNTAX <pvlan_list> PVLAN ID to show configuration for (1-18) isolation show isolation configuration <cr> Parameter <range_list> PVLAN id to show configuration for 1-18 (on the SM16TAT2SA) isolation show isolation configuration <port_type >...
Page 187 Transition Networks SMxTAT2SA CLI Reference Display Quality of Service status. SYNTAX show qos [ { interface [ <port_type> <port_type_list> ] } | wred | { maps [ dscp-cos ] [ dscp-ingress-translation ] [ dscp-classify ] [ cos-dscp ] [ dscp-egress-translation ] } | storm | { qce [ <Qce : 1-256> ] } ] [ | {begin | exclude | include } <LINE>...
Page 188 Transition Networks SMxTAT2SA CLI Reference qos queue-shaper queue 1 mode: disabled, rate: 1000000 Kbps qos queue-shaper queue 2 mode: disabled, rate: 1000000 Kbps qos queue-shaper queue 3 mode: disabled, rate: 1000000 Kbps qos queue-shaper queue 4 mode: disabled, rate: 1000000 Kbps...
Page 189 Transition Networks SMxTAT2SA CLI Reference IP Precedence to Queue mappings IP Precedence 0 1 2 3 4 5 6 7 ---------------+------------------------ Queue 0 1 2 3 4 5 6 7 Queue to CoS mappings Queue 0 1 2 3 4 5 6 7...
Page 190 Transition Networks SMxTAT2SA CLI Reference radius-server Display RADIUS configuration status. SYNTAX show radius-server [statistics] Parameter statistics RADIUS statistics EXAMPLE SM16TAT2SA# show radius-server ? statistics RADIUS statistics <cr> SM16TAT2SA# show radius-server Global RADIUS Server Timeout : 5 seconds Global RADIUS Server Retransmit...
Page 191 Transition Networks SMxTAT2SA CLI Reference rmon Display RMON statistics, history, alarms, and events. SYNTAX show rmon statistics <1-65535> Statistics entry list (1..65535) show rmon history <1-65535> History entry list (1..65535) show rmon alarm <1-65535> Alarm entry list (1..65535) show rmon alarm <cr>...
Page 192 Transition Networks SMxTAT2SA CLI Reference etherStatsOversizePkts etherStatsFragments etherStatsJabbers etherStatsCollisions etherStatsPkts64Octets etherStatsPkts65to127Octets etherStatsPkts128to255Octets : 0 etherStatsPkts256to511Octets : 0 SM16TAT2SA# show rmon history ? <1-65535> History entry list (1..65535) <cr> SM16TAT2SA# show rmon history 1 History ID : ------------------ SM16TAT2SA# show rmon alarm 1...
Page 193 Transition Networks SMxTAT2SA CLI Reference running-config Show running system information. SYNTAX show running-config EXAMPLE SM16TAT2SA# show running-config ? <cr> SM16TAT2SA# show running-config username admin privilege 15 password encrypted YWRtaW4= ipmc profile IPMC-Profile-Cfg-Fisrt_IPMC_ProCfg description Fisrt_IPMC_ProCfg ipmc mode ip verify source monitor session 1 source interface GigabitEthernet 1/2 rx...
Page 194 Transition Networks SMxTAT2SA CLI Reference qos shaper 1000000 qos queue-shaper queue 0 1000000 qos queue-shaper queue 1 1000000 qos wrr 6 6 0 0 0 0 0 0 aggregation static group 1 interface GigabitEthernet 1/3 switchport vlan mapping 1 dot1q-tunnel 1...
Page 195 Transition Networks SMxTAT2SA CLI Reference snmp Display SNMP configurations. SYNTAX show snmp access [ <GroupName : word32> { v1 | v2c | v3 | any } { auth | noauth | priv } show snmp community v3 [ <Community : word127> ] show snmp security-to-group [ { v1 | v2c | v3 } <SecurityName : word32>...
Page 196 Transition Networks SMxTAT2SA CLI Reference EXAMPLE SM16TAT2SA# show snmp ? access access configuration community Community security-to-group security-to-group configuration user User view MIB view configuration <cr> SM16TAT2SA# show snmp SNMP Configuration Read Community : public Write Community : private Write Mode...
Page 197 Transition Networks SMxTAT2SA CLI Reference spanning-tree Statistics STP Bridge settings. SYNTAX show spanning-tree [ summary | active | { interface <port_type> <port_type_list> } | { detailed [ interface <port_type> <port_type_list> ] } | { mst [ configuration | { <0-7> [ interface <port_type> <port_type_list> ] } ]...
Page 198 Transition Networks SMxTAT2SA CLI Reference CIST EXTERNAL ROOT PATH COST : 0 CIST ROOT PORT ID : 0 CIST REGIONAL ROOT PRIORITY : 32768 CIST REGIONAL ROOT MAC : 00-40-C7-1C-CB-6E CIST INTERNAL ROOT PATH COST : 0 CIST CURRENT MAX AGE : 20...
Page 199 Transition Networks SMxTAT2SA CLI Reference system Show system information. SYNTAX show system Parameter None EXAMPLE M16TAT2SA# show system Model Name : SM16TAT2SA Model Name : SM16TAT2SA System Description : Smart Managed Switch, 16-port Gigabit PoE+, 2-port 100/1000 SFP Hardware Version : v1.00...
Page 200 Transition Networks SMxTAT2SA CLI Reference tacacs-server Statistics TACACS+ server configuration. SYNTAX show tacacs-server <cr> Parameters EXAMPLE SM16TAT2SA# show tacacs-server? tacacs-server TACACS+ configuration <cr> SM16TAT2SA# show tacacs-server ? <cr> SM16TAT2SA# show tacacs-server Global TACACS+ Server Timeout : 5 seconds Global TACACS+ Server Deadtime...
Page 201 Transition Networks SMxTAT2SA CLI Reference trap Display trap configuration. SYNTAX show trap <cr> EXAMPLE SM16TAT2SA# show trap Community Severity No Ver Server IP Name Level -- --- --------------- ----------------------- --------- 1 v2c 192.168.1.30 Accm Error 2 v2c 192.168.1.77 Brd55 Critical SM16TAT2SA# 33718 Rev.
Page 202 Transition Networks SMxTAT2SA CLI Reference upnp Display UPnP configuration settings. SYNTAX show upnp <cr> Parameters EXAMPLE SM16TAT2SA# show upnp UPnP Mode : Enabled Interface VLAN UPnP TTL UPnP Advertising Duration : 100 SM16TAT2SA# 33718 Rev. B https://www.transition.com Page 202 of 255...
Page 203 Transition Networks SMxTAT2SA CLI Reference version Display System hardware and software status. SYNTAX show version Parameter EXAMPLE SM16TAT2SA# show version Active Image ------------ Partition : secondary Version : v1.01.1209 Date : 2017-11-09 16:45:19 UTC Alternate Image ------------ Partition : primary Version : v1.00.1209...
Page 204 Transition Networks SMxTAT2SA CLI Reference vlan Display VLAN status and settings. SYNTAX show vlan [ id <vlan_list> | name <vword32> | brief ] show vlan protocol [ eth2 { <0x600-0xffff> | arp | ip | ipx | at } ] [ snap { <0x0-0xffffff> | rfc_1042 | snap_8021h } <0x0-0xffff>...
Page 205 Transition Networks SMxTAT2SA CLI Reference Show the VLANs configured by NAS. Show the VLANs configured by VCL. voice-vlan Show the VLANs configured by Voice VLAN. interface Show the VLANs configured for a specific interface(s). <port_type > GigabitEthernet Gigabit Ethernet 1 Gigabit Ethernet Port <port_type_list>...
Page 206 Transition Networks SMxTAT2SA CLI Reference protocol Protocol-based VLAN status status Show the VLANs configured for each interface. <cr> SM16TAT2SA# show vlan mapping Index CVID SPVID Ports ----- ---- ----- -------------------------------------------------------------- GigabitEthernet 1/2 GigabitEthernet 1/3 GigabitEthernet 1/4 GigabitEthernet 1/5 SM16TAT2SA# SM16TAT2SA# show vlan status ? admin Show the VLANs configured by administrator.
Page 207 Transition Networks SMxTAT2SA CLI Reference ///////////////////////////////////////////////////////////////////////////////// GigabitEthernet 1/18 : --------------------- VLAN User PortType PVID Frame Type Ing Filter Tx Tag --------- ------------- ---- ------------- ---------- ----------------- Admin C-Port Enabled None GVRP Voice VLAN MSTP Combined C-Port Enabled None EXAMPLE SM16TAT2SA# show vlan status admin Show the VLANs configured by administrator.
Page 208 Transition Networks SMxTAT2SA CLI Reference voice Display Voice appliance attributes. SYNTAX show voice vlan <cr> Parameter EXAMPLE SM16TAT2SA# show voice vlan Switch voice vlan entry 1: Switch voice vlan is enabled Switch voice vlan ID is 1000 Switch voice vlan aging-time is 86400 seconds...
Page 209: Ssl Commands
Transition Networks SMxTAT2SA CLI Reference SSL Commands Re-generate a new SSL (Secure Socket Layer) certificate. Use the ssl command to set up an SSL certificate. Syntax ssl <cr> Parameter Re-generate a new SSL(Secure Socket Layer) Certificate. EXAMPLE SM16TAT2SA# ssl Generating a 2048 bit RSA private key .......+++...
Page 210: Terminal Commands
Transition Networks SMxTAT2SA CLI Reference TERMINAL Commands Set the terminal EXEC timeout parameter. Syntax terminal exec-timeout <0-1440> Parameter exec-timeout Set the EXEC timeout in minutes. The maximum setting is 1440 minutes (24 hours). EXAMPLE SM16TAT2SA# terminal ? terminal Set terminal line parameters...
Page 211: Traceroute Commands
Transition Networks SMxTAT2SA CLI Reference TRACEROUTE Commands traceroute tracks the route packets take from an IP network on their way to a given host.. SYNTAX traceroute ip traceroute ipv6 Parameter IP address; IP destination address (X.X.X.X). protocol < icmp (default)> < udp>...
Page 212 Transition Networks SMxTAT2SA CLI Reference Diagnostics Command Run the cable diagnostics for a port. Syntax diagnostics cable interface < GigabitEthernet | * > Parameter GigabitEthernet GigabitEthernet All ports EXAMPLE SM16TAT2SA# diagnostics cable interface GigabitEthernet 1/2 Port Link Status Test Result...
Page 213: Cli Command Summary
Transition Networks SMxTAT2SA CLI Reference CLI Command Summary This chapter introduces the CLI privilege level and command modes.  The privilege level determines whether or not you can run a particular command.  To run a particular command, you must run the command in the correct mode.
Page 214: Command Summary
Transition Networks SMxTAT2SA CLI Reference Command Summary Command Description Priv Mode Use the show access management user EXEC command without keywords to display the access management show access management configuration, or use the statistics EXEC keyword to display statistics, or use the <AccessId>...
Page 215 Transition Networks SMxTAT2SA CLI Reference access-list rate-limiter ID . The access-list interface configuration will affect the received frames if it doesn't match any ACE. Use the no access-list rate-limiter interface configuration command to disable the access-list rate-limiter. The no access-list rate-limiter...
Page 216 Transition Networks SMxTAT2SA CLI Reference configuration will affect the received frames if it doesn't match any ACE. Use the access-list evc-policer interface configuration command to configure the access-list evc-policer ID. The access-list evc-policer <1-256> INTERFACE_PORT_LIST access-list interface configuration will affect the received frames if it doesn't match any ACE.
Page 217 Transition Networks SMxTAT2SA CLI Reference the default setting of access-list rate-limiter. access-list ace [update] <1-256> [next Use the access-list ace global {<1-256>|last}] [ingress {switch configuration command to set the <switch_id>|switchport {<1-53>|<1~53>}|interface access-list ace. The command without {<port_type_id>|<port_type_list>}|any}] [policy the update keyword will creates or <0-255>...
Page 218 Transition Networks SMxTAT2SA CLI Reference [tcp-flag [tcp-fin {<0-1>|any}] [tcp-syn {<0-1>|any}] [tcp-rst {<0-1>|any}] [tcp-psh {<0-1>|any}] [tcp-ack {<0-1>|any}] [tcp-urg {<0-1>|any}]]| ipv6 [next-header {<0-5,7-16,18-57,59-255>|any}] [sip {<ipv6_addr> [sip-bitmask <uint>]|any}] [hop-limit {<0-1>|any}]| ipv6-icmp [sip {<ipv6_addr> [sip-bitmask <uint>]|any}] [icmp-type {<0-255>|any}] [icmp-code {<0-255>|any}] [hop-limit {<0-1>|any}]| ipv6-udp [sip {<ipv6_addr>...
Page 219 Transition Networks SMxTAT2SA CLI Reference configuration. Use the clear access-list ace statistics EXEC privileged EXEC command to clear the clear access-list ace statistics statistics maintained by access-list, including access-list interface statistics and ACE's statistics. Use the show access-list ace-status privilege EXEC command without...
Page 220 Transition Networks SMxTAT2SA CLI Reference arp_inspection_port_mode Use the ip arp inspection trust interface configuration command to configure a port as trusted for ARP inspection INTERFACE_PORT_LIST purposes. Use the no form of this command to configure a port as untrusted. arp_inspection_port_check_vlan...
Page 221 Transition Networks SMxTAT2SA CLI Reference RADIUS retransmit value. Use the no radius-server retransmit no radius-server retransmit command to reset the global RADIUS GLOBAL_CONFIG retransmit value to default. Use the radius-server deadtime radius-server deadtime <1-1440> command to configure the global GLOBAL_CONFIG RADIUS deadtime value.
Page 222 Transition Networks SMxTAT2SA CLI Reference Use the tacacs-server key command to tacacs-server key <line1-63> GLOBAL_CONFIG configure the global TACACS+ key. Use the no tacacs-server key command no tacacs-server key GLOBAL_CONFIG to remove the global TACACS+ key. tacacs-server host <word1-255> [ port...
Page 223 Transition Networks SMxTAT2SA CLI Reference snooping | relay | normal-forward | combined } user EXEC command to display [ interface <port_type_list> ] statistics. Notice that the normal forward per-port TX statistics isn't increased if the incoming DHCP packet is done by L3 forwarding mechanism.
Page 224 Transition Networks SMxTAT2SA CLI Reference Use the ip dhcp relay information option global configuration command to enable the DHCP relay information option. Use the no form of this command to disable the DHCP relay information option. The option 82 circuit ID format as "[vlan_id][module_id][port_no]".
Page 225 Transition Networks SMxTAT2SA CLI Reference show ip dhcp server statistics EXEC show ip dhcp server declined-ip EXEC show ip dhcp server declined-ip <ipv4_addr> EXEC clear ip dhcp server binding <ipv4_ucast> EXEC clear ip dhcp server binding { automatic | manual |...
Page 226 Transition Networks SMxTAT2SA CLI Reference nis-domain-name <word128> DHCP_POOL no nis-domain-name DHCP_POOL nis-server <ipv4_ucast> [<ipv4_ucast> DHCP_POOL [<ipv4_ucast> [<ipv4_ucast>]]] no nis-server DHCP_POOL host <ipv4_ucast> <ipv4_netmask> DHCP_POOL no host DHCP_POOL client-identifier { fqdn <line128> | mac-address DHCP_POOL <mac_addr> } no client-identifier DHCP_POOL hardware-address <mac_ucast>...
Page 227 Transition Networks SMxTAT2SA CLI Reference Use the ip dhcp snooping trust interface INTERFACE_PORT_LIST configuration command to configure a port as trusted for DHCP snooping dhcp_snooping_port_mode purposes. Use the no form of this command to configure a port as untrusted. Use the show ip dhcp snooping table...
Page 228 Transition Networks SMxTAT2SA CLI Reference no green-ethernet led interval <0~24> GLOBAL_CONFIG Use green-ethernet led on-event to green-ethernet led on-event { [ link-change configure when to turn LEDs intensity to GLOBAL_CONFIG <0-65535> ] [ error ] }*1 100%. no green-ethernet led on-event [ link-change ]...
Page 229 Transition Networks SMxTAT2SA CLI Reference reload { { { cold | warm } [ sid <1-16> ] } | { defaults Reload system, either cold (reboot) or EXEC [ keep-ip ] } } restore defaults without reboot. show running-config [ all-defaults ] EXEC show running-config feature <cword>...
Page 230 Transition Networks SMxTAT2SA CLI Reference <vlan_list> ] [ icmp ] [ icmp-msg <0~255> ] show ip igmp snooping mrouter [ detail ] EXEC clear ip igmp snooping [ vlan <vlan_list> ] statistics EXEC show ip igmp snooping [ vlan <vlan_list> ] [ group-database [ interface <port_type_list>...
Page 231 Transition Networks SMxTAT2SA CLI Reference no ip igmp snooping max-groups INTERFACE_PORT_LIST ip igmp snooping filter <word16> INTERFACE_PORT_LIST no ip igmp snooping filter INTERFACE_PORT_LIST ipv6 mld snooping GLOBAL_CONFIG ipv6 mld unknown-flooding GLOBAL_CONFIG ipv6 mld host-proxy [ leave-proxy ] GLOBAL_CONFIG ipv6 mld ssm-range <ipv6_mcast> <8-128>...
Page 232 Transition Networks SMxTAT2SA CLI Reference no ipv6 mld snooping last-member-query-interval INTERFACE_VLAN ipv6 mld snooping unsolicited-report-interval INTERFACE_VLAN <0-31744> no ipv6 mld snooping unsolicited-report-interval INTERFACE_VLAN ip verify source GLOBAL_CONFIG ip verify source INTERFACE_PORT_LIST ip verify source limit <0-2> INTERFACE_PORT_LIST no ip verify source limit...
Page 233 Transition Networks SMxTAT2SA CLI Reference no lldp reinit Sets LLDP reinitialization delay. GLOBAL_CONFIG lldp tlv-select {management-address | port-description | system-capabilities | Enables/disables LLDP optional TLVs. INTERFACE_PORT_LIST system-description | system-name} Sets if switch shall transmit LLDP lldp transmit INTERFACE_PORT_LIST frames. Sets if switch shall update LLDP entry...
Page 234 Transition Networks SMxTAT2SA CLI Reference lldp med location-tlv civic-addr { country | state | county | city | district | block | street | leading-street-direction | trailing-street-suffix | street-suffix | house-no | house-no-suffix | Use lldp med location-tlv civic-addr to...
Page 235 Transition Networks SMxTAT2SA CLI Reference lldp med media-vlan-policy <0-31> { voice | voice-signaling | guest-voice-signaling | Use the media-vlan-policy to create a guest-voice | softphone-voice | video-conferencing policy, which can be assigned to an GLOBAL_CONFIG | streaming-video | video-signaling } { tagged interface.
Page 236 Transition Networks SMxTAT2SA CLI Reference [ interface <port_type_list> ] } ] } ] clear spanning-tree { { statistics [ interface <port_type_list> ] } | { detected-protocols EXEC [ interface <port_type_list> ] } } spanning-tree mode { stp | rstp | mstp }...
Page 237 Transition Networks SMxTAT2SA CLI Reference no spanning-tree mst <0-7> cost INTERFACE_PORT_LIST spanning-tree mst <0-7> port-priority <0-240> INTERFACE_PORT_LIST no spanning-tree mst <0-7> port-priority INTERFACE_PORT_LIST spanning-tree STP_AGGR spanning-tree edge STP_AGGR spanning-tree auto-edge STP_AGGR spanning-tree link-type { point-to-point | shared | STP_AGGR auto }...
Page 238 Transition Networks SMxTAT2SA CLI Reference no mvr vlan <vlan_list> igmp-address GLOBAL_CONFIG no mvr name <word16> igmp-address GLOBAL_CONFIG mvr vlan <vlan_list> frame priority <0-7> GLOBAL_CONFIG mvr vlan <vlan_list> frame tagged GLOBAL_CONFIG mvr name <word16> frame priority <0-7> GLOBAL_CONFIG mvr name <word16> frame tagged GLOBAL_CONFIG no mvr vlan <vlan_list>...
Page 239 Transition Networks SMxTAT2SA CLI Reference no dot1x timeout quiet-period GLOBAL_CONFIG Refresh (restart) 802.1X authentication dot1x re-authenticate INTERFACE_PORT_LIST process. dot1x initialize [ interface <port_type_list> ] Force re-authentication immediately EXEC dot1x system-auth-control Set the global NAS state GLOBAL_CONFIG dot1x port-control { force-authorized | Sets the port security state.
Page 240 Transition Networks SMxTAT2SA CLI Reference dot1x radius-vlan Enables/disables per-port state of INTERFACE_PORT_LIST RADIUS-assigned VLAN. dot1x feature { [ guest-vlan ] [ radius-qos ] Globally enables/disables a dot1x GLOBAL_CONFIG [ radius-vlan ] }*1 feature functionality show dot1x statistics { eapol | radius | all}...
Page 241 Transition Networks SMxTAT2SA CLI Reference poe schedule-mode Configure PoE Schedule mode. INTERFACE_PORT_LIST disable PoE power management no poe schedule-mode INTERFACE_PORT_LIST method. poe select-all <range_list> Configure PoE Schedule mode. GLOBAL_CONFIG disable PoE power management no poe schedule-all <range_list> GLOBAL_CONFIG method. poe delay-mode <range_list>...
Page 242 Transition Networks SMxTAT2SA CLI Reference on Saturday to enable PoE. This command is used to set hour time INTERFACE_PORT_LIST no poe Sat on Saturday to disable PoE. show interface <port_type_list> statistics [ { packets | bytes | errors | discards | filtered | Shows the statistics for the interface.
Page 243 Transition Networks SMxTAT2SA CLI Reference [ crw <0-15> ] [ sro <0-15> ] [ srw <0-15> ] }*1 no web privilege group [ <cword> ] level GLOBAL_CONFIG show port-security port [ interface Show MAC Addresses learned by Port EXEC <port_type_list> ]...
Page 244 Transition Networks SMxTAT2SA CLI Reference dpl <dpl> no qos map dscp-cos { <0~63> | <dscp> } GLOBAL_CONFIG qos map dscp-ingress-translation { <0~63> | GLOBAL_CONFIG <dscp> } to { <0-63> | <dscp> } no qos map dscp-ingress-translation { <0~63> | GLOBAL_CONFIG <dscp>...
Page 245 Transition Networks SMxTAT2SA CLI Reference { <0-255> | tcp | udp | any } ] [ sip { <ipv4_subnet> | any } ] [ dip { <ipv4_subnet> | any } ] [ dscp { <vcap_vr> | <dscp> | any } ] [ fragment { yes | no | any } ] [ sport { <vcap_vr>...
Page 246 Transition Networks SMxTAT2SA CLI Reference no qos queue-shaper queue <0~7> INTERFACE_PORT_LIST qos tag-remark { pcp <0-7> dei <0-1> | mapped } INTERFACE_PORT_LIST no qos tag-remark INTERFACE_PORT_LIST qos map cos-tag cos <0~7> dpl <0~1> pcp <0-7> INTERFACE_PORT_LIST dei <0-1> no qos map cos-tag cos <0~7> dpl <0~1>...
Page 247 Transition Networks SMxTAT2SA CLI Reference show snmp community v3 [ <word127> ] EXEC show snmp user [ <word32> <word10-32> ] show snmp security-to-group [ { v1 | v2c | v3 } <word32> ] show snmp access [ <word32> { v1 | v2c | v3 | any } { auth | noauth | priv } ] show snmp view [ <word32>...
Page 248 Transition Networks SMxTAT2SA CLI Reference no snmp-server contact To clear the system contact string. GLOBAL_CONFIG snmp-server location <line255> To specify the system location string. GLOBAL_CONFIG no snmp-server location To specify the system location string. GLOBAL_CONFIG Use the show snmp mib context user...
Page 249 Transition Networks SMxTAT2SA CLI Reference the logging message summary for the logging level. Use the show logging privileged EXEC show logging <1-4294967295> [ switch command with logging ID to display the EXEC <switch_list> ] detail logging message. OC_CMD_DEFAULT = clear logging [ info ] [ warning ] [ error ] [ switch...
Page 250 Transition Networks SMxTAT2SA CLI Reference no upnp advertising-duration GLOBAL_CONFIG Use the username <username> privilege <level> password encrypted username <word31> privilege <0-15> password <password> global configuration GLOBAL_CONFIG unencrypted <line31> command to add a user with unencrypted password for the local switch access.
Page 251 Transition Networks SMxTAT2SA CLI Reference define the type of the port. no switchport mode INTERFACE_PORT_LIST Use the switchport access vlan switchport access vlan <vlan_id> command to configure a port to a VLAN. INTERFACE_PORT_LIST Valid VLAN IDs are 1 to 4095.
Page 252 Transition Networks SMxTAT2SA CLI Reference interface vlan ethertype s-custom-port <0x0600-0xffff> GLOBAL_CONFIG no vlan {{ethertype s-custom-port} | <vlan_list>} GLOBAL_CONFIG Use the how interfaces command to EXEC show interface <port_type_list> switchport [access display the administrative and | trunk | hybrid] operational status of all interfaces or a specified interface.
Page 253 Transition Networks SMxTAT2SA CLI Reference high } configuration command to configure voice vlan class. Use the no voice vlan class global no voice vlan class configuration command to restore the GLOBAL_CONFIG default voice vlan class. Use the voice vlan oui global voice vlan oui <oui>...
Page 254 Support Library (no logon required). Note that this manual provides links to third party web sites for which Transition Networks is not responsible. This manual describes how to install, configure, and troubleshoot the SMxTAT2SA switch. Other related manuals are listed below.
Page 255 Minnetonka, MN 55343, U.S.A. tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com techsupport@transition.com customerservice@transition.com Copyright © 2017 Transition Networks. All rights reserved. Printed in the U.S.A. 33718_B - SMxTAT2SA CLI Reference 33718 Rev. B https://www.transition.com Page 255 of 255...
