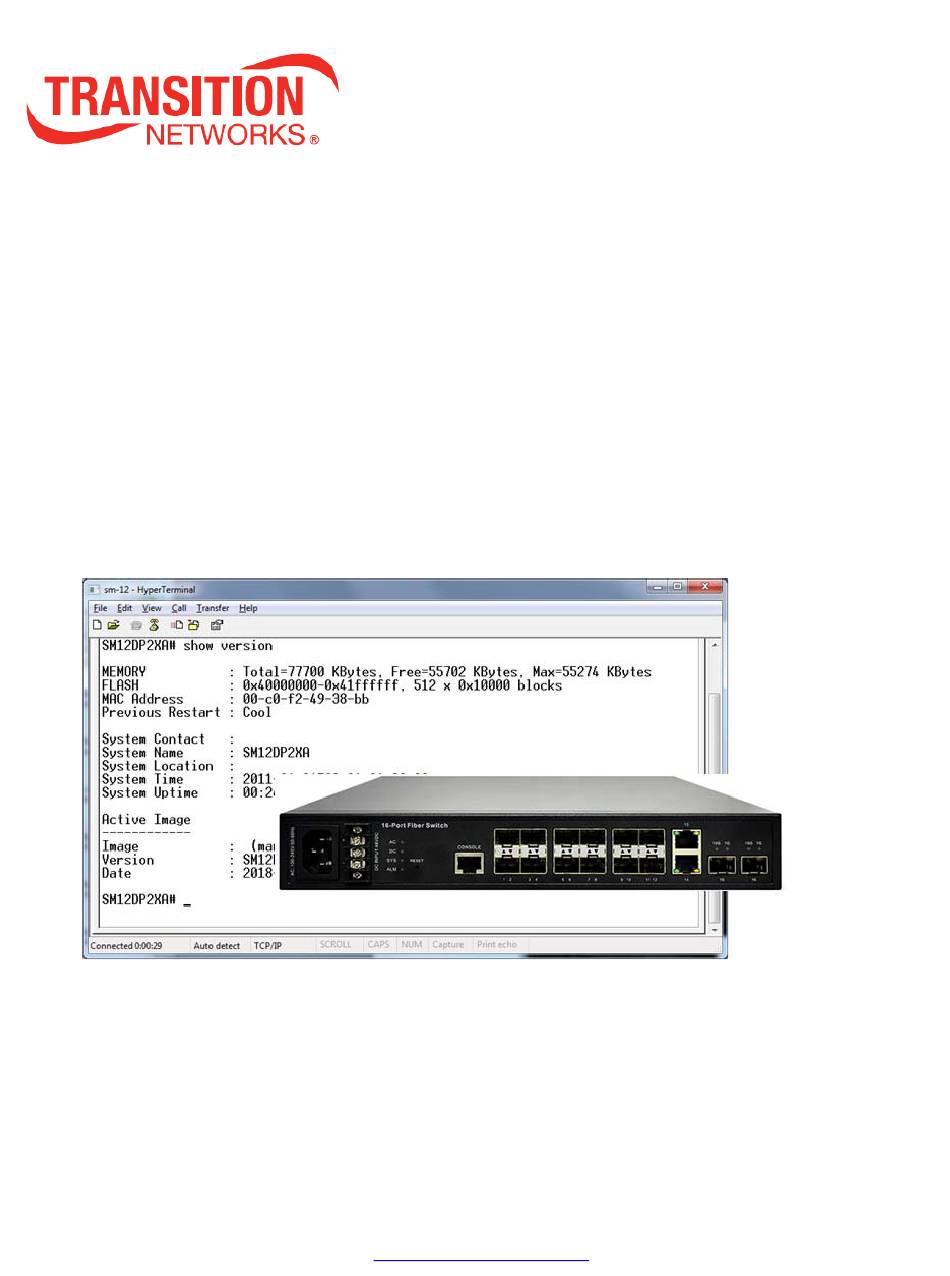

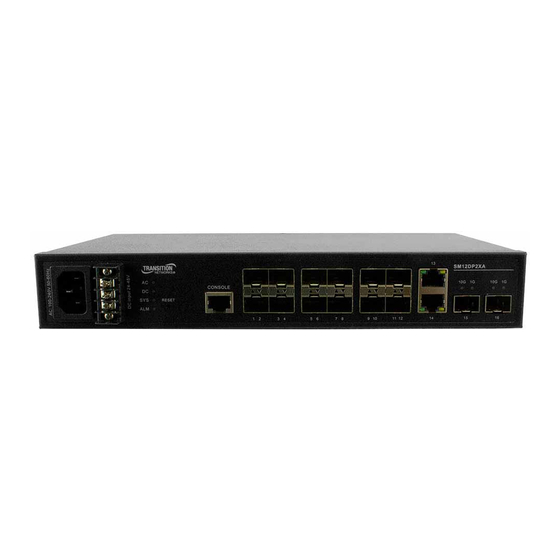

Page 1 Transition Networks SM12DP2XA CLI Reference SM12DP2XA Managed Gigabit Ethernet Fiber Switch (12) 100/1000Base-X SFP Slots + (2) 1G/10G SFP+ slots + (2) 10/100/1000Base-T CLI Reference 33753 Rev. A 33753 Rev. A https://www.transition.com Page 1 of 254 ...
Page 2 Transition Networks SM12DP2XA CLI Reference Trademarks All trademarks and registered trademarks are the property of their respective owners. Copyright Notice/Restrictions Copyright© 2018 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means (graphic, electronic or mechanical) without written permission from Transition Networks. Printed in the U.S.A. SM12DP2XA Managed Gigabit Ethernet Fiber Switch CLI Reference 33753 Rev. A Contact Information Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343 USA tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com | techsupport@transition.com | customerservice@transition.com Revision History Rev Date Description A 6/20/18 Initial release at FW v7.10.1423 2018‐05‐16. 33753 Rev. A https://www.transition.com Page 2 of 254 ...
Page 3: Table Of Contents
Transition Networks SM12DP2XA CLI Reference Contents 1 ‐ Introduction .............................. 5 1‐1 Key Features ............................ 5 1‐2 Related Manuals ............................ 5 1‐3 For More Information .......................... 6 1–4 CLI Management ............................. 6 1‐5 Login ................................ 6 1‐6 CLI Command Modes .......................... 7 1‐7 Global CLI Commands .......................... 8 2 – Clear Commands ............................ 12 3 – Configure Commands .......................... 24 3‐1 access‐list............................... 95 3‐2 no ................................. 103 3‐3 qos ............................... 131 3‐4 snmp‐server ............................ 138 3‐5 spanning‐tree ............................ 146 4 ‐ Copy Commands ............................ 151 ...
Page 4 Transition Networks SM12DP2XA CLI Reference 22‐1 Recording Device and System Information .................. 250 22‐2 Limited Lifetime Warranty ........................ 251 22‐3 Contact Us ............................ 251 Appendix A ‐ DHCP Per Port .......................... 252 Configure DHCP Per Port via the CLI ...................... 252 33753 Rev. A https://www.transition.com Page 4 of 254 ...
Page 5: 1 - Introduction
 ICMP, TCP flag LLDP (Link Layer Discovery Protocol)  IP Source Guard, Port Security  Port Mirroring  Firmware Update through TFTP/HTTP and console  Syslog  1RU high, compact form factor  Extended operating temperature: ‐20°C to + 60°C  1‐2 Related Manuals SM12DP2XA Quick Start Guide, 33750  SM12DP2XA Install Guide, 33751  SM12DP2XA Web User Guide, 33752  SM12DP2XA CLI Reference, 33753 (this manual)  33753 Rev. A https://www.transition.com Page 5 of 254 ...
Page 6: For More Information
Transition Networks SM12DP2XA CLI Reference 1‐3 For More Information A printed Quick Start Guide is shipped with each unit. For Transition Networks Drivers, Firmware, etc. go to the Product Support webpage (logon required). For Transition Networks Manuals, Brochures, Data Sheets, etc. go to the Support Library (no logon required). For SFP manuals see Transition Networks SFP webpage. Note: Information in this document is subject to change without notice. Note that this manual provides links to third party web sites for which Transition Networks is not responsible. 1–4 CLI Management A brief description of the network connection is provided below. The RJ‐45 cable is used for connecting a terminal or terminal emulator to the Switch’s RJ‐45 port to access the command line interface. Attach the RJ‐45 serial port on the switch’s front panel which used to connect to the switch for console configuration. Attach the other end of the DB‐9 cable to an ASCII terminal emulator or PC Com‐1, 2 port (e.g., a PC running Microsoft Windows HyperTerminal utility). At the “Com Port Properties” Menu, configure the parameters Baud rate=115200, Stop bits=1, Data bits=8, Parity=N, Flow control=none. 1‐5 Login The command‐line interface (CLI) is a text‐based interface. User can access the CLI through either a direct serial connection to the device or a Telnet session. The default user and password to login into the Managed Switch are Username: admin and Password: admin. After you login successfully, the prompt will be shown as “<sys_name>#“. This means you can perform as an administrator and have the privilege for setting the Managed Switch. If not logged in as the administrator, the prompt will be shown as “<sys_name>>”, which means you can perform as a guest and are only allowed for setting the system under the administrator. Each CLI command has a specific privilege ...
Page 7: Cli Command Modes
Transition Networks SM12DP2XA CLI Reference 1‐6 CLI Command Modes The CLI is divided into several modes. If a user has enough privilege to run a particular command, you can run the command if in the correct mode. To see the commands of a mode, enter a question mark (?) after the system prompt, then all commands will be listed in the screen. The command modes are listed below: Mode Prompt Command Function in This Mode Display current configuration, Exec <sys_name># diagnostics, maintenance. Configure features other than those Config <sys_name>(config)# below. Config‐if <sys_name>(config‐interface)# Configure ports. Config‐if‐vlan <sys_name>(config‐if‐vlan)# Configure static VLAN. Config‐line <sys_name>(config‐line)# Line configuration. Config‐impc‐profile <sys_name>(config‐impc‐profile)# Configure IPMC Profile. Config‐snmp‐host ...
Page 8: Global Cli Commands
Transition Networks SM12DP2XA CLI Reference 1‐7 Global CLI Commands Exec mode commands are listed with the ? (question mark) command as shown below. SM12DP2XA# ? CableDiag Cable Diagnostic keyword clear Reset functions configure Enter configuration mode copy Copy from source to destination delete Delete one file in flash: file system dir Directory of all files in flash: file system disable Turn off privileged commands do To run exec commands in config mode dot1x IEEE Standard for port‐based Network Access Control enable Turn on privileged commands exit Exit from EXEC mode firmware Firmware upgrade/swap help Description of the interactive help system ip IPv4 commands ipv6 IPv6 configuration commands logout Exit from EXEC mode more Display file no Negate a command or set its defaults ping Send ICMP echo messages platform Platform configuration reload Reload system. send Send a message to other tty lines show Show running system information terminal Set terminal line parameters traceroute traceroute program SM12DP2XA# ...
Page 9 SM12DP2XA CLI Reference CableDiag Cable Diagnostic keyword. This command runs the built-in Cable Diagnostics. It takes about 5-15 seconds. When completed, the cable diagnostics results display in the cable status table. Note that Cable Diagnostics is only accurate for cables of length 7 -140 meters.
Page 10 Transition Networks SM12DP2XA CLI Reference Exit Exit from Config mode back to Exec mode. Syntax: exit Parameters: None. Example: SM12DP2XA# configure terminal SM12DP2XA(config)# exit SM12DP2XA# Help Description of the interactive help system. Syntax: help Parameters: None. Example: SM12DP2XA# help Help may be requested at any point in a command by entering ...
Page 11 Transition Networks SM12DP2XA CLI Reference Go back to EXEC mode. Syntax: end Example: SM12DP2XA(config)# end SM12DP2XA# SM12DP2XA(config)# vlan 10 SM12DP2XA(config‐vlan)# ? do To run exec commands in config mode end Go back to EXEC mode exit Exit from current mode help Description of the interactive help system name ASCII name of the VLAN no SM12DP2XA(config‐vlan)# exit SM12DP2XA(config)# interface ? * All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port 10GigabitEthernet 10 Gigabit Ethernet Port vlan VLAN interface configurations SM12DP2XA(config)# interface vlan ? <vlan_list> List of VLAN interface numbers, 1~4095 SM12DP2XA(config)# interface vlan 100 ? <cr> SM12DP2XA(config)# interface vlan 100 SM12DP2XA(config‐if‐vlan)# end ...
Page 12: 2 - Clear Commands
Transition Networks SM12DP2XA CLI Reference 2 – Clear Commands Table : CLEAR Commands access Access management access‐list Access list dot1x IEEE Standard for port‐based Network Access Control ip Interface Internet Protocol config commands ipv6 IPv6 configuration commands lacp Clear LACP statistics lldp Clears LLDP statistics. logging System logging message mac MAC Address Table ...
Page 13 Transition Networks SM12DP2XA CLI Reference access-list Access list. Syntax: Clear access-list ace statistics Parameters: Access list entry statistics Traffic statistics Example: SM12DP2XA# clear access‐list ? ace Access list entry SM12DP2XA# clear access‐list ace statistics ? <cr> SM12DP2XA# clear access‐list ace statistics SM12DP2XA# show access‐list ace statistics Switch access‐list ace number: 0 SM12DP2XA# dot1x IEEE Standard for port-based Network Access Control.
Page 14 SM12DP2XA CLI Reference Interface Internet Protocol config commands Syntax clear ip arp clear ip dhcp detailed statistics { server | client | snooping | relay | helper | all } [ interface ( <port_type>...
Page 15 Transition Networks SM12DP2XA CLI Reference detailed Detailed statistics relay DHCP relay agent configuration server Miscellaneous DHCP server information snooping DHCP snooping SM12DP2XA# clear ip igmp ? snooping Snooping IGMP SM12DP2XA# clear ip igmp snooping ? statistics Running IGMP snooping counters vlan Search by VLAN SM12DP2XA# clear ip statistics ? icmp IPv4 ICMP traffic icmp‐msg IPv4 ICMP traffic for designated message type interface Select an interface to configure system IPv4 system traffic <cr> SM12DP2XA# clear ip statistics SM12DP2XA# 33753 Rev. A https://www.transition.com Page 15 of 254 ...
Page 16 SM12DP2XA CLI Reference ipv6 IPv6 configuration commands. Syntax clear ipv6 mld snooping [ vlan <v_vlan_list> ] statistics clear ipv6 neighbors clear ipv6 statistics [ system ] [ interface vlan <v_vlan_list> ] [ icmp ] [ icmp-msg <type> ]...
Page 17 Transition Networks SM12DP2XA CLI Reference lacp Clear LACP statistics Syntax Clear lacp statistics Parameters statistics Clear all LACP statistics EXAMPLE SM12DP2XA# clear lacp statistics SM12DP2XA# lldp Clears LLDP statistics. Syntax Clear lldp statistics Clear lldp statistics| begin | exclude | include >< LINE >...
Page 18 Transition Networks SM12DP2XA CLI Reference logging Clear Syslog. Syntax clear logging [ info ] [ warning ] [ error ] [ switch <switch_list> ] Parameters alert crit debug emerg error info notice warning EXAMPLE SM12DP2XA# clear logging ? alert Severity 1: Action must be taken immediately ...
Page 19 Transition Networks SM12DP2XA CLI Reference Clear MAC Address Table. Syntax Clear mac address-table Parameters address-table Flush MAC Address table. EXAMPLE SM12DP2XA# clear mac address‐table SM12DP2XA# Clear Multicast VLAN Registration configuration. Syntax clear mvr [ vlan <v_vlan_list> | name <mvr_name> ] statistics...
Page 20 Transition Networks SM12DP2XA CLI Reference port-security Clear port security. Syntax clear port‐security sticky { All | interface ( <port_type> [ <plist> ] ) } Parameters sticky port security sticky function per interface All clear all sticky mac at all ports interface Choose port * All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port 10GigabitEthernet 10 Gigabit Ethernet Port <port_type_list> ...
Page 21 Transition Networks SM12DP2XA CLI Reference SM12DP2XA# clear port‐security sticky all SM12DP2XA# sflow Statistics flow. Syntax clear sflow statistics { receiver [ <receiver_index_list> ] | samplers [ interface [ <samplers_list> ] ( <port_type> [ <v_port_type_list> ] ) ] } Parameters receiver Clear statistics for receiver.
Page 22 SM12DP2XA CLI Reference spanning-tree STP Bridge. Syntax clear spanning-tree { { statistics [ interface ( <port_type> [ <v_port_type_list> ] ) ] } | { detected-protocols [ interface ( <port_type> [ <v_port_type_list_1> ] ) ] } }...
Page 23 Transition Networks SM12DP2XA CLI Reference statistics Clear statistics for one or more given interfaces. Syntax clear statistics interface <port_type> <port_type_list> clear statistics <port_type> <port_type_list> Parameters <port_type> GigabitEthernet <port_type_list> Port list in 1/1-14 for Gigabitethernet, Port list in 1/1-2 for 10Gigabitethernet EXAMPLE SM12DP2XA# clear statistics ? ...
Page 24: 3 - Configure Commands
Transition Networks SM12DP2XA CLI Reference 3 – Configure Commands Table : Config Mode Commands terminal Enter config mode from Exec mode. aaa Authentication, Authorization and Accounting access Access management access‐list Access list aggregation Aggregation mode banner Define a login banner clock ...
Page 25 Transition Networks SM12DP2XA CLI Reference privilege Command privilege parameters qos Quality of Service radius‐server Configure RADIUS rmon Remote Monitoring sflow Statistics flow. smtp Set email information snmp‐server Set SNMP server's configurations spanning‐tree Spanning Tree protocol system ...
Page 26 SM12DP2XA CLI Reference Configure Authentication, Authorization and Accounting. You can use RADIUS or TACACS+ for authentication. SYNTAX aaa authentication login { console | telnet | ssh | http } { { local | radius | tacacs } [ { local | radius | tacacs } [ { local | radius...
Page 27 Transition Networks SM12DP2XA CLI Reference exec Enable EXEC accounting SM12DP2XA(config)# aaa accounting console tacacs commands ? <0‐15> Command privilege level. Commands equal and above this level are accounted SM12DP2XA(config)# aaa accounting console tacacs commands 13 ? exec Enable EXEC accounting <cr> SM12DP2XA(config)# aaa accounting console tacacs commands 13 exec SM12DP2XA(config)# SM12DP2XA(config)# aaa accounting http ? tacacs Use TACACS+ for accounting SM12DP2XA(config)# aaa authorization ? console Configure Console command authorization http Configure HTTP command authorization ssh Configure SSH command authorization telnet Configure Telnet command authorization SM12DP2XA(config)# 33753 Rev. A https://www.transition.com Page 27 of 254 ...
Page 28 SM12DP2XA CLI Reference access Configure Access management via the web, SNMP, telnet, or all. SYNTAX access management access management <access_id> <access_vid> <start_addr> [ to <end_addr> ] { [ web ] [ snmp ] [ telnet ] | all }...
Page 29 SM12DP2XA CLI Reference aggregation Configure Aggregation mode. You can bundle more than one port with the same speed, full duplex and the same MAC to be a single logical port, thus the logical port aggregates the bandwidth of these ports.
Page 30 Transition Networks SM12DP2XA CLI Reference banner Define a login banner or Message of the Day banner. SYNTAX banner [ motd ] <banner> banner exec <banner> banner login <banner> Parameters <LINE> c banner-text c, where 'c' is a delimiting character...
Page 31 SM12DP2XA CLI Reference clock Configure clock date and time-of-day, Timezone, and daylight savings time. SYNTAX clock set <icliDate> <icliTime> clock summer-time <word16> date [ <start_month_var> <start_date_var> <start_year_var> <start_hour_var> <end_month_var> <end_date_var> <end_year_var> <end_hour_var> [ <offset_var> ] ] clock summer-time <word16>...
Page 32 Transition Networks SM12DP2XA CLI Reference <cr> SM12DP2XA(config)# clock set 2018/04/20 02:14:30 SM12DP2XA(config)# clock timezone ? <word16> name of time zone SM12DP2XA(config)# clock timezone 1 ? <‐23‐23> Hours offset from UTC SM12DP2XA(config)# clock summer ? <word16> name of time zone in summer SM12DP2XA(config)# clock summer 23 ? date Configure absolute summer time recurring Configure recurring summer time SM12DP2XA(config)# EXAMPLE 2 SM12DP2XA(config)# clock ? set set clock summer‐time Configure summer (daylight savings) time timezone Configure time zone SM12DP2XA(config)# clock set ? <word10> yyyy/mm/dd SM12DP2XA(config)# clock set 2018/04/20 ? <word8> hh:mm:ss SM12DP2XA(config)# clock set 2018/04/20 02:14:30 ? <cr> SM12DP2XA(config)# clock set 2018/04/20 02:14:30 Message: Network error: Software caused connection abort 33753 Rev. A https://www.transition.com...
Page 33 Transition Networks SM12DP2XA CLI Reference default Set access-list rate-limiter to its defaults. SYNTAX default access-list rate-limiter [ <rate_limiter_list> ] Parameters access-list Access list rate-limiter Rate limiter <RateLimiterId : 1-16> Rate limiter ID EXAMPLE SM12DP2XA(config)# default ? access‐list Access list ...
Page 34 SM12DP2XA CLI Reference Set DMS modes. The built-in Device Management System (DMS) lets you manage connected devices. This command lets you enable or disable the DMS function, or select "high-priority" to make this device the Master (Controller) switch.
Page 35 Transition Networks SM12DP2XA CLI Reference To run Exec mode commands in Config mode. SYNTAX do < LINE >{[< LINE >]} Parameters <LINE> Exec Command EXAMPLE SM12DP2XA(config)# do ? <line> Exec Command SM12DP2XA(config)# do show ? <line> Exec Command <cr> SM12DP2XA(config)# do show vlan VLAN Name Interfaces ‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ 1 default Gi 1/1‐14 10G 1/1‐2 ...
Page 36 SM12DP2XA CLI Reference dot1x 802.1X is the IEEE Standard for port-based Network Access Control. This command lets you configure the Network Access Server (NAS) parameters. A NAS server can be employed to connect users to a variety of resources including Internet access, conference calls, printing documents on shared printers, or by simply logging on to the Internet.
Page 37 SM12DP2XA CLI Reference supplicant The switch remembers if an EAPOL frame was received on the port for the life-time of the port. Once the switch considers whether to enter the Guest VLAN, it will first check if this option is enabled or disabled.
Page 38 Transition Networks SM12DP2XA CLI Reference enable Modify enable password parameters. SYNTAX enable password [ <level> <1-15> ] <WORD> enable secret { 0 | 5 } [< level> <1-15> ] <WORD> Parameter password Assign the privileged level clear password...
Page 39 SM12DP2XA CLI Reference event Configure Trap event severity levels. SYNTAX event group <group_name> { level <lvl> | syslog { enable | disable } | trap { enable | disable} | smtp { enable | disable } |...
Page 40 Transition Networks SM12DP2XA CLI Reference exit Exit from current mode. SYNTAX exit <cr> Parameters SM12DP2XA(config)# exit? exit Exit from current mode <cr> SM12DP2XA(config)# exit ? <cr> SM12DP2XA(config)# exit SM12DP2XA# gvrp Configure the GVRP feature. GVRP (GARP VLAN Registration Protocol) is used for dynamically registering VLANs on ports, as specified in IEEE 802.1Q-2005, clause 11.
Page 41 Transition Networks SM12DP2XA CLI Reference <1‐20> join‐time in units of centi seconds. Range is 1‐20. Default is 20. SM12DP2XA(config)# gvrp time join‐time 6 ? leave‐all‐time Set GARP protocol parameter LeaveAllTime. leave‐time Set GARP protocol parameter LeaveTime. <cr> SM12DP2XA(config)# gvrp time join‐time 6 leave‐all‐time ? <1000‐5000> leave‐all‐time in units of centi seconds Range is 1000‐5000. Default is 1000. SM12DP2XA(config)# gvrp time join‐time 6 leave‐all‐time 2000 ? leave‐time Set GARP protocol parameter LeaveTime. <cr> SM12DP2XA(config)# gvrp time join‐time 6 leave‐all‐time 2000 leave‐time ? <60‐300> leave‐time in units of centi seconds. Range is 60‐300. Default is 60. SM12DP2XA(config)# gvrp time join‐time 6 leave‐all‐time 2000 leave‐time 100 SM12DP2XA(config)# hostname Set system's network name. SYNTAX hostname < WORD > Parameter WORD Set this system's network name.
Page 42 Transition Networks SM12DP2XA CLI Reference interface Configure a selected interface. SYNTAX interface ( <port_type> [ <plist> ] ) interface vlan <vlist> Parameters <port_type> * or GigabitEthernet or 10GigabitEthernet All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port...
Page 43 Transition Networks SM12DP2XA CLI Reference rmon sflow shutdown spanning‐tree speed switchport udld SM12DP2XA(config‐if)# EXAMPLE 2: Show all interface config commands available: SM12DP2XA(config‐if)# ? access‐list Access list aggregation Create an aggregation broadcast‐storm‐protection Broadcast Storm Protection description Configures port description do To run exec commands in config mode dot1x IEEE Standard for port‐based Network Access Control duplex Interface duplex end Go back to EXEC mode excessive‐restart Restart backoff algorithm after 16 collisions (No excessive‐restart means discard frame after 16 collisions) exit Exit from current mode flowcontrol Traffic flow control. frame‐length‐check Drop frames with mismath between EtherType/Length field and actually payload size. gvrp Enable GVRP on interface or interfaces help Description of the interactive help system ...
Page 44 Transition Networks SM12DP2XA CLI Reference pvlan Private VLAN qos Quality of Service rmon Configure Remote Monitoring on an interface sflow Statistics flow. shutdown Shutdown of the interface. spanning‐tree Spanning Tree protocol speed Configures interface speed. If you use 10, 100, or 1000 keywords with the auto keyword the port will only advertise the specified speeds. switchport Switching mode characteristics udld UDLD configurations. SM12DP2XA(config‐if)# EXAMPLE 3: Configure switchport: SM12DP2XA(config‐if)# switchport <tab> access forbidden hybrid mode trunk vlan voice SM12DP2XA(config‐if)# switchport mode ? access Set mode to ACCESS unconditionally hybrid Set mode to HYBRID unconditionally trunk Set mode to TRUNK unconditionally SM12DP2XA(config‐if)# switchport access ? vlan Set VLAN when interface is in access mode SM12DP2XA(config‐if)# switchport access vlan ? <vlan_id> VLAN ID of the VLAN when this port is in access mode SM12DP2XA(config‐if)# switchport access vlan 10 ? <cr> SM12DP2XA(config‐if)# 33753 Rev. A https://www.transition.com...
Page 45 Transition Networks SM12DP2XA CLI Reference EXAMPLE 4: Configure interface VLAN: SM12DP2XA(config)# interface vlan ? <vlan_list> List of VLAN interface numbers, 1~4095 SM12DP2XA(config)# interface vlan 10 ? <cr> SM12DP2XA(config)# interface vlan 10 SM12DP2XA(config‐if‐vlan)# ? do To run exec commands in config mode end Go back to EXEC mode exit Exit from current mode help Description of the interactive help system ip Interface Internet Protocol config commands ipv6 IPv6 configuration commands no Negate a command or set its defaults SM12DP2XA(config‐if‐vlan)# EXAMPLE 5: Configure port security for an interface: SM12DP2XA(config‐if)# port‐security? ...
Page 46 Transition Networks SM12DP2XA CLI Reference SM12DP2XA(config‐if)# port‐security sticky ? <mac_addr> 48 bit MAC address: xx:xx:xx:xx:xx:xx <cr> SM12DP2XA(config‐if)# port‐security sticky 00‐c0‐f2‐49‐38‐bb ? vlan VLAN keyword SM12DP2XA(config‐if)# port‐security sticky 00‐c0‐f2‐49‐38‐bb vlan ? <vlan_id> VLAN IDs 1‐4095 SM12DP2XA(config‐if)# port‐security sticky 00‐c0‐f2‐49‐38‐bb vlan 2 ? <cr> SM12DP2XA(config‐if)# port‐security sticky 00‐c0‐f2‐49‐38‐bb vlan 2 SM12DP2XA(config‐if)# port‐security ? maximum Maximum number of MAC addresses that can be learned on this set of interfaces. sticky Enable/disable port security sticky function per interface. violation The action involved with exceeding the limit. <cr> SM12DP2XA(config‐if)# port‐security maximum? maximum Maximum number of MAC addresses that can be learned on this set of interfaces. <cr> SM12DP2XA(config‐if)# port‐security maximum ? <1‐1024> Number of addresses <cr> SM12DP2XA(config‐if)# port‐security maximum 500 ? <cr> SM12DP2XA(config‐if)# port‐security maximum 500 SM12DP2XA(config‐if)# port‐security sticky ? <mac_addr> 48 bit MAC address: xx:xx:xx:xx:xx:xx <cr> SM12DP2XA(config‐if)# port‐security sticky 00‐c0‐f2‐49‐38‐bb ? vlan VLAN keyword ...
Page 47 Transition Networks SM12DP2XA CLI Reference protect Don't do anything shutdown Shutdown the port trap Send an SNMP trap trap‐shutdown Send an SNMP trap and shutdown the port SM12DP2XA(config‐if)# port‐security violation trap‐shutdown ? <cr> SM12DP2XA(config‐if)# port‐security violation trap‐shutdown SM12DP2XA(config‐if)# end SM12DP2XA# show port‐security ? port Show MAC Addresses learned by Port Security switch Show Port Security status. SM12DP2XA# show port‐security port ? | Output modifiers interface <cr> SM12DP2XA# show port‐security port GigabitEthernet 1/1 ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ MAC Address VID State Added Age/Hold Time ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐ <none> GigabitEthernet 1/2 ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ MAC Address VID State Added Age/Hold Time ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐ <none> GigabitEthernet 1/3 ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ...
Page 48 Transition Networks SM12DP2XA CLI Reference MAC Address VID State Added Age/Hold Time ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐ SM12DP2XA# show port‐security switch ? | Output modifiers interface <cr> SM12DP2XA# show port‐security switch Users: L = Limit Control 8 = 802.1X V = Voice VLAN Interface Users State MAC Cnt ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐ GigabitEthernet 1/1 L‐‐ Ready 0 GigabitEthernet 1/2 L‐‐ Ready 0 GigabitEthernet 1/3 L‐‐ Ready 0 GigabitEthernet 1/4 L‐‐ Ready 0 GigabitEthernet 1/5 L‐‐ Ready 0 GigabitEthernet 1/6 ‐‐‐ No users 0 GigabitEthernet 1/7 ‐‐‐ No users 0 GigabitEthernet 1/8 ‐‐‐ No users 0 GigabitEthernet 1/9 ‐‐‐ No users 0 GigabitEthernet 1/10 ‐‐‐ No users 0 GigabitEthernet 1/11 ‐‐‐ No users 0 GigabitEthernet 1/12 ‐‐‐ No users 0 GigabitEthernet 1/13 ‐‐‐ No users 0 GigabitEthernet 1/14 ‐‐‐ No users 0 10GigabitEthernet 1/1 ‐‐‐ No users 0 10GigabitEthernet 1/2 ‐‐‐ No users 0 SM12DP2XA# ...
Page 49 Transition Networks SM12DP2XA CLI Reference EXAMPLE 6: Negate port security for an interface: SM12DP2XA(config‐if)# no port‐security ? maximum Maximum number of MAC addresses that can be learned on this set of interfaces. sticky Enable/disable port security sticky function per interface. violation The action involved with exceeding the limit. <cr> SM12DP2XA(config‐if)# no port‐security SM12DP2XA(config‐if)# SM12DP2XA(config‐if)# no port‐security? ...
Page 50 SM12DP2XA CLI Reference Configure Internet Protocol parameters. SYNTAX ip arp inspection ip arp inspection entry interface <port_type> <in_port_type_id> <vlan_var> <mac_var> <ipv4_var> ip arp inspection translate [ interface <port_type> <in_port_type_id> <vlan_var> <mac_var> <ipv4_var> ] ip arp inspection vlan <in_vlan_list>...
Page 51 Transition Networks SM12DP2XA CLI Reference Parameters Address Resolution Protocol dhcp Dynamic Host Configuration Protocol Domain Name System helper-address DHCP relay server http Hypertext Transfer Protocol igmp Internet Group Management Protocol link-local Link-Local address binding interface...
Page 52 Transition Networks SM12DP2XA CLI Reference server Enable DHCP server snooping DHCP snooping proxy DNS proxy service secure-redirect Secure HTTP web rediction secure-server Secure HTTP web server snooping Snooping IGMP <word16> Profile name in 16 char's...
Page 53 Transition Networks SM12DP2XA CLI Reference EXAMPLE SM12DP2XA(config)# ip ? arp Address Resolution Protocol dhcp Dynamic Host Configuration Protocol dns Domain Name System domain IP DNS Resolver helper‐address DHCP relay server http Hypertext Transfer Protocol igmp Internet Group Management Protocol link‐local Link‐Local address binding interface name‐server Domain Name System route Add IP route routing Enable routing for IPv4 and IPv6 source source command ssh Secure Shell telnet TELNET verify verify command SM12DP2XA(config)# ip arp inspection ? entry ARP inspection entry translate ARP inspection translate all entries vlan arp inspection VLAN setting <cr> SM12DP2XA(config)# ip arp inspection SM12DP2XA(config)# ip dhcp relay SM12DP2XA(config)# ip dns proxy SM12DP2XA(config)# ip helper‐address 192.168.1.77 SM12DP2XA(config)# ip http sec secure‐certificate secure‐server SM12DP2XA(config)# ip http secure‐server port ? <1‐65534> Port number ...
Page 54 Transition Networks SM12DP2XA CLI Reference EXAMPLE SM12DP2XA(config)# ip link‐local? link‐local Link‐Local address binding interface SM12DP2XA(config)# ip link‐local ? interface Select an interface to configure SM12DP2XA(config)# ip link‐local interface ? <vlan_id> VLAN IDs 1‐4095 SM12DP2XA(config)# ip link‐local interface 10 ? <cr> SM12DP2XA(config)# ip link‐local interface 10 SM12DP2XA(config)# ip link‐local interface 10 VLAN ID 10 is not existed. Please create it and set its IP. SM12DP2XA(config)# ip link‐local interface 2 VLAN ID 2 is not existed. Please create it and set its IP. SM12DP2XA(config)# ip link‐local interface 1 SM12DP2XA(config)# 33753 Rev. A https://www.transition.com Page 54 of 254 ...
Page 55 SM12DP2XA CLI Reference ipmc IPv4/IPv6 multicast configuration. IPMC (IP MultiCast) supports IPv4 and IPv6 multicasting (IPMCv4 and IPMCv6). SYNTAX ipmc profile ipmc profile <profile_name> ipmc range <entry_name> { <v_ipv4_mcast> [ <v_ipv4_mcast_1> ] | <v_ipv6_mcast> [ <v_ipv6_mcast_1> ] }...
Page 56 Transition Networks SM12DP2XA CLI Reference ipv6 IPv6 configuration commands. SYNTAX ipv6 mld host-proxy [ leave-proxy ] ipv6 mld snooping ipv6 mld snooping vlan <v_vlan_list> ipv6 mld ssm-range <v_ipv6_mcast> <ipv6_prefix_length> ipv6 mld unknown-flooding ipv6 route <v_ipv6_subnet> { <v_ipv6_ucast> | interface vlan <v_vlan_id> <v_ipv6_addr> }...
Page 57 SM12DP2XA CLI Reference lacp Configure LACP (Link Aggregation Control Protocol) settings. LACP (Link Aggregation Control Protocol) is an IEEE 802.3ad standard protocol that allows bundling several physical ports together to form a single logical port. An LACP trunk group with more than one ready member ports is a “real trunked”...
Page 58 Transition Networks SM12DP2XA CLI Reference line Configure a terminal line. SYNTAX line { <0~16> | console 0 | vty <0~15> } Parameters <0~16> List of line numbers console Console terminal line Console Line number Virtual terminal <0~15>...
Page 59 SM12DP2XA CLI Reference lldp Configure LLDP parameters. LLDP is an IEEE 802.1ab standard protocol. The Link Layer Discovery Protocol(LLDP) specified in this standard allows stations attached to an IEEE 802 LAN to advertise, to other stations attached to the...
Page 60 Transition Networks SM12DP2XA CLI Reference Parameters holdtime Sets LLDP hold time (The neighbor switch will discarded the LLDP information after "hold time" multiplied with "timer" seconds ). Media Endpoint Discovery. reinit LLDP tx reinitialization delay in seconds.
Page 61 Transition Networks SM12DP2XA CLI Reference landmark Landmark or vanity address - Example: Columbia University. additional-info Additional location info - Example: South Wing. name Name (residence and office occupant) - Example: Flemming Jahn. zip-code Postal/zip code - Example: 2791.
Page 62 Transition Networks SM12DP2XA CLI Reference EXAMPLE SM12DP2XA(config)# lldp holdtime ? <2‐10> 2‐10 seconds. SM12DP2XA(config)# lldp holdtime 5 SM12DP2XA(config)# lldp med fast 5 SM12DP2XA(config)# lldp reinit 3 SM12DP2XA(config)# lldp transmission‐delay 333 Note: According to IEEE 802.1AB‐clause 10.5.4.2 the transmission‐delay must not be larger than LLDP timer * 0.25. LLDP timer changed to 1332 SM12DP2XA(config)# SM12DP2XA(config)# lldp med? med Media Endpoint Discovery. SM12DP2XA(config)# lldp med <tab> datum fast location‐tlv media‐vlan‐policy SM12DP2XA(config)# lldp med datum ? nad83‐mllw Mean lower low water datum 1983 nad83‐navd88 North American vertical datum 1983 wgs84 World Geodetic System 1984 SM12DP2XA(config)# lldp med datum wgs84 ? <cr> SM12DP2XA(config)# lldp med datum wgs84 SM12DP2XA(config)# lldp med location‐tlv altitude ? floors Specify the altitude in floor. meters Specify the altitude in meters. SM12DP2XA(config)# lldp med location‐tlv altitude floors ? <word11> Altitude value. Valid range ‐2097151.9 to 2097151.9 SM12DP2XA(config)# lldp med location‐tlv altitude floors 34 ? <cr> SM12DP2XA(config)# lldp med location‐tlv altitude floors 34 ...
Page 63 Transition Networks SM12DP2XA CLI Reference logging Configure Syslog parameters. SYNTAX logging host { <ipv4_addr> | <domain_name> } logging on logging port <port_no> Parameters host host <ipv4_ucast> IP address of the log server <hostname> Donain name of the log server Enable syslog server port <port_no>...
Page 64 Transition Networks SM12DP2XA CLI Reference loop-protect Configure Loop protection parameters. SYNTAX loop-protect loop-protect shutdown-time <0-604800> loop-protect transmit-time <1-10> Parameter shutdown-time Loop protection shutdown time interval <0-604800> Shutdown time in second transmit-time Loop protection transmit time interval <1-10>...
Page 65 Transition Networks SM12DP2XA CLI Reference Configure MAC table entries. SYNTAX mac address-table aging-time <0,10-1000000> mac address-table static <mac_addr> vlan <vlan_id> interface <port_type> <port_type_list> Parameters address-table Mac Address Table aging-time Mac address aging time <0,10-1000000> Aging time in seconds, 0 disables aging...
Page 66 Transition Networks SM12DP2XA CLI Reference <vlan_list> SM12DP2XA(config)# mac address‐table learning vlan 1 SM12DP2XA(config)# mac address‐table static ? <mac_addr> 48 bit MAC address: xx:xx:xx:xx:xx:xx SM12DP2XA(config)# mac address‐table static 00‐c0‐f2‐49‐38‐bb ? vlan VLAN keyword SM12DP2XA(config)# mac address‐table static 00‐c0‐f2‐49‐38‐bb vlan ? <vlan_id> VLAN IDs 1‐4095 SM12DP2XA(config)# mac address‐table static 00‐c0‐f2‐49‐38‐bb vlan 1 Error: MAC address exists (system address) Could not add mac address SM12DP2XA(config)# mac address‐table static 00‐c0‐f2‐49‐38‐bb vlan 10 SM12DP2XA(config)# 33753 Rev. A https://www.transition.com Page 66 of 254 ...
Page 67 SM12DP2XA CLI Reference monitor Configure monitor (mirror) parameters. SYNTAX monitor session <session_number> [ destination { interface ( <port_type> [ <di_list> ] ) | remote vlan <drvid> reflector-port <port_type> <rportid> } | source { interface ( <port_type> [ <si_list> ] ) [ both | rx | tx ] | remote vlan <srvid >...
Page 68 Transition Networks SM12DP2XA CLI Reference * All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port 10GigabitEthernet 10 Gigabit Ethernet Port SM12DP2XA(config)# $tor session 1 destination interface GigabitEthernet ? <port_type_list> Port list in 1/1‐14 SM12DP2XA(config)# $tor session 1 destination interface GigabitEthernet 1/1 SM12DP2XA(config)# monitor session 1 source ? interface MIRROR source interface remote MIRROR source Remote vlan MIRROR source VLAN SM12DP2XA(config)# monitor session 1 source vlan ? <vlan_list> MIRROR source VLAN SM12DP2XA(config)# monitor session 1 source vlan 10,20 ? <cr> SM12DP2XA(config)# monitor session 1 source vlan 10,20 SM12DP2XA(config)# Message: % Interface GigabitEthernet 1/2 already configured as destination port. 33753 Rev. A https://www.transition.com Page 68 of 254 ...
Page 69 SM12DP2XA CLI Reference Configure Multicast VLAN Registration. The MVR (Multicast VLAN Registration) protocol for Layer 2 (IP)-networks enables multicast-traffic from a source VLAN to be shared with subscriber-VLANs. MVR is used to save bandwidth by preventing duplicate multicast streams being sent in the core network; instead the streams are received on the MVR-VLAN and forwarded to the VLANs where hosts have requested them.
Page 70 Transition Networks SM12DP2XA CLI Reference compatible Compatible MVR operation mode vlan MVR multicast vlan <vlan_list> MVR multicast VLAN list channel MVR channel configuration <word16> Profile name in 16 char's frame MVR control frame in TX...
Page 71 Transition Networks SM12DP2XA CLI Reference SM12DP2XA(config)# mvr name mvr1 channel ch1 % Invalid operation. % Failed to set MVR interface channel. SM12DP2XA(config)# Message: W mvr 23:07:50 53/_mvr_vlan_warning_handler#4034: Warning: Please adjust the management VLAN ports overlapped with MVR source ports! W lacp 23:07:50 33/rx_stev#766: Warning: An illegal loopback occurred on port 13 Meaning: The Management VLAN ports overlapped with MVR source ports.
Page 72 SM12DP2XA CLI Reference Configure NTP. NTP (Network Time Protocol) is used for synchronizing the clocks of computer systems. NTP uses UDP (datagrams) as transport layer. NTP is used to sync with the network time based Greenwich Mean Time (GMT).
Page 73 SM12DP2XA CLI Reference port-security Enable/disable port security globally. You can use the Port Security commands to restrict input to an interface by limiting and identifying MAC addresses. Note that you can also configure port security for an interface.
Page 74 SM12DP2XA CLI Reference privilege Configure command privilege level parameters. SYNTAX privilege { exec | configure | config-vlan | line | interface | if-vlan | ipmc-profile | snmps-host | stp-aggr | dhcp-pool | rfc2544-profile } level <privilege> <cmd>...
Page 75 Transition Networks SM12DP2XA CLI Reference radius-server Configure RADIUS server parameters. Up to 5 servers are supported. SYNTAX radius-server attribute 32 <id> radius-server attribute 4 <ipv4> radius-server attribute 95 <ipv6> radius-server deadtime <minutes> radius-server host <host_name> [ auth-port <auth_port> ] [ acct-port <acct_port> ] [ timeout <seconds> ] [ retransmit <retries>...
Page 76 Transition Networks SM12DP2XA CLI Reference <1-1000> Number of retries for a transaction EXAMPLE SM12DP2XA(config)# radius‐server ? attribute NAS attributes deadtime Time to stop using a RADIUS server that doesn't respond host Specify a RADIUS server key Set RADIUS encryption key retransmit Specify the number of retries to active server timeout Time to wait for a RADIUS server to reply SM12DP2XA(config)# radius‐server attribute ? 32 attribute number 32 = NAS‐Identifier 4 attribute number 4 = NAS‐IP‐Address 95 attribute number 95 = NAS‐IPv6‐Address SM12DP2XA(config)# radius‐server attribute 32 ? <line1‐253> NAS‐Identifier SM12DP2XA(config)# radius‐server attribute 32 a <line1‐253> <cr> SM12DP2XA(config)# radius‐server attribute 32 a SM12DP2XA(config)# radius‐server host d <word1‐255> <cr> SM12DP2XA(config)# radius‐server host device ? acct‐port UDP port for RADIUS accounting server auth‐port UDP port for RADIUS authentication server key Server specific key (overrides default) ...
Page 77 SM12DP2XA CLI Reference rmon Configure Remote Monitoring alarms and events. SYNTAX rmon alarm <id> { ifInOctets | ifInUcastPkts | ifInNUcastPkts | ifInDiscards | ifInErrors | ifInUnknownProtos | ifOutOctets | ifOutUcastPkts | ifOutNUcastPkts | ifOutDiscards | ifOutErrors } <ifIndex> <interval> { absolute | delta } rising- threshold <rising_threshold>...
Page 78 SM12DP2XA CLI Reference ifInUnknownProtos Number of the inbound packets discarded for unknown or un-support protocol ifOutOctets The number of octets transmitted out of the interface , including framing characters ifOutUcastPkts The number of uni-cast packets that request to transmit...
Page 79 Transition Networks SM12DP2XA CLI Reference event the packets is normal ifOutErrors The The number of outbound packets that could not be transmitted because of errors ifOutNUcastPkts The number of broad‐cast and multi‐cast packets that request to transmit ifOutOctets The number of octets transmitted out of the interface , including framing characters ifOutUcastPkts The number of uni‐cast packets that request to transmit SM12DP2XA(config)# rmon alarm 1 ifOutErrors ? <uint> Interface index SM12DP2XA(config)# rmon alarm 1 ifOutErrors 1 ? <1‐2147483647> Sample interval SM12DP2XA(config)# rmon alarm 1 ifOutErrors 1 50000 ? absolute Test each sample directly delta Test delta between samples SM12DP2XA(config)# rmon alarm 1 ifOutErrors 1 50000 absolute ? rising‐threshold Configure the rising threshold SM12DP2XA(config)# $arm 1 ifOutErrors 1 50000 absolute rising‐threshold ? <‐2147483648‐2147483647> rising threshold value SM12DP2XA(config)# $tErrors 1 50000 absolute rising‐threshold 10000 ? <0‐65535> Event to fire on rising threshold crossing falling‐threshold Configure the falling threshold SM12DP2XA(config)# rmon ? alarm Configure an RMON alarm event Configure an RMON event SM12DP2XA(config)# rmon event ? <1‐65535> Event entry ID SM12DP2XA(config)# rmon event 1 ? description Specify a description of the event ...
Page 80 Transition Networks SM12DP2XA CLI Reference <cr> SM12DP2XA(config)# rmon event 1 log trap ? <word127> SNMP community string SM12DP2XA(config)# rmon event 1 log trap cxvlk ? description Specify a description of the event <cr> SM12DP2XA(config)# rmon event 1 log trap cxvlk SM12DP2XA(config) 33753 Rev. A https://www.transition.com Page 80 of 254 ...
Page 81 SM12DP2XA CLI Reference sflow Configure Statistics flow. sFlow is an industry standard technology for monitoring switched networks through random sampling of packets on switch ports and time-based sampling of port counters. The sampled packets and counters (referred to as flow samples and counter samples, respectively) are sent as sFlow UDP datagrams to a central network traffic monitoring server.
Page 82 Transition Networks SM12DP2XA CLI Reference collector‐port Collector UDP port max‐datagram‐size Maximum datagram size. timeout Receiver timeout measured in seconds. The switch decrements the timeout once per second, and as long as it is non‐zero, the receiver receives samples. Once the timeout reaches 0, the receiver and all its configuration is reset to defaults. SM12DP2XA(config)# sflow agent‐ip ipv4 192.168.1.30 SM12DP2XA(config)# sflow collector‐port 3 SM12DP2XA(config)# sflow max‐datagram‐size ? <200‐1468> bytes SM12DP2XA(config)# sflow max‐datagram‐size 333 SM12DP2XA(config)# sflow timeout ? <0‐2147483647> Number of seconds. SM12DP2XA(config)# sflow timeout 3333 SM12DP2XA(config)# 33753 Rev. A https://www.transition.com Page 82 of 254 ...
Page 83 SM12DP2XA CLI Reference SMTP Configure email parameters. Simple Mail Transfer Protocol is the message-exchange standard for the Internet. Configure the Switch as an SMTP client; the server is a remote device that will receive messages from the switch that alarm events occurred.
Page 84 Set SNMP server configuration parameters. SYNTAX snmp-server access <word32> snmp-server community v2c v3 snmp-server contact <line255> contact string SM12DP2XA(config)# snmp-server engine-id local Set SNMP local engine ID snmp-server engine-id local <word10-64> local engine ID snmp-server host <word32> Name of the host configuration snmp-server location <line255>...
Page 85 Transition Networks SM12DP2XA CLI Reference do To run exec commands in config mode end Go back to EXEC mode exit Exit from current mode help Description of the interactive help system host host configuration informs Send Inform messages to this host no Negate a command or set its defaults shutdown Disable the trap configuration version Set SNMP trap version SM12DP2XA(config‐snmps‐host)# informs ? retries retires inform messages SM12DP2XA(config‐snmps‐host)# informs retries 50 timeout 300 SM12DP2XA(config‐snmps‐host)# end SM12DP2XA# con ter SM12DP2XA(config)# snmp‐server ? access access configuration community Set the SNMP community contact Set the SNMP server's contact string engine‐id Set SNMP engine ID host Set SNMP host's configurations location Set the SNMP server's location string security‐to‐group security‐to‐group configuration trap Set trap's configurations user Set the SNMPv3 user's configurations version Set the SNMP server's version view MIB view configuration <cr> SM12DP2XA(config)# snmp‐server access ? <word32> group name SM12DP2XA(config)# snmp‐server trap ...
Page 86 Transition Networks SM12DP2XA CLI Reference system Set system parameters. SYNTAX contact Set the SNMP server's contact string description Configure System Description location Set the SNMP server's location string name Set the SNMP server's system model name string...
Page 87 Transition Networks SM12DP2XA CLI Reference disable Disable Switch Reboot enable Enable Switch Reboot sm12dp2xa 4 docs(config)# system name SM12DP2XA SM12DP2XA(config)# 33753 Rev. A https://www.transition.com Page 87 of 254 ...
Page 88 SM12DP2XA CLI Reference tacacs-server Configure TACACS+. TACACS+ provides separate authentication, authorization and accounting services. Up to 5 servers are supported. SYNTAX tacacs-server deadtime <minutes> tacacs-server host <host_name> [ port <port> ] [ timeout <seconds> ] [ key <key> ] tacacs-server key <key>...
Page 89 Transition Networks SM12DP2XA CLI Reference tzidx Configure timezone city/area. SYNTAX tzidx <idx_var> Parameters <int> index of city/area EXAMPLE SM12DP2XA(config)# tzidx? tzidx Configure timezone city/area SM12DP2XA(config)# tzidx 1 SM12DP2XA(config)# clock timezone test 8 SM12DP2XA(config)# tzidx 0 SM12DP2XA(config)# tzidx 1 SM12DP2XA(config)# tzidx 2 SM12DP2XA(config)# udld Enable UDLD in aggressive or normal mode and set the configurable message timer on all fiber‐optic ports. Uni Directional Link Detection monitors the configuration of links between UDLD devices and ports. SYNTAX udld { aggressive | enable | message time‐interval <v_interval> } Parameters aggressive Enables UDLD in aggressive mode on all fiber‐optic ports. enable ...
Page 90 Transition Networks SM12DP2XA CLI Reference upnp (Universal Plug and Play) Configure UPnP ( ) parameters. SYNTAX upnp upnp advertising-duration <66-86400> upnp ttl <1-255> Parameters advertising-duration Set advertising duration Set TTL value <100-86400> advertising duration <1-255> TTL value EXAMPLE SM12DP2XA(config)# upnp? ...
Page 91 Transition Networks SM12DP2XA CLI Reference username Establish User Name Authentication. SYNTAX username <username> privilege <priv> password encrypted <encry_password> username <username> privilege <priv> password none username <username> privilege <priv> password unencrypted <password> Parameters <Username : word31>...
Page 92 SM12DP2XA CLI Reference vlan Configure VLAN parameters. SYNTAX vlan <vlan_list> vlan ethertype s-custom-port <0x0600-0xffff> vlan protocol { { eth2 { <0x600-0xffff> | arp | ip | ipx | at } } | { snap { <0x0-0xffffff> | rfc_1042 | snap_8021h } <0x0-0xffff> } | { llc <0x0-0xff>...
Page 93 SM12DP2XA CLI Reference voice Configure Voice VLAN parameters. Voice VLAN is VLAN configured specially for voice traffic. By adding the ports with voice devices attached to voice VLAN, we can perform QoS-related configuration for voice data, ensuring the transmission priority of voice traffic and voice quality.
Page 94 SM12DP2XA CLI Reference Configure web privilege levels. SYNTAX web privilege group <CWORD> level { [ cro <0-15> ] [ crw <0-15> ] [ sro <0-15> ] [ srw <0-15> ] } Parameters privilege Web privilege...
Page 95: Access-List
SM12DP2XA CLI Reference 3-1 access-list These commands configure the Access Control List (ACL), which is made up of the ACEs defined on this switch.. The maximum number of ACEs is 512 on each switch. An ACL (Access Control List) is the list table of ACEs, containing access control entries that specify individual users or groups permitted or denied to specific traffic objects, such as a process or a program.
Page 96 Transition Networks SM12DP2XA CLI Reference 10pps 10 packets per second 25kbps 25k bits per second SM12DP2XA(config)# access‐list rate‐limiter 1 25kbps ? <0‐400000> Rate value SM12DP2XA(config)# access‐list rate‐limiter 1 25kbps 6000 SM12DP2XA(config)# 33753 Rev. A https://www.transition.com Page 96 of 254 ...
Page 97 SM12DP2XA CLI Reference Access list entry. SYNTAX access-list ace{ update<1-256> | <1-256> } [action< deny | filter | permit >] access-list ace{ update<1-256> | <1-256> } [dmac-type < any | broadcast | multicast | unicast >] access-list ace{ update<1-256>...
Page 98 Transition Networks SM12DP2XA CLI Reference tag-priority Tag priority VID field deny Deny filter Filter permit Permit Don't-care the type of destination MAC address broadcast Broadcast destination MAC address multicast Multicast destination MAC address unicast Unicast destination MAC address...
Page 99 Transition Networks SM12DP2XA CLI Reference EXAMPLE SM12DP2XA(config)# access‐list ? ace Access list entry rate‐limiter Rate limiter SM12DP2XA(config)# access‐list ace ? <1‐512> ACE ID update Update an existing ACE SM12DP2XA(config)# access‐list ace 1 ? action Access list action dmac‐type The type of destination MAC address frame‐type Frame type ingress Ingress logging Logging frame information. Note: The logging feature only works when the packet length is less than 1518 (without VLAN tags) and the System Log memory size and logging rate is limited. mirror Mirror frame to destination mirror port next insert the current ACE before the next ACE ID policy Policy rate‐limiter Rate limiter redirect Redirect frame to specific port shutdown Shutdown incoming port. The shutdown feature only works when the packet length is less than 1518 (without VLAN tags). tag Tag tag‐priority Tag priority vid VID field <cr> SM12DP2XA(config)# access‐list ace 1 action ? deny Deny ...
Page 100 Transition Networks SM12DP2XA CLI Reference GigabitEthernet 1 Gigabit Ethernet Port 10GigabitEthernet 10 Gigabit Ethernet Port SM12DP2XA(config)# $‐list ace 1 action filter interface GigabitEthernet 1/2 ? * All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port 10GigabitEthernet 10 Gigabit Ethernet Port dmac‐type The type of destination MAC address frame‐type Frame type ingress Ingress logging Logging frame information. Note: The logging feature only works when the packet length is less than 1518 (without VLAN tags) and the System Log memory size and logging rate is limited. mirror Mirror frame to destination mirror port next insert the current ACE before the next ACE ID policy Policy rate‐limiter Rate limiter redirect Redirect frame to specific port shutdown Shutdown incoming port. The shutdown feature only works when the packet length is less than 1518 (without VLAN tags). tag Tag tag‐priority Tag priority vid VID field <cr> SM12DP2XA(config)# $1 action filter interface GigabitEthernet 1/2 policy ? <0‐255> Policy ID SM12DP2XA(config)# $1 action filter interface GigabitEthernet 1/2 policy 1 ? dmac‐type The type of destination MAC address frame‐type Frame type ...
Page 101 Transition Networks SM12DP2XA CLI Reference next insert the current ACE before the next ACE ID policy‐bitmask The bitmask for policy ID rate‐limiter Rate limiter redirect Redirect frame to specific port shutdown Shutdown incoming port. The shutdown feature only works when the packet length is less than 1518 (without VLAN tags). tag Tag tag‐priority Tag priority vid VID field <cr> SM12DP2XA(config)# $interface GigabitEthernet 1/2 policy 1 rate‐limiter ? <1‐16> Rate limiter ID disable Disable rate‐limiter SM12DP2XA(config)# $interface GigabitEthernet 1/2 policy 1 rate‐limiter 1 ? dmac‐type The type of destination MAC address frame‐type Frame type ingress Ingress logging Logging frame information. Note: The logging feature only works when the packet length is less than 1518 (without VLAN tags) and the System Log memory size and logging rate is limited. mirror Mirror frame to destination mirror port next insert the current ACE before the next ACE ID redirect Redirect frame to specific port shutdown Shutdown incoming port. The shutdown feature only works when the packet length is less than 1518 (without VLAN tags). tag Tag tag‐priority Tag priority ...
Page 102 Transition Networks SM12DP2XA CLI Reference dmac‐type The type of destination MAC address frame‐type Frame type logging Logging frame information. Note: The logging feature only works when the packet length is less than 1518 (without VLAN tags) and the System Log memory size and logging rate is limited. mirror Mirror frame to destination mirror port next insert the current ACE before the next ACE ID redirect Redirect frame to specific port shutdown Shutdown incoming port. The shutdown feature only works when the packet length is less than 1518 (without VLAN tags). tag Tag tag‐priority Tag priority vid VID field <cr> SM12DP2XA(config)# $GigabitEthernet 1/2 policy 1 rate‐limiter 1 ingress any SM12DP2XA(config)# 33753 Rev. A https://www.transition.com Page 102 of 254 ...
Page 103 Transition Networks SM12DP2XA CLI Reference 3-2 no Negate a command or set its defaults in Config mode. Table : configure – no Commands Command Function Authentication, Authorization and Accounting access Access management access-list Access list...
Page 104 Transition Networks SM12DP2XA CLI Reference Negate Authentication, Authorization and Accounting. SYNTAX no aaa authentication login {console | telnet | ssh | http } Parameters authentication Authentication login Login console Disable Console http Disable HTTP...
Page 105 Transition Networks SM12DP2XA CLI Reference access-list Negate Access list SYNTAX no access-list ace <1~256> Parameters Access list entry <AceId : 1-256> ACE ID EXAMPLE no SM12DP2XA(config)# access‐list ace 1 SM12DP2XA(config)# aggregation NegateAggregation mode SYNTAX no aggregation mode...
Page 106 Transition Networks SM12DP2XA CLI Reference banner Define a login banner SYNTAX no banner [ motd ] no banner exec no banner login Parameters exec Set EXEC process creation banner login Set login banner motd...
Page 107 Transition Networks SM12DP2XA CLI Reference dot1x IEEE Standard for port-based Network Access Control SYNTAX no dot1x authentication timer inactivity no dot1x authentication timer re-authenticate no dot1x feature { [ guest-vlan ] [ radius-qos ] [ radius-vlan ] }...
Page 108 Specifies an UNENCRYPTED password will follow Specifies an ENCRYPTED password will follow level Set exec level password <1-15> Level number EXAMPLE SM12DP2XA(config)# no enable secret level 15 SM12DP2XA(config)# no enable password level 15 SM12DP2XA(config)# 33753 Rev. A https://www.transition.com Page 108 of 254 ...
Page 109 Transition Networks SM12DP2XA CLI Reference hostname Set system's network name. SYNTAX no hostname EXAMPLE SM12DP2XA(config)# no hostname SM12DP2XA(config)# interface SYNTAX no interface vlan < vlan_list > Parameters vlan Vlan interface configurations <vlan_list> Vlan list EXAMPLE ...
Page 110 Transition Networks SM12DP2XA CLI Reference Set system's network name. SYNTAX no ip arp inspection no ip arp inspection entry interface Gigabitethernet <port_type_id> <vlan_id> <mac_ucast> <ipv4_ucast> no ip arp inspection vlan <vlan_list> [logging] no dhcp execluded-address [<ip_address> [<ip_address>]] no dhcp pool <WORD>...
Page 111 Transition Networks SM12DP2XA CLI Reference 10Gigabitethernet <vlan_id> Select a VLAN id to configure <mac_ucast> Select a MAC address to configure <ipv4_ucast> Select an IP Address to configure vlan arp inspection vlan setting <vlan_list> arp inspection vlan list...
Page 112 SM12DP2XA(config)# no ip dhcp relay information option SM12DP2XA(config)# no ip dhcp relay information option SM12DP2XA(config)# no ip dns proxy SM12DP2XA(config)# no ip helper-address SM12DP2XA(config)# no ip http secure-redirect SM12DP2XA(config)# no ip igmp snooping SM12DP2XA(config)# no ip name-server SM12DP2XA(config)# no ip routing SM12DP2XA(config)# no ip ssh SM12DP2XA(config)# no ip verify source ...
Page 113 <Profilename : word16> Profile name in 16 char's range A range of IPv4/IPv6 multicast addresses for the profile <Entryname : word16> Range entry name in 16 char's EXAMPLE SM12DP2XA(config)# no ipmc profile SM12DP2XA(config)# ipv6 IPv6 configuration commands SYNTAX no ipv6 mld host-proxy [ leave-proxy ] no ipv6 mld snooping no ipv6 mld snooping [vlan <vlan_list>...
Page 114 IPv6 unicast address (except link-local address) of next-hop interface Select an interface to configure vlan VLAN Interface <vlan_id> VLAN identifier(s): VID <ipv6_linklocal> IPv6 link-local address of next-hop EXAMPLE SM12DP2XA(config)# no ipv6 mld snooping SM12DP2XA(config)# lacp LACP settings SYNTAX no lacp system-priority <1-65535> Parameters system-priority System priority <1-65535>...
Page 115 Transition Networks SM12DP2XA CLI Reference lldp LLDP configurations.. SYNTAX no lldp holdtime no lldp med datum no lldp med fast no lldp med location-tlv altitude no lldp med location-tlv civic-addr { country | state | county | city | district | block | street | leading-street-direction |...
Page 116 Trailing street suffix - Example: SW. zip-code Postal/zip code - Example: 2791. <0~31> Policy to delete. EXAMPLE SM12DP2XA(config)# no lldp holdtime SM12DP2XA(config)# no lldp med location-tlv civic-addr floor SM12DP2XA(config)# no lldp reinit SM12DP2XA(config)# no lldp timer SM12DP2XA(config)# no lldp transmission-delay SM12DP2XA(config)# 33753 Rev. A https://www.transition.com...
Page 117 Syslog. SYNTAX no logging host no logging on Parameters host host Enable syslog server EXAMPLE SM12DP2XA(config)# no logging host SM12DP2XA(config)# no logging on SM12DP2XA(config)# loop-protect Loop protection configuration SYNTAX no loop-protect no loop-protect shutdown-time no loop-protect transmit-time Parameters shutdown-time...
Page 118 Transition Networks SM12DP2XA CLI Reference MAC table entries/configuration SYNTAX no mac address-table aging-time [<0,10-1000000> ] no mac address-table static <mac_addr> vlan <vlan_id> interface {*|Gigabitethernet [<port_type_list>]} Parameter address-table Mac table entries configuration/table aging-time Mac address aging time <0,10-1000000>...
Page 119 Transition Networks SM12DP2XA CLI Reference <port_type_list> Port list in 1/1-14 for Gigabitethernet, Port list in 1/1-2 for 10Gigabitethernet EXAMPLE SM12DP2XA(config)# no monitor destination SM12DP2XA(config)# no monitor source cpu SM12DP2XA(config)# Multicast VLAN Registration configuration. SYNTAX no mvr no mvr name <word16> channel no mvr name <word16>...
Page 120 Transition Networks SM12DP2XA CLI Reference EXAMPLE SM12DP2XA(config)# no mvr vlan 12 mode SM12DP2XA(config)# Configure NTP. SYNTAX no ntp no ntp server <1-5> Parameters server Configure NTP server <1-5> index number EXAMPLE SM12DP2XA(config)# no ntp server 2 SM12DP2XA(config)# port-security Enable/disable port security globally. SYNTAX no port-security...
Page 121 Specify the number of retries to active server timeout Time to wait for a RADIUS server to reply EXAMPLE SM12DP2XA(config)# no radius-server attribute 4 SM12DP2XA(config)# no radius-server deadtime SM12DP2XA(config)# no radius-server key SM12DP2XA(config)# no radius-server retransmit SM12DP2XA(config)# no radius-server timeout ...
Page 122 Receiver timeout measured in seconds. The switch decrements the timeout once per second, and as long as it is non-zero, the receiver receives samples. Once the timeout reaches 0, the receiver and all its configuration is reset to defaults. EXAMPLE SM12DP2XA(config)# no sflow agent-ip SM12DP2XA(config)# no sflow collector-address 33753 Rev. A https://www.transition.com...
Page 123 SM12DP2XA CLI Reference SM12DP2XA(config)# no sflow collector-port SM12DP2XA(config)# no sflow max-datagram-size SM12DP2XA(config)# no sflow timeout snmp-server Enable SNMP server. SYNTAX no snmp-server no snmp-server access <Groupname : word32> model { v1 | v2c | v3 | any } level { auth | noauth | priv } no snmp-server community v2c no snmp-server community v3 <Community : word127>...
Page 124 <Viewname : word32> MIB view name <Oidsubtree : word255> MIB view OID EXAMPLE SM12DP2XA(config)# no snmp-server access 333 model any level auth SM12DP2XA(config)# no snmp-server community v2c SM12DP2XA(config)# no snmp-server engined-id local SM12DP2XA(config)# no snmp-server host 333 SM12DP2XA(config)# no snmp-server location ...
Page 125 Transition Networks SM12DP2XA CLI Reference spanning-tree STP Bridge. SYNTAX no spanning-tree edge bpdu-filter no spanning-tree edge bpdu-guard no spanning-tree mode no spanning-tree mst <instance> priority no spanning-tree mst <instance> vlan no spanning-tree mst forward-time no spanning-tree mst max-age...
Page 126 SM12DP2XA CLI Reference EXAMPLE SM12DP2XA(config)# no spanning-tree edge bpdu-filter SM12DP2XA(config)# no spanning-tree mode SM12DP2XA(config)# no spanning-tree mst max-age SM12DP2XA(config)# no spanning-tree recovery interval SM12DP2XA(config)# no spanning-tree transmit hold-count SM12DP2XA(config)# tacacs-server Configure TACACS+. SYNTAX no tacacs-server deadtime no tacacs-server host <host_name>...
Page 127 Transition Networks SM12DP2XA CLI Reference upnp Set UPnP's configurations. SYNTAX no upnp no upnp advertising-duration no upnp ttl Parameters advertising-duration Set advertising duration Set TTL value EXAMPLE SM12DP2XA(config)# no upnp advertising‐duration SM12DP2XA(config)# no upnp ttl SM12DP2XA(config)# username Establish User Name Authentication.
Page 128 SM12DP2XA CLI Reference vlan Vlan commands. SYNTAX no vlan protocol { { eth2 { <0x600-0xffff> | arp | ip | ipx | at } } | { snap { <0x0-0xffffff> | rfc_1042 | snap_8021h } <0x0-0xffff>...
Page 129 Transition Networks SM12DP2XA CLI Reference voice Voice appliance attributes. SYNTAX no voice vlan no voice vlan aging-time no voice vlan class no voice vlan oui <oui> no voice vlan vid Parameters vlan Vlan for voice traffic...
Page 130 ‘’Green_Ethernet' 'IP2' 'IPMC_Snooping' 'LACP' 'LLDP' 'Loop_Protect' 'MAC_Table' 'MEP' 'MVR' 'Maintenance' 'Mirroring' 'NTP''Ports' 'Private_VLANs' 'QoS' 'RPC' 'Security' 'Spanning_Tree' 'System' 'Timer' 'UPnP' 'VCL' 'VLANs' 'Voice_VLAN' ‘XXRP’ 'sFlow' level Web privilege group level EXAMPLE SM12DP2XA(config)# no web privilege group LACP level SM12DP2XA(config)# 33753 Rev. A https://www.transition.com Page 130 of 254 ...
Page 131: Qos
Transition Networks SM12DP2XA CLI Reference 3-3 qos Table : configure – qos Commands Command Function map Global QoS Map/Table qce QoS Control Entry storm Storm policer wred Weighted Random Early Discard Configure Global QoS Map/Table parameters. SYNTAX qos map cos-dscp <0~7> dpl <dpl : 0~1> dscp { <DscpNum : 0-63> | { be | af11 | af12 | af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } } qos map dscp-classify { <dscpNum : 0~63>...
Page 132 Class Selector PHB CS6 precedence 6(DSCP 48) Class Selector PHB CS7 precedence 7(DSCP 56) Expedited Forwarding PHB(DSCP 46) Voice Admit PHB(DSCP 44) EXAMPLE SM12DP2XA(config)# qos map cos-dscp 5 dpl 1 dscp 20 SM12DP2XA(config)# 33753 Rev. A https://www.transition.com Page 132 of 254 ...
Page 133 SM12DP2XA CLI Reference Configure QoS Control Entries. A QoS Control List (QCL) is made up of QCEs. A QCE (QoS Control Entry) describes QoS class associated with a particular QCE ID. There are six QCE frame types: Ethernet Type, VLAN, UDP/TCP Port, DSCP, TOS, and Tag Priority.
Page 134 Transition Networks SM12DP2XA CLI Reference Specify class of service Specify drop precedence level dscp Specify DSCP Specify class of service <Cos : 0-7> Specific class of service default Keep default class of service <Dpl : 0-1>...
Page 135 Transition Networks SM12DP2XA CLI Reference etype Ethernet frames ipv4 IPv4 frames ipv6 IPv6 frames LLC frames snap SNAP frames <Etype : 0x600-0x7ff,0x801-0x86dc,0x86de-0xffff> Specific EtherType interface Interfaces <Next : 1-256> The next QCE ID <Pcp : pcp>...
Page 136 SM12DP2XA CLI Reference storm Configure QoS storm parameters. There is a unicast storm policer, multicast storm policer, and a broadcast storm policer. These only affect flooded frames, i.e. frames with a (VLAN ID, DMAC) pair not present in the MAC Address table.
Page 137 SM12DP2XA CLI Reference wred Configure Weighted Random Early Detection (WRED) parameters. Through different RED configuration for the queues (QoS classes) it is possible to obtain Weighted Random Early Detection (WRED) operation between queues. The settings are global for all ports in the switch.
Page 138: Snmp-Server
SM12DP2XA CLI Reference 3-4 snmp-server Configure SNMP server parameters. Any Network Management System (NMS) running the Simple Network Management Protocol (SNMP) can manage managed devices equipped with an SNMP agent, provided that the Management Information Base (MIB) is installed correctly on the managed devices. The SNMP protocol is used to govern the transfer of information between SNMP manager and agent and traverses the Object Identity (OID) of the management Information Base (MIB), described in the form of SMI syntax.
Page 139 SM12DP2XA CLI Reference access access configuration. SYNTAX snmp-server access <GroupName : word32> model { v1 | v2c | v3 | any } level { auth | noauth | priv } [ read <ViewName : word255> ] [ write <WriteName : word255> ] Parameters <GroupName : word32>...
Page 140 Transition Networks SM12DP2XA CLI Reference community Set the SNMP community. SYNTAX snmp-server community v2c <Community : word127> [ ro | rw ] snmp-server community v3 <word127> [ <ipv4_addr> <ipv4_netmask> ] Parameters SNMPv2c <Community : word127>...
Page 141 Transition Networks SM12DP2XA CLI Reference contact Set the SNMP server's contact string. SYNTAX snmp-server contact <line255> Parameters contact Set the SNMP server's contact string <line255> contact string EXAMPLE SM12DP2XA(config)# snmp‐server contact text SM12DP2XA(config)# engine-id Set SNMP engine ID.
Page 142 Transition Networks SM12DP2XA CLI Reference host Set SNMP host's configurations. SYNTAX snmp-server host <word32> Parameter <word32> Name of the host configuration EXAMPLE SM12DP2XA(config)# snmp‐server host text SM12DP2XA(config)# location Set the SNMP server's location string. SYNTAX snmp-server location <line255>...
Page 143 Transition Networks SM12DP2XA CLI Reference security-to-group security-to-group configuration. SYNTAX snmp-server security-to-group model { v1 | v2c | v3 } name <SecurityName : word32> group <GroupName : word32> Parameters model security model v1 security model v2c security model...
Page 144 SM12DP2XA CLI Reference user Set the SNMPv3 user's configurations. SYNTAX snmp-server user <Username : word32> engine-id <Engineid : word10-32> [ { md5 <Md5Passwd : word8-32> | sha <ShaPasswd : word8-40> } [ priv { des | aes } <word8-32> ] ] Parameters <Username : word32>...
Page 145 Transition Networks SM12DP2XA CLI Reference version Set the SNMP server's version. SYNTAX snmp-server version { v1 | v2c | v3 } Parameters SNMPv1 SNMPv2c SNMPv3 EXAMPLE SM12DP2XA(config)# snmp‐server version v2c SM12DP2XA(config)# view MIB view configuration. SYNTAX snmp-server view <ViewName : word32> <OidSubtree : word255> { include | exclude } Parameters <ViewName : word32>...
Page 146: Spanning-Tree
Transition Networks SM12DP2XA CLI Reference 3-5 spanning-tree Configure Spanning Tree Protocol (STP) parameters. Table : Configure spanning‐tree Commands Command Function aggregation Aggregation mode edge ...
Page 147 Transition Networks SM12DP2XA CLI Reference EXAMPLE SM12DP2XA(config)# spanning‐tree aggregation SM12DP2XA(config‐stp‐aggr)# ? do To run exec commands in config mode end Go back to EXEC mode exit Exit from current mode help Description of the interactive help system no Negate a command or set its defaults spanning‐tree Spanning Tree protocol SM12DP2XA(config‐stp‐aggr)# edge Edge ports. SYNTAX spanning-tree edge bpdu-filter spanning-tree edge bpdu-guard Parameters bpdu-filter Enable BPDU filter (stop BPDU tx/rx) bpdu-guard...
Page 148 Transition Networks SM12DP2XA CLI Reference mode STP protocol mode. SYNTAX spanning-tree mode { stp | rstp | mstp } Parameters mstp Multiple Spanning Tree (802.1s) rstp Rapid Spanning Tree (802.1w) 802.1D Spanning Tree EXAMPLE SM12DP2XA(config)# spanning‐tree mode stp ...
Page 149 Transition Networks SM12DP2XA CLI Reference Configure STP bridge instance. SYNTAX spanning-tree mst <instance> priority <prio> spanning-tree mst <instance> vlan <v_vlan_list> spanning-tree mst forward-time <fwdtime> spanning-tree mst hello-time <hellotime> spanning-tree mst max-age <maxage> [ forward-time <fwdtime> ] spanning-tree mst max-hops <maxhops>...
Page 150 Transition Networks SM12DP2XA CLI Reference recovery Configure Spanning Tree error recovery intertval. SYNTAX spanning-tree recovery interval <Interval : 30-86400> Parameters interval The interval <Interval : 30-86400> Range in seconds EXAMPLE SM12DP2XA(config)# spanning‐tree recovery interval 50 SM12DP2XA(config)# transmit BPDUs to transmit.
Page 151: 4 - Copy Commands
SM12DP2XA CLI Reference 4 ‐ Copy Commands Copy from source to destination. SYNTAX copy { startup-config | running-config | <source_path> } { startup-config | running-config | <destination_path> } [ syntax-check ] [ { merge | replace } ] Parameters <url_file>...
Page 152: 5 - Platform Debug Commands
Transition Networks SM12DP2XA CLI Reference 5 – Platform Debug Commands Debug command settings. Warning: The use of 'debug' commands may negatively impact system behavior. Do not enable unless instructed to. (Use 'platform debug deny' to disable debug commands.) Note: 'debug' command syntax, semantics and behavior are subject to change without notice. SYNTAX platform debug allow platform debug deny Parameters allow Allow debug commands deny Deny debug commands EXAMPLE SM12DP2XA# platform debug allow ? <cr> SM12DP2XA# platform debug allow WARNING: The use of 'debug' commands may negatively impact system behavior. Do not enable unless instructed to. (Use 'platform debug deny' to disable debug commands.) NOTE: 'debug' command syntax, semantics and behavior are subject to change without notice. SM12DP2XA# SM12DP2XA# show platform ? debug Debug command setting phy PHYs' information SM12DP2XA# show platform debug Platform debug command function is denied. SM12DP2XA# show platform phy Port API Inst WAN/LAN/1G Mode Duplex Speed Link ‐‐‐‐ ‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐ ‐‐‐‐ ‐‐‐‐‐‐ ‐‐‐‐‐ ‐‐‐‐ ...
Page 153: 6 - Delete Commands
Transition Networks SM12DP2XA CLI Reference 6 – Delete Commands Delete one file in flash: file system SYNTAX Delete <Path : word> Parameters <Path : word> Name of file to delete EXAMPLE SM12DP2XA# delete ? <url_file> File in FLASH. Syntax: <flash:filename>. A valid file name is a text string drawn from alphabet (A‐Za‐z), digits (0‐9), dot (.), hyphen (‐), under score(_). The maximum length is 63 and hyphen must not be first character. The file name content that only contains '.' is not allowed. ...
Page 154: 7 - Dir Commands
Transition Networks SM12DP2XA CLI Reference 7 ‐ DIR Commands Directory of all files in flash: file system. SYNTAX Dir [ | begin | exclude | include <LINE>] Parameters Output modifiers begin Begin with the line that matches...
Page 155: 8 - Disable Commands
Transition Networks SM12DP2XA CLI Reference 8 ‐ Disable Commands Turn off privileged commands. SYNTAX disable <0-15> disable [ <new_priv> ] Parameters <0-15> Privilege level <cr> EXAMPLE SM12DP2XA# disable ? <0‐15> <cr> SM12DP2XA# disable 10 SM12DP2XA# 33753 Rev. A https://www.transition.com...
Page 156: 9 - Do Commands
Transition Networks SM12DP2XA CLI Reference 9 ‐ Do Commands To run exec commands in config mode. SYNTAX Do <LINE>{[LINE]} Parameters <line> Exec Command EXAMPLE SM12DP2XA# do show clock System Time : 2011‐01‐01T03:08:54+00:00 SM12DP2XA# con ter SM12DP2XA(config)# do show clock System Time : 2011‐01‐01T03:09:09+00:00 SM12DP2XA(config)# 33753 Rev. A https://www.transition.com...
Page 157: 10 - Dot1X Commands
Transition Networks SM12DP2XA CLI Reference 10 ‐ Dot1X Commands Configure IEEE Standard for port-based Network Access Control. SYNTAX dot1x initialize [ interface ( <port_type> [ <plist> ] ) ] Parameters authentication Authentication feature Globally enables/disables a dot1x feature functionality...
Page 158: 11 - Enable Commands
Transition Networks SM12DP2XA CLI Reference 11 ‐ Enable Commands Turn on privileged commands. Syntax Enable <1-15> Parameters <0-15> Choose privileged level EXAMPLE SM12DP2XA# enable? enable Turn on privileged commands <cr> SM12DP2XA# enable ? <0‐15> Choose privileged level <cr> SM12DP2XA# enable 10 ? <cr> SM12DP2XA# enable 10 SM12DP2XA# 33753 Rev. A https://www.transition.com...
Page 159: 12 - Firmware Commands
Transition Networks SM12DP2XA CLI Reference 12 ‐ Firmware Commands Firmware upgrade/swap. Syntax firmware swap firmware upgrade <protocol>://[<username>[:<password>]@]<host>[:<port>][/<path>]/<file_name> Parameters swap Swap between Active and Alternate firmware image. upgrade Firmware upgrade <protocol>:// Protocol [<username> User name. [:<password>] Password @]<host> Hostname [:<port>]...
Page 160: 13 - No Commands
Transition Networks SM12DP2XA CLI Reference 13 ‐ No Commands Negate a command or set its defaults Syntax no debug interrupt-monitor source <source> no debug ipv6 nd no debug trace hunt no port-security shutdown [ interface ( <port_type> [ <v_port_type_list> ] ) ] no terminal editing...
Page 161: 14 - Ping Commands
Transition Networks SM12DP2XA CLI Reference 14 ‐ Ping Commands Send ICMP echo messages. Syntax ping ip { <v_ip_addr> | <v_ip_name> } [ repeat <count> ] [ size <size> ] [ interval <seconds> ] ping ipv6 { <v_ipv6_addr> | <v_ipv6_name> } [ repeat <count> ] [ size <size> ] [ interval <seconds> ] [ interface vlan <v_vlan_id>...
Page 162 Transition Networks SM12DP2XA CLI Reference 64 bytes from 192.168.1.77: icmp_seq=2, time=0ms 64 bytes from 192.168.1.77: icmp_seq=3, time=0ms 64 bytes from 192.168.1.77: icmp_seq=4, time=0ms Sent 5 packets, received 5 OK, 0 bad SM12DP2XA# 33753 Rev. A https://www.transition.com Page 162 of 254...
Page 163: 15 - Reload Commands
Transition Networks SM12DP2XA CLI Reference 15 ‐ Reload Commands Reload system. Syntax reload { { { cold | warm } [ sid <usid> ] } | { defaults [ keep-ip ] } } Parameters cold Reload cold (i.e., reboot). defaults Reload defaults without rebooting.
Page 164: 16 - Send Commands
Transition Networks SM12DP2XA CLI Reference 16 ‐ Send Commands Send a message to other tty lines. Syntax send { * | <session_list> | console 0 | vty <vty_list> } <message> Parameters All tty lines <0~16> Send a message to multiple lines console Primary terminal line...
Page 165: 17 - Show Commands
Transition Networks SM12DP2XA CLI Reference 17 ‐ Show Commands Show running system information. Table : Show Commands Command Function ...
Page 166 Transition Networks SM12DP2XA CLI Reference Show Login methods. SYNTAX show aaa [ | {begin | exclude | include } <LINE>] Parameters Output modifiers begin Begin with the line that matches exclude Exclude lines that match include Include lines that match <LINE>...
Page 167 Transition Networks SM12DP2XA CLI Reference access Show Access management. SYNTAX show access management [ statistics | <access_id_list> ] Parameters management Access management configuration statistics Statistics data <AccessidList : 1~16> ID of access management entry Output modifiers begin Begin with the line that matches...
Page 168 Transition Networks SM12DP2XA CLI Reference access-list Show Access list. SYNTAX show access-list [ interface [ ( <port_type> [ <v_port_type_list> ] ) ] ] [ rate-limiter [ <rate_limiter_list> ] ] [ ace statistics [ <ace_list> ] ] show access-list ace-status [ static ] [ link-oam ] [ loop-protect ] [ dhcp ] [ ptp ] [ upnp ] [ arp-inspection ] [ evc ] [ mep ] [ ipmc ] [ ip-source-guard ] [ ip-mgmt ] [ tt-loop ] [ y1564 ] [ dms-client ] [ dms-server ] [ dms-ssdp ] [ dms-onvif ] [ agv-car ] [ dms-mdns ] [ ztp ] [ rapid-ring ] [ lacp-on-air ] [ conflicts ] [ switch <switch_list>...
Page 169 Transition Networks SM12DP2XA CLI Reference Switch access‐list rate limiter ID 7 is 10 pps Switch access‐list rate limiter ID 8 is 10 pps Switch access‐list rate limiter ID 9 is 10 pps Switch access‐list rate limiter ID 10 is 10 pps Switch access‐list rate limiter ID 11 is 10 pps Switch access‐list rate limiter ID 12 is 10 pps Switch access‐list rate limiter ID 13 is 10 pps Switch access‐list rate limiter ID 14 is 10 pps Switch access‐list rate limiter ID 15 is 10 pps Switch access‐list rate limiter ID 16 is 10 pps SM12DP2XA# aggregation Show Aggregation port configuration. SYNTAX show aggregation [ mode ] [ | {begin | exclude | include } <LINE>] Parameters mode Traffic distribution mode...
Page 170 Transition Networks SM12DP2XA CLI Reference bcs protection Display Broadcast Storm Protection config. SYNTAX show bcs-protection [ interface ( <port_type> [ <v_port_type_list> ] ) ] Parameters Output modifiers GigabitEthernet 1 Gigabit Ethernet Port 10GigabitEthernet 10 Gigabit Ethernet Port EXAMPLE SM12DP2XA# show broadcast‐storm‐protection ? | Output modifiers interface Select an interface to configure ...
Page 171 Transition Networks SM12DP2XA CLI Reference clock Show time-of-day clock. SYNTAX show clock [detail] Parameter detail Display detailed clock information EXAMPLE SM12DP2XA# show clock ? detail Display detailed information <cr> SM12DP2XA# show clock System Time : 2011‐01‐01T15:32:09+00:00 SM12DP2XA# show clock detail System Time : 2011‐01‐01T15:32:15+00:00 Timezone : Timezone Offset : 0 ( 0 minutes) Timezone Acronym : Daylight Saving Time Mode : Disabled. Daylight Saving Time Start Time Settings : Week: 1 Day: 1 Month: 1 Date: 1 Year: 2014 Hour: 0 Minute: 0 ...
Page 172 Transition Networks SM12DP2XA CLI Reference dot1x Show parameters for IEEE Standard for port-based Network Access Control. SYNTAX show dot1x statistics { eapol | radius | all } [ interface ( <port_type> [ <v_port_type_list> ] ) ] show dot1x status [ interface ( <port_type> [ <v_port_type_list> ] ) ] [ brief ]...
Page 173 Transition Networks SM12DP2XA CLI Reference event Show trap event configuration SYNTAX show event EXAMPLE SM12DP2XA# show event ? port Show event port configuration <cr> SM12DP2XA# show event port SM12DP2XA# show event Group Name Severity Level Syslog Mode Trap Mode SMTP Mode ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ACL Info enable disable disable ACL‐Log Info enable disable disable Access‐Mgmt Info enable disable disable Auth‐Failed Warning enable disable disable BCS‐Protection Info enable disable disable Cold‐Start Warning enable disable disable ...
Page 174 Transition Networks SM12DP2XA CLI Reference history Display the session command history. SYNTAX show history [ | {begin | exclude | include } <LINE>] Parameters Output modifiers begin Begin with the line that matches exclude Exclude lines that match include Include lines that match <LINE>...
Page 175 Transition Networks SM12DP2XA CLI Reference interface Display Interface status and configuration. SYNTAX show interface ( <port_type> [ <in_port_list> ] ) switchport [ access | trunk |hybrid ] show interface ( <port_type> [ <v_port_type_list> ] ) CableDiag show interface ( <port_type> [ <v_port_type_list> ] ) capabilities [ detail ] show interface ( <port_type>...
Page 176 Transition Networks SM12DP2XA CLI Reference SM12DP2XA# show interface vlan VLAN1 LINK: 00‐c0‐f2‐49‐38‐bb Mtu:1500 <UP BROADCAST RUNNING MULTICAST> IPv4: 192.168.1.77/24 192.168.1.255 IPv4: 169.254.130.72/16 169.254.255.255 IPv6: fe80::2c0:f2ff:fe49:38bb/64 <UP RUNNING> VLAN4096 LINK: 00‐c0‐f2‐49‐38‐bb Mtu:1500 <BROADCAST MULTICAST> VLAN4097 LINK: 00‐c0‐f2‐49‐38‐bb Mtu:1500 <BROADCAST MULTICAST> SM12DP2XA# SM12DP2XA# show interface * capabilities GigabitEthernet 1/1 Capabilities: Tx Central Mon1 Mon2 Mon3 Port Wavelength Bit Rate Temperature Vcc (Bias) (Tx PWR) (Rx PWR) ‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐ ‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐ Name/Model: None Type: None Speed: 100,1000,auto Duplex: full,auto Trunk encap. type: 802.1Q Trunk mode: access,hybrid,trunk Channel: yes Broadcast suppression: no Flowcontrol: yes Fast Start: no QoS scheduling: tx‐(8q) CoS rewrite: yes ToS rewrite: yes UDLD: no Inline power: no RMirror: yes PortSecure: yes ...
Page 177 Transition Networks SM12DP2XA CLI Reference Name: GigabitEthernet 1/1 Administrative mode: access Access Mode VLAN: 1 Trunk Native Mode VLAN: 1 Administrative Native VLAN tagging: disabled Allowed VLANs: 1‐4095 Hybrid port configuration ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Port Type: C‐Port Acceptable Frame Type: All Ingress filter: Disabled Egress tagging: All except‐native Hybrid Native Mode VLAN: 1 Hybrid VLANs Enabled: 1‐4095 Name: GigabitEthernet 1/2 Administrative mode: access Access Mode VLAN: 1 Trunk Native Mode VLAN: 1 Administrative Native VLAN tagging: disabled Allowed VLANs: 1‐4095 Hybrid port configuration ‐‐ more ‐‐, next page: Space, continue: g, quit: ^C 33753 Rev. A https://www.transition.com Page 177 of 254...
Page 178 Transition Networks SM12DP2XA CLI Reference Display Internet Protocol information. SYNTAX show ip arp show ip arp inspection [ interface ( <port_type> [ <in_port_type_list> ] ) | vlan <in_vlan_list> ] show ip arp inspection entry [ dhcp-snooping | static ] [ interface ( <port_type> [ <in_port_type_list> ] ) ] show ip dhcp detailed statistics { server | client | snooping | relay | normal-forward | combined } [ interface ( <port_type>...
Page 179 Transition Networks SM12DP2XA CLI Reference http Hypertext Transfer Protocol server HTTP web server secure Secure status Status igmp Internet Group Management Protocol snooping Snooping IGMP vlan Search by VLAN <vlan_list> VLAN identifier(s): VID group-database Multicast group database from IGMP sfm-information Including source filter multicast information from IGMP...
Page 180 Transition Networks SM12DP2XA CLI Reference Frags: 0 reassemble (0 reassembled, 0 couldn't reassemble) 0 fragment (0 fragmented, 0 couldn't fragment) 0 fragment created Mcast: 155772 received in 7649660 bytes 153974 sent in 7463602 bytes Bcast: 155658 received, 153974 sent IP interface statistics: IPv4 Statistics on Interface VLAN: 1 Rcvd: 157604 total in 7907241 bytes 79718 local destination, 0 forwarding ‐‐ more ‐‐, next page: Space, continue: g, quit: ^C SM12DP2XA# show ip ? arp Address Resolution Protocol dhcp Dynamic Host Configuration Protocol domain Default domain name http Hypertext Transfer Protocol igmp Internet Group Management Protocol interface IP interface status and configuration link‐local name‐server Domain Name System route Display the current IP routing table source source command ssh Secure Shell statistics Traffic statistics telnet TELNET verify verify command SM12DP2XA# show ip link‐local? link‐local SM12DP2XA# show ip link‐local ? interface show Link‐Local address binding interface SM12DP2XA# show ip link‐local interface ? | Output modifiers <cr> ...
Page 181 Transition Networks SM12DP2XA CLI Reference ipmc Show IPv4/IPv6 multicast configuration. SYNTAX show ipmc profile [ <profile_name> ] [ detail ] show ipmc range [ <entry_name> ] Parameters profile IPMC profile configuration range A range of IPv4/IPv6 multicast addresses for the profile <ProfileName : word16>...
Page 182 Transition Networks SM12DP2XA CLI Reference ipv6 Show IPv6 configuration commands. SYNTAX show ipv6 interface [ vlan <vlan_list> { brief | statistics } ] [ | {begin | exclude | include } <LINE>] show ipv6 mld snooping [ vlan <vlan_list> ] [ group-database [ interface <port_type> <port_type_list> ] [ sfm-information ] ]...
Page 183 Transition Networks SM12DP2XA CLI Reference <LINE> String to match output lines EXAMPLE SM12DP2XA# show ipv6 statistics system IPv6 statistics: Rcvd: 0 total in 0 byte 0 local destination, 0 forwarding 0 header error, 0 address error, 0 unknown protocol 0 no route, 0 truncated, 0 discarded Sent: 10 total in 656 bytes 14 generated, 0 forwarded 0 no route, 0 discarded Frags: 0 reassemble (0 reassembled, 0 couldn't reassemble) 0 fragment (0 fragmented, 0 couldn't fragment) 0 fragment created Mcast: 0 received in 0 byte 10 sent in 656 bytes Bcast: 0 received, 0 sent SM12DP2XA# 33753 Rev. A https://www.transition.com Page 183 of 254...
Page 184 Transition Networks SM12DP2XA CLI Reference lacp Display LACP configuration/status. SYNTAX show lacp { internal | statistics | system-id | neighbour } [ | {begin | exclude | include } <LINE>] Parameters internal Internal LACP configuration statistics Internal LACP statistics system-id LACP system ID...
Page 185 Transition Networks SM12DP2XA CLI Reference line Show TTY line information. SYNTAX show line [ alive ] [ | {begin | exclude | include } <LINE>] Parameters alive Display information about alive lines begin Begin with the line that matches exclude Exclude lines that match...
Page 186 Transition Networks SM12DP2XA CLI Reference lldp Display LLDP neighbors information.. SYNTAX show lldp [ interface ( <port_type> [ <v_port_type_list> ] ) ] show lldp med media-vlan-policy [ <v_0_to_31> ] show lldp med remote-device [ interface ( <port_type> [ <port_list> ] ) ] show lldp neighbors [ interface ( <port_type>...
Page 187 Transition Networks SM12DP2XA CLI Reference logging Display Syslog information. SYNTAX show logging <log_id> [ switch <switch_list> ] show logging [ info ] [ warning ] [ error ] [ emerg ] [ alert ] [ crit ] [ notice ] [ debug ] [ switch <switch_list> ] Parameters <1-4294967295>...
Page 188 Transition Networks SM12DP2XA CLI Reference loop-protect Loop protection configuration. SYNTAX show loop-protect [ interface ( <port_type> [ <plist> ] ) ] Parameters interface Interface status and configuration <port_type > GigabitEthernet All Switches or All ports Gigabitethernet 1 Gigabit Ethernet Port 10GigabitEthernet 10 Gigabit Ethernet Port <port_type_list>...
Page 189 Transition Networks SM12DP2XA CLI Reference Display Mac Address Table information. SYNTAX show mac address-table [ conf | static | aging-time | { { learning | count } [ interface ( <port_type> [ <v_port_type_list> ] ) | vlan <v_vlan_id_2> ] } | { address <v_mac_addr> [ vlan <v_vlan_id> ] } | vlan <v_vlan_id_1> | interface ( <port_type>...
Page 190 Transition Networks SM12DP2XA CLI Reference monitor Display monitor Mirror session. SYNTAX show monitor [ session { <session_number> | all | remote } ] Parameters <1> MIRROR session number Show all MIRROR sessions remote Show only Remote MIRROR sessions EXAMPLE SM12DP2XA# show monitor ...
Page 191 Transition Networks SM12DP2XA CLI Reference Display Multicast VLAN Registration configuration. SYNTAX show mvr [ vlan <v_vlan_list> | name <mvr_name> ] [ group-database [ interface ( <port_type> [ <v_port_type_list> ] ) ] [ sfm-information ] ] [ detail ] Parameters vlan Search by VLAN <vlan_list>...
Page 192 Transition Networks SM12DP2XA CLI Reference show NTP status. SYNTAX show ntp status Parameters status status EXAMPLE SM12DP2XA# show ntp status NTP Mode : disabled Idx Server IP host address (a.b.c.d) or a host name string ‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 1 2 3 4 5 SM12DP2XA# 33753 Rev. A https://www.transition.com Page 192 of 254...
Page 193 Transition Networks SM12DP2XA CLI Reference platform Display Platform specific information. SYNTAX show platform debug show platform phy [ interface ( <port_type> [ <v_port_type_list> ] ) ] show platform phy id [ interface ( <port_type> [ <v_port_type_list> ] ) ] show platform phy instance show platform phy mode [ interface ( <port_type>...
Page 194 Transition Networks SM12DP2XA CLI Reference % Note: Feature is only supported on 10G PHYs on port: 5 % Note: Feature is only supported on 10G PHYs on port: 6 % Note: Feature is only supported on 10G PHYs on port: 7 % Note: Feature is only supported on 10G PHYs on port: 8 % Note: Feature is only supported on 10G PHYs on port: 9 % Note: Feature is only supported on 10G PHYs on port: 10 % Note: Feature is only supported on 10G PHYs on port: 11 % Note: Feature is only supported on 10G PHYs on port: 12 % Note: Feature is only supported on 10G PHYs on port: 13 % Note: Feature is only supported on 10G PHYs on port: 14 % Note: Feature is only supported on 10G PHYs on port: 15 % Note: Feature is only supported on 10G PHYs on port: 16 % Error: failed to get Oper‐mode SM12DP2XA# 33753 Rev. A https://www.transition.com Page 194 of 254...
Page 195 Transition Networks SM12DP2XA CLI Reference port-security Show port security. SYNTAX show port-security port [ interface ( <port_type> [ <v_port_type_list> ] ) ] show port-security switch [ interface ( <port_type> [ <v_port_type_list> ] ) ] Parameter port Show MAC Addresses learned by Port Security switch Show Port Security status.
Page 196 Transition Networks SM12DP2XA CLI Reference EXAMPLE 2 SM12DP2XA# show port‐security port GigabitEthernet 1/1 ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ MAC Address VID State Added Age/Hold Time ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐ <none> GigabitEthernet 1/2 ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ MAC Address VID State Added Age/Hold Time ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐ <none> GigabitEthernet 1/3 ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ MAC Address VID State Added Age/Hold Time ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐ <none> GigabitEthernet 1/4 ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ MAC Address VID State Added Age/Hold Time ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐ SM12DP2XA# show port‐security switch Users: L = Limit Control 8 = 802.1X V = Voice VLAN Interface Users State MAC Cnt ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐ GigabitEthernet 1/1 ‐‐‐ No users 0 GigabitEthernet 1/2 ‐‐‐ No users 0 GigabitEthernet 1/3 ‐‐‐ No users 0 ...
Page 197 Transition Networks SM12DP2XA CLI Reference privilege SYNTAX show privilege [ | {begin | exclude | include } <LINE> Parameters Output modifiers begin Begin with the line that matches exclude Exclude lines that match include Include lines that match EXAMPLE SM12DP2XA# show privilege SM12DP2XA# ...
Page 198 Transition Networks SM12DP2XA CLI Reference process Display ongoing process data. SYNTAX show process list [ detail ] show process load Parameters list list load load EXAMPLE SM12DP2XA# show process? show process list [ detail ] show process load SM12DP2XA# show process list ID State SetPrio CurPrio Name 1sec Load 10sec Load Stack Base Size Used ‐‐‐ ‐‐‐‐‐ ‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐ ‐‐‐‐‐ DSR N/A N/A N/A DSR Context N/A N/A N/A N/A N/A 129 Exit 7 7 Telnet CLI 2 N/A N/A 0x81268c00 65536 4688 132 Exit 7 7 SSH Child 1 N/A N/A 0x8288a370 16384 9568 133 Exit 7 7 SSH CLI 1 N/A N/A 0x82847c90 65536 6560 3 Sleep 6 6 Network alarm support N/A N/A 0x832e54d0 4096 1808 4 Sleep 7 7 Network support N/A N/A 0x832e3d40 5328 2312 5 Susp 15 15 pthread.00000800 N/A N/A 0x832fa1c8 7828 292 6 Sleep 7 7 Main N/A N/A 0x826c86d4 16384 1628 7 Sleep 7 7 Critd N/A N/A 0x826de07c 8192 556 ...
Page 199 Transition Networks SM12DP2XA CLI Reference pvlan Display PVLAN status. SYNTAX show pvlan [ <pvlan_list> ] show pvlan isolation [ interface ( <port_type> [ <plist> ] ) ] Parameters <range_list> PVLAN id to show configuration for isolation show isolation configuration <port_type >...
Page 200 Transition Networks SM12DP2XA CLI Reference GigabitEthernet 1/7 Disabled GigabitEthernet 1/8 Disabled GigabitEthernet 1/9 Disabled GigabitEthernet 1/10 Disabled GigabitEthernet 1/11 Disabled GigabitEthernet 1/12 Disabled GigabitEthernet 1/13 Disabled GigabitEthernet 1/14 Disabled 10GigabitEthernet 1/1 Disabled 10GigabitEthernet 1/2 Disabled SM12DP2XA# 33753 Rev. A https://www.transition.com Page 200 of 254...
Page 201 Transition Networks SM12DP2XA CLI Reference Display Quality of Service data. SYNTAX show qos [ { interface [ ( <port_type> [ <port> ] ) ] } | wred | { maps [ dscp-cos ] [ dscp-ingress-translation ] [ dscp-classify ] [ cos-dscp ] [ dscp-egress-translation ] } | storm | { qce [ <qce> ] } ]...
Page 202 Transition Networks SM12DP2XA CLI Reference radius-server Display RADIUS Server statistics. SYNTAX show radius-server [ statistics ] Parameters statistics RADIUS statistics Output modifiers begin Begin with the line that matches exclude Exclude lines that match include Include lines that match <LINE> String to match output lines EXAMPLE SM12DP2XA# show radius‐server statistics ...
Page 203 Transition Networks SM12DP2XA CLI Reference Type : logandtrap Community : public LastSent : Never SM12DP2XA# show rmon history History ID : 1 ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Data Source : .1.3.6.1.2.1.2.2.1.1.1 Data Bucket Request : 50 Data Bucket Granted : 50 Data Interval : 1800 SM12DP2XA# show rmon statistics Statistics ID : 1 ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Data Source : .1.3.6.1.2.1.2.2.1.1.1 etherStatsDropEvents : 0 etherStatsOctets : 0 etherStatsPkts : 0 etherStatsBroadcastPkts : 0 etherStatsMulticastPkts : 0 etherStatsCRCAlignErrors : 0 etherStatsUndersizePkts : 0 etherStatsOversizePkts : 0 etherStatsFragments : 0 etherStatsJabbers : 0 etherStatsCollisions : 0 etherStatsPkts64Octets : 0 etherStatsPkts65to127Octets : 0 etherStatsPkts128to255Octets : 0 etherStatsPkts256to511Octets : 0 etherStatsPkts512to1023Octets : 0 etherStatsPkts1024to1518Octets: 0 SM12DP2XA# 33753 Rev. A https://www.transition.com...
Page 204 Transition Networks SM12DP2XA CLI Reference running-config Show running system information. SYNTAX show running-config [ all-defaults ] show running-config feature <feature_name> [ all-defaults ] show running-config interface ( <port_type> [ <list> ] ) [ all-defaults ] show running-config interface vlan <list> [ all-defaults ] show running-config line { console | vty } <list>...
Page 205 Transition Networks SM12DP2XA CLI Reference ! snmp‐server host SnmpTrap‐1 no shutdown host 192.168.1.30 162 informs version v3 probe None ! snmp‐server host SnmpTrap‐2 no shutdown host 192.168.1.40 162 informs ! snmp‐server host Trapv1 no shutdown host 192.168.1.50 162 traps version v1 public ! ip route 0.0.0.0 0.0.0.0 192.168.1.254 vlan protocol eth2 ip group grp1 ip arp inspection ip source binding interface GigabitEthernet 1/2 10 192.168.1.77 00‐c0‐f2‐49‐38‐b b clock timezone test 8 tzidx 2 mac address‐table aging‐time 0 mac address‐table static 00:00:00:00:00:00 vlan 1 interface GigabitEthernet 1/2 spanning‐tree mode stp spanning‐tree mst hello‐time 4 spanning‐tree transmit hold‐count 8 spanning‐tree recovery interval 70000 spanning‐tree mst name Charlie revision 1 spanning‐tree mst 1 vlan 10 spanning‐tree mst 2 vlan 20‐40,90 qos storm unicast 12345678 fps qos storm multicast 99999 fps qos storm broadcast 5 kfps qos wred group 1 queue 0 dpl 2 min‐fl 0 max 50 qos wred group 1 queue 1 dpl 3 min‐fl 0 max 50 fill‐level ...
Page 206 Transition Networks SM12DP2XA CLI Reference sflow Display Statistics flow (sFlow) data. SYNTAX show sflow statistics { receiver [ <rcvr_idx_list> ] | samplers [ interface [ <samplers_list> ] ( <port_type> [ <v_port_type_list> ] ) ] } Parameters statistics sFlow statistics. receiver Show statistics for receiver.
Page 207 Transition Networks SM12DP2XA CLI Reference smtp Display SMTP configurations. SYNTAX show smtp EXAMPLE SM12DP2XA# show smtp Mail Server : 192.168.1.77 User Name : jeffs Password : ******** Sender : smtp1 Return Path : sm12@hotmail.com Email Adress 1 : jeffs@transition.com Email Adress 2 : support@transition.com Email Adress 3 : Email Adress 4 : Email Adress 5 : Email Adress 6 : SM12DP2XA# snmp Display SNMP configurations. SYNTAX show snmp show snmp access [ <group_name> { v1 | v2c | v3 | any } { auth | noauth | priv } ] show snmp community v3 [ <community>...
Page 208 Transition Networks SM12DP2XA CLI Reference <ConfName : word32> Name of the host configuration system System event group switch Switch event group interface Interface event group AAA event group security-to-group security-to-group configuration <SecurityName : word32> security group name user User <UserName : word32>...
Page 209 Transition Networks SM12DP2XA CLI Reference spanning-tree Display STP Bridge. SYNTAX show spanning-tree [ summary | active | { interface ( <port_type> [ <v_port_type_list> ] ) } | { detailed [ interface ( <port_type> [ <v_port_type_list_1> ] ) ] } | { mst [ configuration | { <instance> [ interface ( <port_type> [ <v_port_type_list_2> ] ) ] } ] } ]...
Page 210 Transition Networks SM12DP2XA CLI Reference switchport Display switching mode characteristics. SYNTAX show switchport forbidden [ { vlan <vlan_list> } | { name <name> } ] Parameters forbidden Lookup VLAN Forbidden port entry. name name - Show forbidden access for specific VLAN name.
Page 211 Transition Networks SM12DP2XA CLI Reference system Show system information. SYNTAX show system cpu | reboot | <cr> Parameters show system <cr> show system cpu status show system reboot EXAMPLE SM12DP2XA# show system ? cpu CPU reboot Switch reboot scheduling <cr> SM12DP2XA# show system cpu status Average load in 100 ms : 0% Average load in 1 sec : 3% Average load in 10 sec : 4% SM12DP2XA# show system reboot Switch Reboot Mode: Disable Switch Reboot Entry: Reboot Time ...
Page 212 Transition Networks SM12DP2XA CLI Reference Fan Speed : 7031(rpm) Powers : AC Power On 14.00V ; DC Power On 11.80V Temperature 1 : 39(C) ; 102(F) Temperature 2 : 36(C) ; 96(F) SM12DP2XA# tacacs-server Display TACACS+ configuration. SYNTAX show tacacs-server [ | {begin | exclude | include } <LINE> Parameters Output modifiers begin Begin with the line that matches exclude Exclude lines that match...
Page 213 Transition Networks SM12DP2XA CLI Reference terminal Display terminal configuration parameters. SYNTAX show terminal [ | {begin | exclude | include } <LINE> Parameters Output modifiers begin Begin with the line that matches exclude Exclude lines that match include Include lines that match <LINE>...
Page 214 Transition Networks SM12DP2XA CLI Reference show udld Display Unidirectional Link Detection (UDLD) configuration, statistics and status. SYNTAX show udld [ interface ( <port_type> [ <plist> ] ) ] Parameters All switches or All ports GigabitEthernet 1 Gigabit Ethernet Port 10GigabitEthernet 10 Gigabit Ethernet Port...
Page 215 Transition Networks SM12DP2XA CLI Reference upnp Display UPnP configuration. SYNTAX show upnp [ | {begin | exclude | include } <LINE> Parameters Output modifiers begin Begin with the line that matches exclude Exclude lines that match include Include lines that match <LINE>...
Page 216 Transition Networks SM12DP2XA CLI Reference users Display information about terminal lines. SYNTAX show users myself [ | {begin | exclude | include } <LINE> Parameters myself Display information about mine Output modifiers begin Begin with the line that matches exclude Exclude lines that match...
Page 217 Transition Networks SM12DP2XA CLI Reference version Show system hardware and software status. SYNTAX show version show version [ brief ] Parameters Output modifiers begin Begin with the line that matches exclude Exclude lines that match include Include lines that match <LINE>...
Page 218 Transition Networks SM12DP2XA CLI Reference vlan Show VLAN parameters. SYNTAX show vlan [ id <vlan_list> | name <name> | brief ] [ all ] show vlan ip-subnet [ <ipv4> ] show vlan mac [ address <mac_addr> ] show vlan membership [ id <vlan_list> | name <name> ] [ admin | combined | erps| evc | gvrp | mep | mstp | mvr | nas | rmirror | vcl | voice-vlan | forbidden ] show vlan protocol [ eth2 { <etype>...
Page 219 Transition Networks SM12DP2XA CLI Reference SM12DP2XA# show vlan VLAN Name Interfaces ‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ 1 default Gi 1/1‐5,7‐14 10G 1/1‐2 10 VLAN0010 Gi 1/3‐5 20 VLAN0020 Gi 1/3‐5 30 VLAN0030 Gi 1/3‐5 40 VLAN0040 Gi 1/3‐6 SM12DP2XA# show vlan membership VLAN Name User Type Interfaces ‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ ‐‐‐‐‐‐‐‐‐‐ 1 default Admin Gi 1/1‐5,7‐14 10G 1/1‐2 2 VLAN0002 Admin Gi 1/3‐5 3 VLAN0003 Admin Gi 1/3‐5 4 VLAN0004 Admin Gi 1/3‐5 5 VLAN0005 Admin Gi 1/3‐5 6 VLAN0006 Admin Gi 1/3‐5 7 VLAN0007 Admin Gi 1/3‐5 8 VLAN0008 Admin Gi 1/3‐5 9 VLAN0009 Admin Gi 1/3‐5 10 VLAN0010 Admin Gi 1/3‐5 11 VLAN0011 Admin Gi 1/3‐5 12 VLAN0012 Admin Gi 1/3‐5 13 VLAN0013 Admin Gi 1/3‐5 14 VLAN0014 Admin Gi 1/3‐5 15 VLAN0015 Admin Gi 1/3‐5 16 VLAN0016 Admin Gi 1/3‐5 17 VLAN0017 Admin Gi 1/3‐5 18 VLAN0018 Admin Gi 1/3‐5 19 VLAN0019 Admin Gi 1/3‐5 20 VLAN0020 Admin Gi 1/3‐5 ‐‐ more ‐‐, next page: Space, continue: g, quit: ^C 33753 Rev. A https://www.transition.com...
Page 220 Transition Networks SM12DP2XA CLI Reference voice Display Voice appliance attributes. SYNTAX show voice vlan [ oui <oui> | interface ( <port_type> [ <port_list> ] ) ] Parameters vlan Vlan for voice traffic OUI configuration <oui> OUI value interface Select an interface to configure <port_type>...
Page 221 Transition Networks SM12DP2XA CLI Reference Display web privilege information. SYNTAX show web privilege group [ <group_name> ] level Parameters privilege Web privilege group Web privilege group CWORD Valid words are 'ACTIVATE' 'Aggregation' 'DHCP' 'DHCPv6_Client' 'DMS_client' 'DMS_server' 'Debug' 'Diagnostics' 'IP' 'IPMC_Snooping' 'Install_Wizard' 'LACP' 'LLDP' 'Loop_Protect'...
Page 222: 18 - Terminal Commands
Transition Networks SM12DP2XA CLI Reference 18 ‐ Terminal Commands Set terminal line parameters. Syntax terminal editing terminal exec-timeout <0-1440> [ <0-3600> ] terminal help terminal history size <0-32> terminal length <0 or 3-512> terminal width <0 or 40-512> Parameters editing Enable command line editing...
Page 223 Transition Networks SM12DP2XA CLI Reference 2. Partial help is provided when an abbreviated argument is entered and you want to know what arguments match the input (e.g. 'show pr?'.) SM12DP2XA# 33753 Rev. A https://www.transition.com Page 223 of 254...
Page 224: 19 - Ip Commands
Transition Networks SM12DP2XA CLI Reference 19 ‐ IP Commands IPv4 command t retry the DHCP interface VLAN. Syntax ip dhcp retry interface vlan <vlan_id> Parameters dhcp Dhcp commands retry Restart the DHCP query process interface Interface vlan Vlan interface <vlan_id> Vlan ID EXAMPLE SM12DP2XA# ip dhcp retry interface vlan 10 ...
Page 225: 20 - Cli Command Reference
Transition Networks SM12DP2XA CLI Reference 20 ‐ CLI Command Reference This chapter introduces the CLI privilege level and command modes.  The privilege level determines whether or not the user can run the particular commands  If the user can run the particular command, then the user must run the command in the correct mode. 20‐1 Privilege Levels Every command has a privilege level (0‐15). Users can run a command if the session’s privilege level is greater than or equal to the command’s privilege level. The session’s privilege level initially comes from the login account’s privilege level, though it is possible to change the session’s privilege level after logging in. Privilege Level Types of Commands at this Privilege Level Display basic system information Configure features except for login accounts, the authentication method sequence, multiple logins, and administrator and enable passwords.
Page 226 Transition Networks SM12DP2XA CLI Reference access-list { redirect | port-copy } interface Use the no access-list redirect interface INTERFACE_PORT_LIST { <port_type_id> | <port_type_list> } configuration command to configure the access-list redirect interface. no access-list { redirect | port-copy } Use the no access-list redirect interface...
Page 227 Transition Networks SM12DP2XA CLI Reference [frametype { any| etype [etype-value only be hit on the first matched ACE. Use the {<0x600-0x7ff,0x801-0x805,0x807-0x86dc,0x8 next or last keyword to adjust the ACE's 6de-0xffff>|any}] [smac {<mac_addr>|any}] sequence order. [dmac {<mac_addr>|any}]| arp [sip {<ipv4_subnet>|any}] [dip {<ipv4_subnet>|any}] [smac {<mac_addr>|any}] [arp-opcode...
Page 228 Transition Networks SM12DP2XA CLI Reference show access-list ace-status [ static ] Use the show access-list ace-status privilege EXEC [ link-oam ] [ loop-protect ] [ dhcp ] [ ptp ] EXEC command without keywords to display the [ upnp ] [ arp-inspection ] [ mep ] [ ipmc ]...
Page 229 Transition Networks SM12DP2XA CLI Reference reset the global RADIUS retransmit value to default. radius-server deadtime <1-1440> Use the radius-server deadtime command to GLOBAL_CONFIG configure the global RADIUS deadtime value. no radius-server deadtime Use the no radius-server deadtime command to GLOBAL_CONFIG reset the global RADIUS deadtime value to default.
Page 230 Transition Networks SM12DP2XA CLI Reference clock summer-time <word16> recurring [<1-5> GLOBAL_CONFIG <1-7> <1-12> <hhmm> <1-5> <1-7> <1-12> <hhmm> [<1-1440>]] clock summer-time <word16> date [<1-12> GLOBAL_CONFIG <1-31> <2000-2097> <hhmm> <1-12> <1-31> <2000-2097> <hhmm> [<1-1440>]] no clock summer-time GLOBAL_CONFIG clock timezone <word16> <-23-23> [<0-59>]...
Page 231 Transition Networks SM12DP2XA CLI Reference configuration command to restore the default DHCP relay information policy. show ip dhcp pool [<word32>] EXEC show ip dhcp pool counter [<word32>] debug EXEC show ip dhcp excluded-address EXEC show ip dhcp server binding [ state {allocated |...
Page 232 Transition Networks SM12DP2XA CLI Reference no client-identifier DHCP_POOL hardware-address <mac_ucast> DHCP_POOL no hardware-address DHCP_POOL client-name <word32> DHCP_POOL no client-name DHCP_POOL vendor class-identifier <string64> specific-info DHCP_POOL <hexval32> no vendor class-identifier <string64> DHCP_POOL show ip dhcp snooping [ interface Use the show ip dhcp snooping user EXEC EXEC <port_type_list>...
Page 233 Transition Networks SM12DP2XA CLI Reference show running-config [ all-defaults ] EXEC show running-config feature <cword> EXEC [ all-defaults ] show running-config interface <port_type_list> EXEC [ all-defaults ] show running-config interface vlan <vlan_list> EXEC [ all-defaults ] show running-config vlan <vlan_list> EXEC...
Page 234 Transition Networks SM12DP2XA CLI Reference v3 } no ip igmp snooping compatibility INTERFACE_VLAN ip igmp snooping priority <0-7> INTERFACE_VLAN no ip igmp snooping priority INTERFACE_VLAN ip igmp snooping robustness-variable <1-255> INTERFACE_VLAN no ip igmp snooping robustness-variable INTERFACE_VLAN ip igmp snooping query-interval <1-31744>...
Page 235 Transition Networks SM12DP2XA CLI Reference ipv6 mld snooping query-max-response-time INTERFACE_VLAN <0-31744> no ipv6 mld snooping INTERFACE_VLAN query-max-response-time ipv6 mld snooping last-member-query-interval INTERFACE_VLAN <0-31744> no ipv6 mld snooping INTERFACE_VLAN last-member-query-interval ipv6 mld snooping unsolicited-report-interval INTERFACE_VLAN <0-31744> no ipv6 mld snooping unsolicited-report-interval INTERFACE_VLAN...
Page 236 Transition Networks SM12DP2XA CLI Reference lldp cdp-aware Configures if the interface shall be CDP aware INTERFACE_PORT_LIST (CDP discovery information is added to the LLDP neighbor table) show lldp med remote-device [ interface Show LLDP-MED neighbor device information. EXEC <port_type_list> ] show lldp med media-vlan-policy [<0~31>]...
Page 237 Transition Networks SM12DP2XA CLI Reference no loop-protect transmit-time GLOBAL_CONFIG loop-protect shutdown-time <0-604800> Loop protection shutdown time interval GLOBAL_CONFIG no loop-protect shutdown-time GLOBAL_CONFIG loop-protect Loop protection configuration INTERFACE_PORT_LIST loop-protect action { [shutdown] [log] }*1 INTERFACE_PORT_LIST no loop-protect action INTERFACE_PORT_LIST loop-protect tx-mode INTERFACE_PORT_LIST show loop-protect [ interface <port_type_list>...
Page 238 Transition Networks SM12DP2XA CLI Reference spanning-tree auto-edge INTERFACE_PORT_LIST spanning-tree link-type { point-to-point | shared INTERFACE_PORT_LIST | auto } no spanning-tree link-type INTERFACE_PORT_LIST spanning-tree restricted-role INTERFACE_PORT_LIST spanning-tree restricted-tcn INTERFACE_PORT_LIST spanning-tree bpdu-guard INTERFACE_PORT_LIST spanning-tree mst <0-7> cost { <1-200000000> INTERFACE_PORT_LIST | auto } no spanning-tree mst <0-7>...
Page 239 Transition Networks SM12DP2XA CLI Reference no mvr name <word16> frame priority GLOBAL_CONFIG mvr vlan <vlan_list> GLOBAL_CONFIG last-member-query-interval <0-31744> mvr name <word16> GLOBAL_CONFIG last-member-query-interval <0-31744> no mvr vlan <vlan_list> GLOBAL_CONFIG last-member-query-interval no mvr name <word16> GLOBAL_CONFIG last-member-query-interval mvr vlan <vlan_list> channel <word16>...
Page 240 Transition Networks SM12DP2XA CLI Reference dot1x radius-qos Enables/disables per-port state of INTERFACE_PORT_LIST RADIUS-assigned QoS. dot1x radius-vlan Enables/disables per-port state of INTERFACE_PORT_LIST RADIUS-assigned VLAN. dot1x feature { [ guest-vlan ] [ radius-qos ] Globally enables/disables a dot1x feature GLOBAL_CONFIG [ radius-vlan ] }*1...
Page 241 Transition Networks SM12DP2XA CLI Reference no port-security aging time GLOBAL_CONFIG port-security Enable/disable port security per interface. INTERFACE_PORT_LIST port-security maximum [<1-1024>] Maximum number of MAC addresses that can be INTERFACE_PORT_LIST learned on this set of interfaces. no port-security maximum INTERFACE_PORT_LIST port-security violation { protect | trap | The action involved with exceeding the limit.
Page 242 Transition Networks SM12DP2XA CLI Reference [ fragment { yes | no | any } ] [ sport { <vcap_vr> | any } ] [ dport { <vcap_vr> | any } ] } | { ipv6 [ proto { <0-255> | tcp | udp | any } ] [ sip { <ipv4_subnet>...
Page 243 Transition Networks SM12DP2XA CLI Reference show rmon statistics [<1~65535>] EXEC show rmon history [<1~65535>] EXEC show rmon alarm [<1~65535>] EXEC show rmon event [<1~65535>] EXEC rmon alarm <1-65535> <word255> GLOBAL_CONFIG <1-2147483647> {absolute | delta} rising-threshold <-2147483648-2147483647> [<0-65535>] falling-threshold <-2147483648-2147483647> [<0-65535>] {[rising | falling | both]} no rmon alarm <1-65535>...
Page 244 Transition Networks SM12DP2XA CLI Reference no sflow max-sampling-size [sampler Specifies the maximum number of bytes to INTERFACE_PORT_LIST <range_list>] transmit per flow sample. sflow counter-poll-interval [sampler The interval - in seconds - between counter poller INTERFACE_PORT_LIST <range_list>] [<1-3600>] samples. no sflow counter-poll-interval [<range_list>]...
Page 245 Transition Networks SM12DP2XA CLI Reference no snmp-server location To specify the system location string. GLOBAL_CONFIG show snmp mib context Use the show snmp mib context user EXEC EXEC command to display \ the supported MIBs in the switch. show snmp mib ifmib ifIndex...
Page 246 Transition Networks SM12DP2XA CLI Reference command to clear the host address of logging server. logging level { info | warning | error } Use the logging level global configuration GLOBAL_CONFIG command to configure what level of message will send to logging server.
Page 247 Transition Networks SM12DP2XA CLI Reference no switchport vlan ip-subnet id <1~128> INTERFACE_PORT_LIST switchport mode {access | trunk | hybrid} Use the switchport mode command to define the INTERFACE_PORT_LIST type of the port. no switchport mode INTERFACE_PORT_LIST switchport access vlan <vlan_id> Use the switchport access vlan command to INTERFACE_PORT_LIST configure a port to a VLAN.
Page 248 Transition Networks SM12DP2XA CLI Reference vlan aging-time. no voice vlan aging-time Use the no voice vlan aging-time global GLOBAL_CONFIG configuration command to restore the default voice vlan aging-time. voice vlan class { <0-7> | low | normal | Use the voice vlan class global configuration...
Page 249: 22 - Troubleshooting, Warranty, Support And Compliance
Transition Networks SM12DP2XA CLI Reference 22 ‐ Troubleshooting, Warranty, Support and Compliance Most problems are caused by the following situations. Check for these items first when starting your troubleshooting: 1. Make sure your switch model supports the feature or function attempted; see chapter 1. 2. Verify the install process; see chapter 2. 3. Troubleshoot connected network devices to pinpoint the problem to the switch. 4. Make sure you are in the correct CLI mode for the cCLI command you are entering. 5. Connecting to devices that have a fixed full‐ duplex configuration. Make sure all devices connected to the SM12DP2XA Switch devices are configured to auto negotiate, or are configured to connect at half duplex. 6. Faulty or loose cables. Look for loose or obviously faulty connections. If they appear to be OK, make sure the connections are snug. If that does not correct the problem, try a different cable. 7. Non‐standard cables. Non‐standard and miswired cables may cause network collisions and other network problems, and can seriously impair network performance. Use a new correctly‐wired cable. A cable tester is a recommended tool for every Ethernet network installation. 8. Improper Network Topologies. It is important to make sure you have a valid network topology. If you no longer experience the problems, the new topology is probably at fault. In addition, you should make sure that your network topology contains no data path loops. 9. Check the port configuration. A port on your Switch may not be operating as you expect because it has been put into a “blocking” state by Spanning Tree, GVRP (automatic VLANs), or LACP (automatic trunking). (Note that the normal operation of the Spanning Tree, GVRP, and LACP features may put the port in a blocking state.) Or, the port just may have been configured as disabled through software. 10. SYS LED is Off. Check connections between the switch, the power cord and the wall outlet. Contact Tech Support for assistance. See 22‐3 Contact Us below. 11. Link LED is Off. Verify that the switch and attached device are powered on. Be sure the cable is plugged into ...
Page 250: Recording Device And System Information
Transition Networks Tech Support Specialist. 1. Select the SM12DP2XA Configuration > System > Information menu path. From the CLI, use the show commands needed to gather the information below or as requested by the TN Support Specialist.
Page 251: Limited Lifetime Warranty
Transition Networks SM12DP2XA CLI Reference 22‐2 Limited Lifetime Warranty To return a defective product for warranty coverage, contact Transition Networks’ technical support department for a return authorization number. 22‐3 Contact Us Technical Support Technical support is available 24‐hours a day US and Canada: 1‐800‐260‐1312 International: 00‐1‐952‐941‐7600 Main Office tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com | techsupport@transition.com | customerservice@transition.com Address Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343, U.S.A. Firmware: Keep your products up to date by downloading the latest firmware. You must log in or create an account to download firmware. For further assistance contact us at +1.952.358.3601, 1.800.260.1312, or at techsupport@transition.com. 33753 Rev. A https://www.transition.com Page 251 of 254...
Page 252: Appendix A - Dhcp Per Port
Transition Networks SM12DP2XA CLI Reference Appendix A ‐ DHCP Per Port Configure DHCP Per Port via the CLI The switch’s DHCP server assigns IP addresses. Clients get IP addresses in sequence and the switch assigns IP addresses to on a per‐port basis starting from the configured IP range. For example, if the IP address range is configured as 192.168.10.20 ‐ 192.168.10.37 with one DHCP device connected to port 1, the client will always get IP address 192.168.10.20, then port 3 is always distributed IP address 192.168.10.22, even if port 2 is an empty port (because port 2 is always distributed IP address 192.168.10.21). The switch does not allow a DHCP per Port pool to include the switch’s address. IP address assigned range and VLAN 1 should stay in the same subnet mask. The configurable IP address range is allowed to configure over 18 IP addresses, but the switch always assigns one IP address per port connecting device. The DHCP Per Port function is only supported on VLAN 1. When the DHCP Per Port function is enabled, the switch software will automatically create the related DHCP pool named “DHCP_Per _Port”. Once the DHCP Per Port function is enabled on one switch, IPv4 DHCP client at VLAN1 mode (DMS DHCP mode), DHCP server mode are all limited to be enabled at the same time (an error message displays if attempted). If the DHCP server pool has been configured, once you enable the DHCP Per port function that DHCP server pool configuration will be overwritten. Only for VLAN 1, clients issued DHCP packets will not be broadcast/forwarded to other ports. DHCP packets in others VLANs will be broadcast/forwarded to others ports. The DHCP Per Port function allows the switch to connect only one DHCP client device. The DHCP Per Port function is confiured and shown using these CLI commands: # show ip dhcp server (config)# ip dhcp server per‐port (config)# no ip dhcp server per‐port The CLI commands to configure and show DHCP Per Port are described below. Command: Show the current DHCP Server and DHCP Per Port configuration Syntax: show ip dhcp server <cr> Description: Show if DHCP server is globally enabled or disabled, if all VLANs are disabled or enabled, and if the DHCP server Per Port function is disabled or enabled. Example: Display the current DHCP Server and Per Port configuration, change the config, and display the results: SM12DP2XA(config)# do show ip dhcp server DHCP server is globally enabled. Enabled VLANs are 1. DHCP server per port is disabled. SM12DP2XA(config)# ip dhcp server per‐port SM12DP2XA(config)# do show ip dhcp server DHCP server is globally enabled. ...
Page 253: 33753 Rev. A
Transition Networks SM12DP2XA CLI Reference Command: Configure the DHCP Per Port function Syntax: ip dhcp server per‐port <cr> Description: Toggle the DHCP Per Port function from Diasbled (default) to Enabled. Example: Toggle the DHCP Per Port function and show the resulting config: SM12DP2XA# show ip dhcp server DHCP server is globally disabled. All VLANs are disabled. SM12DP2XA# con ter SM12DP2XA(config)# ip dhcp ? excluded‐address Prevent DHCP from assigning certain addresses pool Configure DHCP address pools relay DHCP relay agent configuration server Enable DHCP server snooping DHCP snooping SM12DP2XA(config)# ip dhcp server ? <cr> SM12DP2XA(config)# ip dhcp server SM12DP2XA(config)# end SM12DP2XA# show ip dhcp server DHCP server is globally enabled. All VLANs are disabled. SM12DP2XA# 33753 Rev. A https://www.transition.com Page 253 of 254...
Page 254 Transition Networks SM12DP2XA CLI Reference Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343, U.S.A. tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com | techsupport@transition.com | customerservice@transition.com Copyright © 2018 Transition Networks. All rights reserved. Printed in the U.S.A. SM12DP2XA CLI Reference, 33753 Rev. A 33753 Rev. A https://www.transition.com Page 254 of 254...
