DMS > Graphical Monitoring > Topology View
This page displays a topological view of the discovered network.
DMS can automatically discover all IP devices and display the devices in a graphic networking topology view.
You can manage and monitor device in the Topology View, such as to remotely diagnose the cable connection
status, auto alarm notifications on critical events, remotely reboot PoE device when it's not alive. You can use the
DMS platform to solve the abnormal issues anytime and anywhere by tablet or smart phone to keep the network
working smoothly.

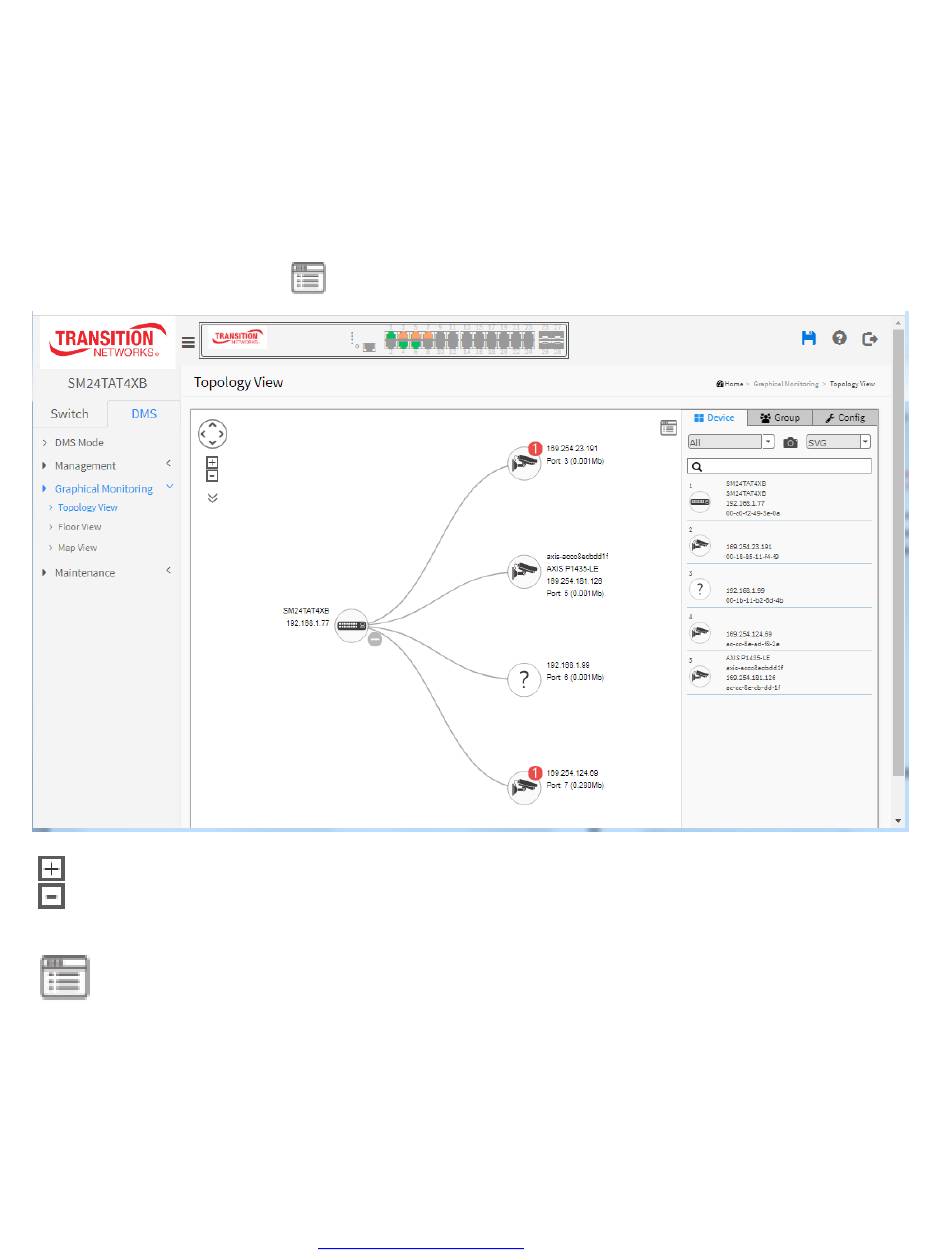

From the default page, click the
  icon to display the Device, Group, and Config tabs.

   Plus and Minus icons: Zoom in and zoom out the topology view (you can scroll up/down with mouse to
achieve the same purpose).
 'Settings icon: Click the icon to pop‐up the Device, Group, and Config tabs, the export topology view and
advanced search functions for the topology.

33786 Rev. A
