Multicast > MVR > Statistics

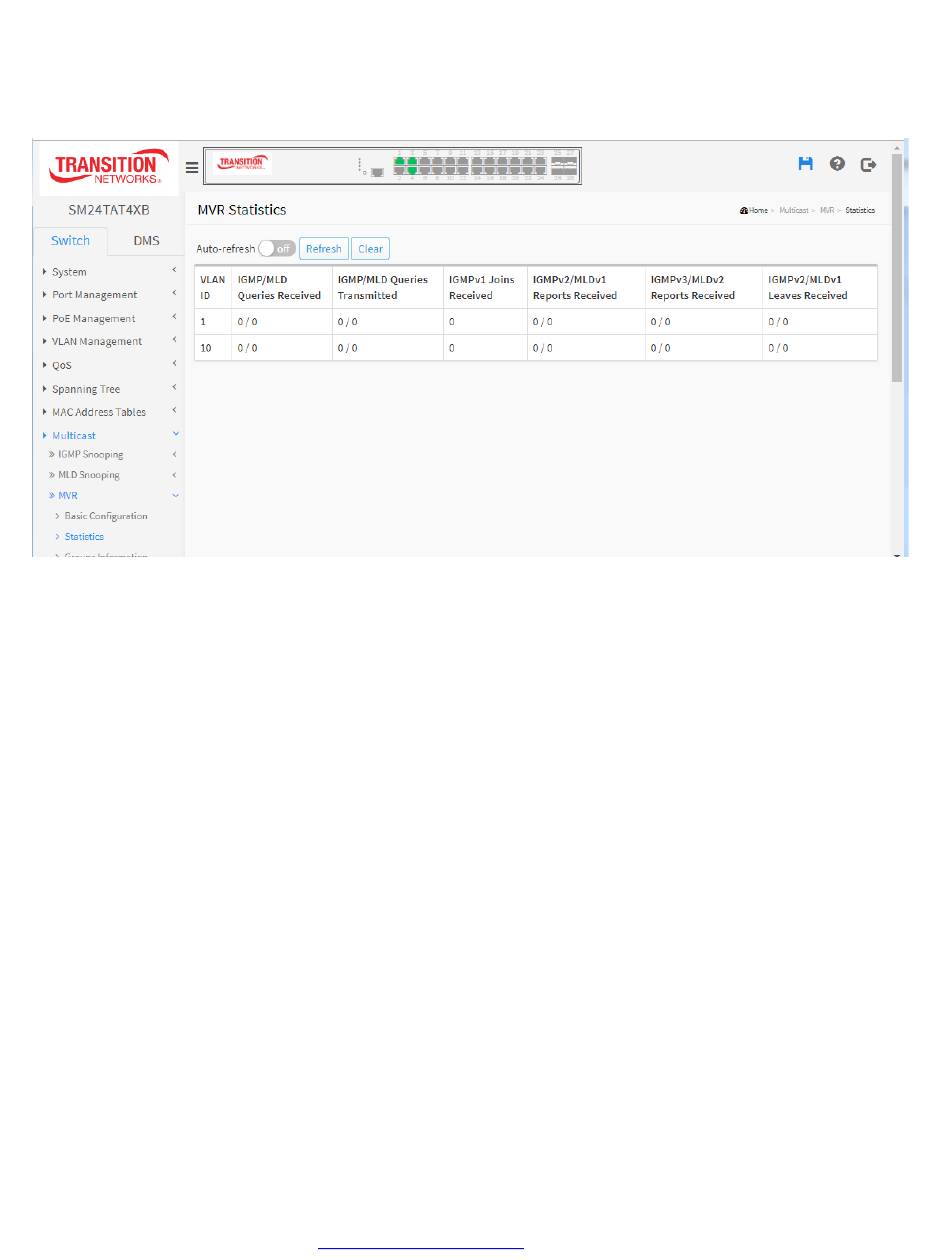

This page displays MVR Statistics information.
VLAN ID: The Multicast VLAN ID.
IGMP/MLD Queries Received: The number of Received Queries for IGMP and MLD, respectively.
IGMP/MLD Queries Transmitted: The number of Transmitted Queries for IGMP and MLD, respectively.
IGMPv1 Joins Received: The number of Received IGMPv1 Joins.
IGMPv2/MLDv1 Reports Received: The number of Received IGMPv2 Joins and MLDv1 Reports, respectively.
IGMPv3/MLDv2 Reports Received: The number of Received IGMPv1 Joins and MLDv2 Reports, respectively.
IGMPv2/MLDv1 Leaves Received: The number of Received IGMPv2 Leaves and MLDv1 Dones, respectively.
Buttons
Auto‐refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
Clear: Clears all Statistics counters.
