Transition Networks SMxxTAT4Xx Web User Guide
Switch > Port Management > Link Aggregation > Port Status

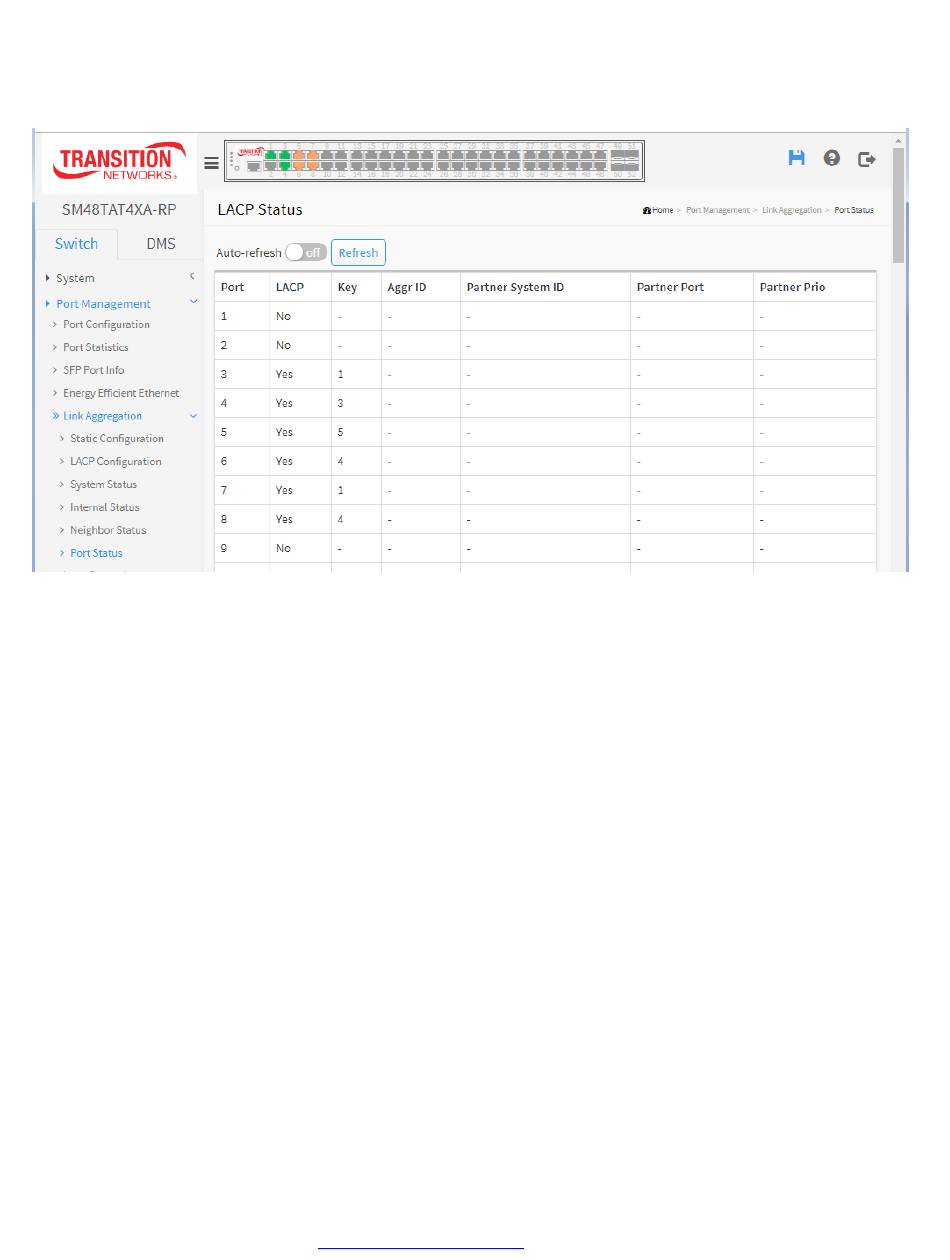

This page displays LACP status for all switch ports.
Port: The switch port number.
LACP: 'Yes' means that LACP is enabled and the port link is up. 'No' means that LACP is not enabled or that the
port link is down. 'Backup' means that the port could not join the aggregation group but will join if other port
leaves. Meanwhile its LACP status is disabled.
Key: The key assigned to this port. Only ports with the same key can aggregate together.
Aggr ID: The Aggregation ID assigned to this aggregation group.
Partner System ID: The partner's System ID (MAC address).
Partner Port: The partner's port number connected to this port.
Partner Prio: The partner's port priority.
Buttons
Auto‐refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
