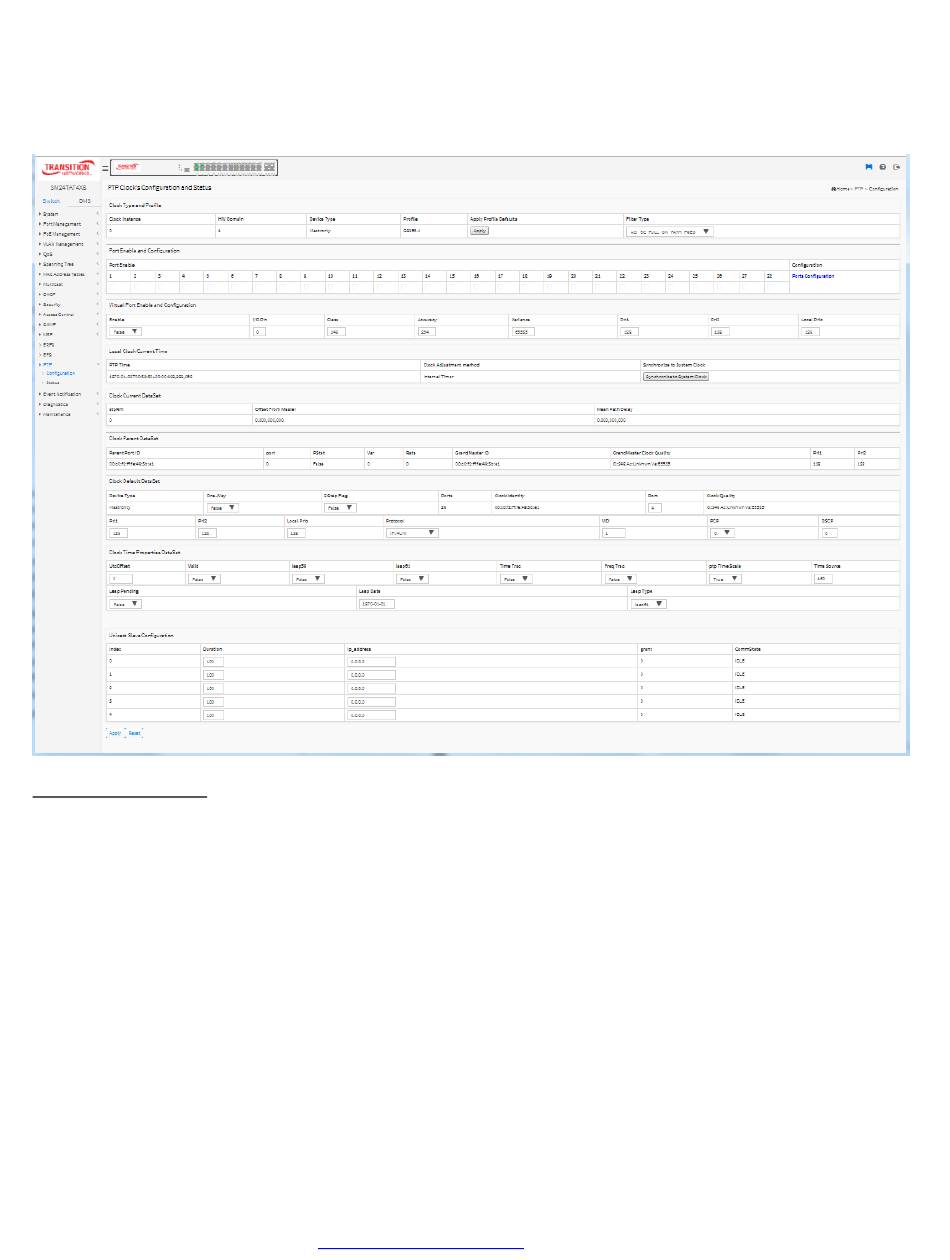

PTP Clock's Configuration and Status page
Click on the Clock Instance number to edit the Clock details on the 'PTP Clock's Configuration and Status' page.
This page lets you view and configure the current PTP clock settings.
Clock Type and Profile
Clock Instance: Indicates the instance number of a particular Clock Instance [0..3].
HW Domain: Indicates the HW clock domain used by the clock.
Device Type: Indicates the Type of the Clock Instance. There are five Device Types.
Ord‐Bound ‐ clock's Device Type is Ordinary‐Boundary Clock.
P2p Transp ‐ clock's Device Type is Peer to Peer Transparent Clock.
E2e Transp ‐ clock's Device Type is End to End Transparent Clock.
Master Only ‐ clock's Device Type is Master Only.
Slave Only ‐ clock's Device Type is Slave Only.
Profile: Indicates the profile used by the clock.
Apply Profile Defaults: If the clock has been configured to use a profile, clicking the 'Apply' button will reset
configured values to profile defaults.
