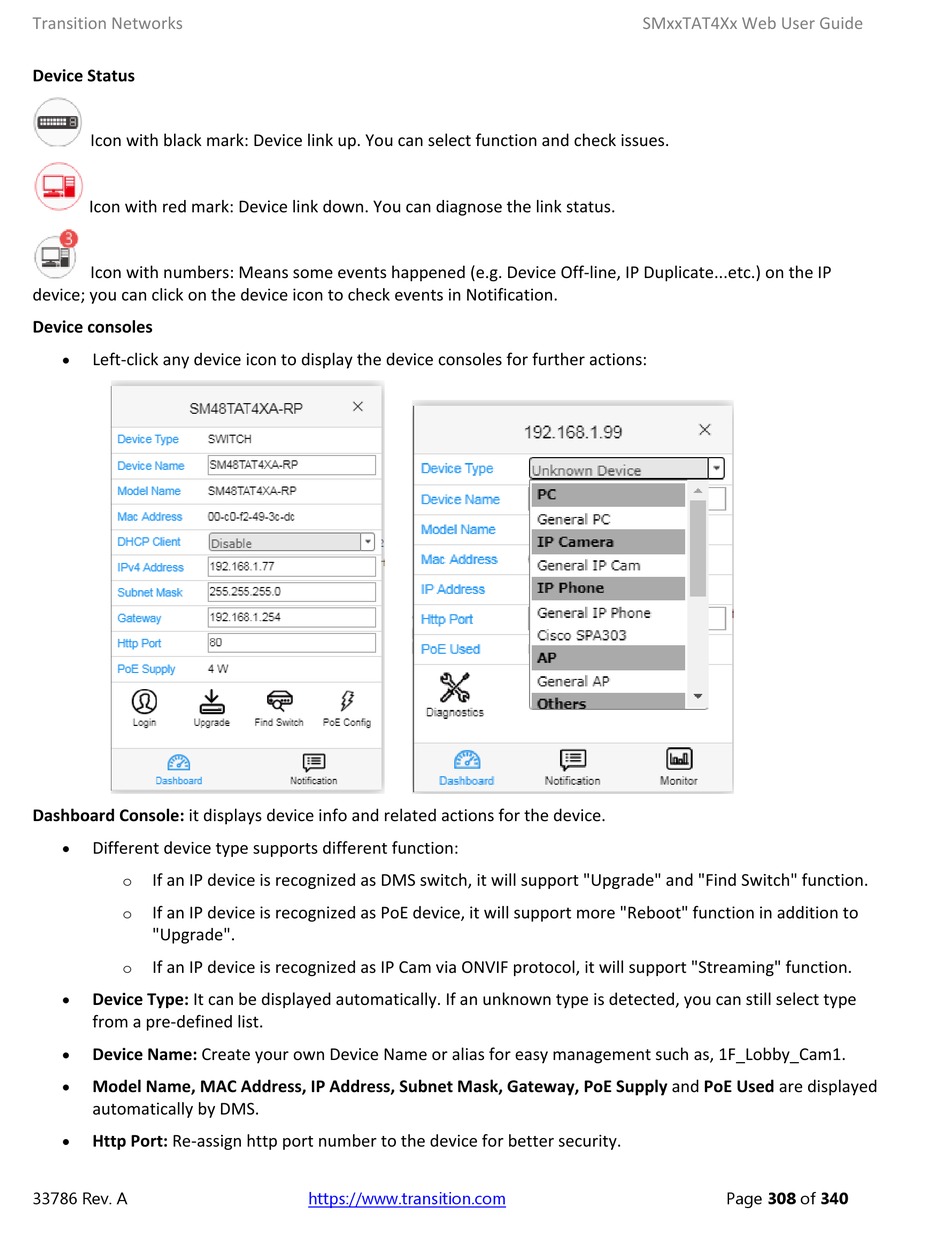

Transition Networks SM TAT4X Series Web User Manual page 308

Transition Networks
Device Status
Icon with black mark: Device link up. You can select function and check issues.
Icon with red mark: Device link down. You can diagnose the link status.
Icon with numbers: Means some events happened (e.g. Device Off‐line, IP Duplicate...etc.) on the IP
device; you can click on the device icon to check events in Notification.
Device consoles

Left‐click any device icon to display the device consoles for further actions:
Dashboard Console: it displays device info and related actions for the device.

Different device type supports different function:
If an IP device is recognized as DMS switch, it will support "Upgrade" and "Find Switch" function.
o
If an IP device is recognized as PoE device, it will support more "Reboot" function in addition to
o
"Upgrade".
If an IP device is recognized as IP Cam via ONVIF protocol, it will support "Streaming" function.
o

Device Type: It can be displayed automatically. If an unknown type is detected, you can still select type
from a pre‐defined list.

Device Name: Create your own Device Name or alias for easy management such as, 1F_Lobby_Cam1.

Model Name, MAC Address, IP Address, Subnet Mask, Gateway, PoE Supply and PoE Used are displayed
automatically by DMS.

Http Port: Re‐assign http port number to the device for better security.
