Transition Networks SMxxTAT4Xx Web User Guide

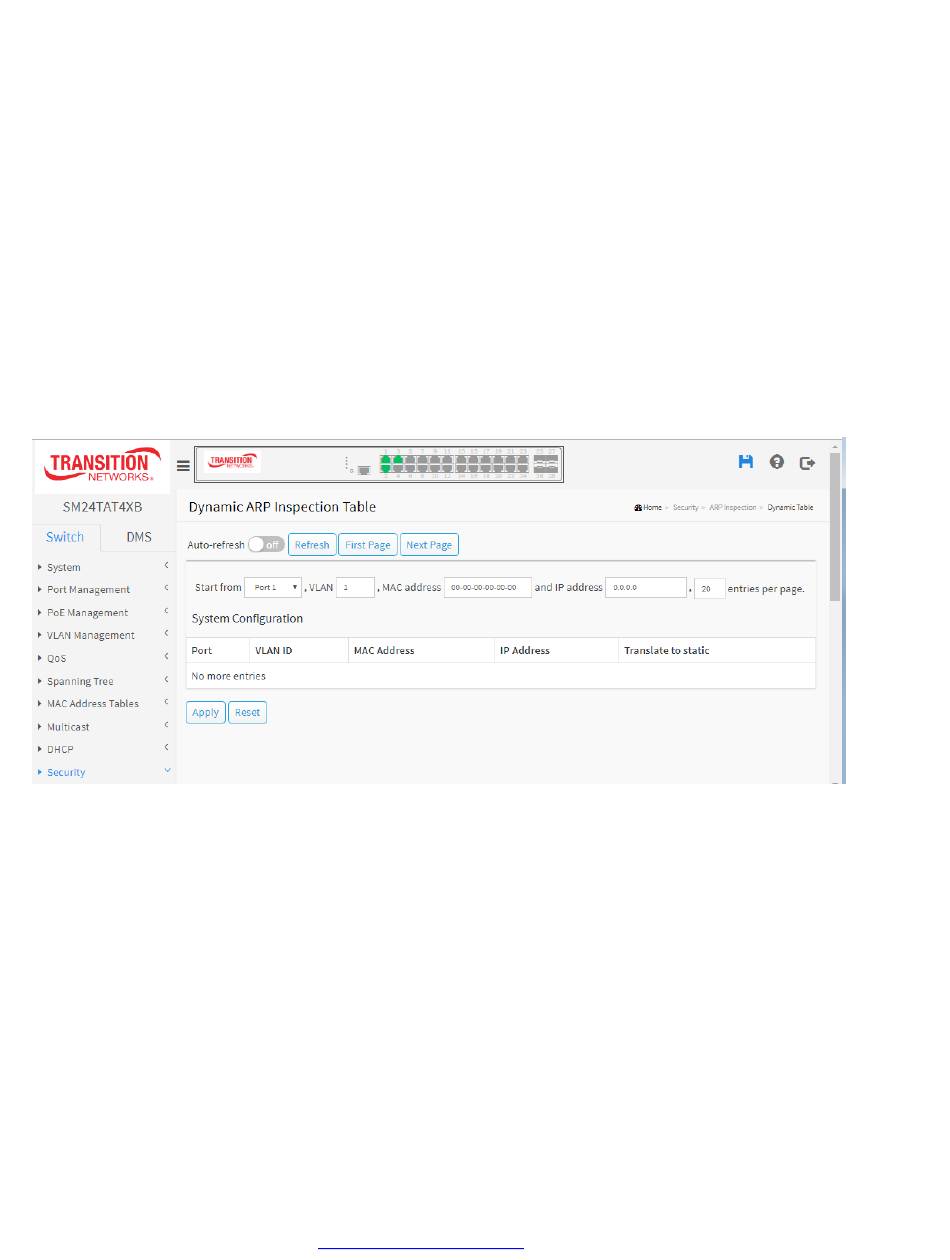

Security > ARP Inspection > Dynamic Table
Entries in the Dynamic ARP Inspection Table are shown on this page. The Dynamic ARP Inspection Table contains
up to 256 entries, and is sorted first by port, then by VLAN ID, then by MAC address, and then by IP address. All
dynamic entries are learning from DHCP Snooping.
Each page shows up to 99 entries from the Dynamic ARP Inspection table, default being 20, selected through the
"entries per page" input field. When first visited, the web page will show the first 20 entries from the beginning
of the Dynamic ARP Inspection Table.
The "Start from port address", "VLAN", "MAC address" and "IP address" input fields allow the user to select the
starting point in the Dynamic ARP Inspection Table. Clicking the Refresh button will update the displayed table
starting from that or the closest next Dynamic ARP Inspection Table match. In addition, the two input fields will ‐
upon a Refresh button click ‐ assume the value of the first displayed entry, allowing for continuous refresh with
the same start address.
The Next Page button uses the last entry of the currently displayed table as a basis for the next lookup. When the
end is reached the text "No more entries" displays in the displayed table. Use the First Page button to start over.
Port: Switch Port Number for which the entries are displayed.
VLAN ID: VLAN‐ID in which the ARP traffic is permitted.
MAC Address: User MAC address of the entry.
IP Address: User IP address of the entry.
Translate to static: Select the checkbox to translate the entry to static entry.
Buttons
Auto‐refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Refreshes the displayed table starting from the input fields.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
First Page: Updates the table starting from the first entry in the Dynamic ARP Inspection Table.
Next Page: Updates the table, starting with the entry after the last entry currently displayed.
