MEP > MEP Configuration

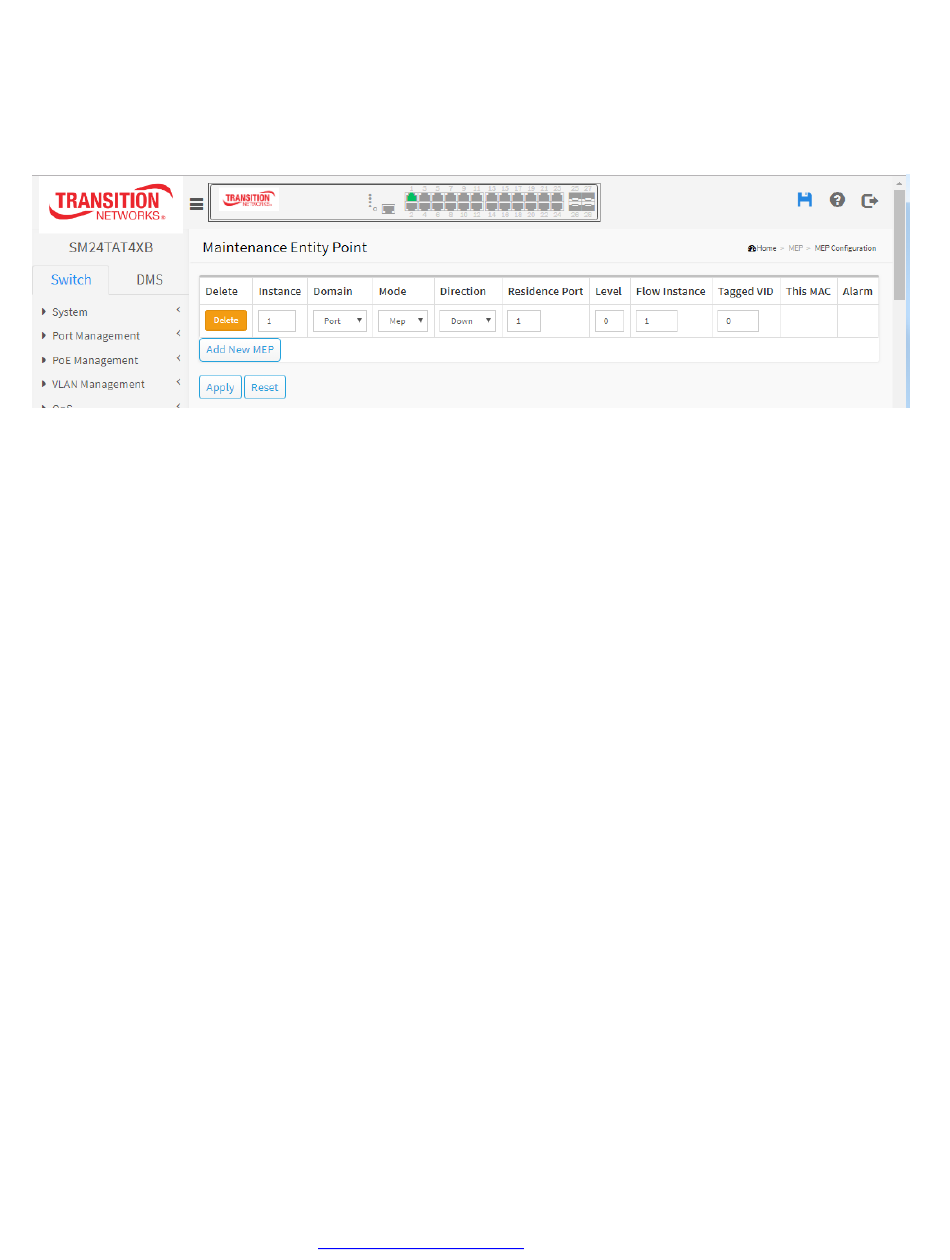

The Maintenance Entity Point instances are configured here. A MEP (Maintenance Entity Endpoint) is an endpoint
in a Maintenance Entity Group (ITU‐T Y.1731). From the default page click the Add New MEP button to display
the Maintenance Entity Point page.
Delete: This box is used to mark a MEP for deletion in next Save operation.
Instance: The ID of the MEP. Click on the ID of a MEP to enter the configuration page (see below). The valid range
is 1 ‐ 3124.
Domain: Dropdown to select Port or VLAN.
Port: This is a MEP in the Port Domain.
Mode: Dropdown to select MEP or MIP.
MEP: This is a Maintenance Entity End Point.
MIP: This is a Maintenance Entity Intermediate Point.
Direction: Dropdown to select Down or Up.
Down: This is a Down MEP ‐ monitoring ingress OAM and traffic on 'Residence Port'.
Up: This is a Up MEP ‐ monitoring egress OAM and traffic on 'Residence Port'.
Residence Port: The port where MEP is monitoring ‐ see 'Direction'. For an EVC MEP the port must be a port in
the EVC. For a VLAN MEP the port must be a VLAN member.
Level: The MEG level of this MEP.
Flow Instance: The MEP is related to this flow ‐ See 'Domain'. This is not relevant and not shown in case of Port
MEP.
Tagged VID: Port MEP: An outer C/S‐tag (depending on VLAN Port Type) is added with this VID. Entering '0'
means no TAG added.
This MAC: The MAC of this MEP ‐ can be used by other MEP when unicast is selected (Info only).
Alarm: There is an active alarm on the MEP or operational state is not "Up".
Buttons
Add New MEP: Click to add a new MEP entry.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
