Switch > System > IP Address > Status

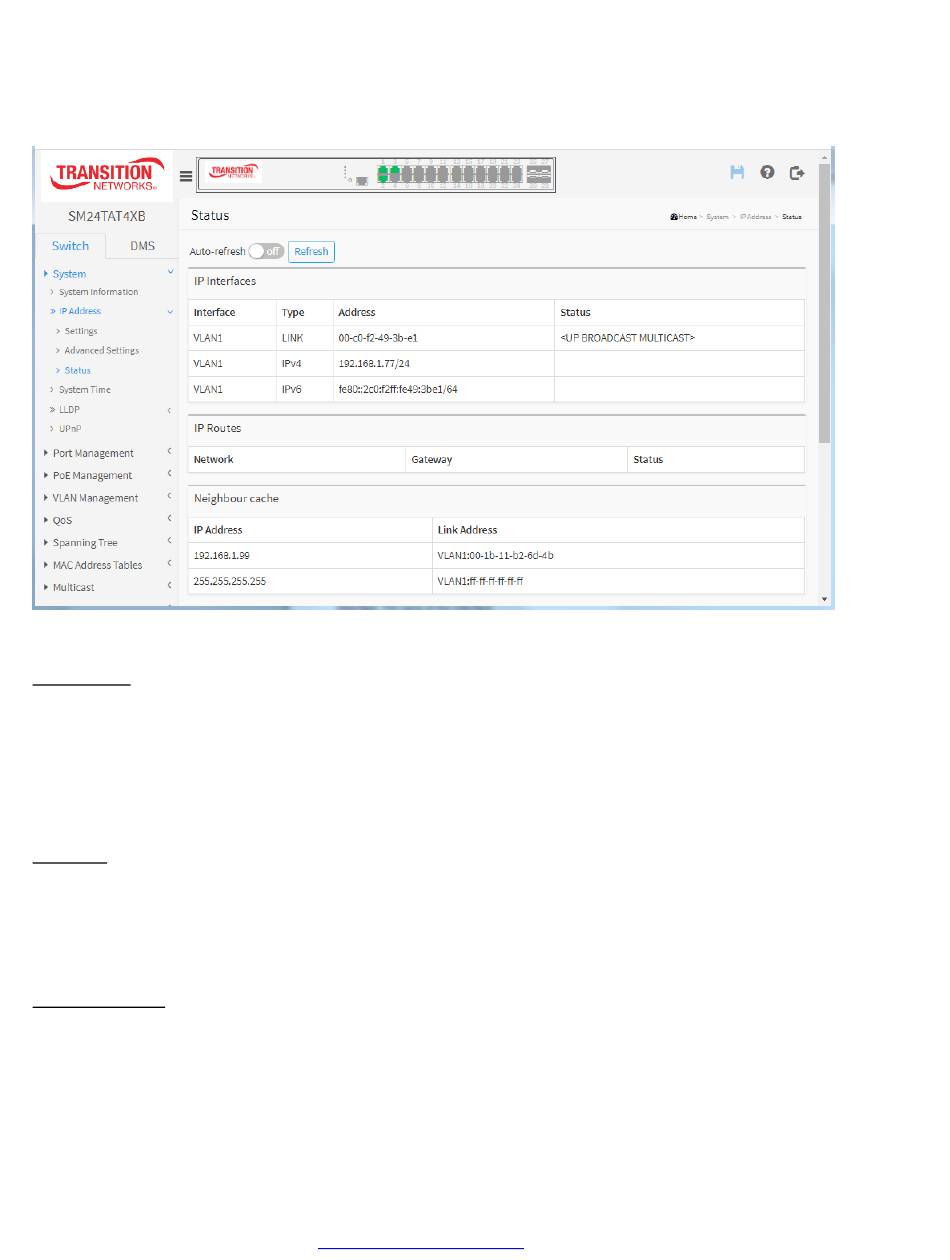

This page displays the status of the IP protocol layer. The status displayed includes IP interfaces, IP routes and
neighbour cache (ARP cache) status.
Parameter descriptions:
IP Interfaces
Interface: The name of the interface.
Type: The address type of the entry. This may be LINK or IPv4.
Address: The current address of the interface (of the given type).
Status: The status flags of the interface (and/or address).
IP Routes
Network: The destination IP network or host address of this route.
Gateway: The gateway address of this route.
Status: The status flags of the route.
Neighbour cache
IP Address: The IP address of the entry.
Link Address: The Link (MAC) address for which a binding to the IP address given exist.
Buttons
Auto‐refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
