Switch > Port Management > Port Statistics

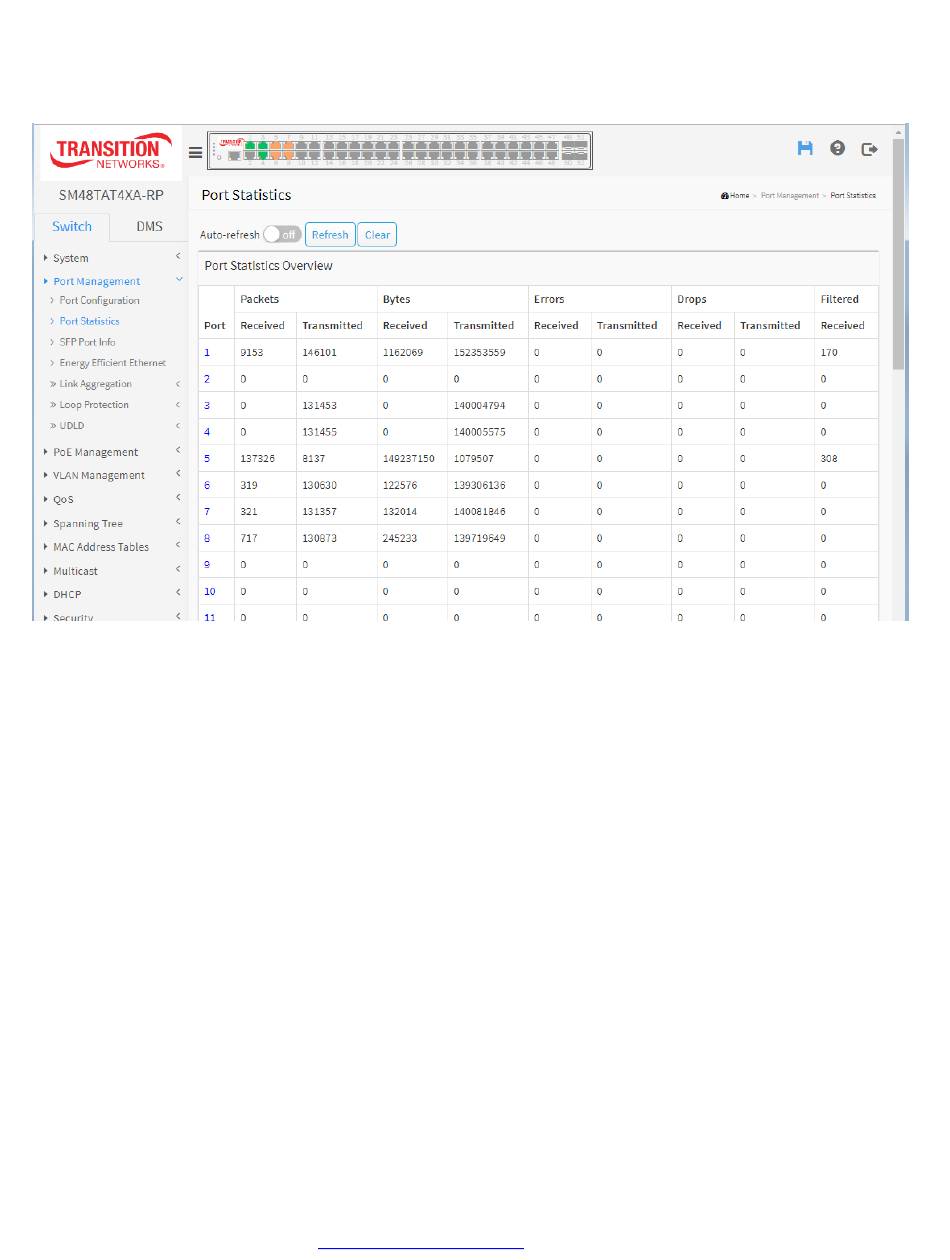

This page displays general traffic statistics for all switch ports.
Parameter descriptions:
Port: The logical port for the settings in the row.
Packets: The number of received and transmitted packets per port.
Bytes: The number of received and transmitted bytes per port.
Errors: The number of frames received in error and the number of incomplete transmissions per port.
Drops: The number of frames discarded due to ingress or egress congestion.
Filtered: The number of received frames filtered by the forwarding process.
Buttons
Auto‐refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
Clear: Clears the counters for all ports.
