Switch > System > LLDP > LLDP Neighbor

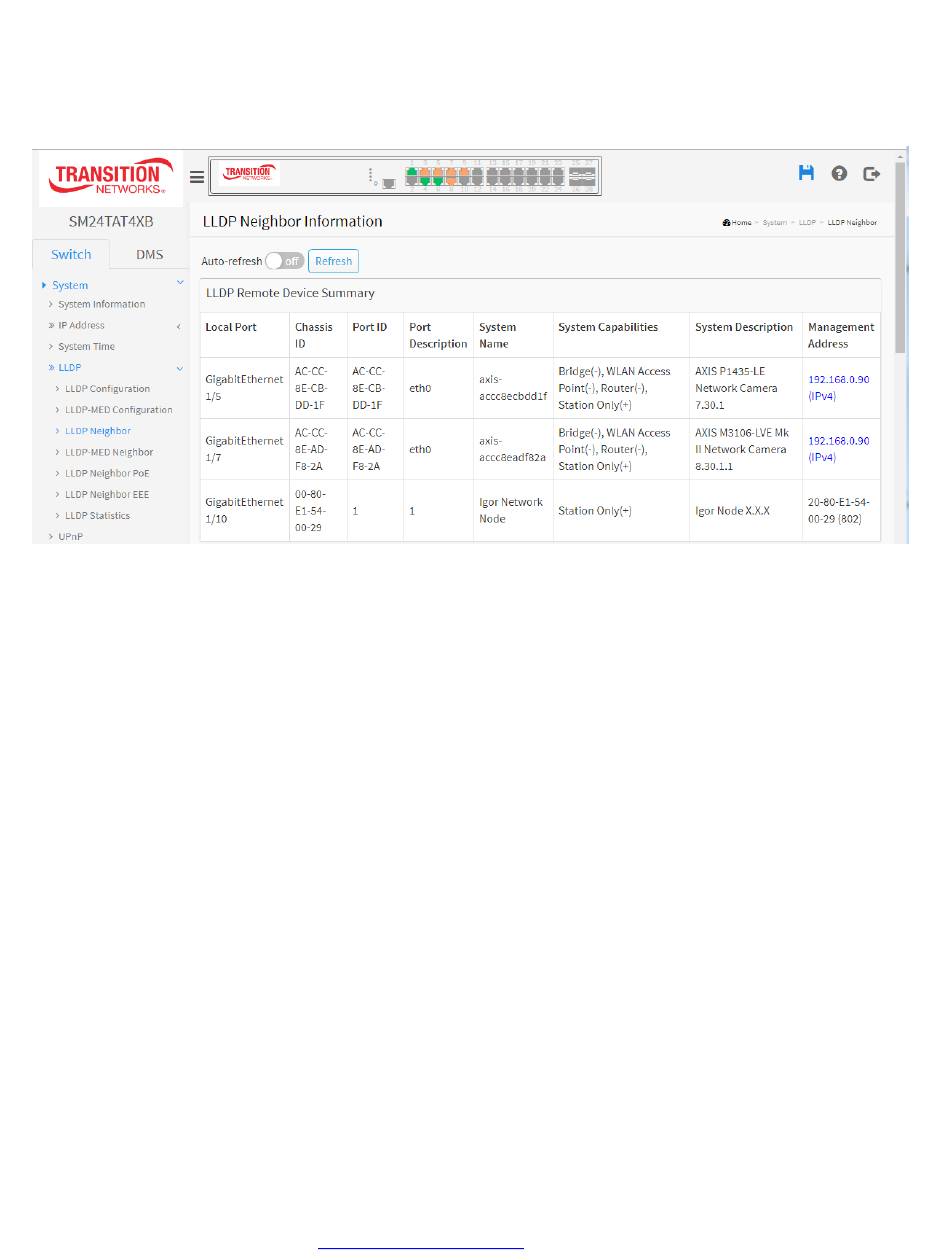

This page provides a status overview for all LLDP neighbors. The displayed table contains a row for each interface
on which an LLDP neighbor is detected.
Parameter descriptions:
Local Port: The interface on which the LLDP frame was received (e.g., GigabitEthernet 1/5).
Chassis ID: The identification of the neighbor's LLDP frames (e.g., AC‐CC‐8E‐AD‐F8‐2A).
Port ID: The identification of the neighbor port's Port # or MAC address.
Port Description: the port description advertised by the neighbor device (e.g., eth0).
System Name: The name advertised by the neighbor unit.
System Capabilities: Describes the neighbor unit's capabilities. The possible capabilities are:
1. Other
2. Repeater
3. Bridge
4. WLAN Access Point
5. Router
6. Telephone
7. DOCSIS cable device
8. Station only
9. Reserved
When a capability is enabled, the capability is followed by (+). If the capability is disabled, the capability is
followed by (‐).
System Description: The model # of the neighbor device.
Management Address: The neighbor unit's address that is used for higher layer entities to assist discovery by the
network management. This could for instance hold the neighbor's IP address. Click the linked text to connect to
the neighbor device (see below).
