SMxxTAT4Xx Quick Start Guide
SMxxTAT4Xx Family
SM48TAT4XA-RP and SM24TAT4XB
Quick Start Guide
The Transition Networks SM48TAT4XA-RP is an L2 Plus 48-port Gigabit PoE+ Switch and (4) 1G/10G SFP+ ports,

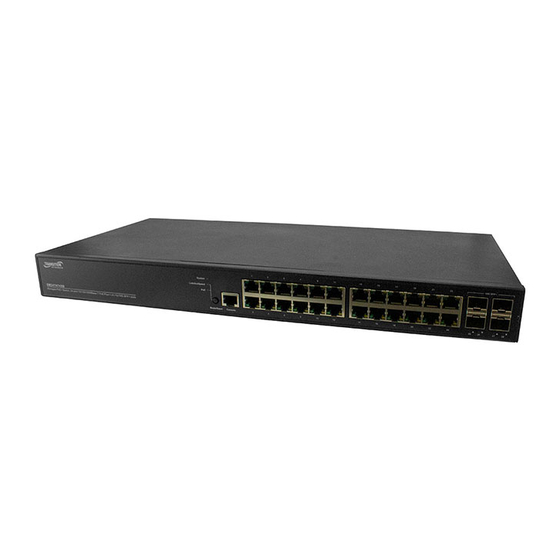

with Redundant Power Supplies and 740 Watt PoE budget. The SM24TAT4XB is an L2 Plus 24-port Gigabit PoE+
Switch with (4) 1G/10G SFP+ ports and 370 Watt PoE budget. Note: See the full Install Guide for important Safety
Warnings and Cautions, Ordering Information, Specifications, AC Power Connector, Electrical Safety Warnings,
Installation, Rack Mount Safety Instructions, Mounting, Troubleshooting, Compliance, Regulatory, and Warranty
information.

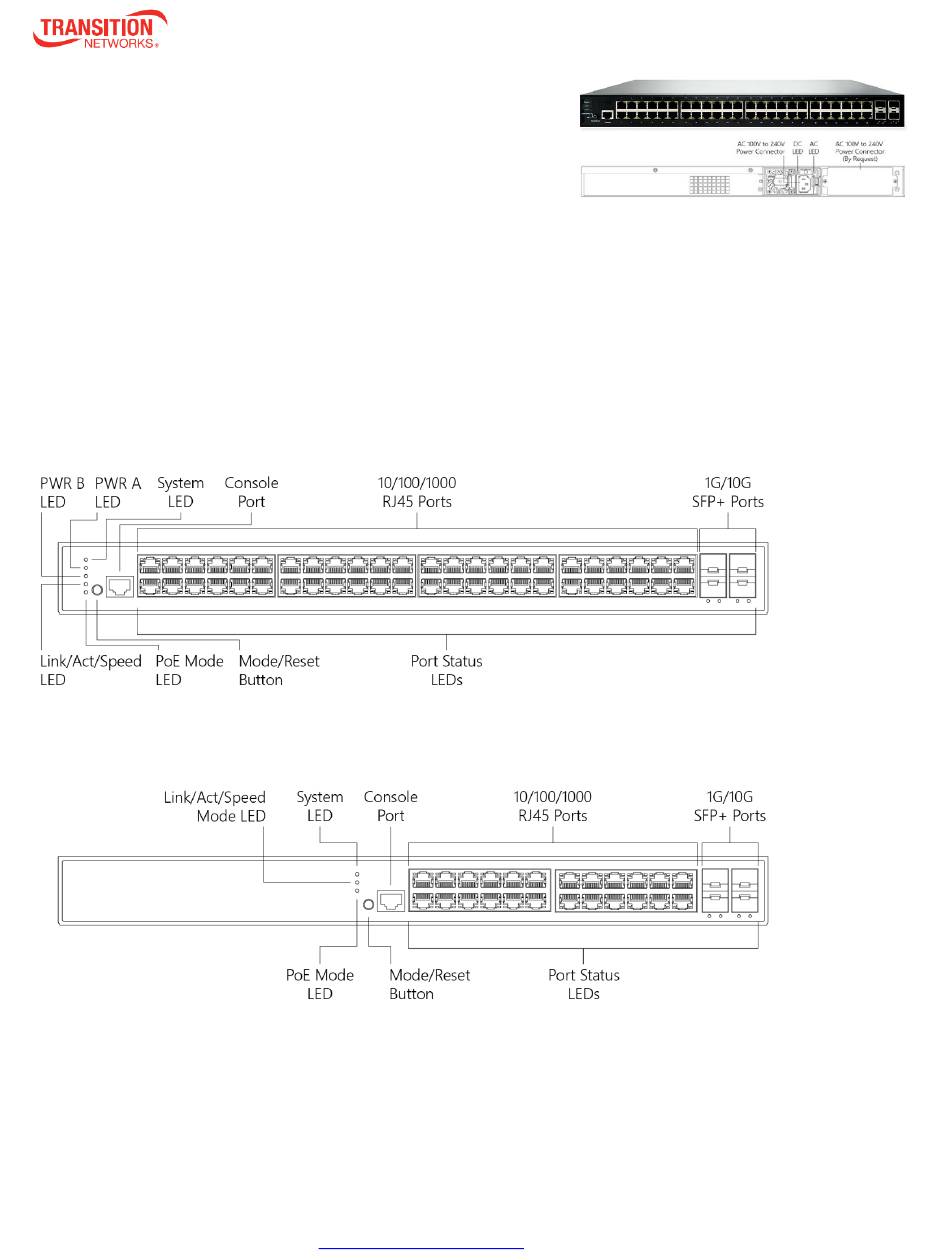

Front Panels: The SM24TAT4XB and the SM48TAT4XA-RP front panel contain the Ports, LEDs, Console Port, and
Mode/Reset button as shown and described below.
SM48TAT4XA-RP front panel:
SM24TAT4XB front panel:
Console Port: The front panel Console port provides an RJ‐45 Console port to connect to a PC or terminal for
Command Line Interface (CLI) command entry (e.g., a PC running Hyper Terminal, Tera Term, etc.).
10/100/1000 RJ45 Ports: The SM48TAT4XA-RP provides 48 10M/100M/1G (RJ45) front panel ports. The
SM24TAT4XB provides 24 10M/100M/1G (RJ45) front panel ports.
1G/10G SFP+ Ports: The SM48TAT4XA-RP and the SM24TAT4XB both provide four SFP+ uplink ports.
