Transition Networks SM Series Install Manual

Managed gigabit ethernet poe+ switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Transition Networks
SMxxTAT4Xx Install Guide
SMxxTAT4Xx Family

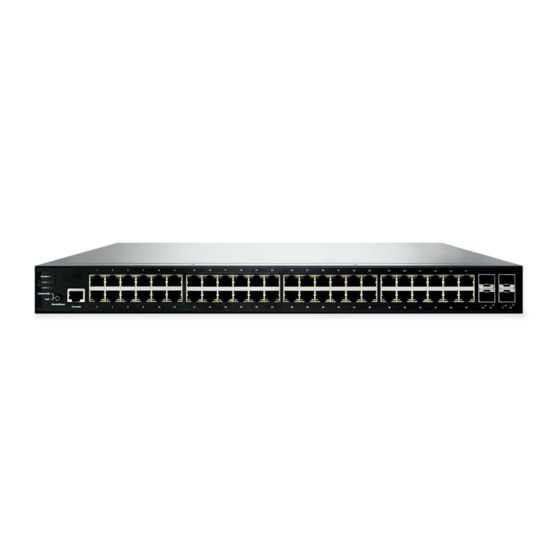

SM48TAT4XA-RP
Managed Gigabit Ethernet PoE+ Switch
(48) 10/100/1000Base-T Ports + (4) 1G/10GBase-X SFP+ Ports
SM24TAT4XB
Managed Gigabit Ethernet PoE+ Switch
(24) 10/100/1000Base-T Ports + (4) 1G/10GBase-X SFP+ Ports
Install Guide
33785 Rev. B
33785 Rev. B
https://www.transition.com
Page 1 of 43

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks SM Series

Summary of Contents for Transition Networks SM Series

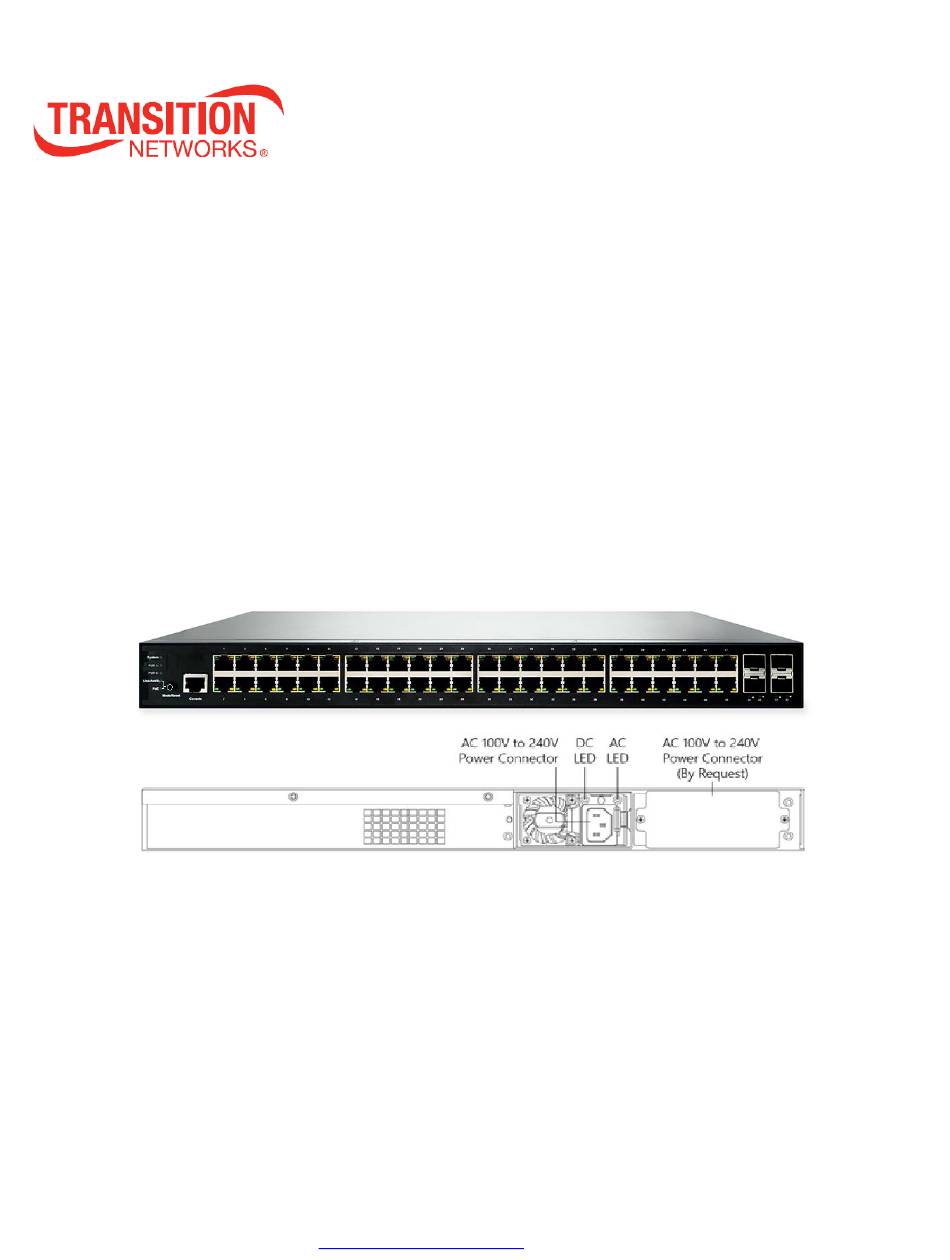

  • Page 1 Transition Networks SMxxTAT4Xx Install Guide SMxxTAT4Xx Family SM48TAT4XA-RP Managed Gigabit Ethernet PoE+ Switch (48) 10/100/1000Base-T Ports + (4) 1G/10GBase-X SFP+ Ports SM24TAT4XB Managed Gigabit Ethernet PoE+ Switch (24) 10/100/1000Base-T Ports + (4) 1G/10GBase-X SFP+ Ports Install Guide 33785 Rev. B 33785 Rev.

  • Page 2: Safety Warnings And Cautions

    Anyone using this product in such an application without express written consent of an officer of Transition Networks does so at their own risk and agrees to fully indemnify Transition Networks for any damages that may result from such use or sale.

  • Page 3: Table Of Contents

    Transition Networks SMxxTAT4Xx Install Guide Contents Safety Warnings and Cautions ............................. 2 Overview ..................................5 Ordering Information ..............................5 Benefits ..................................6 Specifications ................................7 Power Consumption ...............................14 SM24TAT4XB Power Consumption ........................15 Manual Overview ..............................17 Related Information ...............................17 Front Panels ................................18 Ports ..................................18...
  • Page 4 Transition Networks SMxxTAT4Xx Install Guide Canadian Regulations .............................39 Device Label and Box Label ............................39 Record Device and System Information........................40 Contact Us ..................................41 Warranty ..................................41 33785 Rev. B https://www.transition.com Page 4 of 43...

  • Page 5: Overview

    24-port Gigabit PoE+ with (4) 1G/10G SFP+, 370 Watts PoE budget. Secondary power supply for redundant power support (920 Watts). Optional; sold PS-AC-920 separately. SFPs See Transition Networks SFP webpage (option; order separately) 33785 Rev. B https://www.transition.com Page 5 of 43...

  • Page 6: Benefits

    Transition Networks SMxxTAT4Xx Install Guide Benefits Feature-rich Ethernet Switch for Enterprise-class: The switch delivers advanced L2+ managed switch functionality, including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and ACL to protect your network from unauthorized access. It builds on the market-leading price/performance and provides security, reliability and ease-of-use for enterprise/SMB deployments.

  • Page 7: Specifications

    Transition Networks SMxxTAT4Xx Install Guide Specifications Port Configuration Model Total Ports RJ45 (10M/100M/1G) Uplinks Console SM48TAT4XA-RP 4 SFP+ RJ45 SM24TAT4XB 4 SFP+ RJ45 Hardware Performance Model Forwarding Capacity Switching Capacity Mac Table Jumbo Frames SM48TAT4XA-RP 130.944 Mpps 176 Gbps 32 K...
  • Page 8 Transition Networks SMxxTAT4Xx Install Guide PoE Power Capacity Available PoE Model # of Ports that support PoE (15.4W) and PoE+ (30.0W) Power Each of ports 1 - 48 support PoE/ PoE+ within available PoE power. Up to 820 W PoE budget with single power supply (15 W...
  • Page 9 Transition Networks SMxxTAT4Xx Install Guide Software Features Ring Management ITU-T G.8031 Supports ITU-T G.8031 Ethernet Linear Protection Switching ITU-T G.8032 Supports ITU-T G.8032 Ethernet Ring Protection Switching Layer 2 Switching Standard Spanning Tree 802.1d: an OSI layer-2 protocol which ensures a loop free ⚫...
  • Page 10 Transition Networks SMxxTAT4Xx Install Guide GARP VLAN GVRP (Generic Attribute Registration Protocol) VLAN Registration Protocol is a Layer 2 Registration Protocol network protocol, for automatic configuration of switches in a VLAN network (GVRP) Relay of DHCP traffic to DHCP server in different VLAN ⚫...
  • Page 11 Transition Networks SMxxTAT4Xx Install Guide SSH secures Telnet traffic in or out of the switch; SSH v1 and v2 are supported Secure Shell (SSH) SSL encrypts the HTTP traffic, allowing advanced secure access to the browser-based Secure Sockets Layer (SSL)
  • Page 12 Transition Networks SMxxTAT4Xx Install Guide SNMP version1, 2c and 3 with support for traps and SNMP v3 user-based security SNMP model (USM) Remote Monitoring Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, (RMON) and events) for enhanced traffic management, monitoring and analysis Web browser upgrade (HTTP/ HTTPs) and TFTP ⚫...
  • Page 13 Transition Networks SMxxTAT4Xx Install Guide Power over Ethernet (PoE) Port Configuration Supports per port PoE configuration function PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs) Auto-checking Check the link status of PDs. Reboot PDs if there are no responses...

  • Page 14: Power Consumption

    Transition Networks SMxxTAT4Xx Install Guide Power Consumption SM48TAT4XA-RP Power Consumption 2-module Power AC 100V Input AC Current DUT Operation AC Voltage Power Apparent Real Power DUT Status Consumption Interface Factor Power (VA) Full-loading 1G TP Port x 48 16.74 0.97 1674.00...

  • Page 15: Sm24Tat4Xb Power Consumption

    Transition Networks SMxxTAT4Xx Install Guide SM24TAT4XB Power Consumption AC Power Consumption: Measure AC power consumption after 60 minutes under full loading with wire speed forwarding. 1. AC 100V Input (SM24TAT4XB) AC Current DUT Operation AC Voltage Power Apparent Real Power...
  • Page 16 Transition Networks SMxxTAT4Xx Install Guide 3. AC 220V Input (SM24TAT4XB) AC Current DUT Operation AC Voltage Power Apparent Real Power Device Status Consumption Interface Factor Power (VA) Non-loading None 0.22 0.56 48.40 27.10 Standby mode 1G TP Port x 24 1.99...

  • Page 17: Manual Overview

    Use a Web browser or the CLI to initially configure the switch, and • Troubleshoot the switch. Note that this manual provides links to third party web sites for which Transition Networks is not responsible. Related Information A printed Quick Start Guide is shipped with each switch.

  • Page 18: Front Panels

    Transition Networks SMxxTAT4Xx Install Guide Front Panels The SM24TAT4XB and the SM48TAT4XA-RP front panel contain the Ports, LEDs, Console Port, and Mode/Reset button as shown and described below. SM48TAT4XA-RP front panel: SM24TAT4XB front panel: Ports The front panel data ports are described below.

  • Page 19: 1G/10G Sfp+ Ports

    Transition Networks SMxxTAT4Xx Install Guide 1G/10G SFP+ Ports The SM48TAT4XA-RP and the SM24TAT4XB both provide four SFP+ uplink ports. SM24TAT4XB: SM48TAT4XA-RP: LED Descriptions The front panel LEDs provide switch status checking and monitoring. There are four types of LEDs as follows: System LED: Indicates if the switch is powered up correctly or indicates if there is a system alarm triggered for troubleshooting.
  • Page 20 Transition Networks SMxxTAT4Xx Install Guide Port Status LEDs: Table 3: Color Function For Ethernet Mode: • 1G Link/Act: Green Color # RJ45 Port Left LED Behavior: => Light off: port disconnected or link failed => Green Light on: Link Present, No Activity...
  • Page 21 Transition Networks SMxxTAT4Xx Install Guide SFP+ Link up at 10G speed Table 4: Mode LEDs Color Function • SYS: Green/Red Bi-Color POWER/Alarm Light off: Power Off Green Lit: Indicates the switch in power on system initialization Green/Red process. => Red Lit: Indicates a malfunction. Contact technical support =>...
  • Page 22 Transition Networks SMxxTAT4Xx Install Guide By pressing the Mode/Reset button for less than 2 seconds to change LED modes (Link/Act/Speed Mode or PoE Mode) you can check the port status by reading the LED behaviors per the table below. Table 4: Port Status LEDs...

  • Page 23: Mode/Reset Button

    Transition Networks SMxxTAT4Xx Install Guide Mode/Reset button By pressing the Mode/Reset Button for certain period of time, you can perform the following tasks. Change Port Status LED Mode: To read the port status correctly in the two different modes (Link/Act/Speed mode or PoE mode).

  • Page 24: Back Panels

    Transition Networks SMxxTAT4Xx Install Guide Back Panels The SM48TAT4XA-RP back panel contains the AC Power Connector(s), DC and AC LEDs, and a second AC Power Connector. SM24TAT4XB back panel contains the AC Power Connector. AC Power Connector The back panel provides the AC Power Connector marked AC Line: 100-200V 50-60Hz.

  • Page 25: Electrical Safety Warnings

    Transition Networks SMxxTAT4Xx Install Guide Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal installeres i overensstemmelse med sikkerhedsadvarslerne.

  • Page 26: Installation

    Transition Networks SMxxTAT4Xx Install Guide Installation Package Contents Carefully unpack the switch from the packaging and verify you have received the items below. Save the packaging for possible future use. One Switch ⚫ One AC Power cord (Option) ⚫ Four adhesive rubber feet ⚫...

  • Page 27: Mounting The Switch In A 19-Inch Rack

    Transition Networks SMxxTAT4Xx Install Guide Mounting the Switch in a 19-inch Rack 1. Attach the mounting brackets to both sides of the chassis. Insert screws and tighten then with a screwdriver to secure the brackets. Place the switch on a rack shelf in the rack. Push it in until the oval holes in the brackets align with the mounting holes in the rack posts.

  • Page 28: Installing Sfp+ Modules

    Note: The SFP+ ports should use UL Listed Optional Transceiver product, Rated 3.3Vdc, Laser Class 1. See the SFP manual for specific cautions, warnings, and instructions. See the Transition Networks SFP page our full range of Optical Devices.

  • Page 29: Connecting Powered Devices (Pds)

    Transition Networks SMxxTAT4Xx Install Guide Connecting Powered Devices (PDs) Note that this device does not comply with IEEE 802.3at at 48-51.4 VDC, or with IEE 802.3bt at 48-53.4 VDC. The latest device label indicates: • 802.3af: 48-57VDC • 802.3at: 52-57VDC •...

  • Page 30: Redundant Power (Sm48Tat4Xa-Rp Only)

    Transition Networks SMxxTAT4Xx Install Guide Redundant Power (SM48TAT4XA-RP Only) The SM48TAT4XA-RP supports two power supplies for power redundancy. 1. Use a screw driver to remove the power plate cover. 2. Carefully insert the new Power Supply into the chassis slot until the Locking Lever clicks.

  • Page 31: Power Supply Voltage And Frequency

    Transition Networks SMxxTAT4Xx Install Guide Note: The switch supports dual redundant power supplies and they are hot-swappable. You can apply the AC power cord to any AC receptacle of the switch. If only one power supply is installed, it can be installed in either bay.

  • Page 32: Replacing Power Supply

    Transition Networks SMxxTAT4Xx Install Guide Procedure If using only one power supply, it can be installed in either power supply bay, and the Face Plate must be installed in the other bay. 1. Remove the blank Face Plate to use the one open Power Supply slot. Save the Face Plate and screws.

  • Page 33: Poe Vs. Poe+ Vs. Poe

    Transition Networks SMxxTAT4Xx Install Guide PoE vs. PoE+ vs. PoE++ PoE was first developed to power Voice over Internet Protocol (VoIP) phones. In 2001 and 2002, Wireless Access Point makers, and other manufacturers took advantage of the technique. Per IEEE 802.3af, PoE can use a single, standard RJ45 connector and CAT 5 (or even CAT 3) cable.

  • Page 34: Initial Switch Configuration

    Transition Networks SMxxTAT4Xx Install Guide Initial Switch Configuration Initial Switch Configuration via Web Browser After powering up the switch for the first time, you can perform the initial switch configuration using a web browser. For managing other switch features, see the Web User Guide.

  • Page 35: Initial Switch Configuration Via Cli

    Transition Networks SMxxTAT4Xx Install Guide If your PC is configured correctly, the Login page displays as shown below. If you do not see the above login page, perform these steps: • Refresh the web page. • Check to see if there is an IP conflict issue.

  • Page 36: Troubleshooting

    Transition Networks SMxxTAT4Xx Install Guide Troubleshooting This section provides information to troubleshoot problems by taking actions based on the suggested solutions. Basic Troubleshooting 1. Make sure your switch model supports the feature or function attempted; see Specifications on page check the Release Notes for your particular version.

  • Page 37: Poe Troubleshooting

    Transition Networks SMxxTAT4Xx Install Guide PoE Troubleshooting 1. Get as much detail as possible regarding the symptom, including any system messages from the PoE switch. For example, does a PD not power up at all, or does it power up briefly and then power down? 2.

  • Page 38: Compliance Information

    (unplug the switch, wait at least three seconds, then plug it back in. This will ensure a total system reset that should restore normal operation. 17. Check if related features (LLDP mode, CDP mode) are enabled. See the Transition Networks PoE Brochure more information.

  • Page 39: Canadian Regulations

    Transition Networks SMxxTAT4Xx Install Guide Canadian Regulations This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on the radio interference regulations of the Canadian Department of Communications. Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage radioélectrique édicté...

  • Page 40: Record Device And System Information

    After performing the troubleshooting steps, and before calling or emailing Technical Support, please record as much information as possible in order to help the Transition Networks Tech Support Specialist. 1. In the Web UI, select the System Information webpage. From the CLI, use the show commands to gather the information below or as requested by the Transition Networks Tech Support Specialist.

  • Page 41: Contact Us

    Warranty Limited Lifetime Warranty Effective for Products Shipped May 1, 1999 and After. Every Transition Networks labeled product purchased after May 1, 1999, and not covered by a fixed-duration warranty will be free from defects in material and workmanship for its lifetime. This warranty covers the original user only and is not transferable.
  • Page 42 All warranty claims are subject to the restrictions and conventions set forth by this document. Transition Networks reserves the right to charge a $50 fee for all testing and shipping incurred, if after testing, a return is classified as “No Problem Found.”...
  • Page 43 Transition Networks SMxxTAT4Xx Install Guide Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343, U.S.A. tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com techsupport@transition.com customerservice@transition.com SMxxTAT4Xx Install Guide, 33785 Rev. B 33785 Rev. B https://www.transition.com Page 43 of 43...
