Transition Networks SMxxTAT4Xx Web User Guide

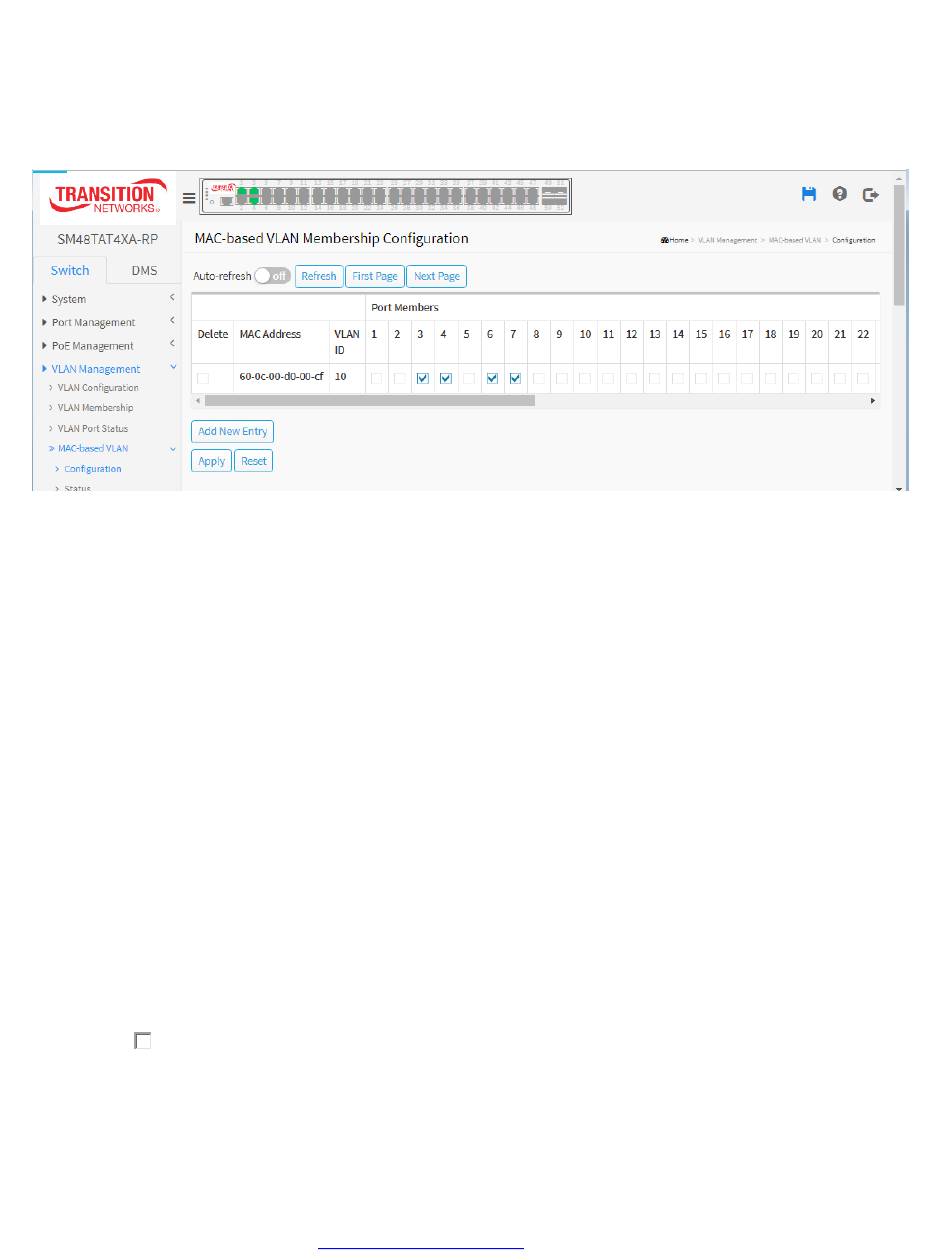

Switch > VLAN Management > MAC‐based VLAN > Configuration
The MAC address to VLAN ID mappings can be configured here. This page allows adding and deleting MAC‐based
VLAN Classification List entries and assigning the entries to different ports. The maximum possible MAC to VLAN
ID mapping entries is limited to 256.
Delete: To delete a MAC to VLAN ID mapping entry, check this box and click Apply. The entry will be deleted.
MAC Address: Indicates the MAC address of the mapping.
VLAN ID: Indicates the VLAN ID the above MAC will be mapped to.
Port Members: A row of check boxes for each port is displayed for each MAC to VLAN ID mapping entry.
To include a port in the mapping, check the box. To remove or exclude the port from the mapping, make sure the
box is unchecked. By default, no ports are members, and all boxes are unchecked.
Adding a New MAC to VLAN ID mapping table
Click the Add New Entry button to add a new MAC to VLAN ID mapping table. An empty row is added to the table,
and the mapping can be configured as needed. Any unicast MAC address can be used to configure the mapping.
No broadcast or multicast MAC addresses are allowed. Legal values for a VLAN ID are 1 ‐ 4095.
The MAC to VLAN ID entry is enabled when you click "Apply". A mapping without any port members will not be
added when you click "Apply".
The Delete button can be used to undo the addition of new mappings.
Buttons
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
Refresh: Refreshes the displayed table.
Auto‐refresh : Check this box to refresh the page automatically every 3 seconds.
