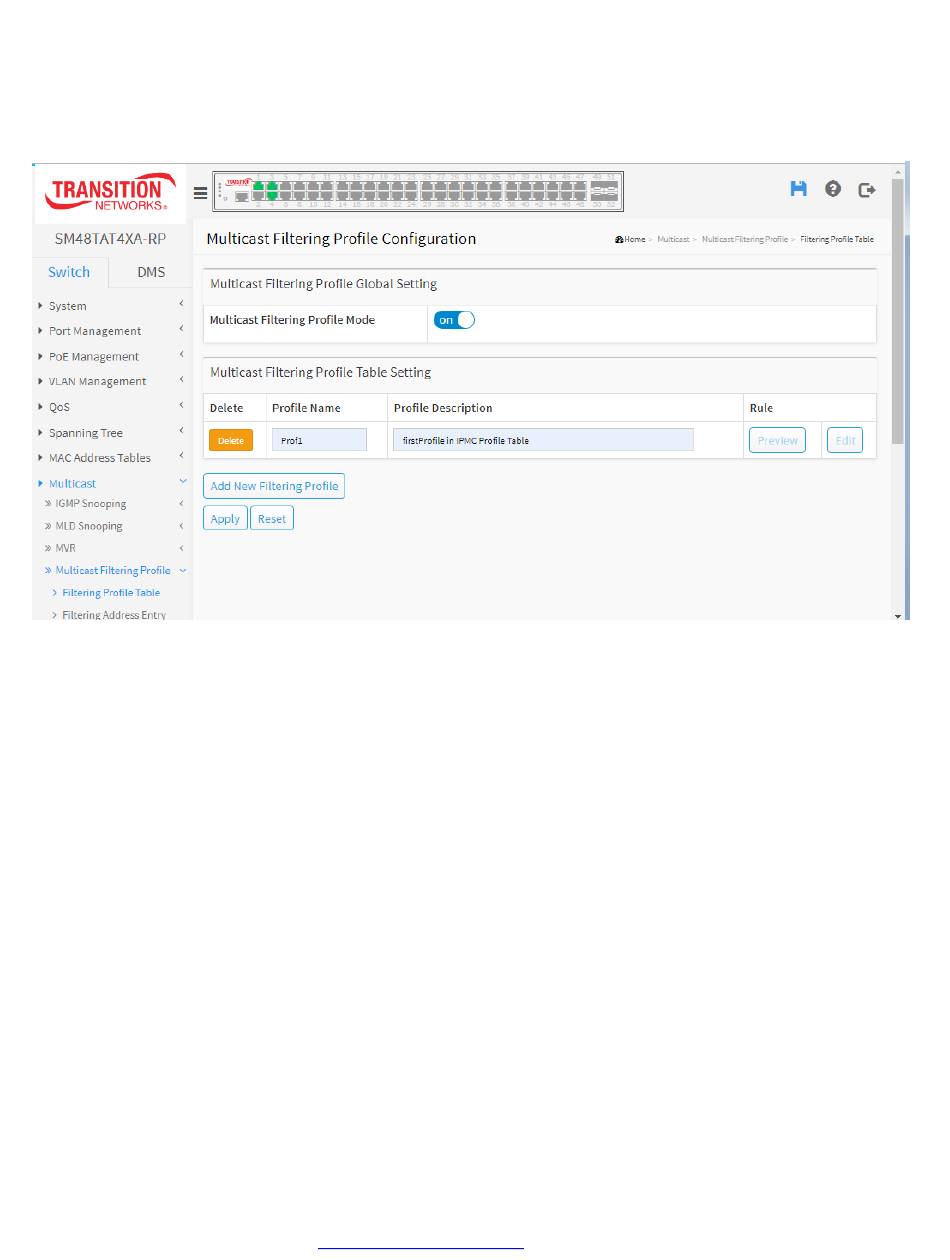

Multicast > Multicast Filtering Profile > Filtering Profile Table
This page provides IPMC Profile related configurations. The IPMC profile is used to deploy the access control on IP
multicast streams. You can create up to 64 Profiles with up to 128 corresponding rules for each Profile.
Multicast Filtering Profile Mode: Enable/Disable the Multicast Filtering Profile. The system starts to do filtering
based on profile settings only when the global profile mode is enabled.
Delete: Check to delete the entry. The designated entry will be deleted during the next save.
Profile Name: The name used for indexing the profile table. Each entry has the unique name which is composed
of at maximum 16 alphabetic and numeric characters. At least one alpha character must be present.
Profile Description: Additional description, composed of at maximum 64 alphabetic and numeric characters,
about the profile. No blank or space characters are permitted as part of description. Use "_" or "‐" to separate the
description sentence.
Rule: When the profile is created, click the edit button to enter the rule setting page of the designated profile.
Summary about the designated profile will be shown by clicking the Preview button. You can manage or inspect
the rules of the designated profile by using the Preview and Edit buttons:
Preview: Click to preview the rules associated with the designated profile. This button is active after a table entry
is saved. When you click the Preview button, the Multicast Filtering Profile [Prof1] Rule Settings (In Precedence
Order) page displays (described below).
Edit: Click to adjust the rules associated with the designated profile. This button is active after a table entry is
saved. When you click the Edit button, the Multicast Filtering Profile [Prof1] Rule Settings (In Precedence Order)
page displays.
