Security > 802.1X > Configuration

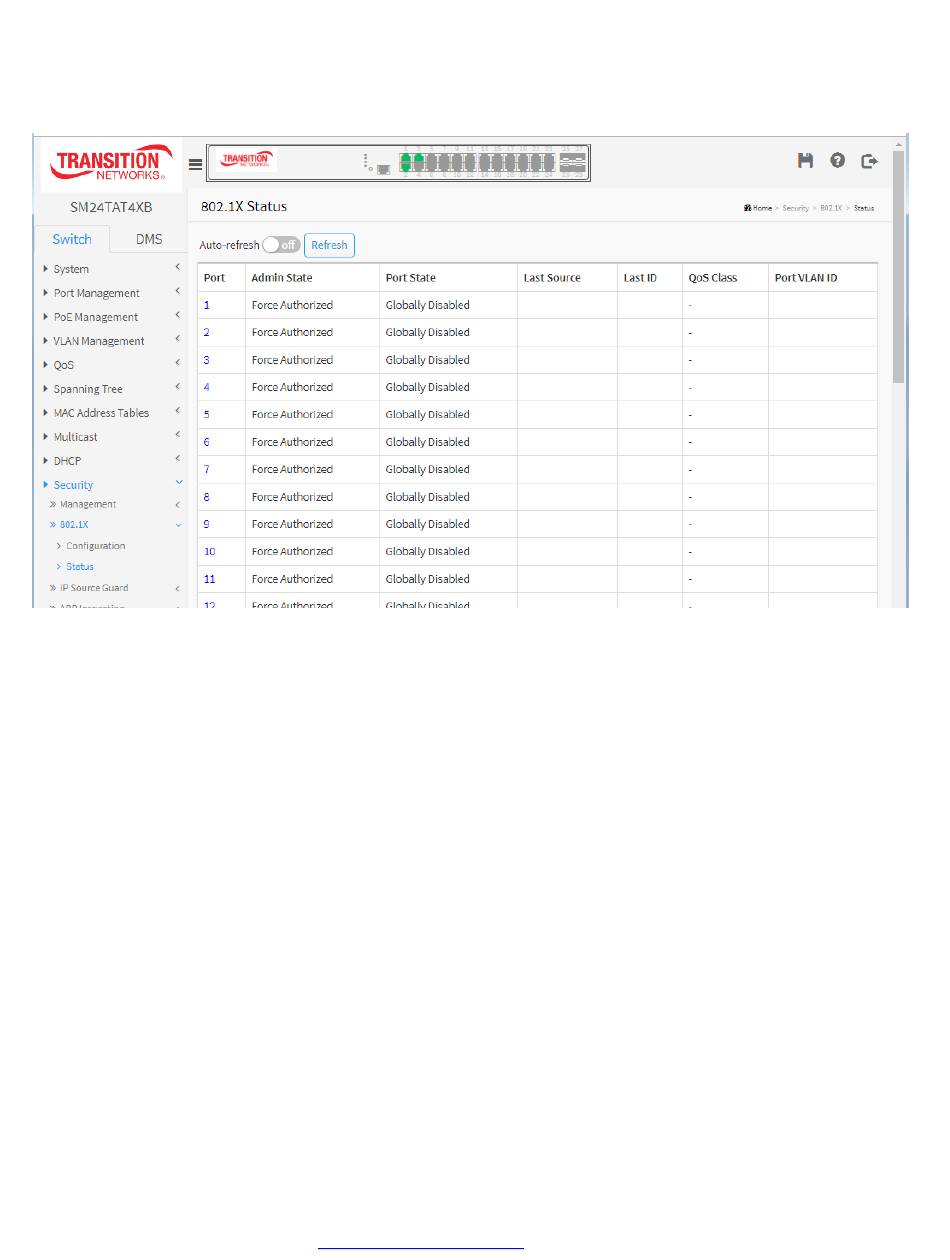

This page provides an overview of the current 802.1X port states.
Port: The switch port number. Click to navigate to detailed 802.1X statistics for this port.
Admin State: The port's current administrative state. Refer to 802.1X Admin State for a description of possible
values.
Port State: The current state of the port. Refer to 802.1X Port State for a description of the individual states.
Last Source: The source MAC address carried in the most recently received EAPOL frame for EAPOL‐based
authentication, and the most recently received frame from a new client for MAC‐based authentication.
Last ID: The user name (supplicant identity) carried in the most recently received Response Identity EAPOL frame
for EAPOL‐based authentication, and the source MAC address from the most recently received frame from a new
client for MAC‐based authentication.
QoS Class: QoS Class assigned to the port by the RADIUS server if enabled.
Port VLAN ID: The VLAN ID that 802.1X has put the port in. The field is blank, if the Port VLAN ID is not overridden
by 802.1X.
If the VLAN ID is assigned by the RADIUS server, "(RADIUS‐assigned)" is appended to the VLAN ID. Read more
about RADIUS‐assigned VLANs here.
If the port is moved to the Guest VLAN, "(Guest)" is appended to the VLAN ID. Read more about Guest VLANs
here.
Buttons
Auto‐refresh: Check this box to refresh the page automatically every 3 seconds.
Reset: Click to undo any changes made locally and revert to previously saved values.
