Switch > System > Power Information

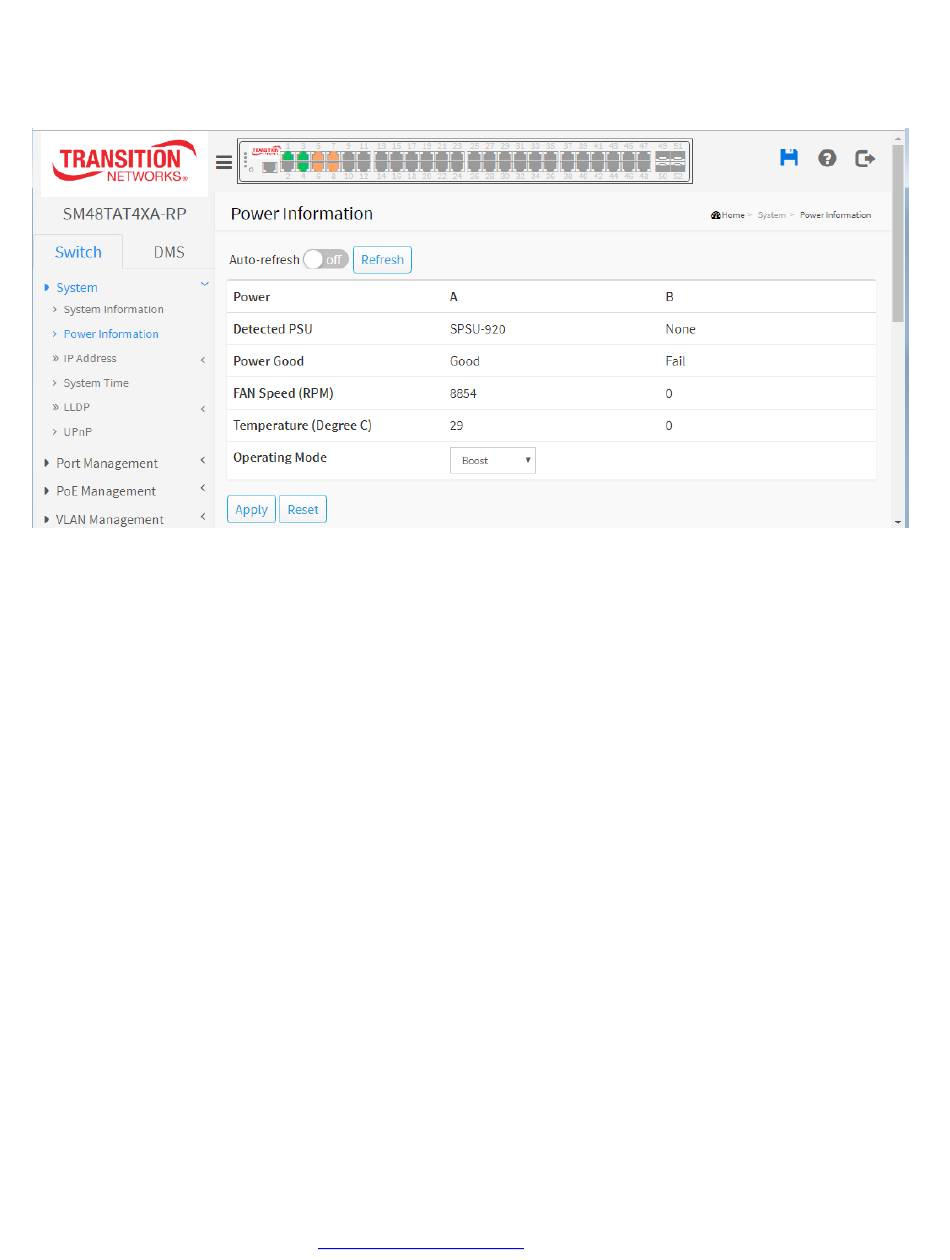

The switch power information is provided here (SM48TAT4XA‐RP only).
Parameter descriptions:
Detected PSU: Displays SPSU‐820 if the power supply unit present, otherwise displays None.
Power Good: Displays the status of power supply unit (Good or Fail).
FAN Speed (RPM): The fan speed of power supply unit.
Temperature (Degree C): The temperature of power supply unit.
Operating Mode: At the dropdown select the operating mode of power supply unit:
Redundant: Only provide Primary Power Supply up to 820W when two power supply modules are installed.
If one power supply crashes, it can still provide enough power for system operation and also PD's operation.
This is the default.
Boost: Provide Primary Power Supply up to 1640W when two power supply modules are installed. When the
application total PDs' power use is over 820W, if one power supply crashes, system will be automatically
rebooted due to power loading influence. After the switch finishes rebooting, it will only provide 820W to
PDs.
Buttons
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
Refresh: Click to refresh the page immediately.
Auto‐refresh: Check to refresh the page automatically every 3 seconds.
