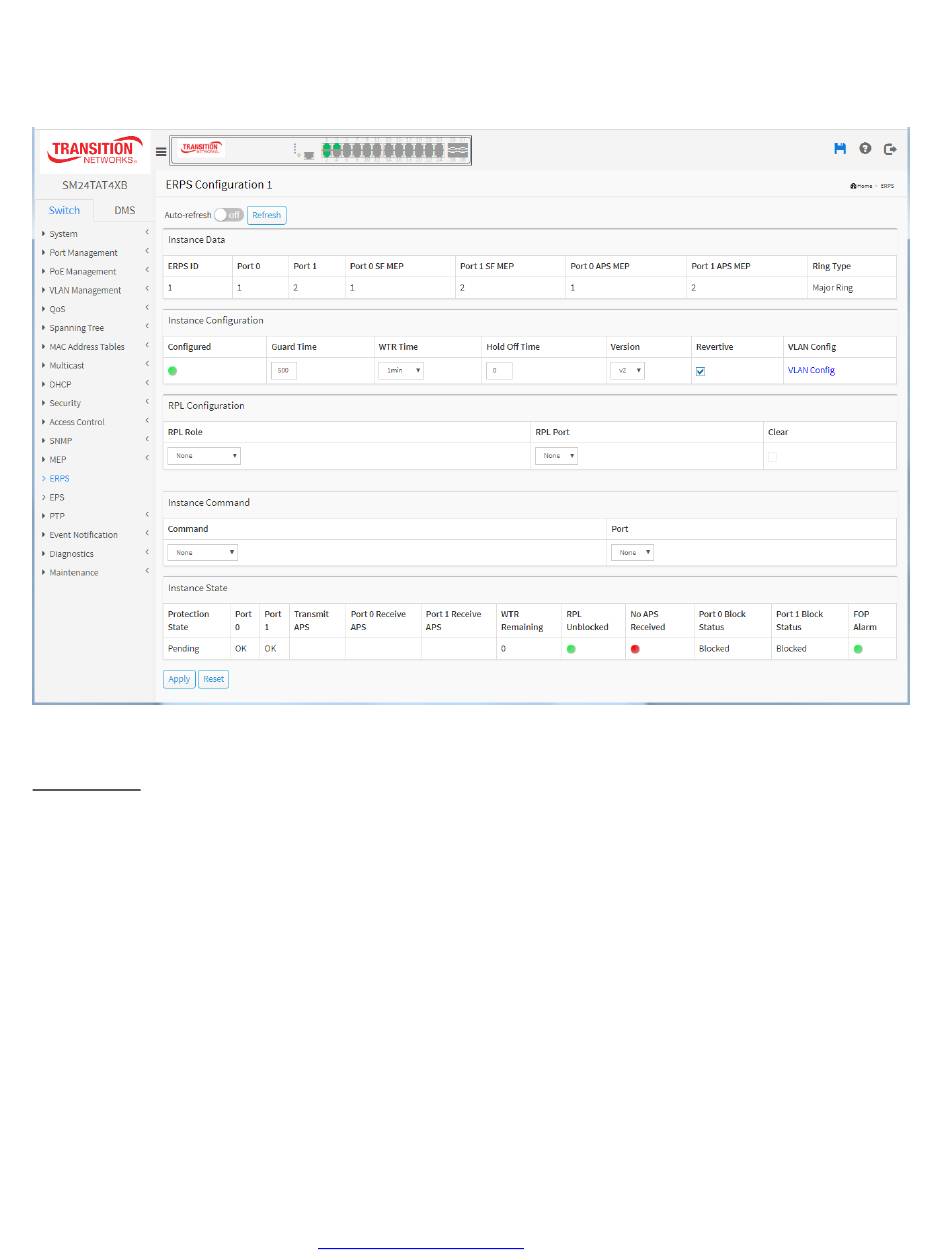

ERPS Configuration page
Click on the ID of a Protection group to enter the configuration page:
This page lets you view and configure the current ERPS Instance.
Instance Data
ERPS ID: The ID of the Protection group.
Port 0: This will create a Port 0 of the switch in the ring.
Port 1: This will create "Port 1" of the switch in the Ring. As interconnected sub‐ring will have only one ring port,
"Port 1" is configured as "0" for interconnected sub‐ring. A "0" in this field indicates that no "Port 1" is associated
with this instance
Port 0 SF MEP: The Port 0 Signal Fail reporting MEP.
Port 1 SF MEP: The Port 1 Signal Fail reporting MEP. As only one SF MEP is associated with interconnected
sub‐ring without virtual channel, it is configured as "0" for such ring instances. A "0" in this field indicates that no
Port 1 SF MEP is associated with this instance.
Port 0 APS MEP: The Port 0 APS PDU handling MEP.
Port 1 APS MEP: The Port 1 APS PDU handling MEP. As only one APS MEP is associated with interconnected
sub‐ring without virtual channel, it is configured as "0" for such ring instances. "0" in this field indicates that no
Port 1 APS MEP is associated with this instance.
Ring Type: Type of Protecting ring. It can be either major ring or sub‐ring.
