Web User Interface (UI)
This section describes the web user interface of the SM48TAT4XA‐RP and the SM24TAT4XB.
The models are very similar except for port count and power supply differences, which are
indicated where they occur.
Web UI Menu System

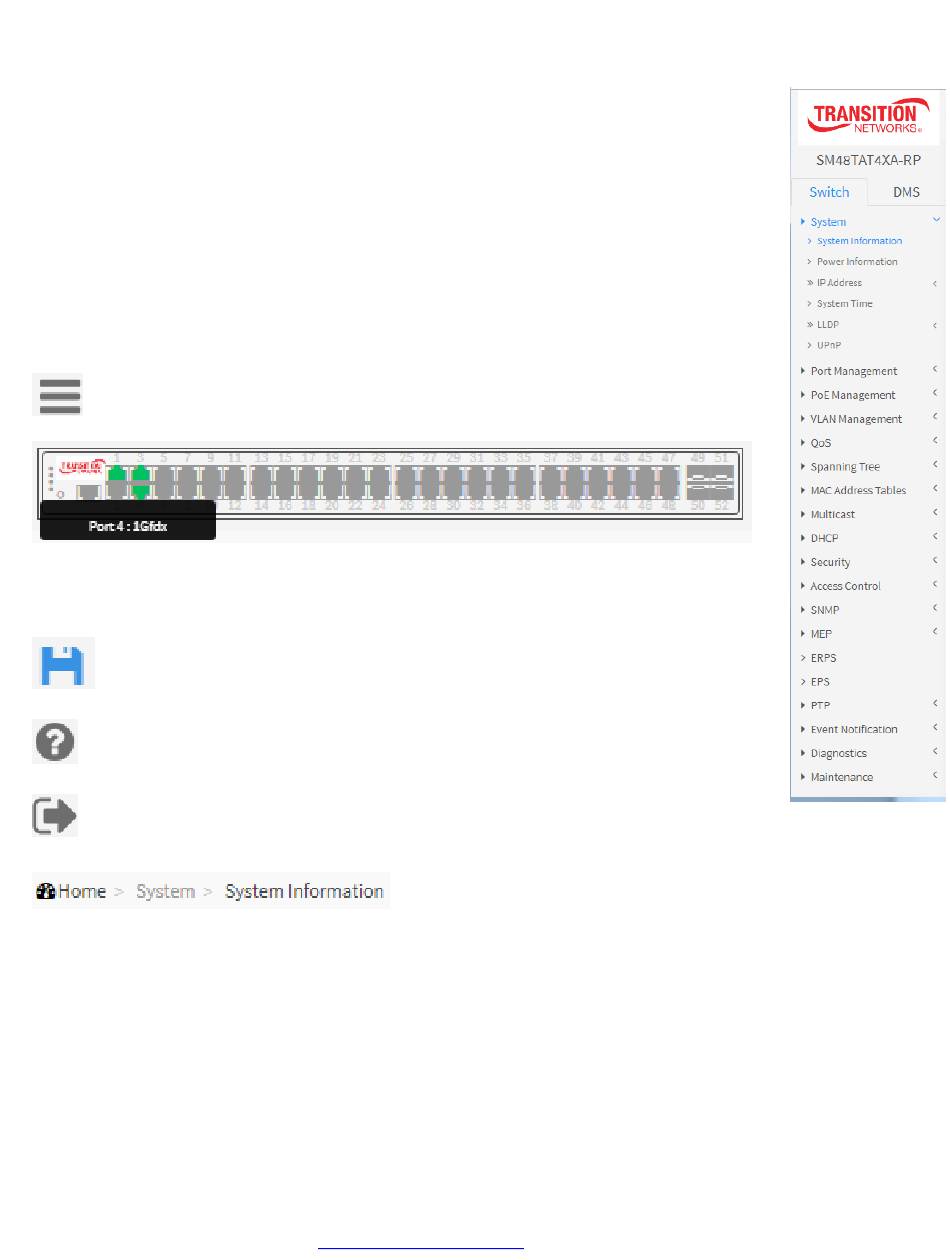

The left‐hand menu contains two tabs: Switch and DMS. Each tab has sub‐tabs, and many of the
sub‐tabs have another level of sub‐tabs. The switch startup menu is shown right:
Web UI Navigation Tools
: Hide/Display the left pane menus.
Switch icon:: Click on a port to display its status.
Click on the Transition Networks logo to display the startup page (the menu path of
Switch > System > System Information).
: Save changes on this page to the startup‐config file.
Help: to be provided.
Log out: click to log out of the Web UI. The Login page displays again.
