3. Config Tab
Function

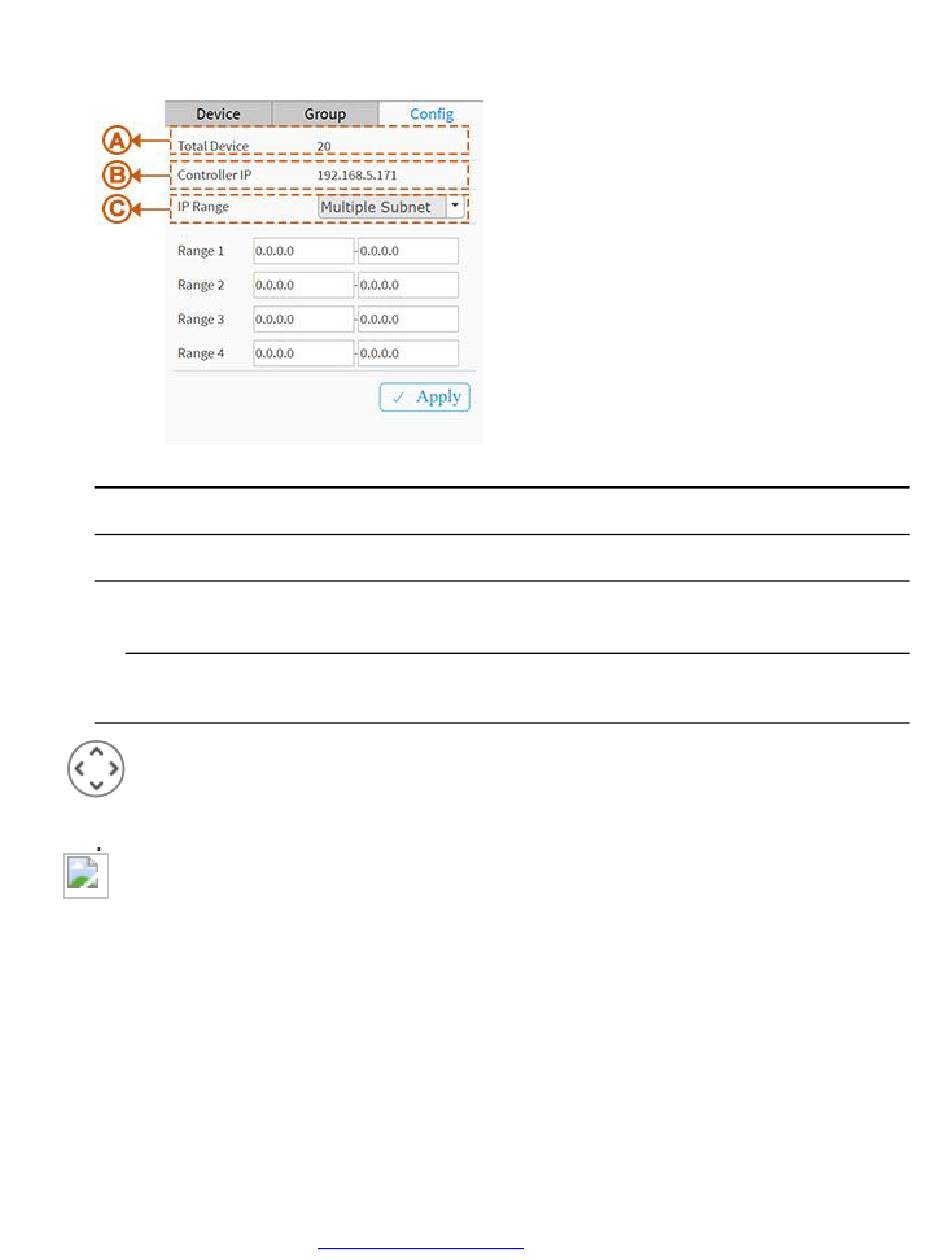

A. Shows how many IP devices are detected and displayed in the topology view.
B. Shows the Master IP.
Single Subnet: DMS will base on the master switch's IP address. Here the subnet means
"255.255.255.0"
C.
Multiple Subnet: To provide 4 ranges for inputting manually.(In the case, we will suggest user to
adjust switch's subnet mask to "255.255.0.0" also to avoid IP devices can't be recognized.)
: Icon that lets you move the device icons up, down, left, and right.
Icon with information list: Select what kind of information should be shown on the topology view
of each device. Up to 3 items can be selected.
