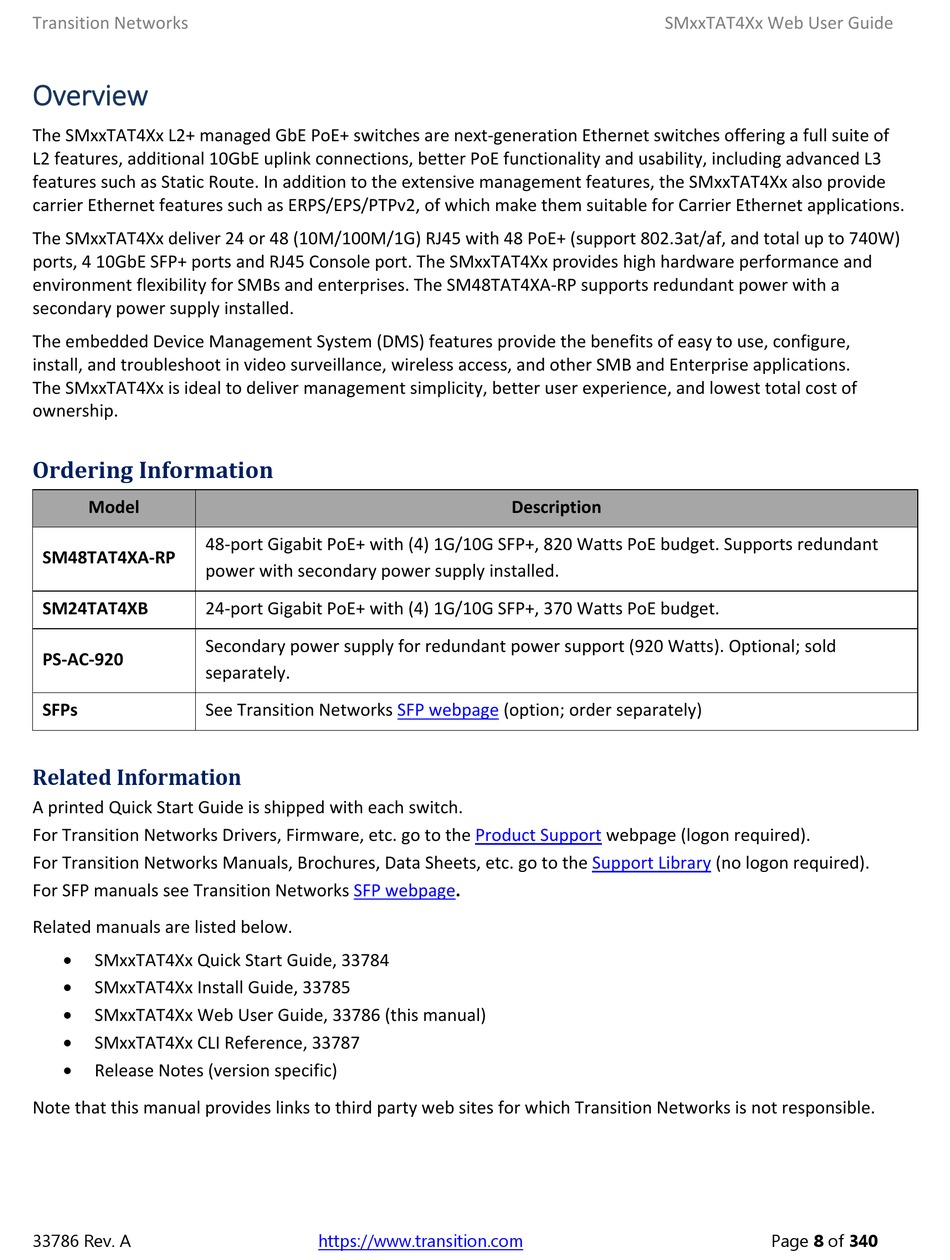

Overview
The SMxxTAT4Xx L2+ managed GbE PoE+ switches are next‐generation Ethernet switches offering a full suite of
L2 features, additional 10GbE uplink connections, better PoE functionality and usability, including advanced L3
features such as Static Route. In addition to the extensive management features, the SMxxTAT4Xx also provide
carrier Ethernet features such as ERPS/EPS/PTPv2, of which make them suitable for Carrier Ethernet applications.
The SMxxTAT4Xx deliver 24 or 48 (10M/100M/1G) RJ45 with 48 PoE+ (support 802.3at/af, and total up to 740W)
ports, 4 10GbE SFP+ ports and RJ45 Console port. The SMxxTAT4Xx provides high hardware performance and
environment flexibility for SMBs and enterprises. The SM48TAT4XA‐RP supports redundant power with a
secondary power supply installed.
The embedded Device Management System (DMS) features provide the benefits of easy to use, configure,
install, and troubleshoot in video surveillance, wireless access, and other SMB and Enterprise applications.
The SMxxTAT4Xx is ideal to deliver management simplicity, better user experience, and lowest total cost of
ownership.
Ordering Information
Model
48‐port Gigabit PoE+ with (4) 1G/10G SFP+, 820 Watts PoE budget. Supports redundant
SM48TAT4XA‐RP
power with secondary power supply installed.
SM24TAT4XB 24‐port Gigabit PoE+ with (4) 1G/10G SFP+, 370 Watts PoE budget.
Secondary power supply for redundant power support (920 Watts). Optional; sold
PS‐AC‐920
separately.
SFPs See Transition Networks SFP webpage (option; order separately)
Related Information
A printed Quick Start Guide is shipped with each switch.
For Transition Networks Drivers, Firmware, etc. go to the Product Support webpage (logon required).
For Transition Networks Manuals, Brochures, Data Sheets, etc. go to the Support Library (no logon required).
For SFP manuals see Transition Networks SFP webpage.
Related manuals are listed below.

SMxxTAT4Xx Quick Start Guide, 33784

SMxxTAT4Xx Install Guide, 33785

SMxxTAT4Xx Web User Guide, 33786 (this manual)

SMxxTAT4Xx CLI Reference, 33787

Release Notes (version specific)
Note that this manual provides links to third party web sites for which Transition Networks is not responsible.
