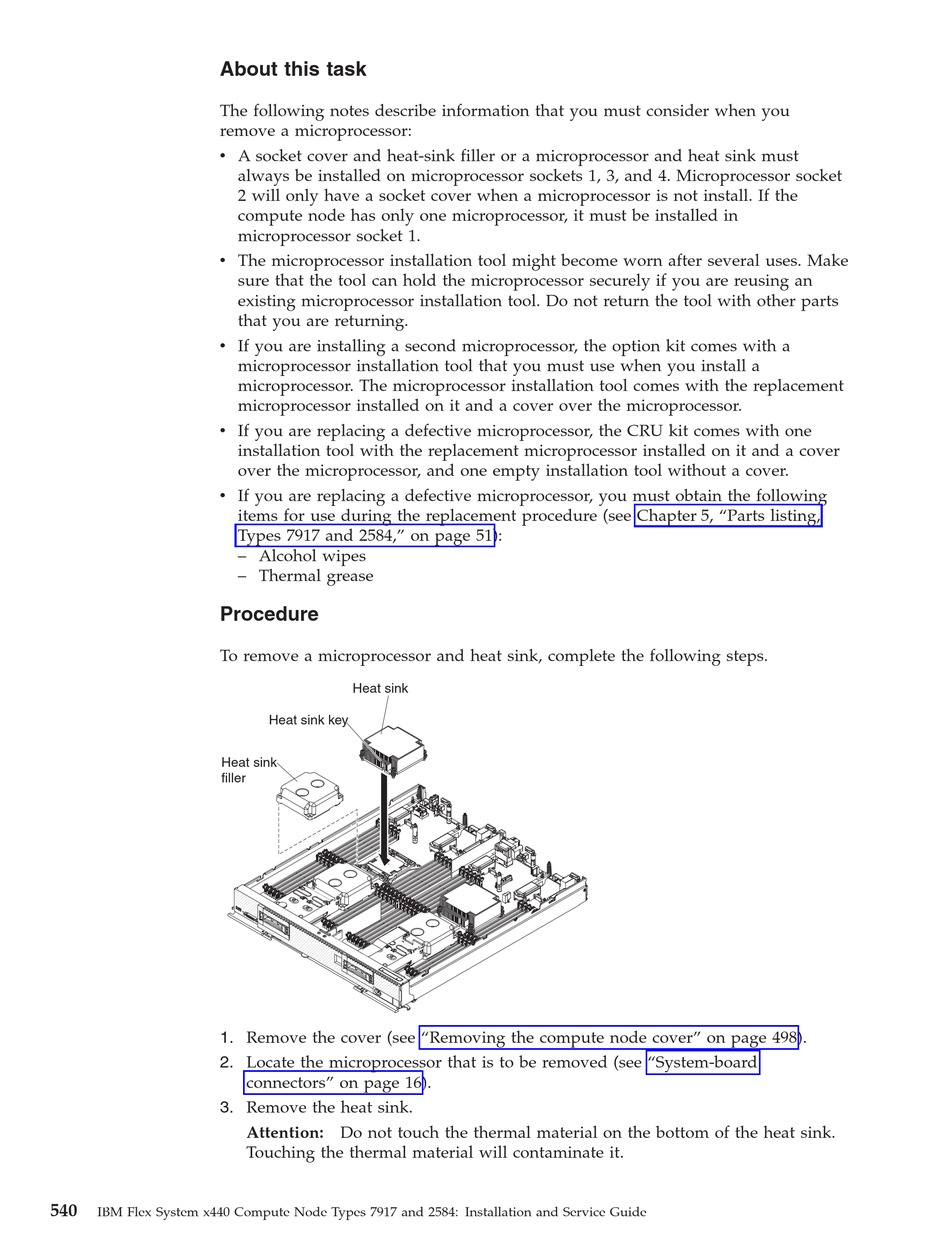

IBM Flex System x440 Compute Node Installation And Service Manual page 552

About this task
The following notes describe information that you must consider when you
remove a microprocessor:
v A socket cover and heat-sink filler or a microprocessor and heat sink must
v The microprocessor installation tool might become worn after several uses. Make
v If you are installing a second microprocessor, the option kit comes with a
v If you are replacing a defective microprocessor, the CRU kit comes with one
v If you are replacing a defective microprocessor, you must obtain the following
Procedure
To remove a microprocessor and heat sink, complete the following steps.
Heat sink
filler
1. Remove the cover (see "Removing the compute node cover" on page 498).
2. Locate the microprocessor that is to be removed (see "System-board
3. Remove the heat sink.
540
IBM Flex System x440 Compute Node Types 7917 and 2584: Installation and Service Guide
always be installed on microprocessor sockets 1, 3, and 4. Microprocessor socket
2 will only have a socket cover when a microprocessor is not install. If the
compute node has only one microprocessor, it must be installed in
microprocessor socket 1.
sure that the tool can hold the microprocessor securely if you are reusing an
existing microprocessor installation tool. Do not return the tool with other parts
that you are returning.
microprocessor installation tool that you must use when you install a
microprocessor. The microprocessor installation tool comes with the replacement
microprocessor installed on it and a cover over the microprocessor.
installation tool with the replacement microprocessor installed on it and a cover
over the microprocessor, and one empty installation tool without a cover.
items for use during the replacement procedure (see Chapter 5, "Parts listing,
Types 7917 and 2584," on page 51):
– Alcohol wipes
– Thermal grease
Heat sink
Heat sink key
connectors" on page 16).
Attention: Do not touch the thermal material on the bottom of the heat sink.
Touching the thermal material will contaminate it.
