Automatically notify Support: No
User response: Information only; no action is required.

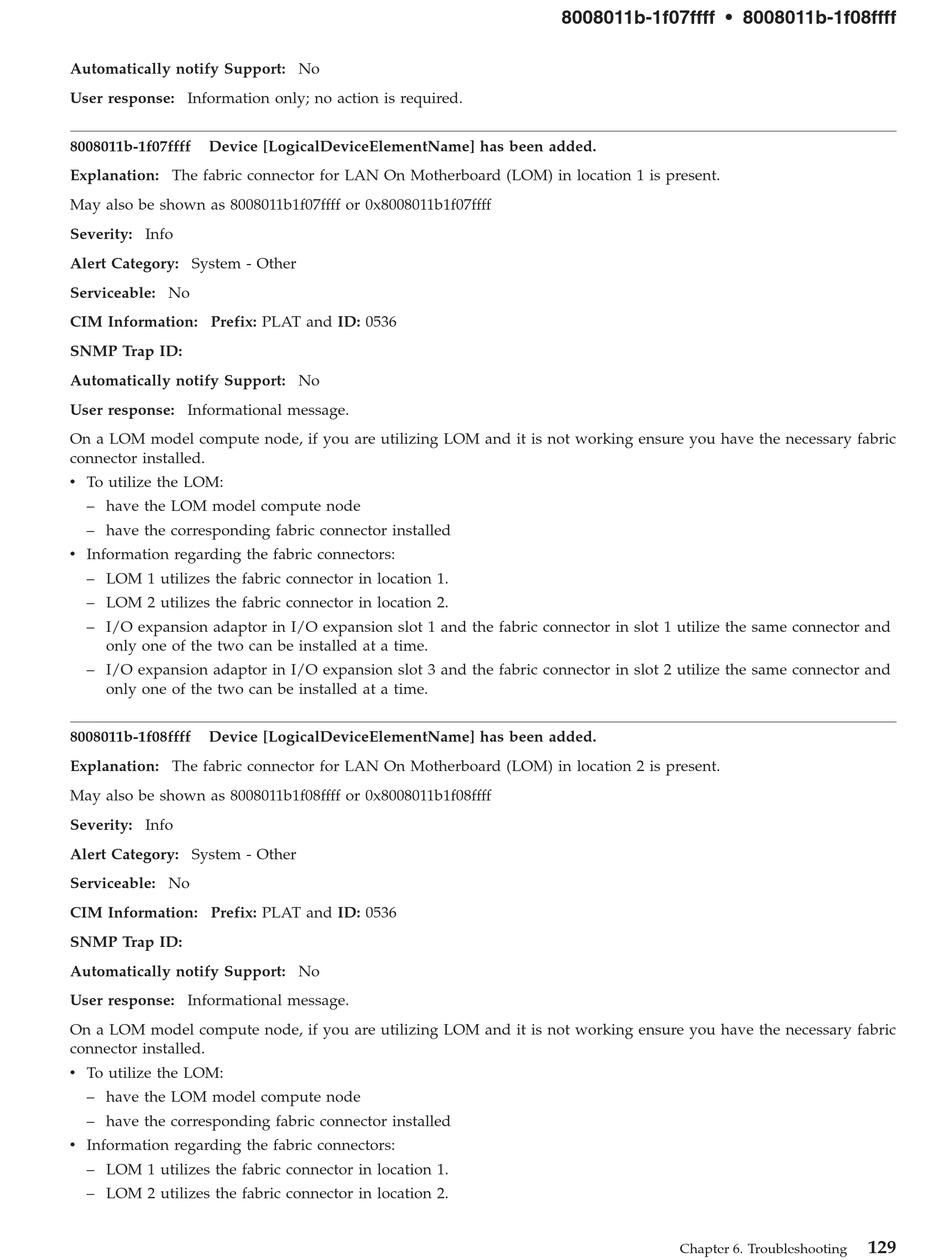

8008011b-1f07ffff Device [LogicalDeviceElementName] has been added.
Explanation: The fabric connector for LAN On Motherboard (LOM) in location 1 is present.
May also be shown as 8008011b1f07ffff or 0x8008011b1f07ffff
Severity: Info
Alert Category: System - Other
Serviceable: No
CIM Information: Prefix: PLAT and ID: 0536
SNMP Trap ID:
Automatically notify Support: No
User response: Informational message.
On a LOM model compute node, if you are utilizing LOM and it is not working ensure you have the necessary fabric
connector installed.
v To utilize the LOM:
– have the LOM model compute node
– have the corresponding fabric connector installed
v Information regarding the fabric connectors:
– LOM 1 utilizes the fabric connector in location 1.
– LOM 2 utilizes the fabric connector in location 2.
– I/O expansion adaptor in I/O expansion slot 1 and the fabric connector in slot 1 utilize the same connector and
only one of the two can be installed at a time.
– I/O expansion adaptor in I/O expansion slot 3 and the fabric connector in slot 2 utilize the same connector and
only one of the two can be installed at a time.
8008011b-1f08ffff Device [LogicalDeviceElementName] has been added.
Explanation: The fabric connector for LAN On Motherboard (LOM) in location 2 is present.
May also be shown as 8008011b1f08ffff or 0x8008011b1f08ffff
Severity: Info
Alert Category: System - Other
Serviceable: No
CIM Information: Prefix: PLAT and ID: 0536
SNMP Trap ID:
Automatically notify Support: No
User response: Informational message.
On a LOM model compute node, if you are utilizing LOM and it is not working ensure you have the necessary fabric
connector installed.
v To utilize the LOM:
– have the LOM model compute node
– have the corresponding fabric connector installed
v Information regarding the fabric connectors:
– LOM 1 utilizes the fabric connector in location 1.
– LOM 2 utilizes the fabric connector in location 2.
