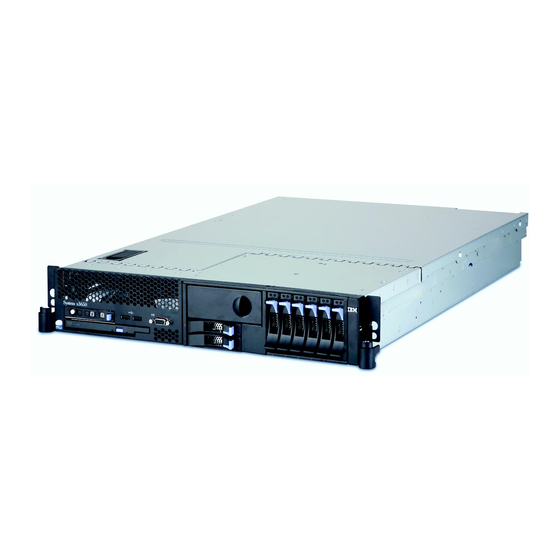

System x3650
Type 7979

Installation Guide

Welcome.
Thank you for buying an
IBM server.
Your server
is based on the X-Architecture
technology, and it features
superior performance, availability,
and affordability.
Installation Guide
This server
contains information for setting
up and configuring your server.
For detailed information about
your server, view the documentation
on the IBM
Documentation
You can also find the most
current information about
your server at
http://www.ibm.com/systems/support.
Start the server.
Did the server
start correctly?
Turn off the server
and install options.
Install the server in the rack cabinet
and cable the server and options;
then, restart the server.
Did the server
start correctly?
Use the IBM
ServerGuide program
to set up and
configure hardware.
Was the
server setup
CD.
completed?
ServerGuide to
install the operating
system?
Install applications,
such as IBM systems
management software
and IBM ServeRAID
programs
The server is ready to use.
http://www.ibm.com/support/mysupport/
to register the server.
No
Yes
Go to the Server Support
flow chart on the reverse
side of this page.
No
Yes
Go to the Server Support
flow chart on the reverse
side of this page.
No
Yes
Use
Go to the Web for instructions:
No
http://www.ibm.com/
Yes
Go to
systems/support/
