Next steps
1. Install the air shroud.
2. Follow the procedure listed in

Intrusion switch module

Removing the intrusion switch

Prerequisites
1. Follow the safety guidelines listed in the
2. Follow the procedure listed in the
3. Remove the air shroud.
4. Keep the plastic scribe ready.
Steps
1. Disconnect and remove the intrusion switch cable connector from connector on the system board.
NOTE: Observe the routing of the cable as you remove it from the system.
2. Using a plastic scribe, slide the intrusion switch out of the intrusion switch slot.

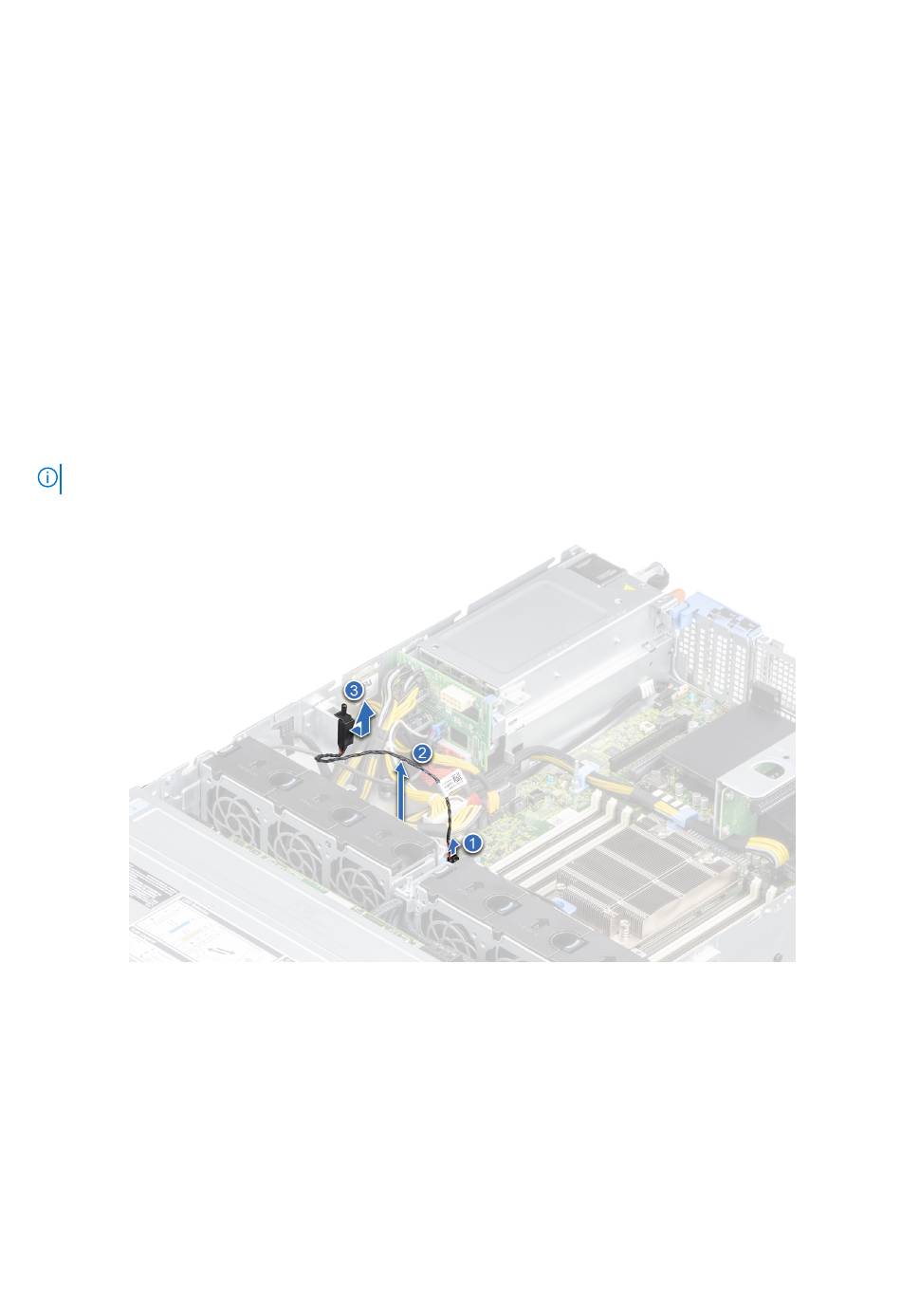

Figure 36. Removing the intrusion switch
Next steps
1. Replace the intrusion switch.

Installing the intrusion switch

Prerequisites
1. Follow the safety guidelines listed in the
60 Installing and removing system components
After working inside your system
Safety instructions
Before working inside your system
Safety instructions
on page 44.
on page 43.
on page 44.
on page 43.
