Next steps
1.
Replace the expansion card
Installing the expansion card riser
Prerequisites
1. Follow the safety guidelines listed in the
2. Follow the procedure listed in the
3.
Remove the air
shroud.
4. If installed,
remove the rear drive
5. Disconnect any cables connected to the expansion card.
6. If installed, remove the PCIe filler bracket.
7. If applicable,
install the expansion card in the expansion card
Steps
1. Align the guide on the expansion card riser with the guide pin on the chassis.
2. Lower the expansion card riser until the expansion card riser is firmly seated in the slot.

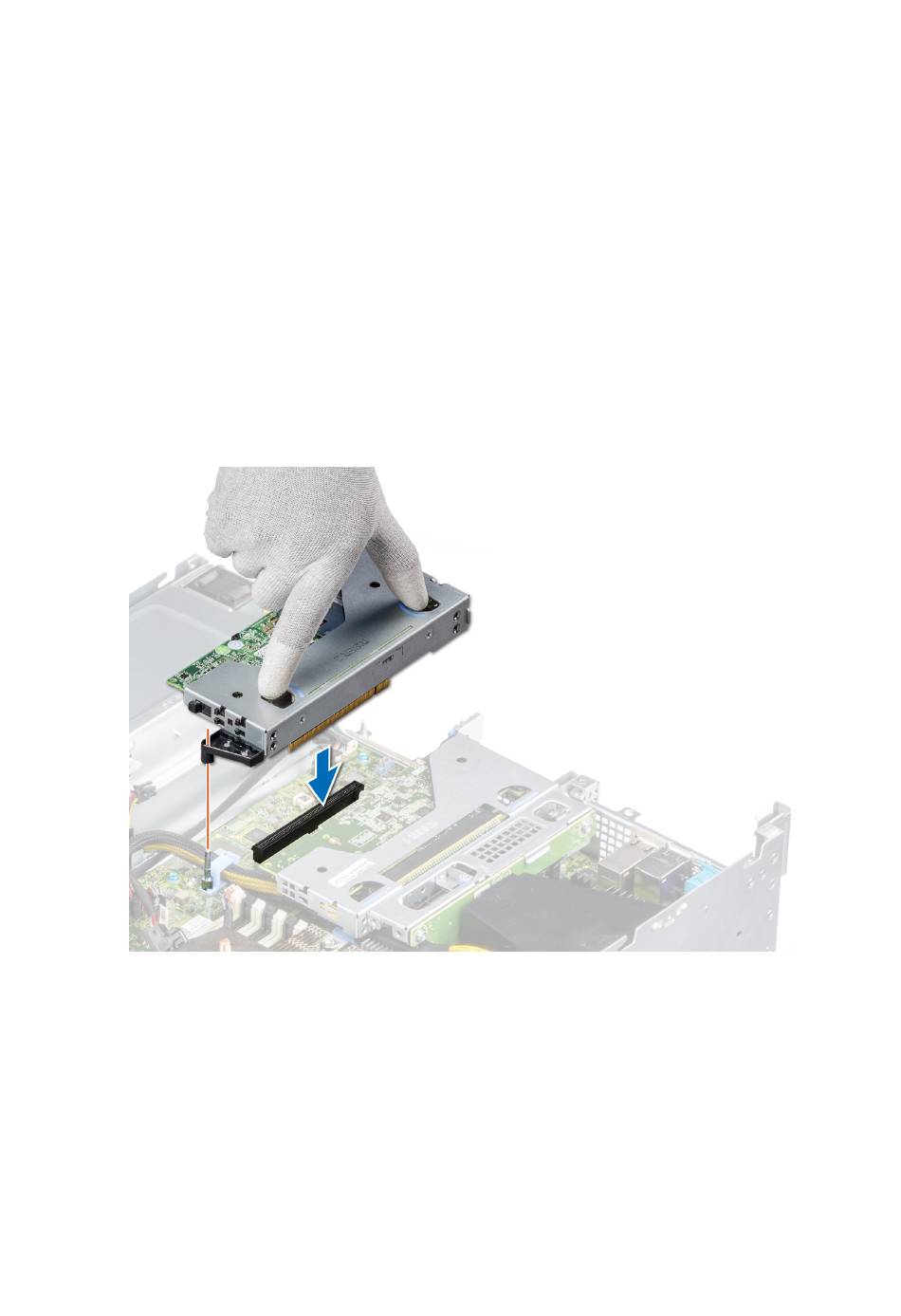

Figure 69. Installing the riser 2
a. For the riser 1A, tighten the captive screw to secure the riser to the system board.
92
Installing and removing system components
riser.
Safety instructions
Before working inside your system
cage.
on page 43.
on page 44.
riser.
