Test Procedures
8.3.5 Power Card in E-sized Drives
1
2
3
4
5
6
7
8
9
10
1
FK901: SMPS fuse
2
Screw (T20)
3
Current scaling card
4
MK102: Ribbon cable to control card
5
MK100: Current scaling card connector
6
MK105: CANBUS connection to fan power card
7
MK104: Signal test board connector
8
Standoff (8 mm)

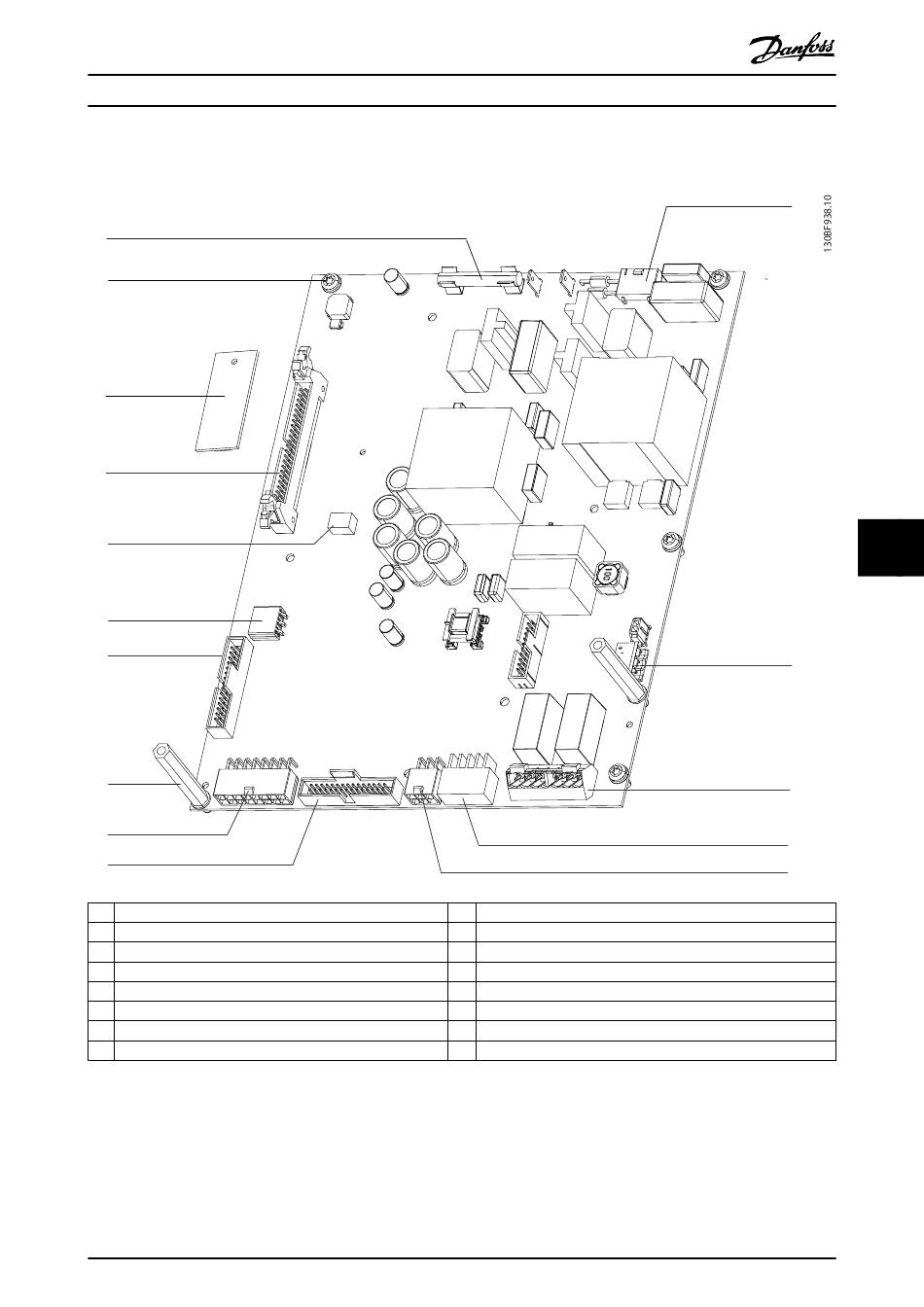

Illustration 8.5 Power Card in E-sized Drives
MG94A502
Service Guide
9
MK101: Current sensor feedback
10
MK103: Connector to gate drive card
11
MK902: Fan power card signals (MK803)
12
MK106: Brake temperature switch input
13
MK500: Customer terminals for relays 1 and 2
14
MK501: Mixing fan control
15
MK502: EMC relay control
–
–
Danfoss A/S © 02/2019 All rights reserved.
11
8
8
12
13
14
15
95
