E1h–E4h Drive Disassembly a...
1
2
3
4
5
6
7
8
9
1
Screw (T20)
2
Inrush card
13
13
3
Rectifier(+) bus plate
4
Connection point for load share/regen (optional)
5
Inrush card frame
6
Rectifier(-) bus plate

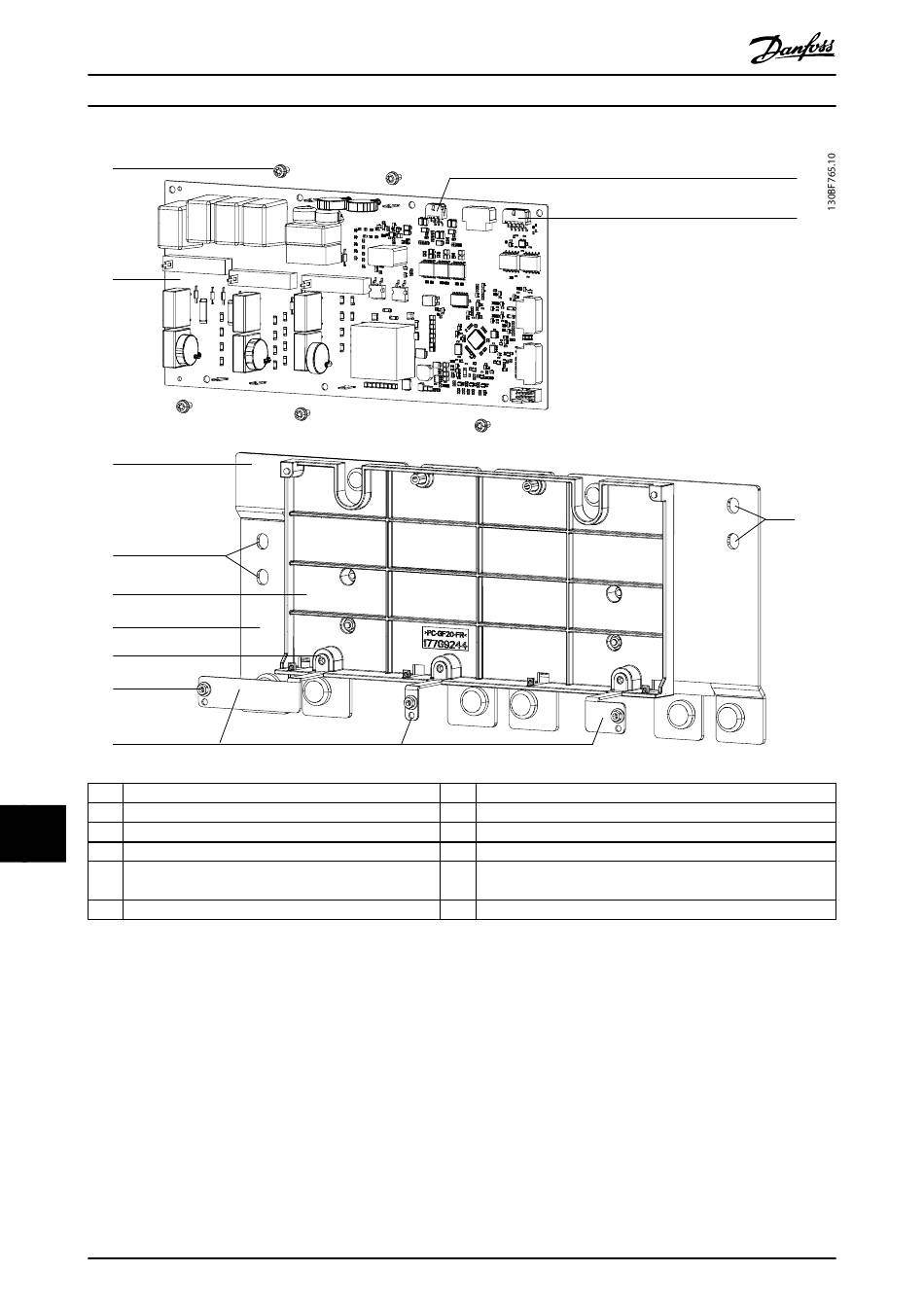

Illustration 13.5 Inrush Card and Inrush Card Frame
270
®
VLT
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
7
Alignment tab
8
Nut (7 mm)
9
Inrush busbars
10
MK109: SCR gate
11
MK110: Signals to power card (MK105) and fan power card
(MK1200)
12
Connection point for load share/regen (optional)
Danfoss A/S © 02/2019 All rights reserved.
10
11
12
MG94A502
