14.1.2 Unique Torque Values in E1h–E4h Drives
Some fasteners in E1h–E4h drives require unique, non-standard torque values. Refer to Illustration 14.1 for the type and
location of these fasteners.
1
14
14
1
All M4 fasteners
Torque: 2.27 Nm (20.1 lb-in)
2
3 M5 fasteners
Torque: 3.91 Nm (34.6 lb-in)
3
All gasketed M5 fasteners except door screws
Torque: 3.91 Nm (34.6 lb-in)

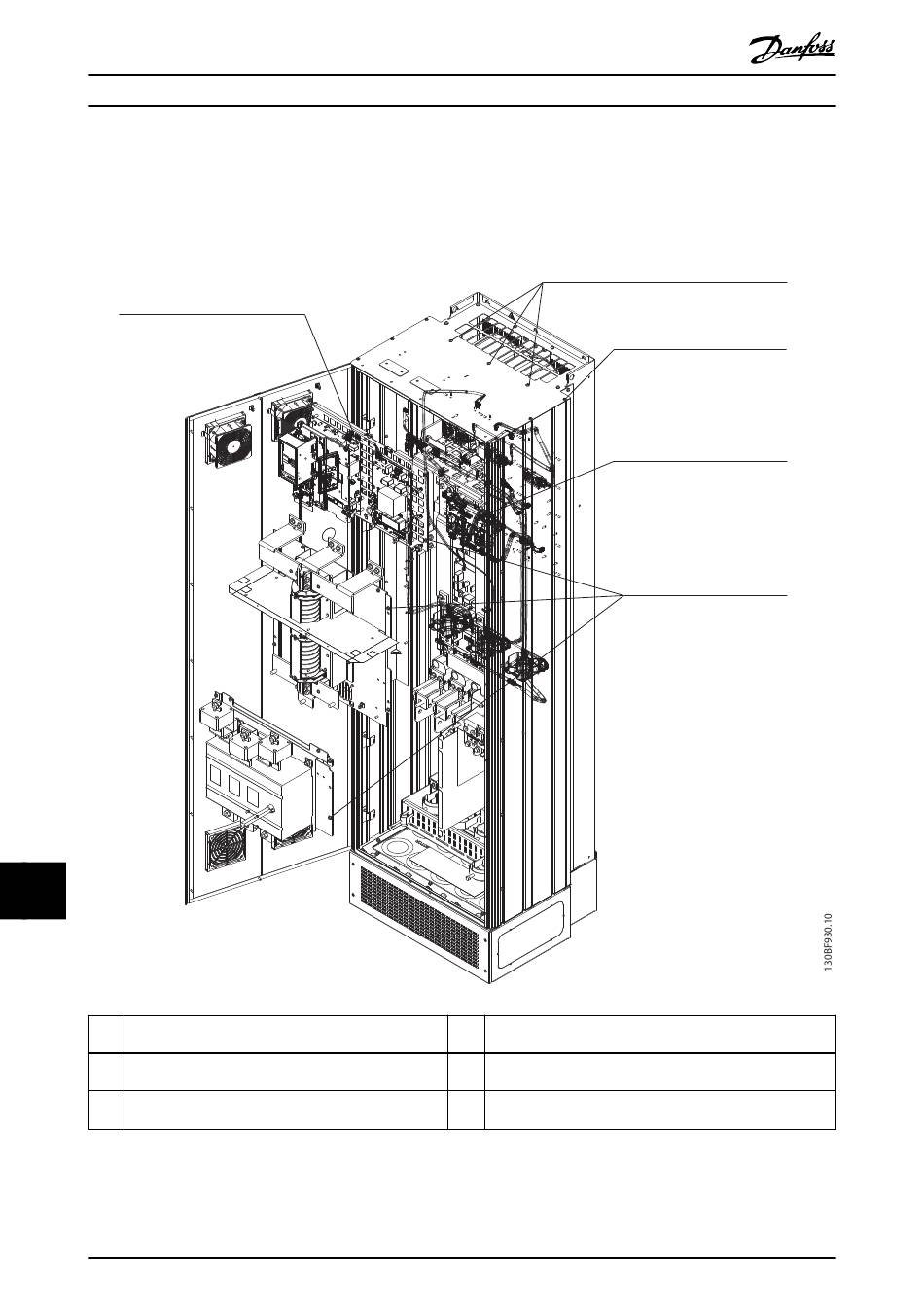

Illustration 14.1 Unique Torque Values, E1h–E4h Drives
320
®
VLT
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
4
6 M5 fasteners attaching gate drive card
Torque: 2.27 Nm (20.1 lb-in)
5
All M5 fasteners attaching input plates to side mounting rail
Torque: 3.91 Nm (34.6 lb-in)
–
–
Danfoss A/S © 02/2019 All rights reserved.
2
3
4
5
MG94A502
