D1h/D3h/D5h/D6h/J8 Drive Di...
1
2
3
4
5
6
7
8
9
1
FK901: SMPS fuse
2
Screw (T20)
3
Current scaling card (not in parallel drive modules)
4
MK102: Control card to power card connection
5
MK100: Current scaling card connector (not in parallel drive
modules)
6
MK104: Signal test board connector
7
Standoff (8 mm)
8
MK101: Current sensor feedback

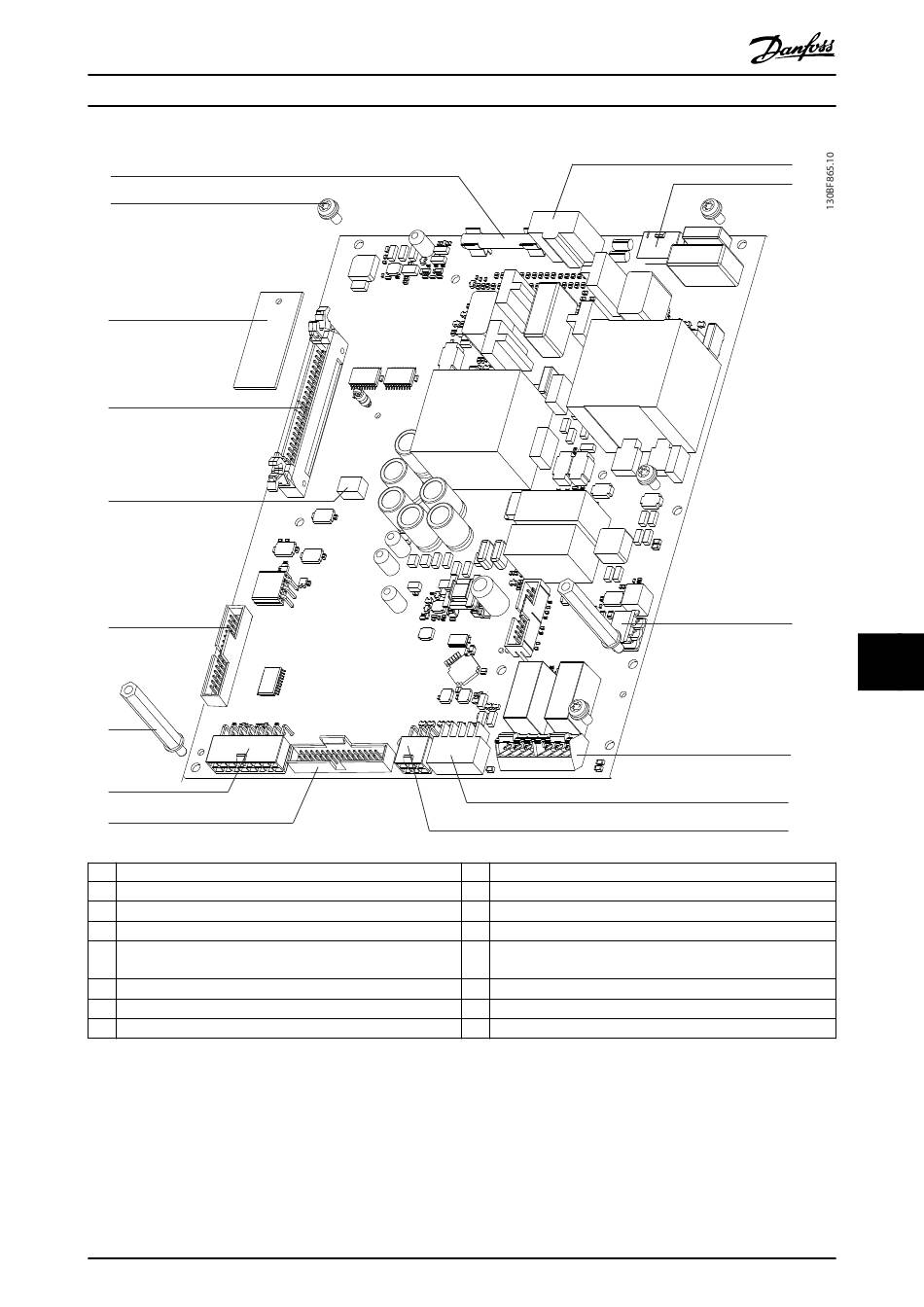

Illustration 10.3 Power Card
MG94A502
Service Guide
9
MK103: Gate drive and inrush control signals
10
MK901: DC input terminals (used with split bus power supply)
11
MK902: DC voltage from DC bus to power card SMPS
12
MK106: Brake temperature switch input
13
MK500: Customer terminals for relays 1 and 2
14
MK501: Heat sink and door/top fan control
15
MK502: EMC relay control
–
–
Danfoss A/S © 02/2019 All rights reserved.
10
11
12
10
10
13
14
15
135
