Danfoss VLT FC Series Service Manual page 227

D2h/D4h/D7h/D8h/J9 Unit Dis...
1
2
3
4
1 Balance/high frequency card
2 DC(+) plate
3 Midplate
4 DC(-) plate
5 Insulator sheet 1
6 Insulator sheet 2

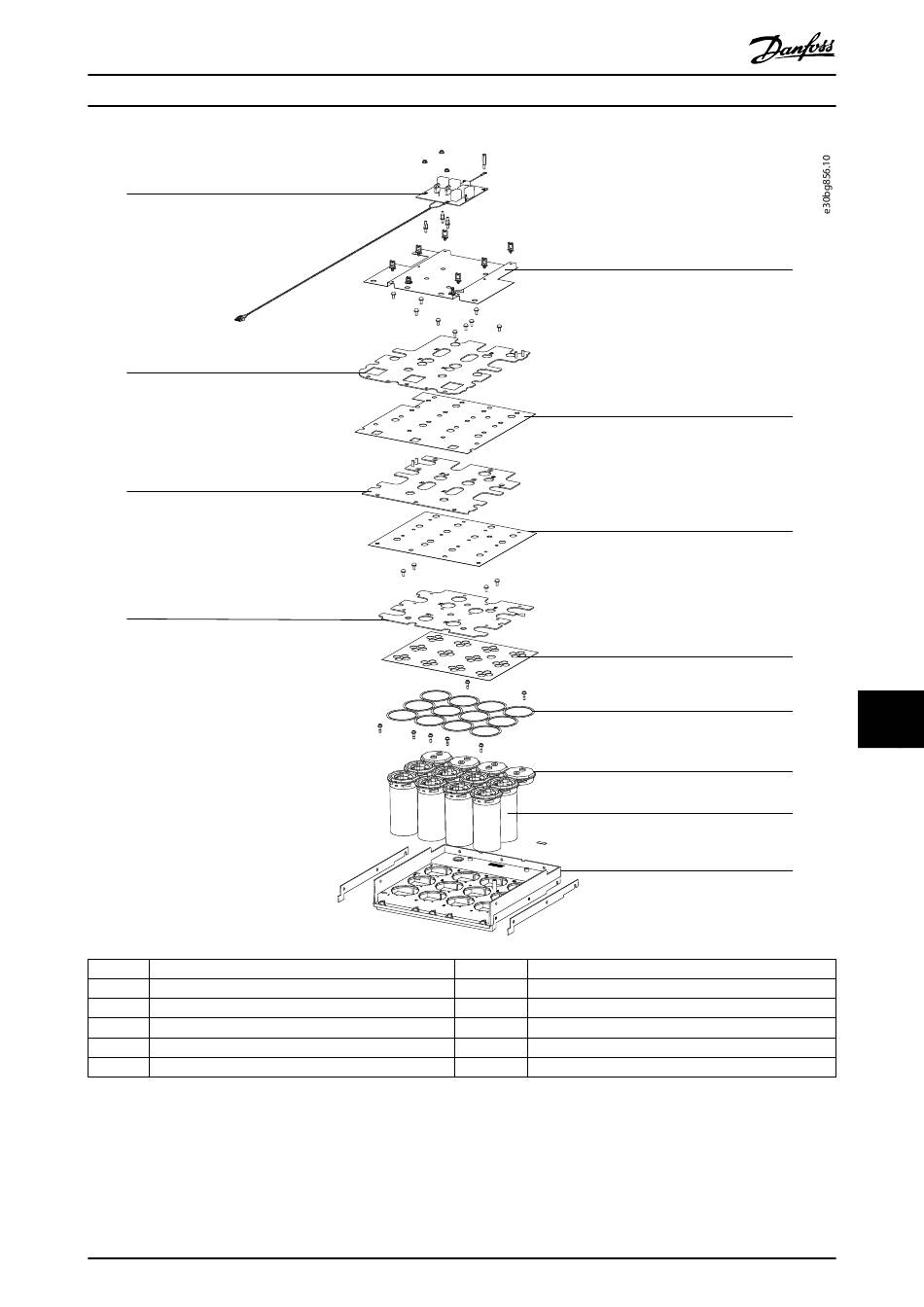

Illustration 11.22 DC Twistlock Capacitors, 240/400 V AC Unit
MG94A502
Service Guide
7
8
9
10
11
12
Danfoss A/S © 02/2019 All rights reserved.
Insulator sheet 3
Capacitor locking plate
Capacitor gasket
Plug
Twistlock DC capacitor
Capacitor bank housing
5
6
7
8
11 11
9
10
11
12
