E1h–E4h Drive Disassembly a...
1
2
3
4
5
6
7
8
9
10
11
13
13
12
1
DC power cable (to power card shelf )
2
Balance/high frequency card
3
Ground bar
4
Insulator sheet (for balance/high frequency card)
5
DC(+) bus plate
6
Insulator sheet 1

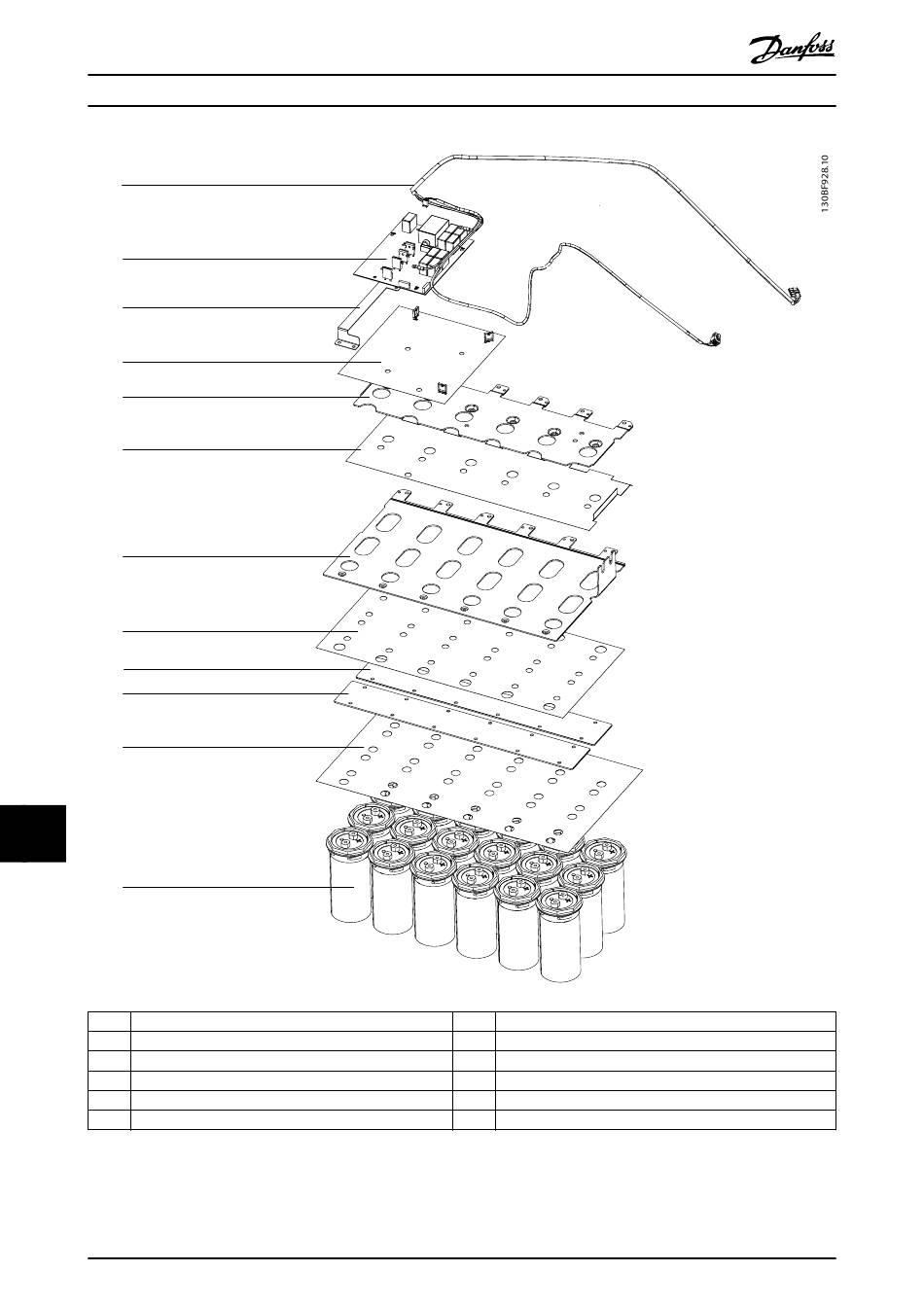

Illustration 13.21 E1h/E3h Capacitor Bank, 525–690 V AC (T7), 18 DC Capacitors
300
®
VLT
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
7
DC(-) bus plate
8
Insulator sheet 2
9
Midplate 1 (upper)
10
Midplate 2 (lower)
11
Insulator sheet 3
12
DC capacitors
