D1h/D3h/D5h/D6h/J8 Drive Di...
1
2
3
4
1
Balance/high-frequency card
2
DC(-) plate
3
Midplate
4
DC(+) plate
5
Insulator sheet 1
6
Insulator sheet 2

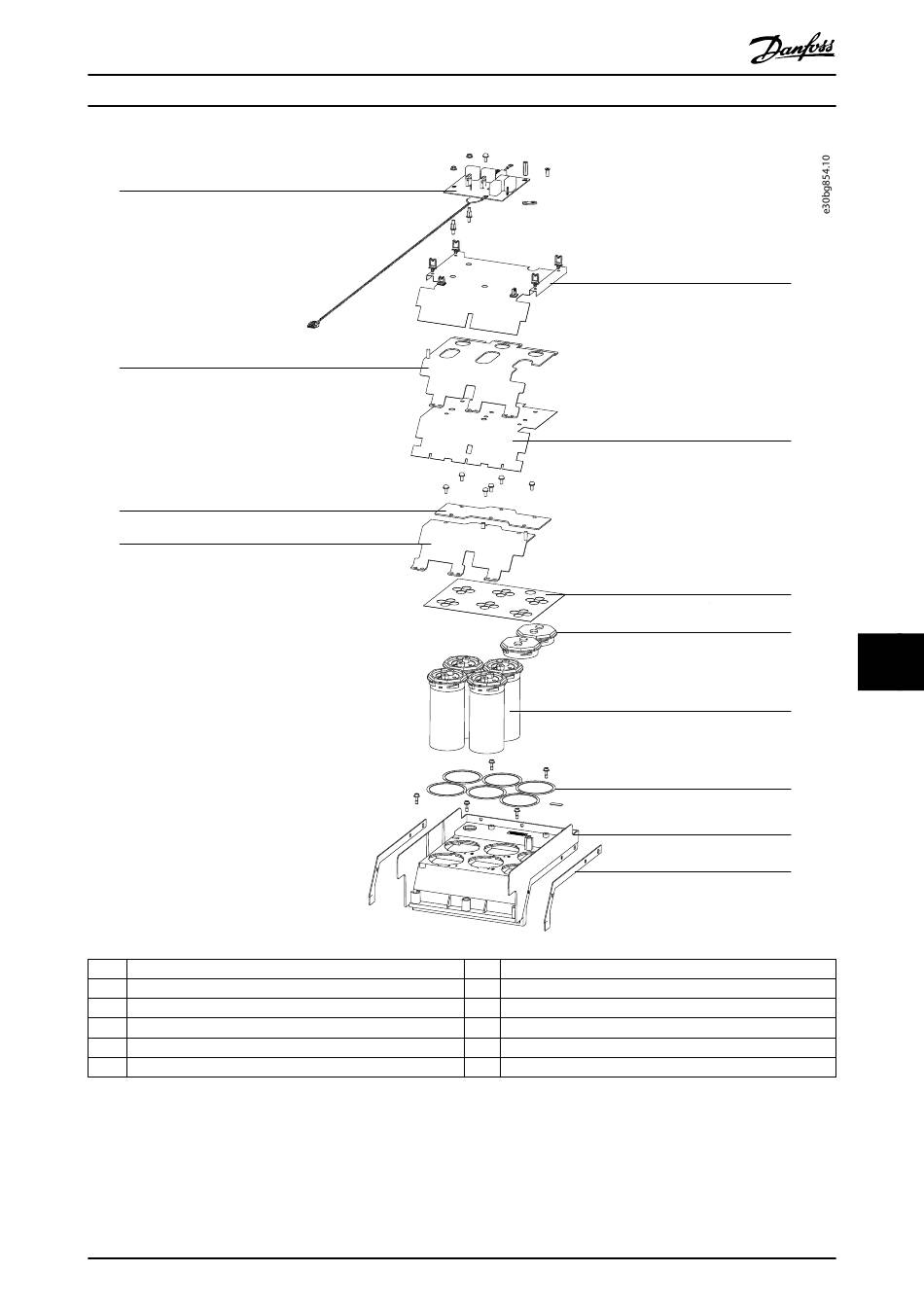

Illustration 10.18 Twistlock DC Capacitor Bank, 240/400 V AC Unit
MG94A502
Service Guide
7
Insulator sheet 3
8
Plug
9
Twistlock DC capacitor
10
O-ring gasket
11
Capacitor housing
12
Housing gasket
