3.6.3 Exploded View of Multi-Drive System

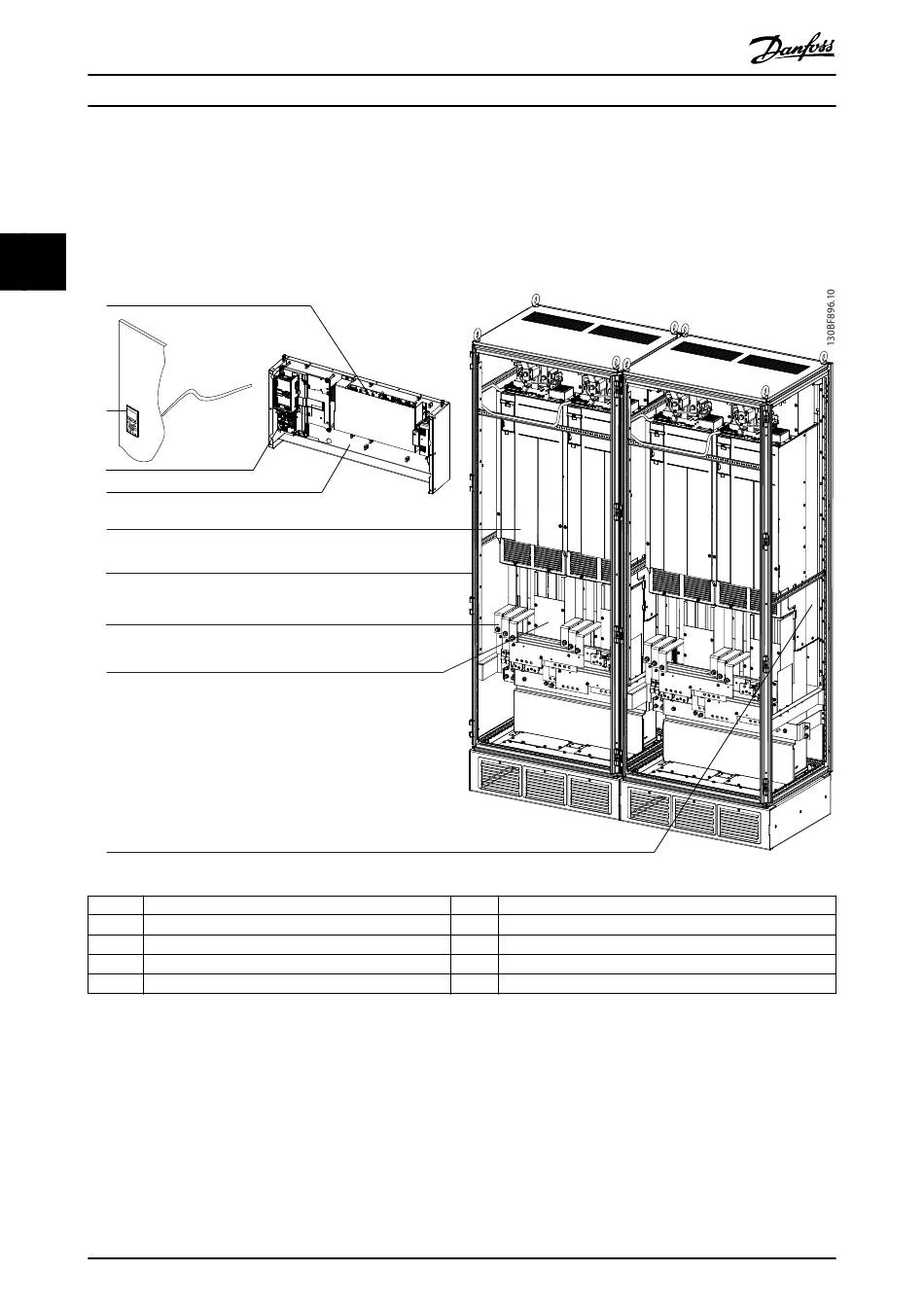

This example of a 4-module system is composed of a control shelf and 4 VLT
enclosures. The control shelf attaches to the enclosure and holds the LCP and control card, as well as the MDCIC and control
terminals. Each module connects to the control shelf via a 44-pin ribbon cable. This example also includes an optional
3 3
busbar kit and optional cooling duct kits.
1
2
3
4
5
6
7
8
9
1 MDCIC (behind cover plate)
2 LCP and cable
3 Control card
4 Control shelf
5 Drive module
Illustration 3.4 Exploded View of 4-module System
24
®
VLT FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
6 Enclosure
7 Busbar kit (optional)
8 EMC Shield
9 Cooling kit (optional)
– –
