Product Overview

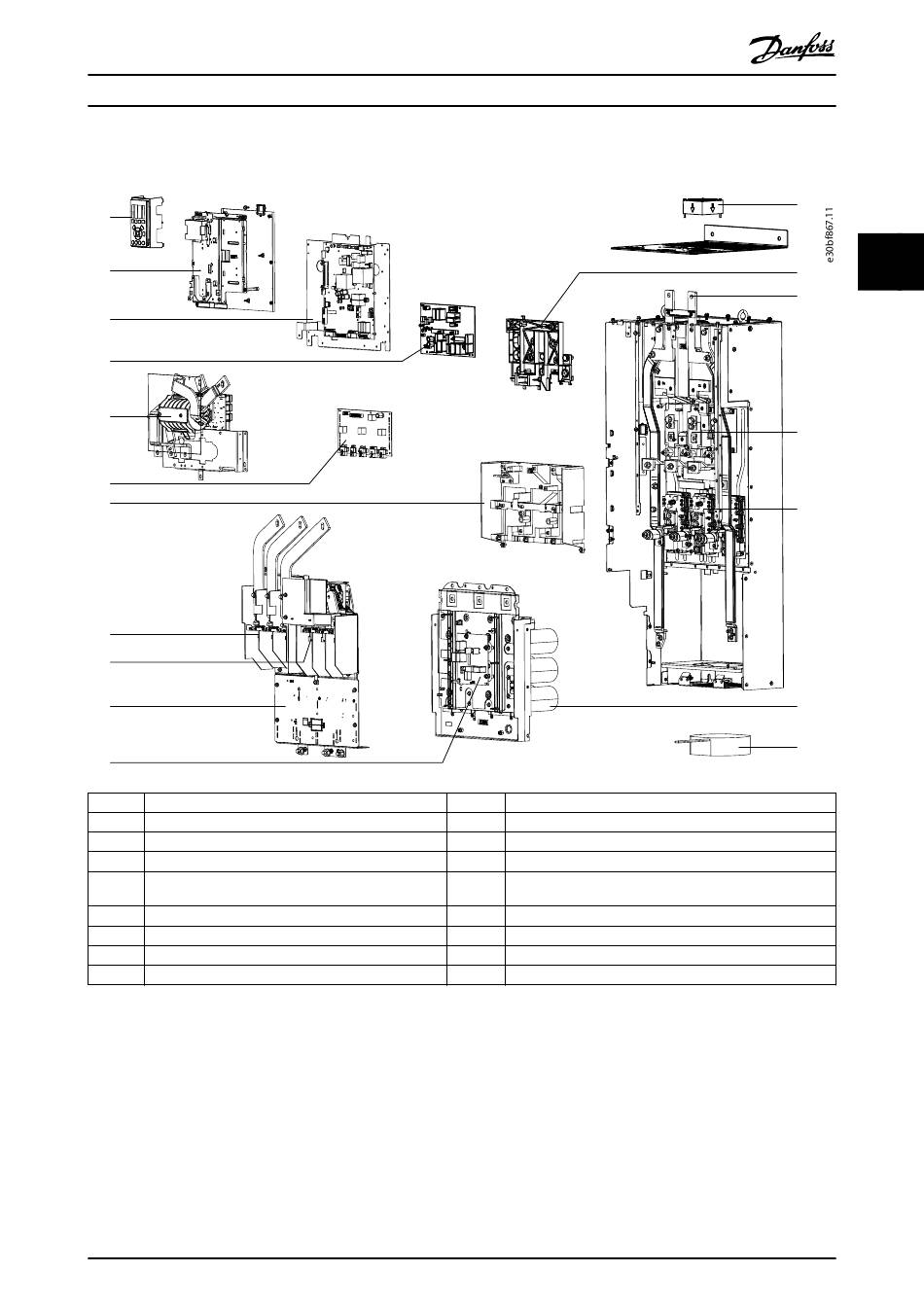

3.6.2 Exploded View of D2h/D4h/D7h/D8h/J9 Drive
1
2
3
4
5
6
7
8
9
10
11
1
Local control panel and LCP cradle
2
Control card and mounting plate
3
Power card and mounting plate
4
Inrush card
5
RFI filter (optional)
6
Gate drive card
7
Gate drive card support bracket
8
Mains input terminals
9
Motor terminals
Illustration 3.3 Exploded View D4h Drive (D2h/D7h/D8h/J9 Drives are similar).
MG94A502
Service Guide
10
Power terminal mounting plate
11
Balance/high frequency card
12
Top fan (IP20 only)
13
Inrush card bracket
14
Regen/load share terminals (optional)
15
SCR/diode modules
16
IGBT modules
17
Capacitor bank
18
Heat sink fan
Danfoss A/S © 02/2019 All rights reserved.
12
3
3
13
14
15
16
17
18
23
