Product Overview
3.6.7 Exploded View of E-sized Unit
1
3
3
2
3
4
5
6
7
8
9
10
1
LCP (Local control panel)
2
Control card
3
Power card
4
Fan power card
5
Power card mounting plate
6
Upper input plate
7
RFI filter (optional)
8
AC fuses (optional)
9
Lower input plate
10
AC input busbars
11
Inrush card

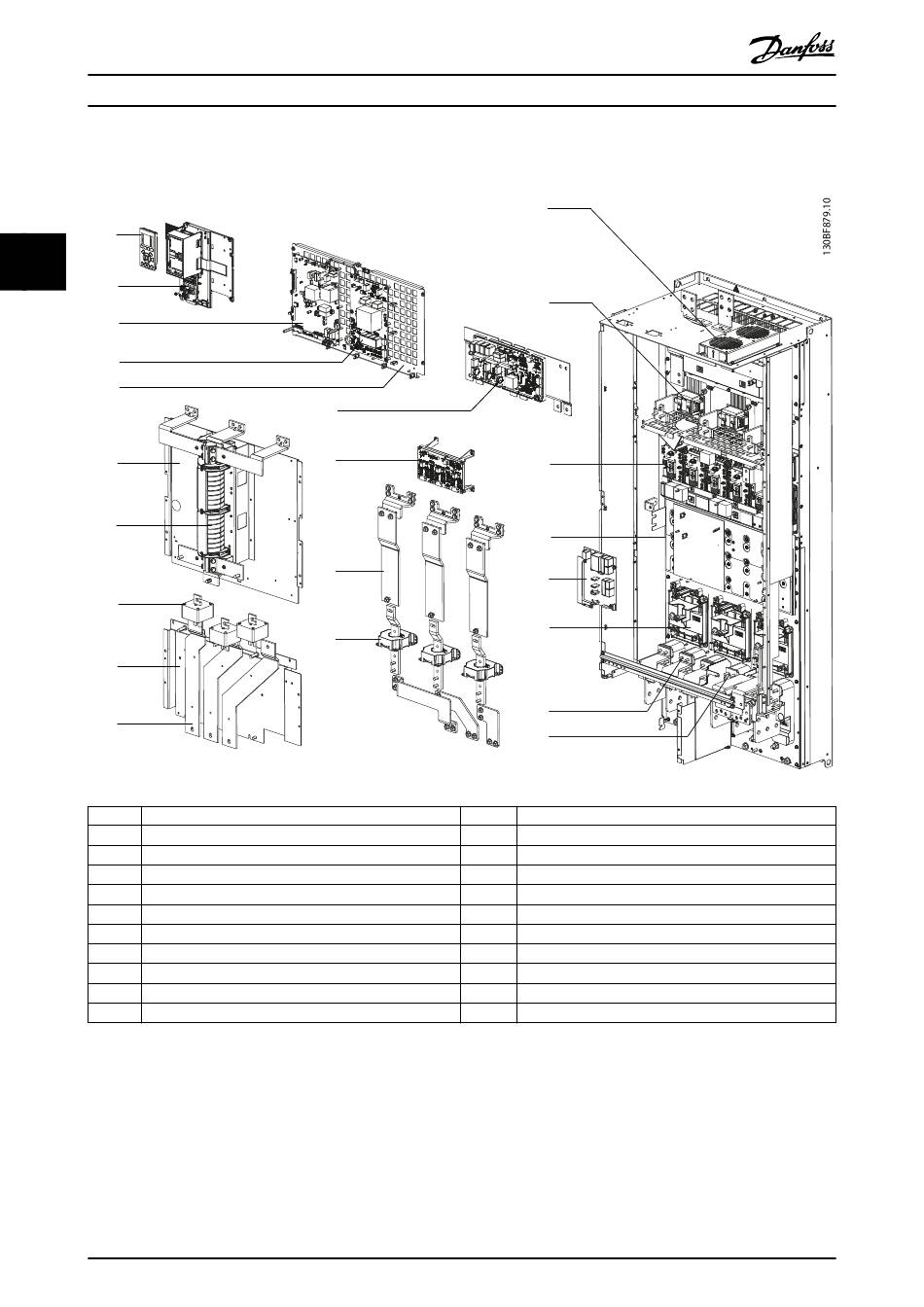

Illustration 3.8 Exploded View E3h Unit (E4h Unit is similar).
28
®
VLT
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
11
12
13
14
12
13
14
15
16
17
18
19
20
21
22
Danfoss A/S © 02/2019 All rights reserved.
15
16
17
18
19
20
21
22
Gate drive card
Motor busbar assembly
Current sensors
Top fan
SCR/diode modules
IGBT modules
DC capacitor bank
Balance/high frequency card
Heat sink fans
Input terminals
Motor terminals
MG94A502
