Danfoss VLT FC Series Service Manual page 294
Hide thumbs
Also See for VLT FC Series:
- Operating instructions manual (64 pages) ,
- Operating manual (26 pages) ,
- Installation manual (12 pages)
Table of Contents
Advertisement
E1h–E4h Drive Disassembly a...
1
2
3
4
5
6
7
8
1
Insulator sheet
2
Cable retaining clip
13
13
3
Balance/high frequency card
4
Nut (8 mm)

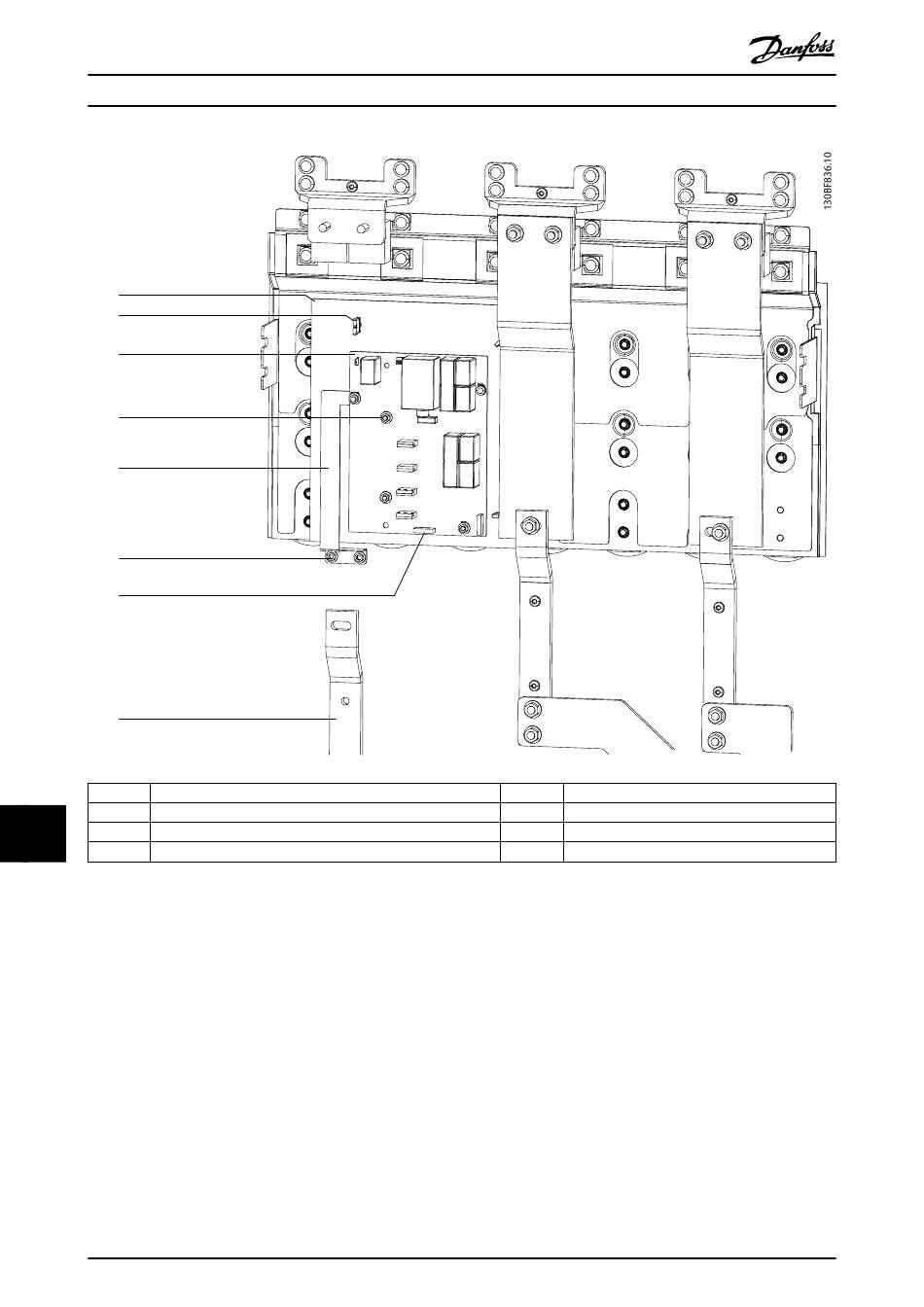

Illustration 13.16 Balance/High Frequency Card in E2h/E4h, 580–690 V AC (Other Drives Similar)
292
®
VLT
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
5
6
7
8
Danfoss A/S © 02/2019 All rights reserved.
Balance/high frequency card ground bar
Ground bar nut (8 mm)
MK100 cable connector (only in 690 V drives)
Left current sensor busbar
MG94A502
