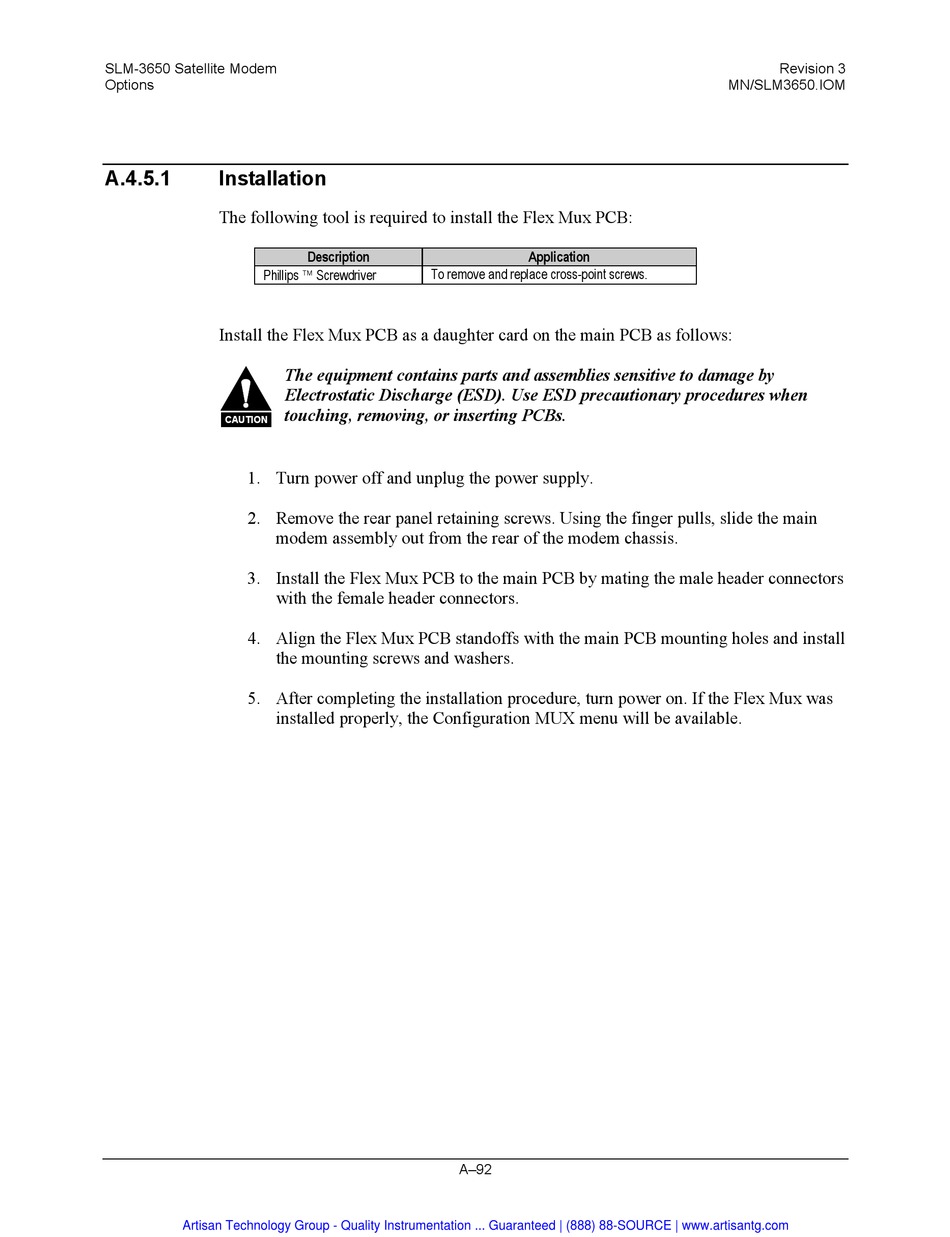

SLM-3650 Satellite Modem
Options
A.4.5.1 Installation
The following tool is required to install the Flex Mux PCB:
Phillips  Screwdriver
Install the Flex Mux PCB as a daughter card on the main PCB as follows:
The equipment contains parts and assemblies sensitive to damage by
Electrostatic Discharge (ESD). Use ESD precautionary procedures when
touching, removing, or inserting PCBs.
CAUTION
1. Turn power off and unplug the power supply.
2. Remove the rear panel retaining screws. Using the finger pulls, slide the main
modem assembly out from the rear of the modem chassis.
3. Install the Flex Mux PCB to the main PCB by mating the male header connectors
with the female header connectors.
4. Align the Flex Mux PCB standoffs with the main PCB mounting holes and install
the mounting screws and washers.
5. After completing the installation procedure, turn power on. If the Flex Mux was
installed properly, the Configuration MUX menu will be available.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Description
To remove and replace cross-point screws.
A–92
Application
Revision 3
MN/SLM3650.IOM
