Performance With Uncoded, Bpsk, Qpsk, And Oqpsk; Typical Spectral Occupancy; Figure 1-11. Uncoded Curves; Table 1-12. Uncoded Values - Comtech EF Data SLM-3650 Installation And Operation Manual

SLM-3650 Satellite Modem
Introduction
1.5.8

Performance with Uncoded, BPSK, QPSK, and OQPSK

Table 1-12 lists the Turbo Codec specification for performance. All values are for
operating in uncoded mode. Refer to Figure 1-11 for uncoded values.
1.6

Typical Spectral Occupancy

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table 1-12. Uncoded Values

Uncoded
BER 1:1 Rate
-3
10 8.0
-4
10 9.6
-5
10 10.8
-6
10 11.6
-7
10 12.4
-2
10
-3
10
-4
10
-5
10
-6
10
BER
-7
10
-8
10
-9
10
-10
10
7.0 8.0 9.0 10.0 11.0
E /N
b

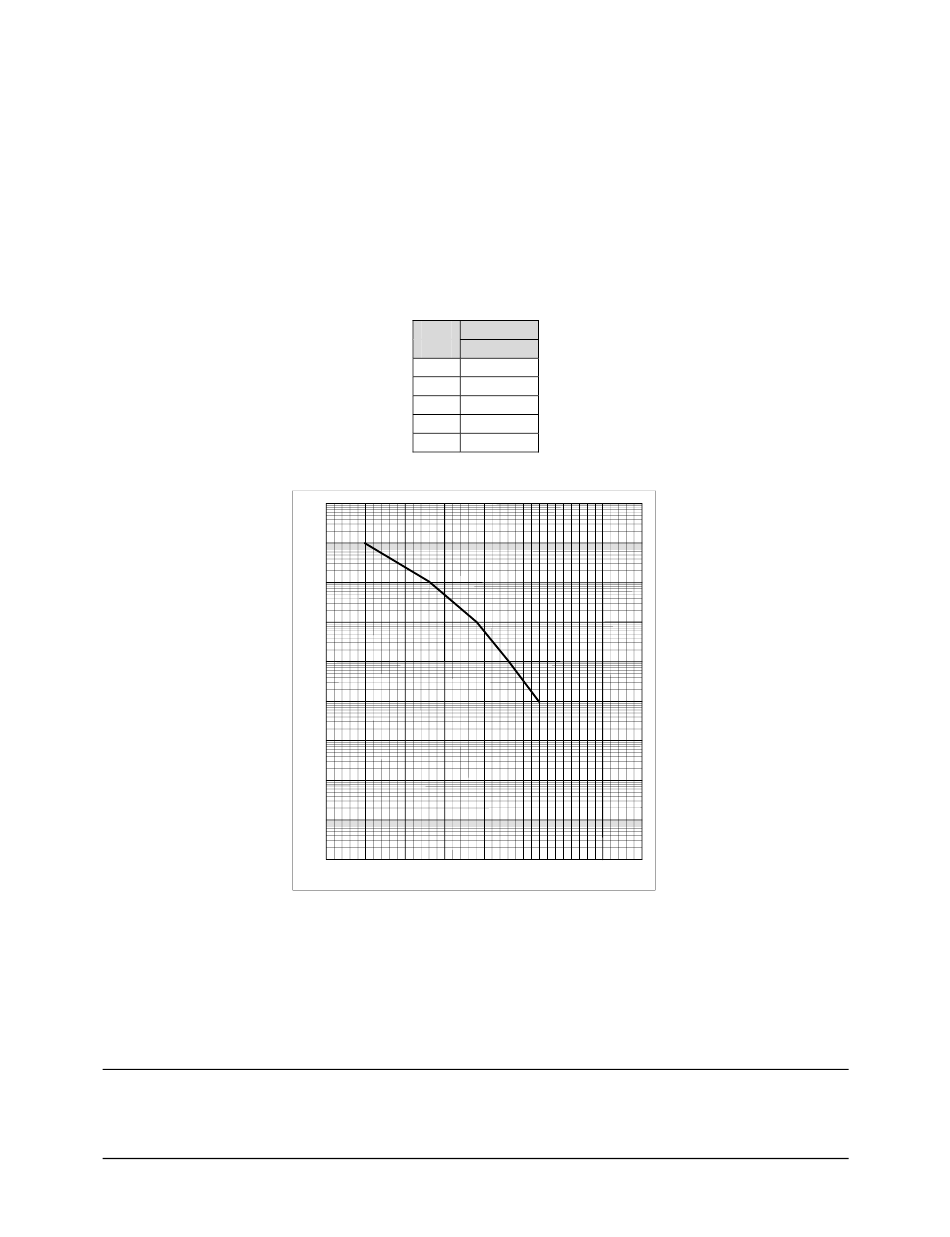

Figure 1-11. Uncoded Curves
