Figure A-30. Flex Mux - Comtech EF Data SLM-3650 Installation And Operation Manual

SLM-3650 Satellite Modem
Options
Number of Channels
User Channel #1
Drop and Insert
User Channel #1
Pass Through Mode
User Channel #2
ADPCM Audio Channel
User Channel #3
AUPC Channel
User Channel #3
Auxiliary Data Channel
User Channel #4
AUPC Channel
User Channel #4
Auxiliary Data Channel #2
Aggregate Data Rate
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

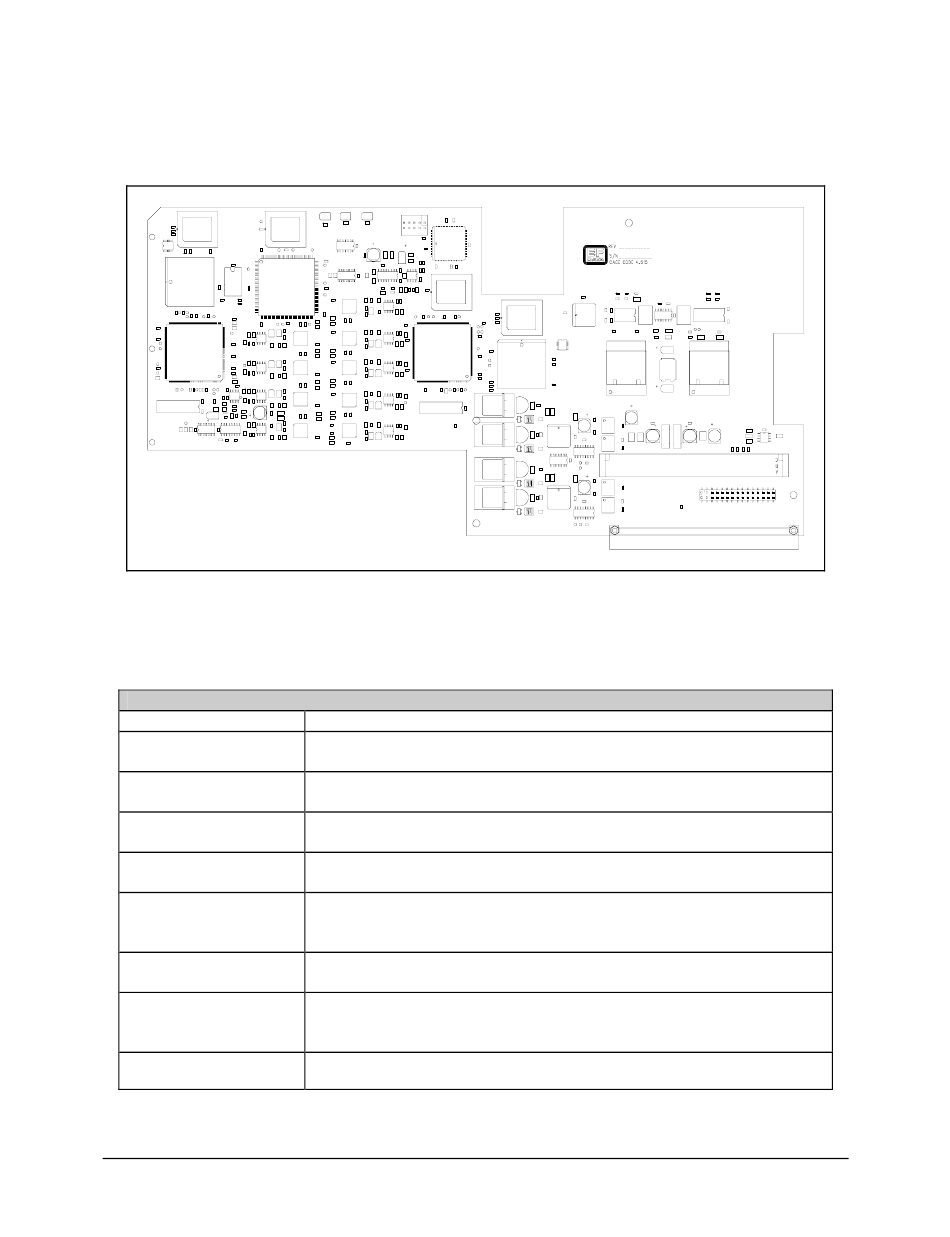

Figure A-30. Flex Mux

Table A-26. System Specifications
System Specifications
1 to 4, Each Channel is independently configurable.
G.703 E1 with Nx64 kbps channels.
G.703T1 with Nx64 kbps channels.
G.703 E1 (2048 kbps).
G.703 T1 (1544 kbps).
32 kbps audio channel 600Ω , balanced 4-wire.
AUPC is included to provide remote output power adjustment capability.
EIA-422 SYNC 0.6 to 4000 kbps.
EIA-232 ASYNC 0.6 to 64 kbps with CTS flow control.
(100 kbps steps.)
AUPC is included to provide remote output power adjustment capability.
EIA-422 SYNC 0.6 to 4000 kbps.
EIA-232 ASYNC 0.6 to 64 kbps with CTS flow control.
(100 kbps steps.)
4.8 to 4001.3 kbps, the aggregate data rate is the sum of all tributary data rates plus the multiplex
overhead.
A–90
Revision 3
MN/SLM3650.IOM
